|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||Wooden Case|
|Delivery Time:||15~20work days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||30 per month|
|Product Name:||Image Measuring Instrument||Dimension:||1750*920*1700mm|
|Measuring Range:||400*300*200mm||Measuring Accuracy:||2.5+L/200um|
|Repeatability:||2.5um||Linear Scale Resolution:||0.1um|
|Driving System:||CNC Control,close-loop AC Servo Driving System,joystick,mouse Or Keyboard Control||Illumination:||Programmable 8 Sections LED Ring Light Parallel LED Contour Light|
digital readout display,
dro readout systems
OEM 2.5d Image Measuring Instrument 3d Automatic Program Running System

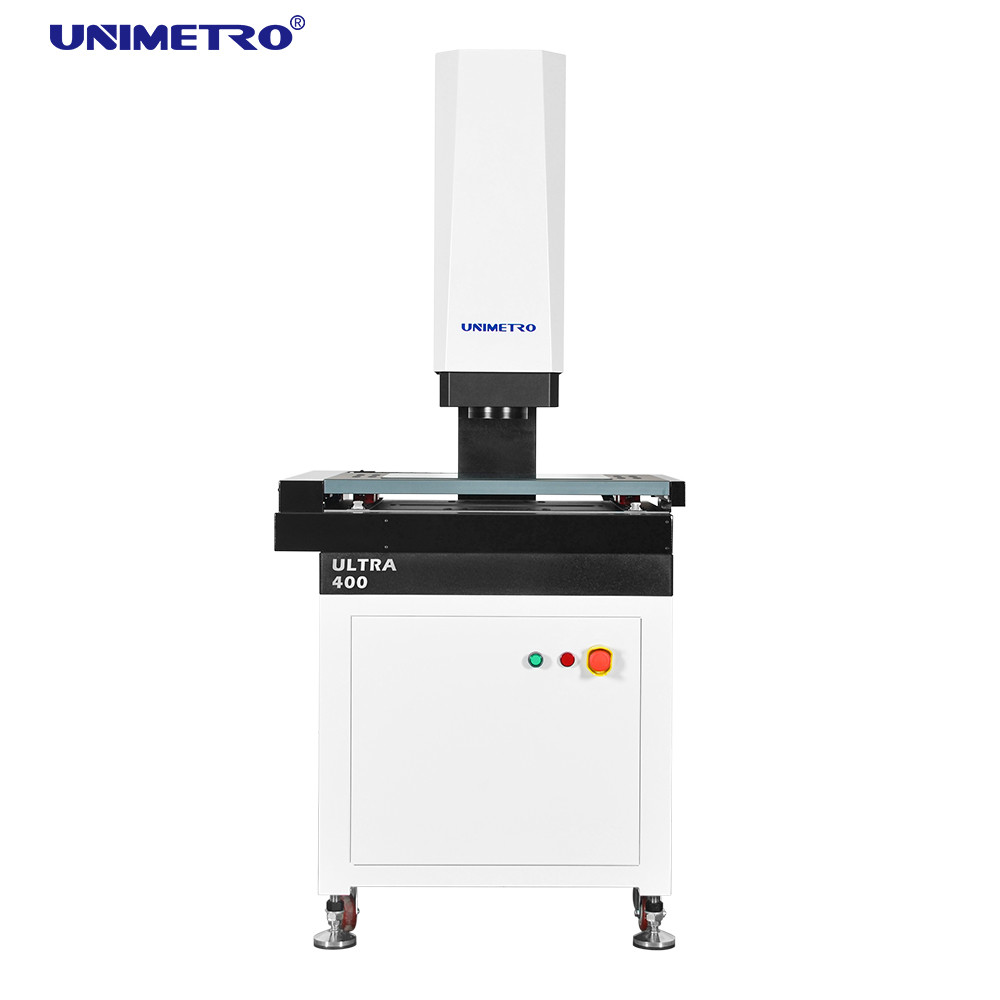

ULTRA series Image Measuring Instrument is a cantilever high accuracy fully automatic vision measuring machine developed for GD&T measurement with 3 axis automatic motorized control. It equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately.
Image Measuring Instrument Characteristics:
◆ Quality details control
Ø Granite base and column, excellent stability;
Ø Aluminum work stage,make the motion control fast reacting and flexible;
Ø Work stage with hard oxidation surface processing anti-scratch;
Ø Standard with precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system;
Ø Integrated control system,embedded with motion control,and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable.
◆ High performance configuration
Ø XYZ three axis CNC automatic control and accurate positioning;
Ø 0.1 um high precision glass linear scale to ensure the positioning accuracy and measurement accuracy of the system;
Ø GIGA high resolution color camera to meet the needs of clear observation and accurate measurement;
Ø 6.5x high-resolution click zoom lens, accurate doubling and one times pixel correction only needed;
Ø With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division and realize 256 level brightness adjustment intelligently.
◆ Flexible expansibility
ØMulti types of non-contact sensors and fast fixturing system are for option,which can satisfy different measuring requirement from different customers
ØMavable color LED ring light is available for the ULTRA series, which makes the series more flexible and powerful to different parts with different kinds of materials or shapes, offers more powerful measuring application.
ØThanks to the flexible expansibility of ULTRA series, it is compatible with touch probe,non-contact measuring sensors and robot arm,highly increase the measuring efficiency.
Image Measuring Instrument Software Functions Introduction:
- The software can automatically identify lines, circles, such as elements and measure them automatically.
- The software provides intelligent processing functions such as out of tolerance red warning, out of tolerance pause, measurement failure pause, manual measurement, skip execution, mandatory execution, etc.
- The software provides breakpoint setting function, which can realize the intelligent switch between manual measurement and automatic measurement.
- The powerful laser measurement function can easily realize the problems such as high-speed flatness measurement, tiny bump, concave point, V-angle and high-precision curved surface scanning.
- The software provides auxiliary dimming indication function to avoid the error caused by light intensity and improve the accuracy and efficiency of the tester.
Image Measuring Instrument Parameter:
|Product Name||ULTRA Series Automatic Image Measuring Instrument|
|Model||ULTRA 300||ULTRA 400||ULTRA 500||ULTRA 600|
|Z-axis Travel||200mm (can be raised according to the requirements of customers)|
|X/Y/Z-3 axis Linear Scale||Glass Linear Scale Resolution: 0.1um|
|Guidance Mode||Precision linear guide,double-track double slider guide.|
|Operation Mode||Joystick controller, Mouse operation, automatic detection program.|
|CCD||High definition 1/3" Color CCD Camera|
6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X;
Video Magnification: 26X~172X(21.5”monitor)
|Contour||LED parallel contour illumination|
|Surface||0~255 Stepless adjustable 5-ring 8-division LED surface illumination|
|Measuring Software||UNIMETRO 2D Fully Auto Measuring Software|
Temperature 20℃±2℃,Humidity Range<2℃/hr,
Humidity 30~80%, Vibration<0.002g, <15Hz
* L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is related to the surface of the workpiece.
* Magnification is approximate value, it is related to the dimension of monitor and resolution.
* Field of view(mm) = (diagonal*Horizontal*Vertical)
* 0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.
