OEM 2.5d Image Measuring Instrument 3d VMS With Friendly Control Interface

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: ULTRA
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wooden Case
Delivery Time: 15~20 work days
Payment Terms: T/T, L/C
Supply Ability: 50 per month
Detail Information
Product Name: Optical Measuring Equipment Dimension: 1750*920*1700mm
Measuring Range: 400*300*200mm Measuring Accuracy: 2.5+L/200um
Repeatability: 2.5um Linear Scale Resolution: 0.1um
Driving System: CNC Control,close-loop AC Servo Driving System,joystick,mouse Or Keyboard Control Illumination: Programmable 8 Sections LED Ring Light Parallel LED Contour Light
High Light:

dro readout systems

,

digital readout dro

,

OEM 2.5d Image Measuring Instrument


Product Description

OEM 2.5d Image Measuring Instrument 3d VMS With Friendly Control Interface

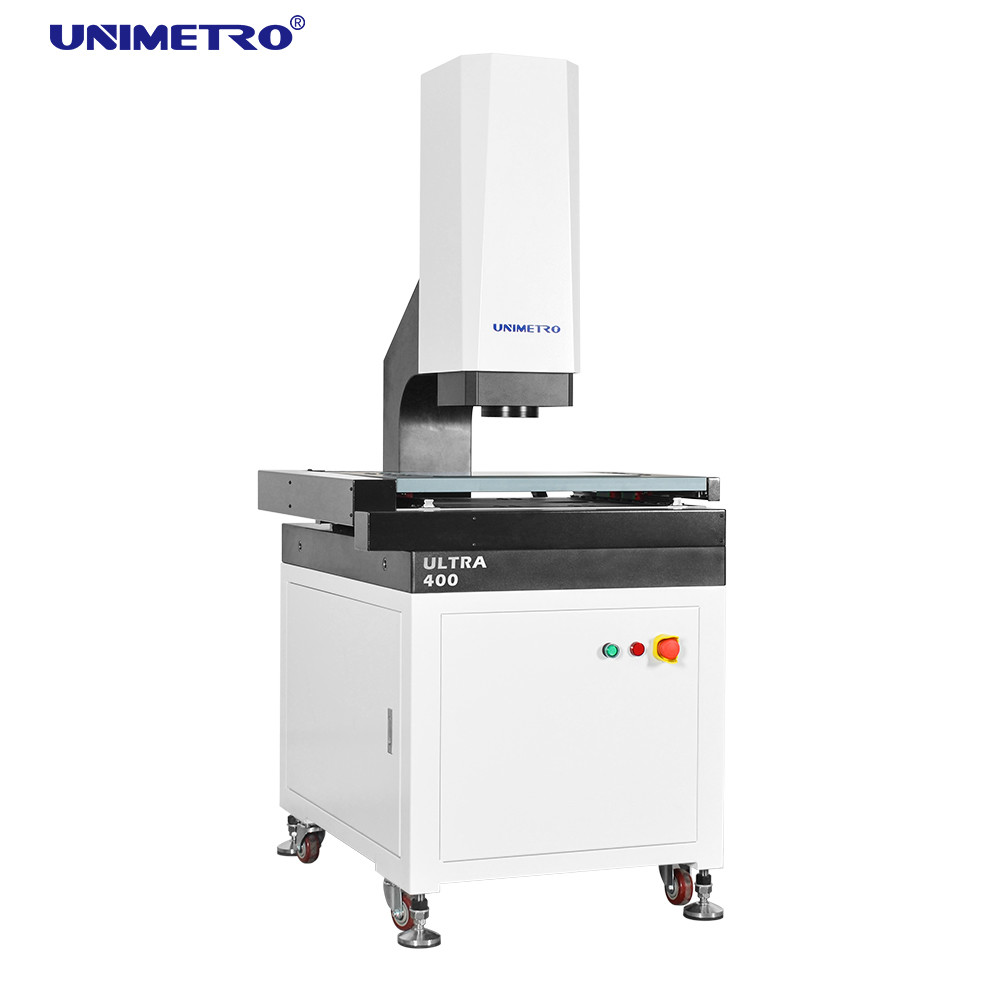

ULTRA series Image Measuring Instrument is a cantilever high accuracy fully automatic vision measuring machine developed for GD&T measurement with 3 axis automatic motorized control. It equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately.





Characteristics

◆ Quality details control

Ø Granite base and column, excellent stability;

Ø Aluminum work stage,make the motion control fast reacting and flexible;

Ø Work stage with hard oxidation surface processing anti-scratch;

Ø Standard with precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system;

Ø Integrated control system,embedded with motion control,and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable.



◆ High performance configuration

Ø XYZ three axis CNC automatic control and accurate positioning;
Ø 0.1 um high precision glass linear scale to ensure the positioning accuracy and measurement accuracy of the system;
Ø GIGA high resolution color camera to meet the needs of clear observation and accurate measurement;
Ø 6.5x high-resolution click zoom lens, accurate doubling and one times pixel correction only needed;
Ø With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division and realize 256 level brightness adjustment intelligently.



◆ Flexible expansibility

ØMulti types of non-contact sensors and fast fixturing system are for option,which can satisfy different measuring requirement from different customers
ØMavable color LED ring light is available for the ULTRA series, which makes the series more flexible and powerful to different parts with different kinds of materials or shapes, offers more powerful measuring application.
ØThanks to the flexible expansibility of ULTRA series, it is compatible with touch probe,non-contact measuring sensors and robot arm,highly increase the measuring efficiency.



Functions Introduction

- The software can automatically identify lines, circles, such as elements and measure them automatically.
- The software provides intelligent processing functions such as out of tolerance red warning, out of tolerance pause, measurement failure pause, manual measurement, skip execution, mandatory execution, etc.
- The software provides breakpoint setting function, which can realize the intelligent switch between manual measurement and automatic measurement.
- The powerful laser measurement function can easily realize the problems such as high-speed flatness measurement, tiny bump, concave point, V-angle and high-precision curved surface scanning.
- The software provides auxiliary dimming indication function to avoid the error caused by light intensity and improve the accuracy and efficiency of the tester.



Parameters

Model

ULTRA 300

ULTRA 400

ULTRA 500

ULTRA 600

X/Y-axis Travel(mm)

300x200

400x300

500x400

600x500

Z-axis Travel

200mm (can be raised according to the requirements of customers)

X/Y/Z-3 axis Linear Scale

Glass Linear Scale Resolution: 0.1um

Guidance Mode

Precision linear guide,double-track double slider guide.

Operation Mode

Joystick controller, Mouse operation, automatic detection program.

Accuracy

XYZ-axis:≤2.5+L/200um

Repeatability

±2.5um

Video system

CCD

High definition 1/3" Color CCD Camera

Lens

6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X; Video Magnification: 26X~172X(21.5"monitor)

Illumination system

Contour

LED parallel contour illumination

Surface

0~255 Stepless adjustable 5-ring 8-division LED surface illumination

Magnification

0.7X~4.5X

Measuring Software

UNIMETRO 2D Fully Auto Measuring Software

Load Capacity

±2.5um

Working Environment

25Kg

Power Supply

Temperature 20℃±2℃,Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g, <15Hz

Ddimension(W*D*H)(mm)

220V/50Hz/10A

Ddimension(W*D*H)(mm)

1600*780*1700

1750*920*1700

1900x1080x1700

1050*1280*1700

Net Weight(kg)

380

450

600

800

* L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is related to the surface of the workpiece.

* Magnification is approximate value, it is related to the dimension of monitor and resolution.

* Field of view(mm) = (diagonal*Horizontal*Vertical)

* 0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.
