Probes CMM Fixture Kits M2 M3 Screw Thread Probe Magazine Multiple Layers

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Model Number: UPM-1
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 20 per month
Detail Information
Layers: Optional Movement: All Layers Rotatable
Screw Thread: M2, M3 For Option Supporting Probes: Full Line Of Renishaw Probes
Work Stage Fixing: M8, M10, M12 CMM Stage Compatible
High Light:

cmm fixture components

,

cmm holding fixtures


Product Description



Probes CMM Fixture Kits M 2 M 3 Screw Thread Probe Magazine Multiple Layers



Introduction



For the daily use of the coordinates measuring machine users have to use many types of touch probes. For easy managing these probes, UNIMETRO designed an easy fixture for the probes, to organize the measuring job and offering more reasonable loacting spots for the probes.



It is a multi-layers design and the layers are able to be added up as required. M2, M3 and M8 screw holes are offered to fit different probes or triggering bodies.

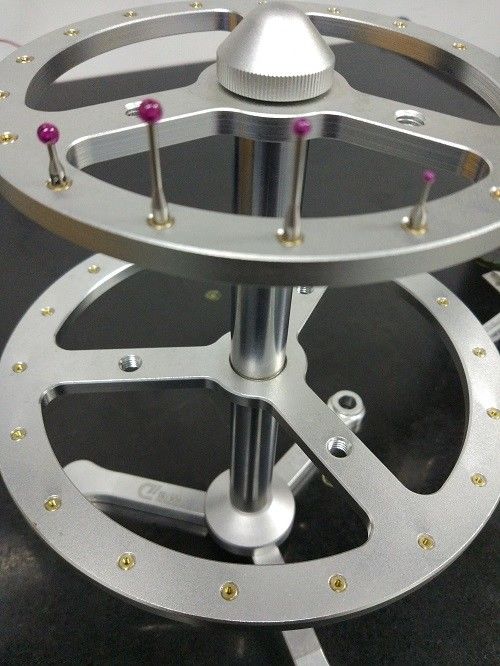

Probes CMM Fixture Kits M2 M3 Screw Thread Probe Magazine Multiple Layers 0

Easy to add up layers as required



Rotatable layers

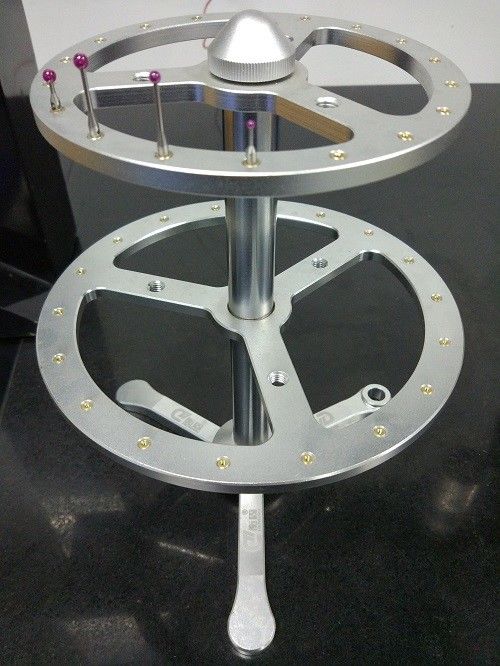

Probes CMM Fixture Kits M2 M3 Screw Thread Probe Magazine Multiple Layers 1

All layers are rotatable.



With M2, M3, M8 screw holes

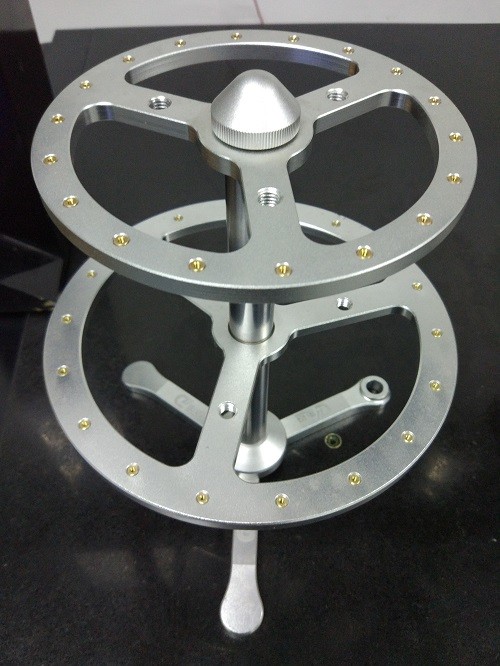

Probes CMM Fixture Kits M2 M3 Screw Thread Probe Magazine Multiple Layers 2
