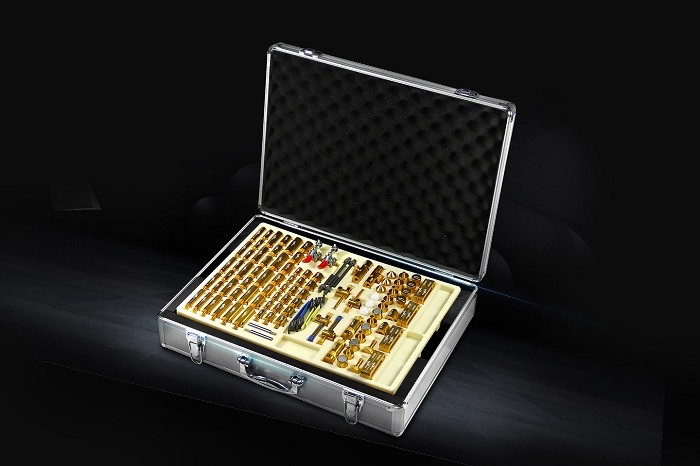

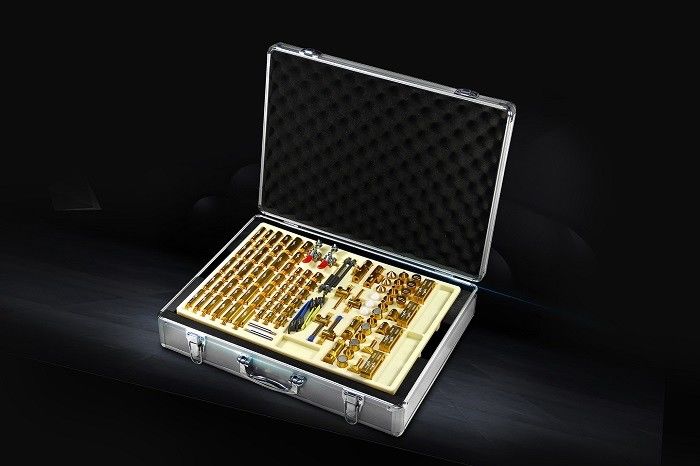

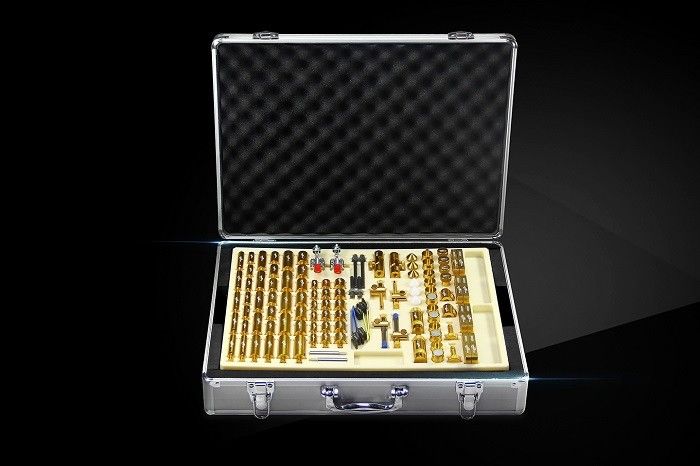

108 Pieces CMM Fixture Kits Aluminum With Coding System Programmable
FlexFix series coordinates measuring machine fixture

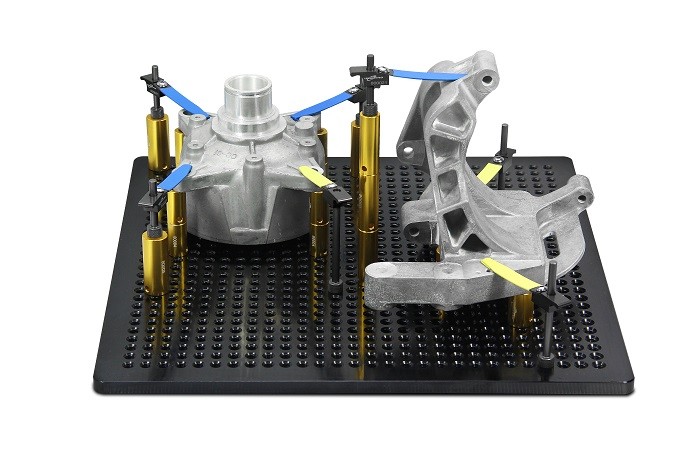

The Flexfix series coordinates measuring machine fixtures is capable to increase the efficiency, repeatability and accuracy of the workpiece measuring in the coordinates measuring machine. The fast combination and coding system, ensures the flexibility of the fixtures. No matter what the size, shape or materials of the workpieces, the FlexFix series will offer complete fixing solution.
Workpiece fixing solution
The FlexFix series coordinates measuring machine fixture is applied in aviation, automobile, electronics, or medical industries. We are offering complete solution, to satisfy all workpiece fixing requirement
The series is offering M6 or M8 screws for option, together with the fast combination fixture kits. All the components are able to combined easily and fast, no need for extra tools, largely increase the fixing efficiency of measuring.
The base board is laser printed with codes, users are able to use these codes for standard programming and recording, increase the repeatability of the fixing, eliminating the measuring error caused by the fixing offset. Increase the accuracy and repeatability of the measuring result.
Advanced machining and surface processing
The FlexFix series coordinates fixtures are using CNC machining technology, base boards are using hard anodizing for the surface processing, flatness is under 0.05mm(Within 500mm). The fixture kits components are using color anodizing for the surface, high rigidity and hardness, avoiding the scratch during the operation process.
All the tension press use the high accuracy spring steel materials, stable recovery, ensures the stability of the pressing, increase the repeatability of the fixing.

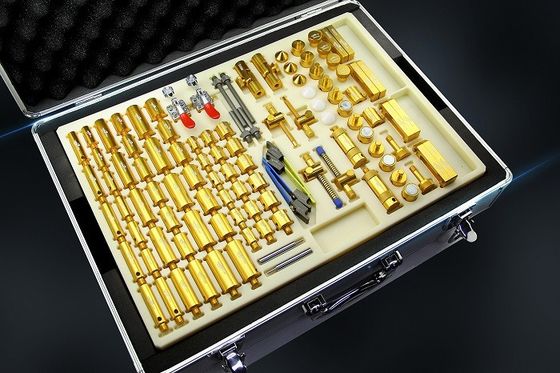

Fixture Kits Components Listing
|Short tension press supporter||800022||2|
|Long tension press supporter||800023||2|
|Height adjustable supporter||800013||2|
|Flexible supporting block||800020||8|
|Base board fixing screws||800017||2|
|Components fixing screws||800019||4|
|Supporting rod 12*20mm||80007||6|
|Supporting rod 12*30mm||80002||6|
|Supporting rod 12*50mm||80001||6|
|Supporting rod 16*20mm||80008||6|
|Supporting rod 16*30mm||80004||6|
|Supporting rod 16*50mm||80003||6|
|Supporting rod 20*20mm||80009||6|
|Supporting rod 20*30mm||80006||6|
|Supporting rod 20*50mm||80005||6|
|Auxiliary screw driver||800026||2|
|Free direction V type supporting rod||800018||2|
