Name: CMM Fixturing Components with Automatic Diameter Tester for Laser Tool Measurement
Brand: Unimetro Precision Machinery Co., Ltd
SKU: UTD503D
Price: 20,500.00 USD
Availability: InStock

Detail Information

Measuring Length Range:	60-150mm	Measuring Diameter Range:	0.5-25mm
Diameter Accuracy:	±0.0015mm	Runout Value Accuracy:	0.003mm
Report Output Value:	Excel	Tolerance Judging Function:	Included
Highlight:	Automatic Cmm Fixturing Kits , Diameter Tester Cmm Fixture Components , Mill Cmm Fixture Components

Product Description

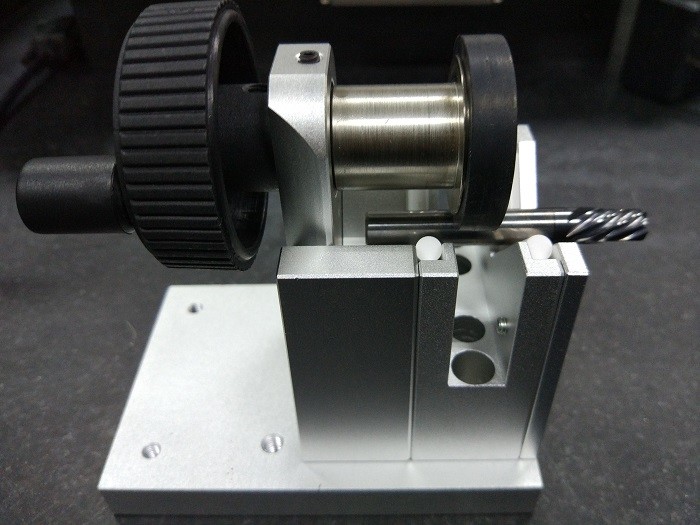

CMM Fixturing Components with Automatic Diameter Tester for Laser Tool Measurement

Laser Tool Measuring CMM Fixture Kits with Automatic Diameter Tester

The UTD503D milling tool diameter error laser tester utilizes fully automatic non-contact measuring technology, eliminating human measurement errors and preventing damage to tools. Users can transfer data directly to PC systems and generate comprehensive measurement reports.

The UTD series testers provide rapid measurement capabilities, serving as powerful tools for measuring milling tools and drill bits. This technology enhances manufacturing quality and efficiency while reducing overall production costs.

Measurement Capabilities

Maximum rotating diameter measurement for single or double-blade milling tools
Maximum external diameter measurement for double-blade milling tools
Tool diameter runout values measurement
Height difference measurement between blades
Maximum, minimum, and average diameter calculations
Roundness and runout value measurement of tool body
Complete diameter runout value measurement in just 3 seconds

Standard Configuration

TD series automatic control working stage
High accuracy Japanese laser tester
Milling tools and drillers measuring software
Industrial PC system
Control and data output software
Step motor system
HIWIN linear guide way
High accuracy ceramic V type supporter

Technical Parameters

Measuring length range	60-150mm
Measuring diameter range	0.5-25mm
Diameter accuracy	±0.0015mm
Runout value accuracy	0.003mm
User programming	Available
Excel output	Supported
User setting measuring point	Available with synchronous diameter runout value measuring
Tool automatic rotation	Programmable speed
Measuring movement speed	Programmable
Tolerance judging function	Included
