Aluminum 6061 CMM Fixturing Kits Gold Color for Electronics

Basic Information
Place of Origin: Dongguan,China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: CMM
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Aluminum alloy box
Delivery Time: 5~15days
Payment Terms: T/T
Supply Ability: 100
Detail Information
Product Name: CMM Fixturing Kits Color: Gold
Material: Aluminum 6061 Size: 60/set,108/set
Application: Electronics, Aerospace, Automotive, Plastic Or Medical Care,etc Plate Size: 400*300mm, M8 Thread Holes
High Light:

Gold CMM Fixture Kits

,

Aluminum 6061 CMM Fixturing Kits

,

Electronics CMM Fixturing Kits


Product Description

High Quailty CMM Fixture Kits / Coordinates Measurement Machine Fixture Clamps





Application

The Flexfix fixtures series are widely used in varies industries such as electronics, aerospace, automotive, plastic or medical care. It can be introduced to all sizes and models of CMM and VMM. They are the tools which make your measuring process flexible, repeatable, and standardized.



Modular Fixturing for your CMM

FlexFix series CMM fixtures system is designed and developed by UNIMETRO which means to help CMM users to improve the reproducibility and accuracy of the inspection process by providing quick and repeatable fixturing set-ups for the components. FlexFix series CMM fixtures are modular and can be expanded with user's requirements to provide a complete fixturing solution for any part regardless of its size, share or material.



For multiple applications such as electronics, aerospace, automotive, plastic or medical care, the FlexFix series can provide a full solution to the CMM fixturing requirements. The series offers fixture plates with M8 threaded fittings in a wide choice of standard sizes, which are made of high accurate aluminum material and with complex manufacturing process, to ensure the accuracy and reliability of the system. Perfect fixturing solutions can be assembled very quickly without any tools to increase throughput and avoid delays in inspection.



Choosing your fixturing kit

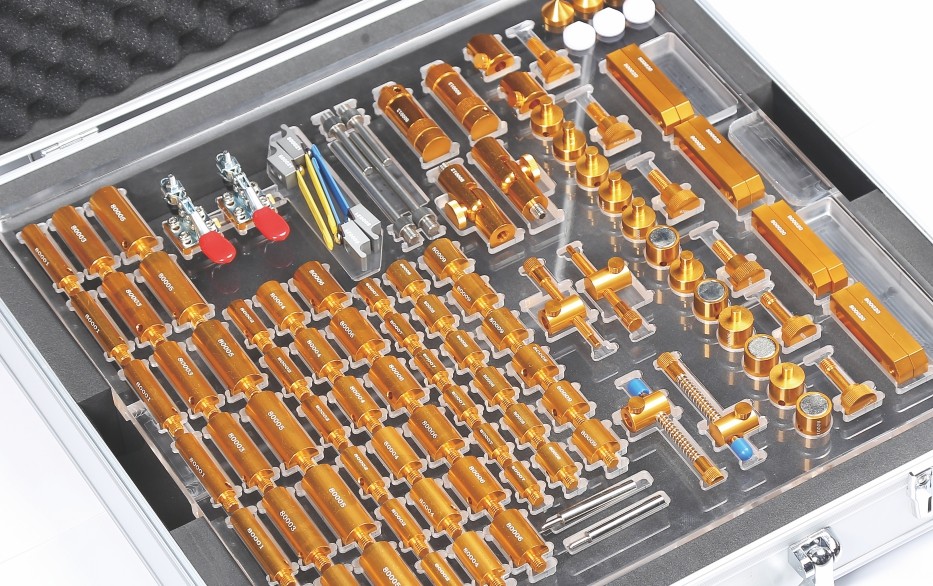

Flexfix series CMM fixtures are sold as kits to make a easy starting. A kit consists of one base board and a comprehensive set of components.
We are offering different sizes option for the base plates and user should select the suitable one based on the CMM machine size and measuring requirement.



Aluminum 6061 CMM Fixturing Kits Gold Color for Electronics 0Aluminum 6061 CMM Fixturing Kits Gold Color for Electronics 1



CMM fixtures components

The Flexfix series Fixturing components are designed to hold components firmly with the minimum necessary force and without any special tools, all components are with different function including supporting, clamping or pressing. The reasonable design allows to avoid damage or distortion on the measuring part. With these flexible components users are able to create different type of fixturing combination for varies of parts. Also it is easy to set up a clear probe path of 3D measuring.



CMM base plates

Multiple sizes of base plates are available for option for the Flexfix series CMM fixtures. Which allows wide range of application for different size of CMM and also satisfying different size of components fixturing requirement.

A complex manufacturing process is required for the CMM fixtures base plates which includes CNC machining, precision grinding, anodise coating, and laser marking, to make the plates with high accuracy, flatness and reliability. And except the standard sizes we also offer customized sizes and threads holes.

The fixture plates are offering an alphanumeric grid pattern and each fixturing component has its part number easily visible. It makes the user set-up can be fully defined and documented by recording the assembly and location of each of the fixturing components, so that the same set-up can be quickly and accurately reproduced for subsequent inspections.



Aluminum 6061 CMM Fixturing Kits Gold Color for Electronics 2Aluminum 6061 CMM Fixturing Kits Gold Color for Electronics 3

Plate size:

400*300mm, M8 Thread holes
400*400mm, M8 Thread holes
500*500mm, M8 Thread holes
600*600mm, M8 Thread holes
Other customized sizes



Parameters



Product Name

Mark

QTY

12*50mm standoff

80001

6

12*30mm standoff

80002

6

16*50mm standoff

80003

6

16*30mm standoff

80004

6

20*50mm standoff

80005

6


20*30mm standoff

80006

6


12*20mm standoff

80007

6


16*20mm standoff

80008

6


20*20mm standoff

80009

6


Adjustable pivot joint

800012

2


Adjustable jack stand

800013

2


Magnet

800014

4


Pin Standoff

800015

2


Adaptor

800016

6


Baseboard screw

800017

2


Screws

800019

2


Adjustable slide

800020

8


Tension clamp

800021

4


Short tension damp support

800023

2


Long tension clamp support

800024

2


Cone

800025

3


Nylon cone

800026

3


Screwdriver

800027
