Transparent Acrylic Base Board Fixture Kit for Vision Measurement Systems (VMM/CMM)

Basic Information

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	FlexFix-V-Plate

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Paper box
Delivery Time:	8 work days
Payment Terms:	T/T
Supply Ability:	20 per month

Get Best Price Contact Now

Detail Information

Material:	Acrylic	Color:	Transparent
Size:	Up To 400*300	Screw Size:	M4
Holes Style:	Available To Set Up And Check As Many Parts As Possible At One Time And Offering A Clear Area In The Centre Of The Plate	Windows Style:	Many Windows Ensures The Clearest View Of Small Parts.
Highlight:	Transparent CMM Fixturing Kit , VMM CMM Fixturing Kit , Acrylic CMM Fixture Kits

Product Description

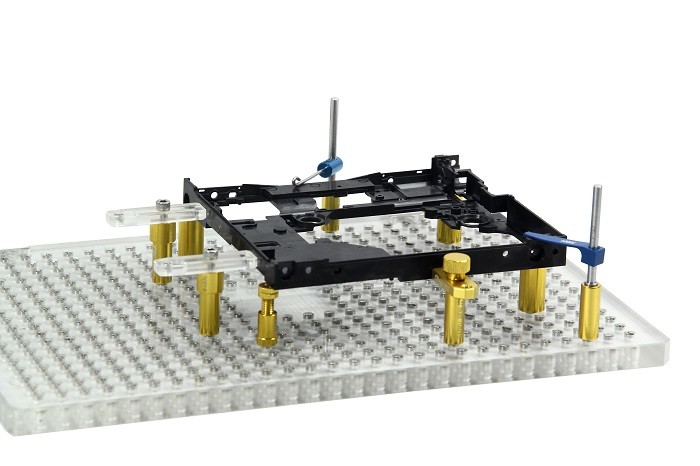

Transparent Acrylic Base Board Fixture Kit for Vision Measurement Systems (VMM/CMM)

Vision Measurement Machine VMM CMM Fixture Kits Base Board Acrylic Transparent

Base Plates

The base boards are constructed from high-quality acrylic material, enabling the use of contour lighting to observe part edges with exceptional clarity. These precision-engineered base boards ensure vertical optical path alignment and optimal image quality for accurate measurements.

Two distinct base plate configurations are available:

Holes Style: Designed to accommodate and inspect multiple parts simultaneously, featuring a clear central area on the plate for maximum versatility.
Windows Style: Multiple window openings provide the clearest possible view of small components and intricate parts.

Multiple base plate sizes are available to suit your specific application requirements. For detailed specifications and pricing information, please contact our technical service team.
