Double Lens Fast Image Measuring Machine 80x60mm For Mosaic

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: GENESIS
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wooden Case
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 10 per month
Detail Information
Product Name: Double Lens Fast Image Mosaic Measuring Instrument Measuring Range: 400*300*200mm
Movement Mode: Automatic Optical Lens Configuration: Double Telecentric Large Field Optical Lens
Image Mosaic Field Size: 80*60mm Image Sensor: Big FOV Lens:HIKVISION 20M Camera
Measuring Accuracy: In 8um
High Light:

Double Lens Industrial High Speed Camera

,

Mosaic Fast Image Measuring machine

,

Double Lens Fast Image Measuring machine


Product Description

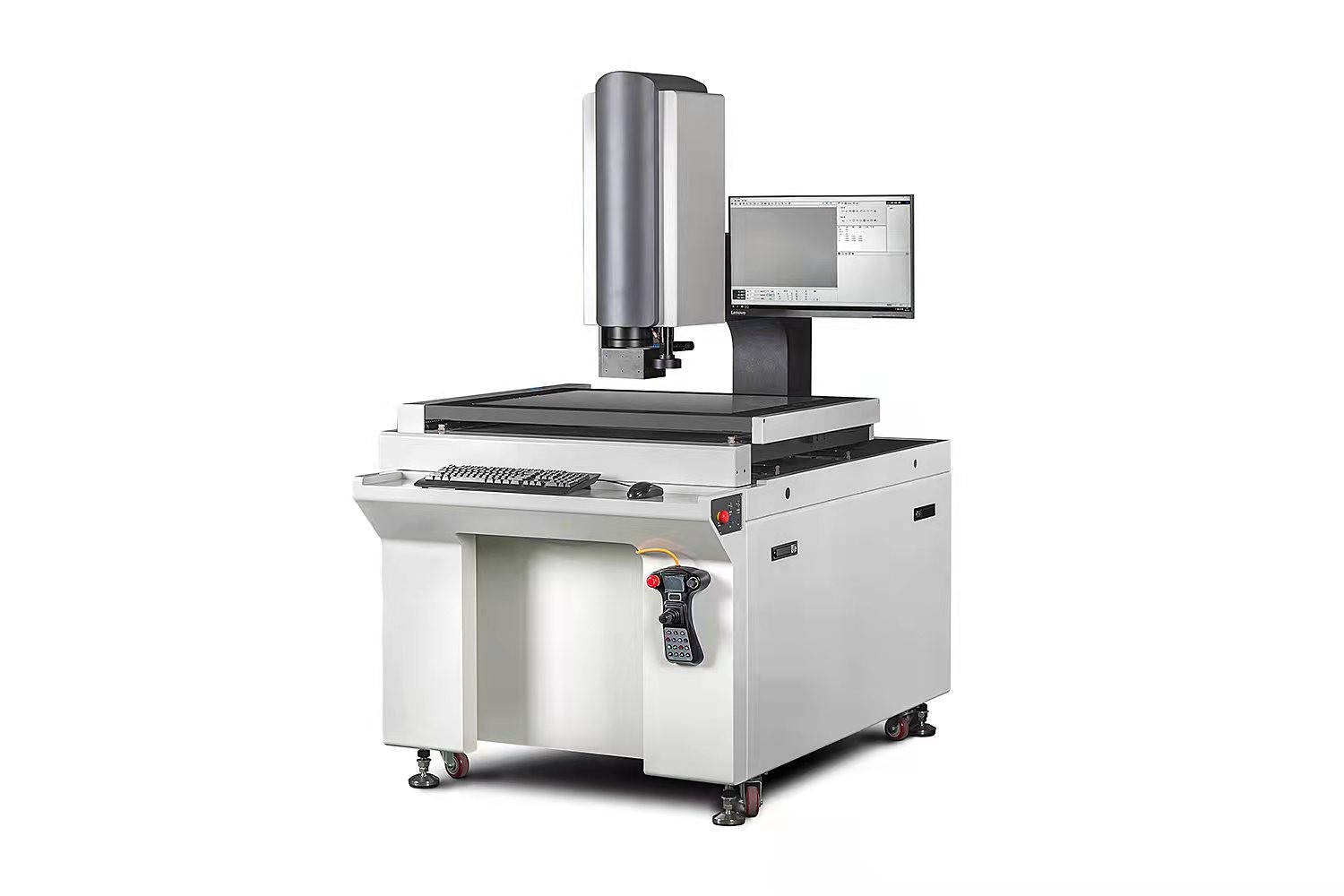

Genesis series Double lens fast image mosaic measuring instrument





Parameters



Model number

Genesis 400

Genesis 500

Genesis 600

Measuring range X*Y*Z(mm)

400*300*200

500*400*200

600*500*200

Movement mode Automatic



Vision lens configuration Double telecentric large field optical lens + 0.7-4.5x automatic zoom lens



Image mosaic field size(mm)

80*60

Image sensor

Big FOV Lens:HIKVISION 200M digital camera

Auto zoom lens:HIKVISION 2M digital camera
Measuring accuracy



Image mosaic measurement:< 8um



Traditional image measurement:3+L/200 um



Linear scale resolution

0.0001mm

System measuring accuracy

< 8um

Surface light

Two sets of LED ring light

Contour light

Two groups of parallel LED light sources

Software

FlashPro Ultra high speed inspection vision software





Descrition

The Genesis series fast image mosaic measuring instrument combines the fast image stitching measurement technology with the traditional image measurement technology. It is equipped with a large field of vision telecentric lens and a fully automatic zoom telecentric lens. At the same time, it realizes the functions of fast measurement and large magnification fine measurement, and supports the measurement function of placing multiple pieces at will, so that users can obtain the use experience and efficiency of one click measuring instrument and traditional image measuring instrument on one machine. The measurement systems of the two groups of optical measurement systems are based on the same coordinate system, and the measurement efficiency of Genesis is improved geometrically compared with the traditional two-dimensional image measuring instrument.





Application

Genesis series can be used in a wide range of precision dimension measurement fields and play an important role in quality control in consumer electronics, semiconductor, automobile, aerospace and other industries. Help users significantly improve productivity.



Software Function

Genesis series, together with flashpro ultra-high speed detection vision software, provides subversive rapid measurement function. The software has made many groundbreaking changes in fast image processing, concurrent algorithm, precision compensation, system framework and so on. It integrates a set of high-efficiency and high-precision professional visual inspection system to meet the new demand for high-speed online full inspection due to the increasing production efficiency in the industrial 4.0 environment.



● Complete image measurement software functions: including the measurement of various 2D element points, lines, circles, arcs, polylines and splines; Complete coordinate system, structure and tolerance calculation function;
● Import, export and offline programming functions of CAD;
● High precision sub-pixel interpolation and lens distortion compensation;
● Target recognition and image matching module;
● Support socket communication interface.



Double Lens Fast Image Measuring Machine 80x60mm For Mosaic 0
