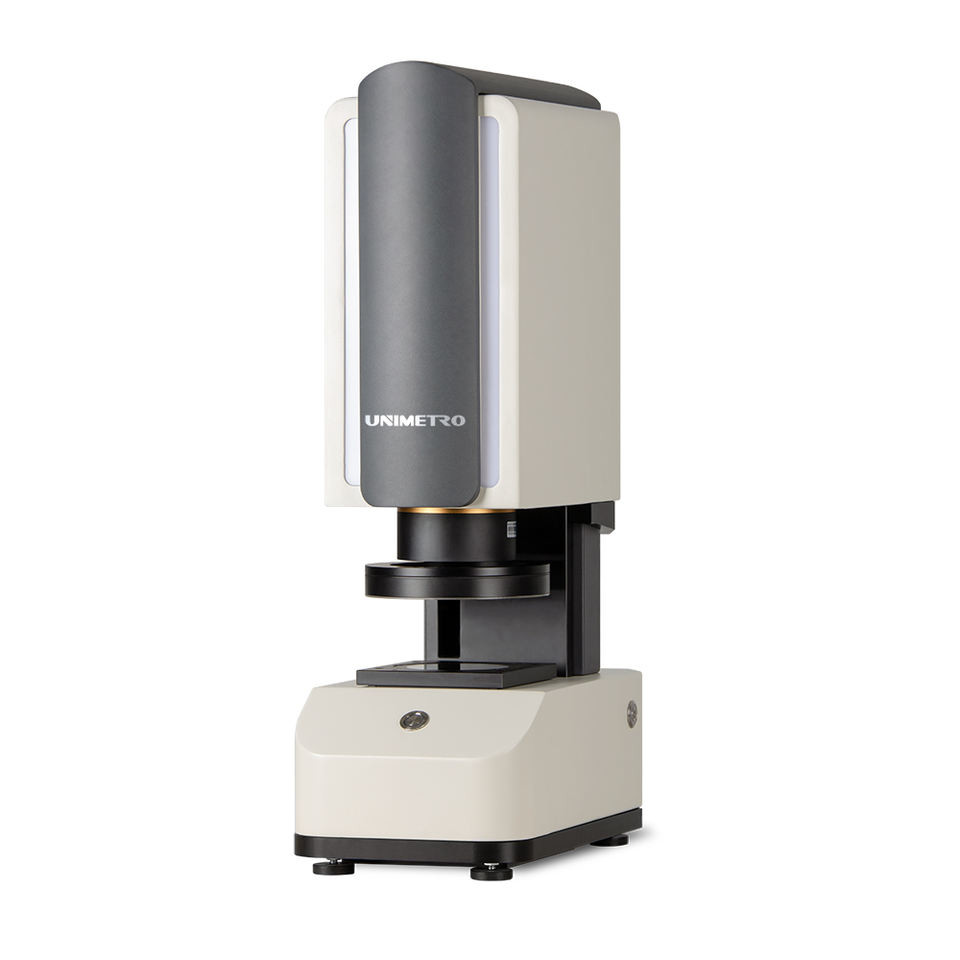

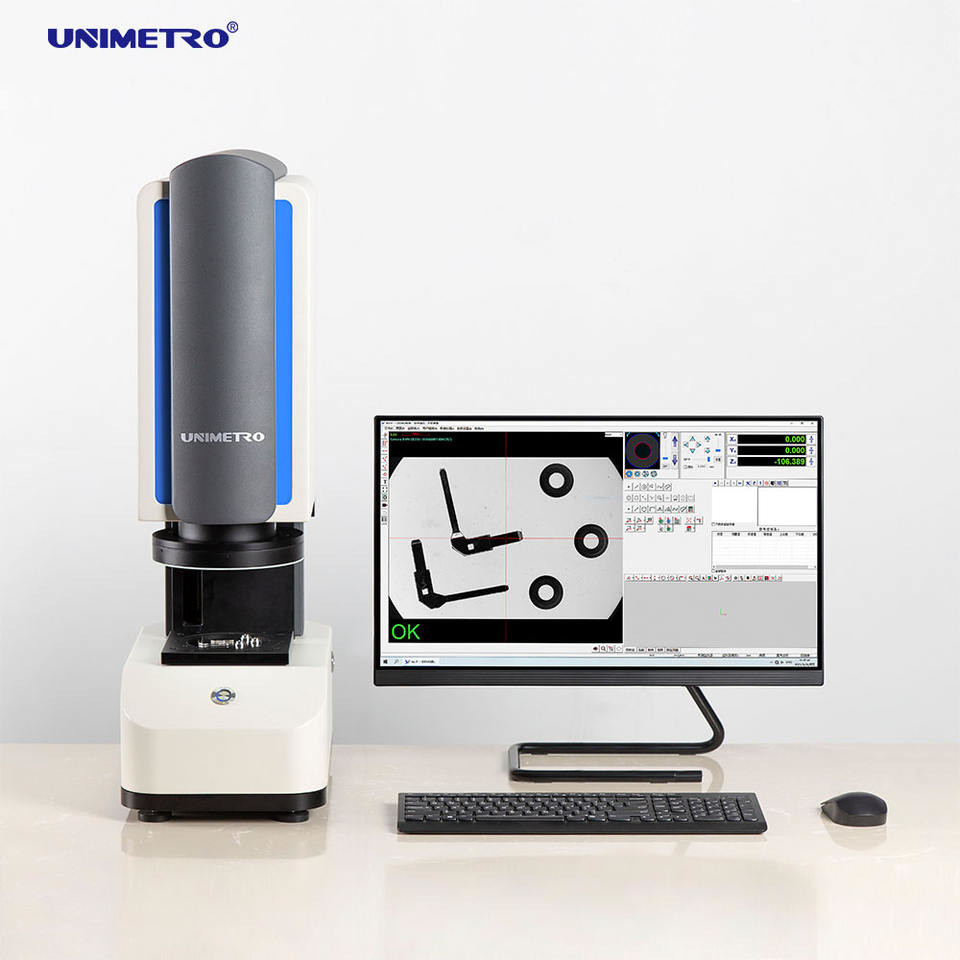

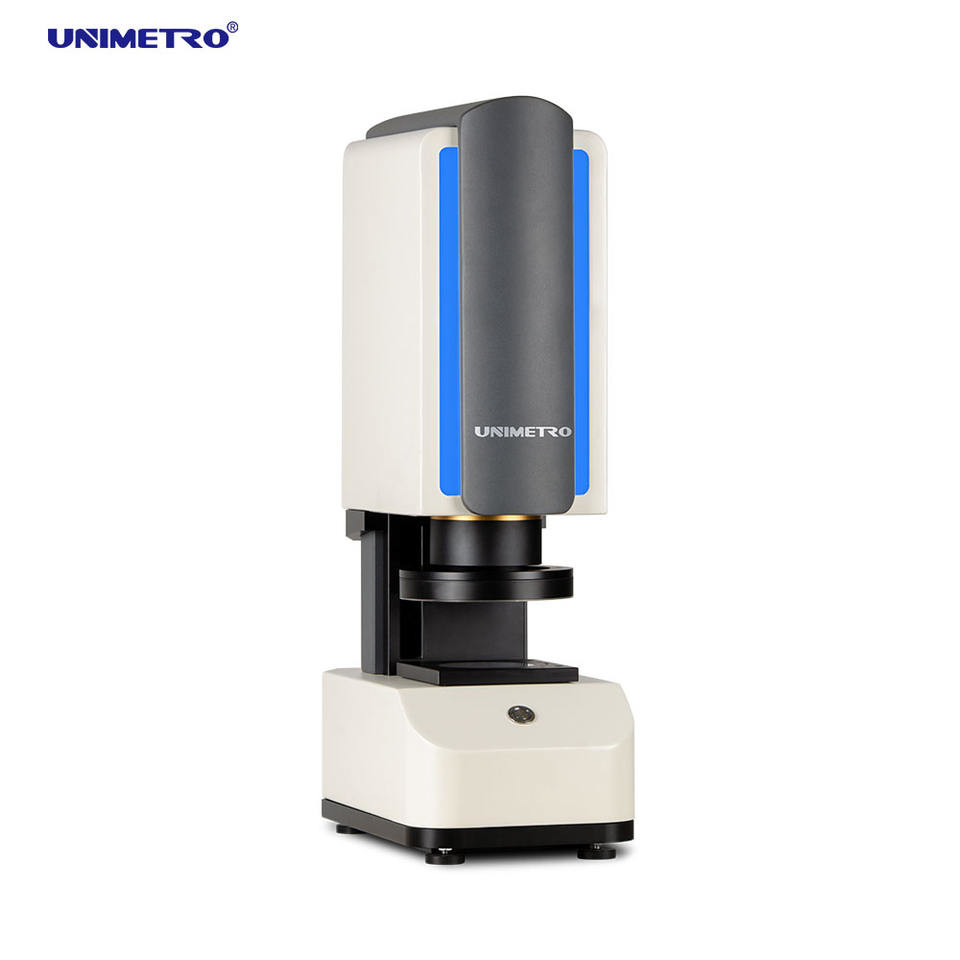

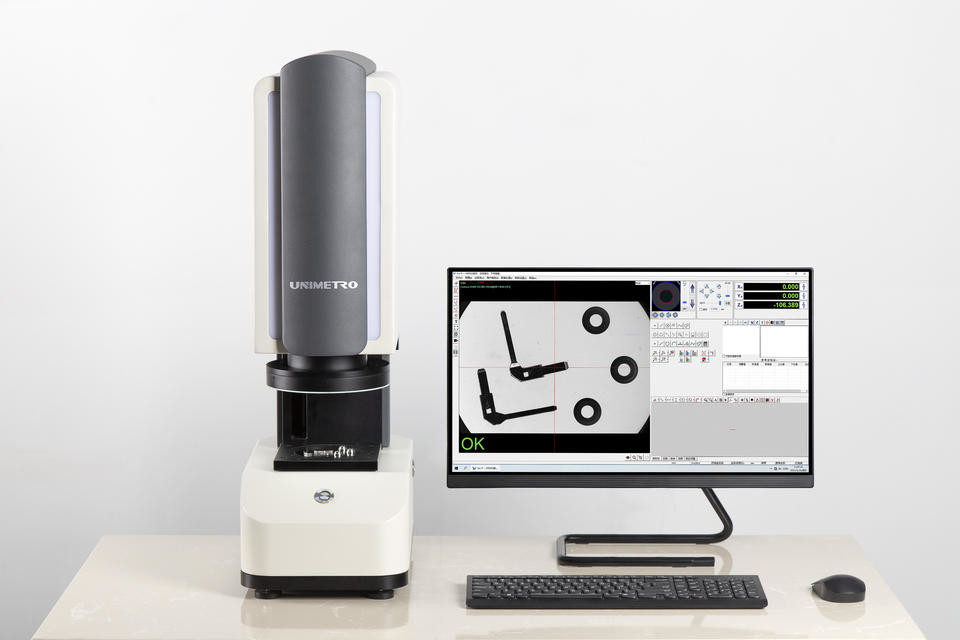

AVANT 100 Large FOV Video Measurement System
The AVANT 100 Large FOV Video Measurement System represents UNIMETRO's innovative image measurement technology. Unlike traditional 2D video measurement systems that rely on grating ruler displacement sensors and high-magnification lenses, this system utilizes advanced telecentric zoom optics and sophisticated software algorithms for superior performance.

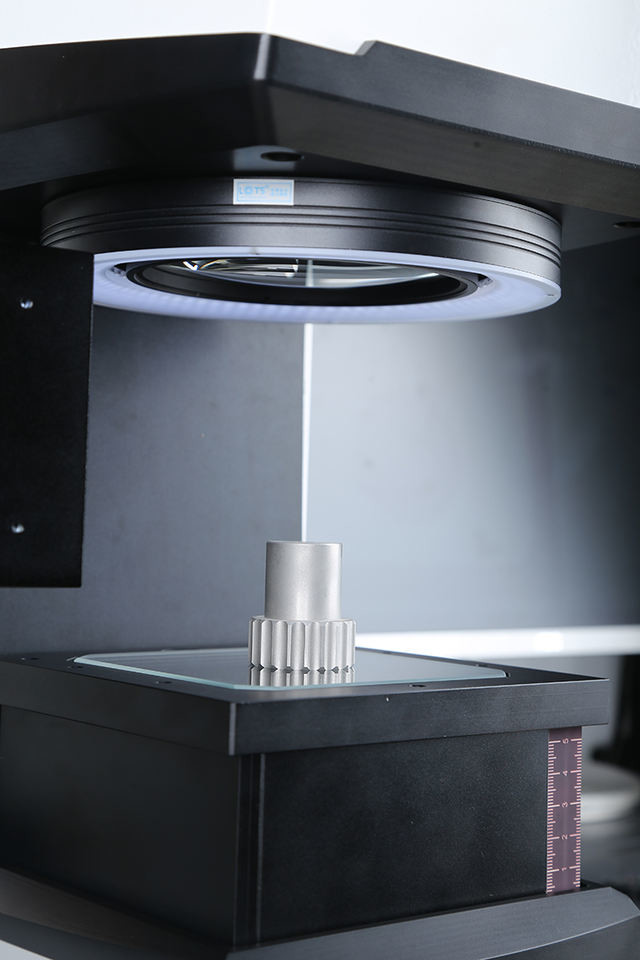

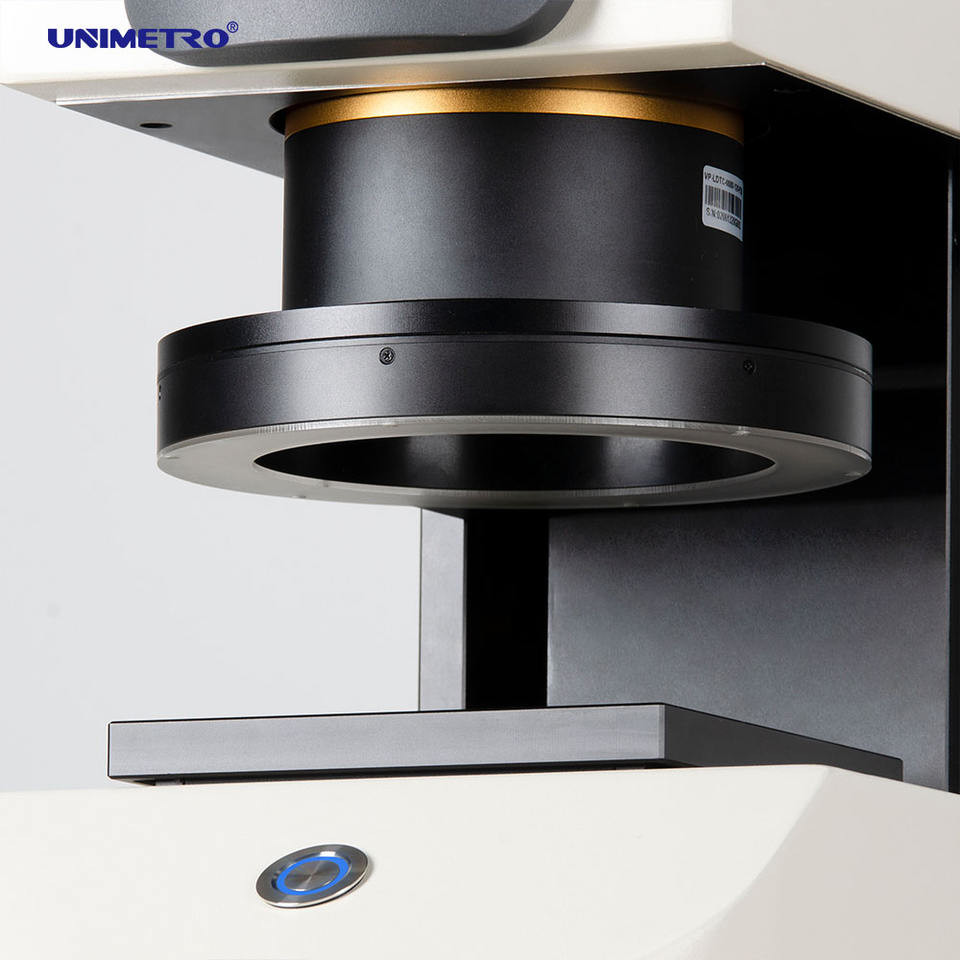

Advanced System Architecture: The system features a simplified mechanical structure that eliminates the need for displacement sensors. It combines large viewing angle telecentric zoom lenses with substantial depth of field, high-pixel CCD cameras, and powerful measurement software to deliver exceptional accuracy and efficiency.
Key Advantages Over Traditional Measurement Instruments
Traditional measurement instruments including projectors, tool microscopes, image measuring instruments, contour measuring instruments, and vernier calipers often present challenges such as complex operation, time-consuming focusing processes, coordinate table movement delays, human error factors, extended batch measurement times, and complicated data management.
Fast and Efficient Operation
- Products can be placed freely on the workbench without requiring additional fixtures for positioning
- Rapid measurement capability - up to 512 parts can be measured simultaneously
- Enhanced batch measurement efficiency with quick, accurate CNC mode operation
Accurate and Consistent Results
- One-click operation enables anyone to obtain precise, consistent measurement results
- Software auto-focus eliminates deviations caused by manual focus adjustment
- Automatic measurement position identification ensures unified, stable results every time
Easy and Simple Operation
- Quick learning curve reduces manual training time and improves work efficiency
- Intuitive operation interface allows operators to quickly locate and use required functions
- Virtual lines and virtual points creation for expanded measurement capabilities
Streamlined Workflow: Import DXF templates → Place workpiece without positioning → One-click measurement (button press or space bar)
Large FOV Video Measurement System Applications
This advanced measurement system finds extensive application across multiple industries including machinery, electronics, mold manufacturing, injection molding, hardware, rubber products, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, terminals, mobile phones, household appliances, printed circuit boards, medical equipment, watches, and cutting tools.
Company Information
Our Clients & Agents
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory and provide responses within 24 hours.
Q2: What does your company primarily manufacture?
A2: We specialize in producing vision measuring machines, coordinate measuring machines, CMM & VMM fixtures, and related equipment.
Q3: How to choose the appropriate specification?
A3: Our professional team will recommend suitable specifications based on your product variety and measurement requirements.
Q4: Do you accept customized service?
A4: Yes, we provide both standard machines and customized solutions tailored to specific customer needs.
Q5: What is your warranty period?
A5: Our products come with a 1-year warranty. We have enhanced durability on critical components and maintain stable product quality.
