Compact Image Dimension Measurement System Rapid Measurement

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: AVANT100
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 100 per month
Detail Information
Product Name: Compact Design Image Dimension Measurement Machine With Large FOV Image Sensor: 2000W HD Color Digital Camera
Light Receiving Lens: Single/double Telecentric Lens Broad Vision: 130*100mm
Repeatability: +-2(coordinate Table Not Moving) Display Resolution: 0.1um
Warrenty: 12 Months Dimension: 415*240*768mm
High Light:

Compact Image Dimension Measurement System


Image Dimension Measurement System Rapid Measurement


ISO Image Dimension Measurement System

Product Description

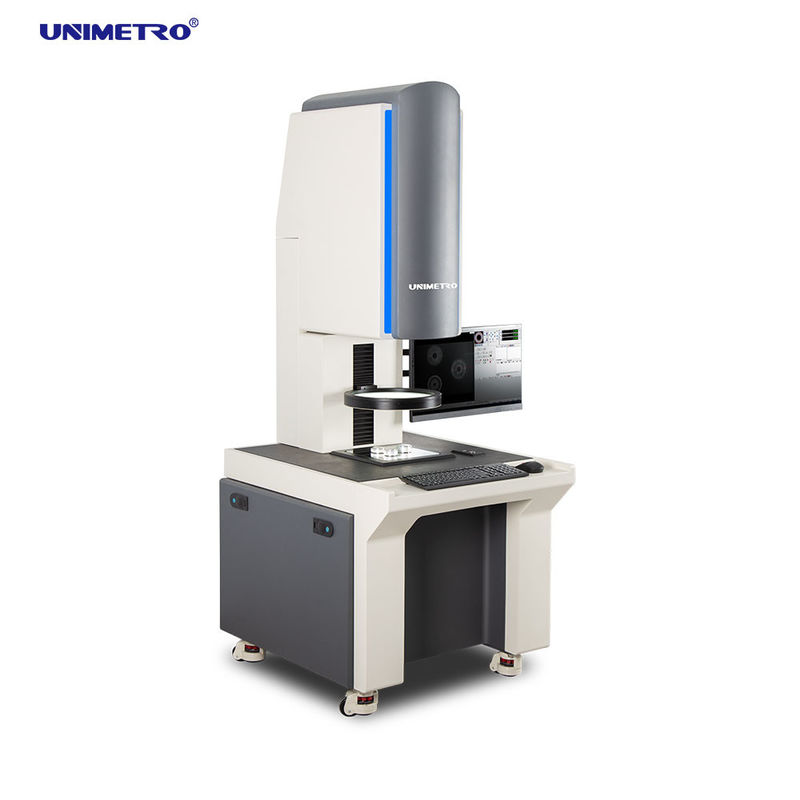

Compact Design Image Dimension Measurement Machine With Large FOV


A100 Image Dimension Measurement System is a new image measurement technology of UNIMETRO. It is different from the traditional 2D image measurement instrument in that it no longer needs the grating ruler displacement sensor as the accuracy standard, nor does it need to enlarge the product image through the lens with large focal length to ensure the measurement accuracy.

The structure of the fuselage is simple. It does not need the grating ruler of displacement sensor. It only needs the telecentric zoom lens with large viewing angle and large depth of field, high pixel CCD camera and powerful background software.

Through the double telecentric optical lens with large viewing angle and large depth of field, using high-speed digital processing function, combined with high-precision image analysis algorithm, it can complete the evaluation of dimensional tolerance at the same time with only one key. It is widely used in machinery, electronics, mold, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, terminals, mobile phones, household appliances, printed circuit boards, medical equipment, watches, knives and other fields.



Fast and efficient:

1. Products can be placed on the workbench at will, without additional fixture to fix and position.

2. Rapid measurement, up to 512 parts can be measured at the same time.

3. Make batch measurement more efficient, and batch measurement can be carried out quickly and accurately in CNC mode.


Accurate and consistent:

1. With one click, anyone can easily obtain accurate and consistent measurement results.

2. Software autofocus, no deviation caused by focus adjustment.

3. Automatic identification of the measurement position, each time can obtain unified and stable measurement results.


Easy and simple:

1. Anyone can get started quickly, saving the time of manual training and improving work efficiency.

2. Simple operation interface, the operator can quickly find the corresponding function and measure.

3. Virtual lines and virtual points can be created to meet more measurement requirements.





Model Number A100
Image sensor 2000W HD color digital camera
External display 24’
Light receiving lens Single / double telecentric lens



Drop shot system Single zone ring directional lighting (white light)
Transmission system Telecentric transmission illumination (white light)
Broad Vision(mm) 130*100mm
Repeatability Broad vision ±3(Coordinate table not moving)
Measurement Software INS/F
Display resolution 0.1um
Z-direction electric coordinate table Moving range 100mm
Dimension 240*415*770
Weight 50KG
Power Supply 100-240VAC,50/60HZ
