| Dimension: | 1750*920*1700mm | Net Weight: | 450kg |
|---|---|---|---|
| X/Y Travel: | 400x300 | Accuracy: | ≤2.5+L/200um |
| Repeatability: | ±2.5um | ||
| High Light: | 0.1um Vision Measuring Machine,High Precision Vision Measuring Machine,450kg Image Measurement System |
||

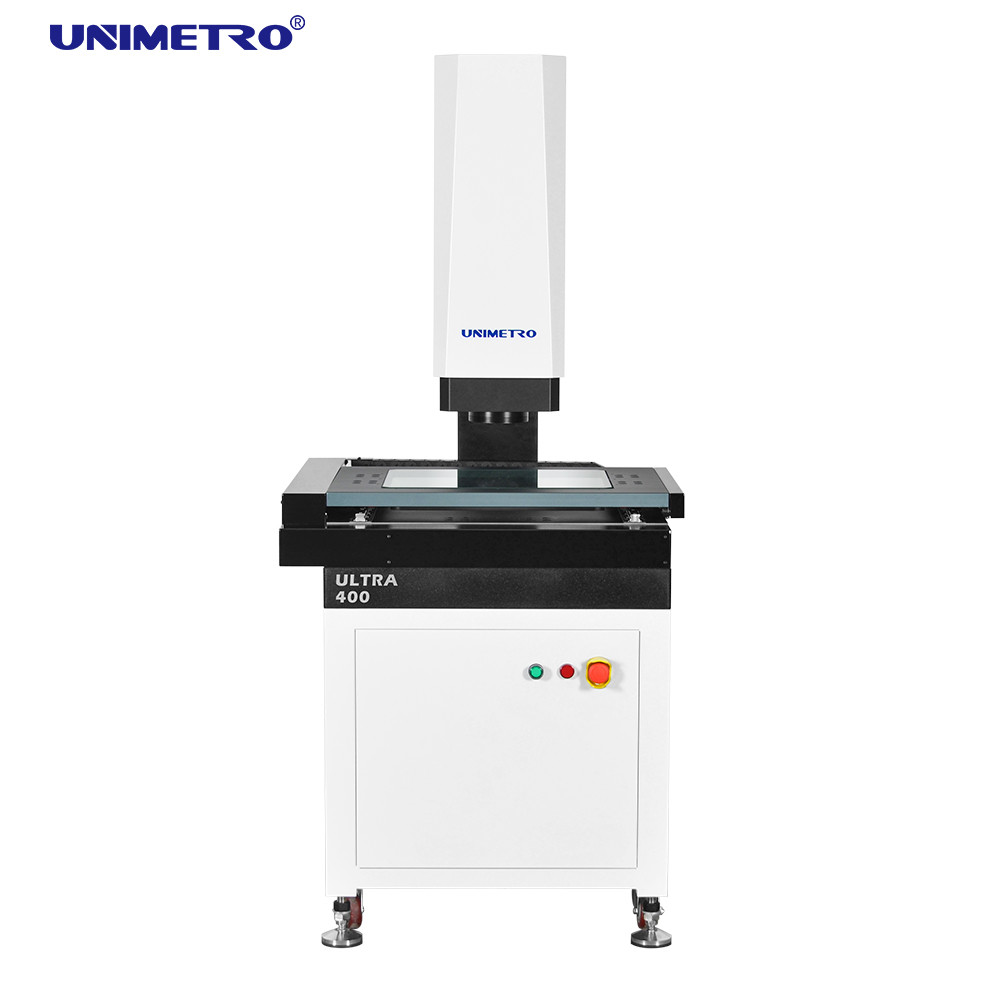

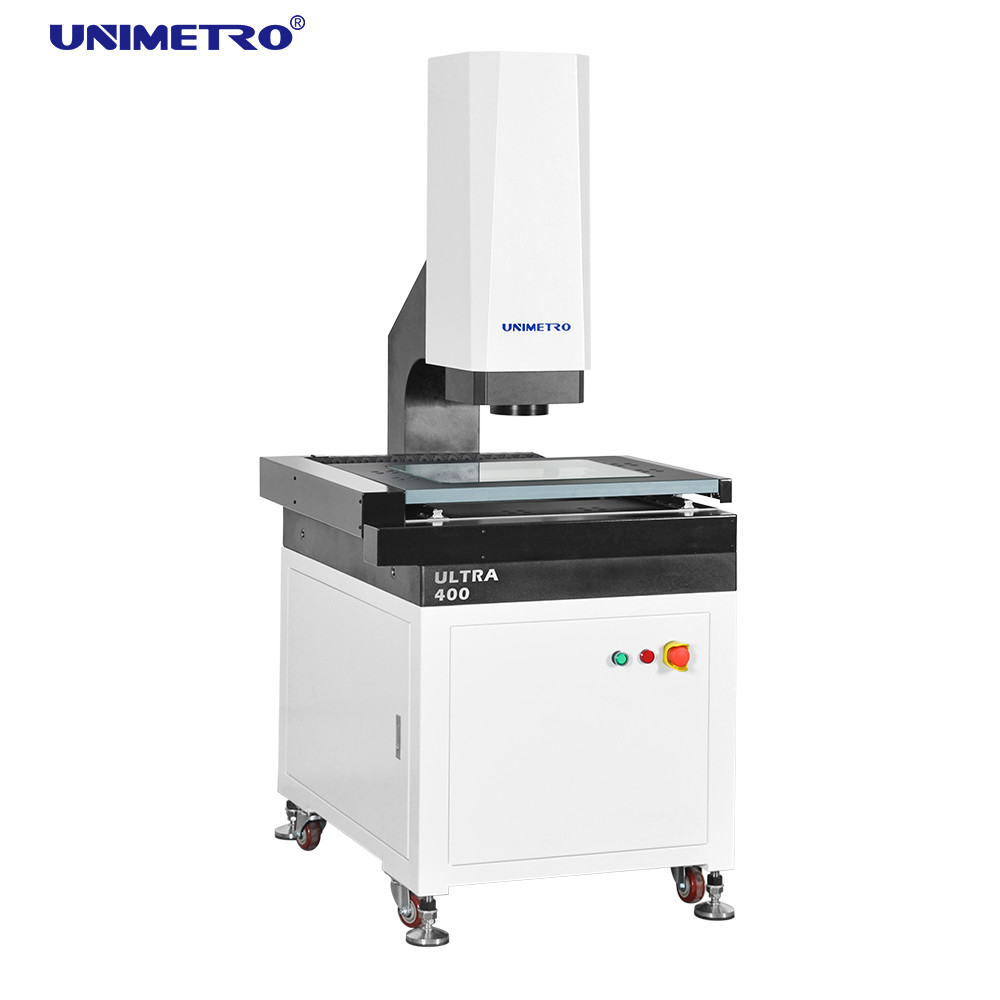

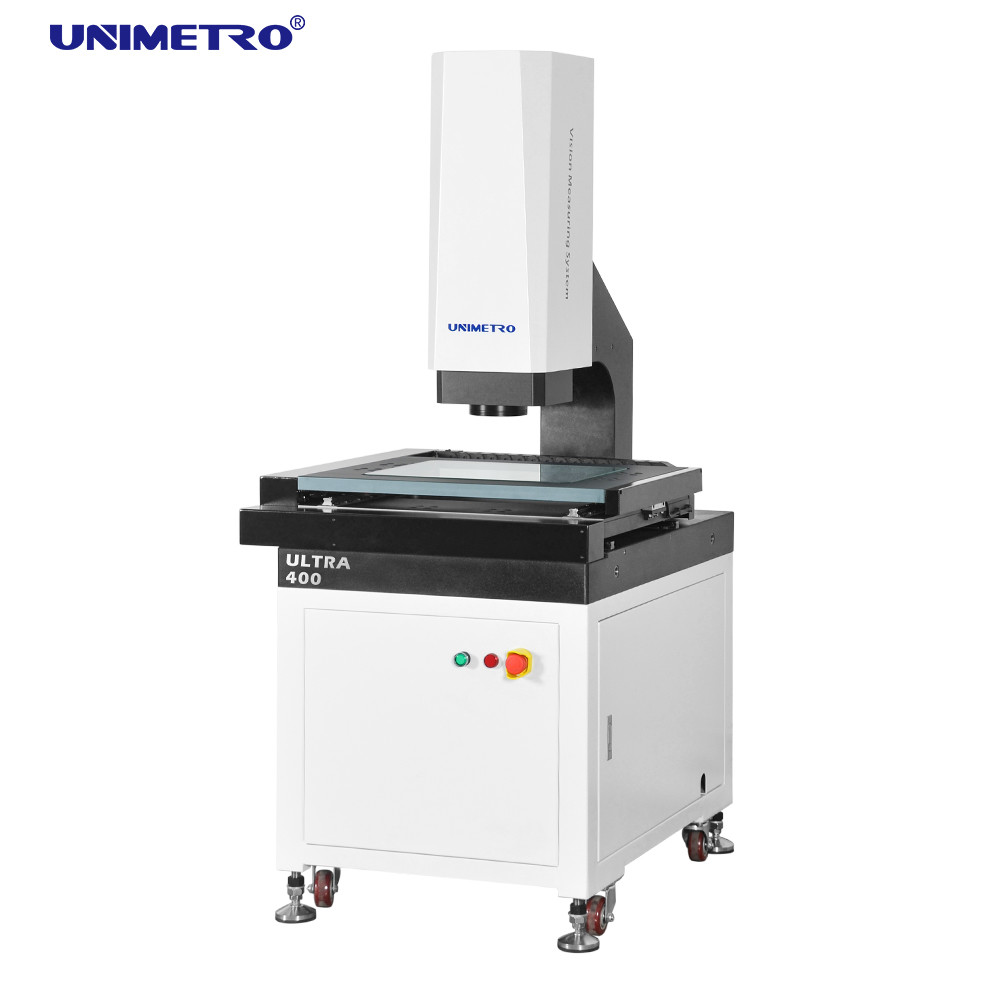

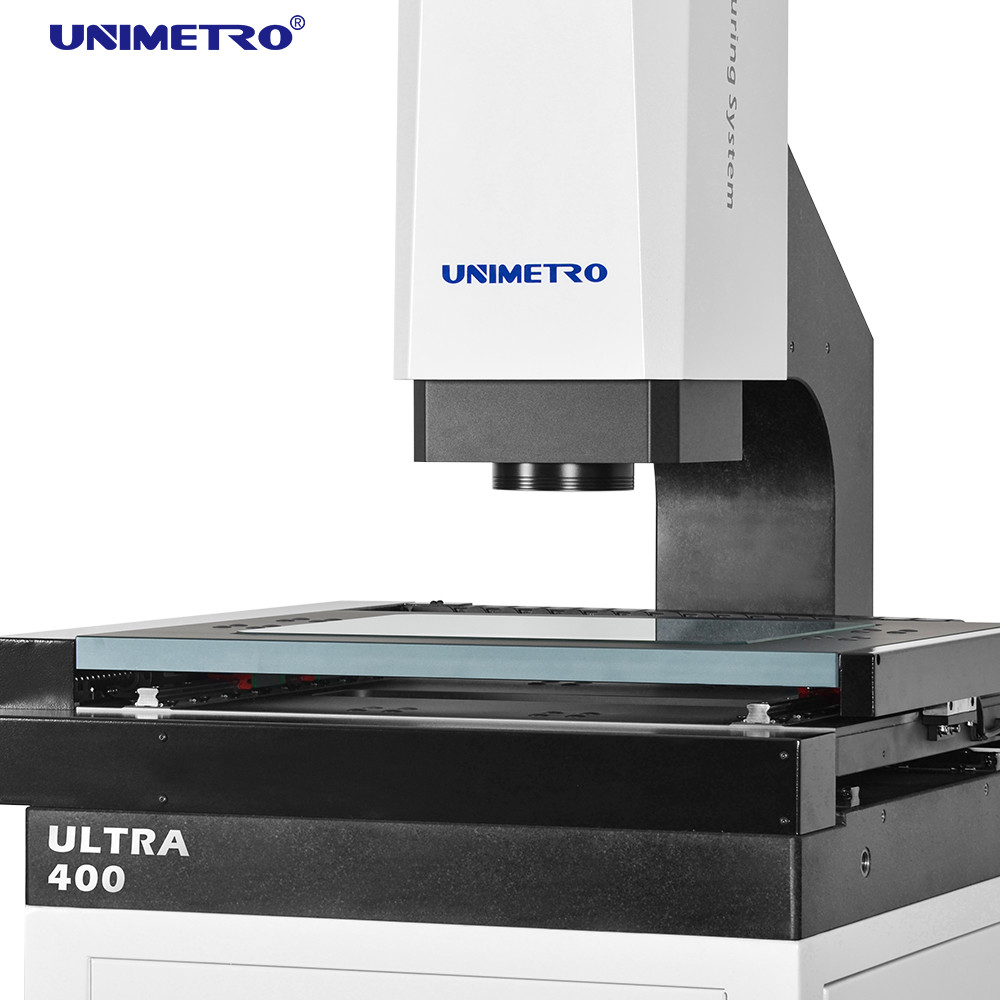

High accuracy vision measurement system automatic ce image measuring machine vmm
our ce image measuring machine ULTRA series is a cantilever high accuracy fully automatic vision measuring machine developed for GD&T measurement with three axis automatic motorized control. It equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately.
Our ce image measuring machine has below characteristics:
▶Granite base and column, excellent stability;
▶Aluminum work stage,make the motion control fast reacting and flexible;
▶Work stage with hard oxidation surface processing anti-scratch;
▶Standard with precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system;
▶Integrated control system,embedded with motion control,and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable.
▶XYZ three axis CNC automatic control and accurate positioning;
▶0.1 um high precision glass linear scale to ensure the positioning accuracy and measurement accuracy of the system;
▶GIGA high resolution color camera to meet the needs of clear observation and accurate measurement;
▶6.5x high-resolution click zoom lens, accurate doubling and one times pixel correction only needed;
▶With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division and realize 256 level brightness adjustment intelligently.
Our ce image measuring machine has powerful software to support.
▶With the External-Array RationalVue composite measuring software,the ULTRA series is capable to offer powerful 2D/3d composite measuring function;
▶Simple and easy to understand operation interface makes measurement more simple and efficient;
▶Automatic measurement program can be set to complete batch measurement efficiently and quickly.
Flexible expansibility
▶Multi types of non-contact sensors and fast fixturing system are for option,which can satisfy different measuring requirement from different customers
▶Mavable color LED ring light is available for the ULTRA series, which makes the series more flexible and powerful to different parts with different kinds of materials or shapes, offers more powerful measuring application.
▶Thanks to the flexible expansibility of ULTRA series, it is compatible with touch probe,non-contact measuring sensors and robot arm,highly increase the measuring efficiency.
Our ce image measuring machine details are as below chart shows:
| Product Name | ULTRA Series Automatic Vision Measuring Machine | ||||
| Model | ULTRA 300 | ULTRA 400 | ULTRA 500 | ULTRA 600 | |
| X/Y-axis Travel(mm) | 300x200 | 400x300 | 500x400 | 600x500 | |
| Z-axis Travel | 200mm (can be raised according to the requirements of customers) | ||||
| X/Y/Z-3 axis Linear Scale | Glass Linear Scale Resolution: 0.1um | ||||
| Guidance Mode | Precision linear guide,double-track double slider guide. | ||||
| Operation Mode | Joystick controller, Mouse operation, automatic detection program. | ||||
| Accuracy | XYZ-axis:≤2.5+L/200um | ||||
| Repeatability | ±2.5um | ||||
| Video system | CCD | High definition 1/3" Color CCD Camera | |||
| Lens | 6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X; Video Magnification: 26X~172X(21.5”monitor) |
||||
| Illumination System |
Contour | LED parallel contour illumination | |||
| Surface | 0~255 Stepless adjustable 5-ring 8-division LED surface illumination | ||||
| Magnification | 0.7X~4.5X | ||||
| Measuring Software | UNIMETRO 2D Fully Auto Measuring Software | ||||
| Load Capacity | 25Kg | ||||
| Working Environment | Temperature 20℃±2℃,Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g, <15Hz |
||||
| Power Supply | 220V/50Hz/10A | ||||
| Ddimension(W*D*H)(mm) | 1600*780*1700 | 1750*920*1700 | 1900x1080x1700 | 1050*1280*1700 | |
| Net Weight(kg) | 380 | 450 | 600 | 800 | |
