OEM ODM Gantry Type CNC Video Measuring Machine For Large Workpiece Testing

Basic Information
Place of Origin: Guangdong, China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: HE
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case+ Vacuum package
Delivery Time: 20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20sets per month
Detail Information
Model: HE Product Name: Gantry Type CNC Video Measuring Machine For Large Workpiece Testing
Repeatability: 2.5um Accuracy: 2.5+L/200um
Linear Scale Resolution: 0.1um Measuring Mode: Fully Automatic
Support: OEM,ODM, Customize Application Scenery: Laboratory/Industrial
Warranty: 12 Months Optional Accessories: Renishaw Probe/ Laser Probe, Etc.
High Light:

Gantry Type Video Measuring Machine


2.5um Video Measuring Machine


ODM Video Measuring Machine

Product Description

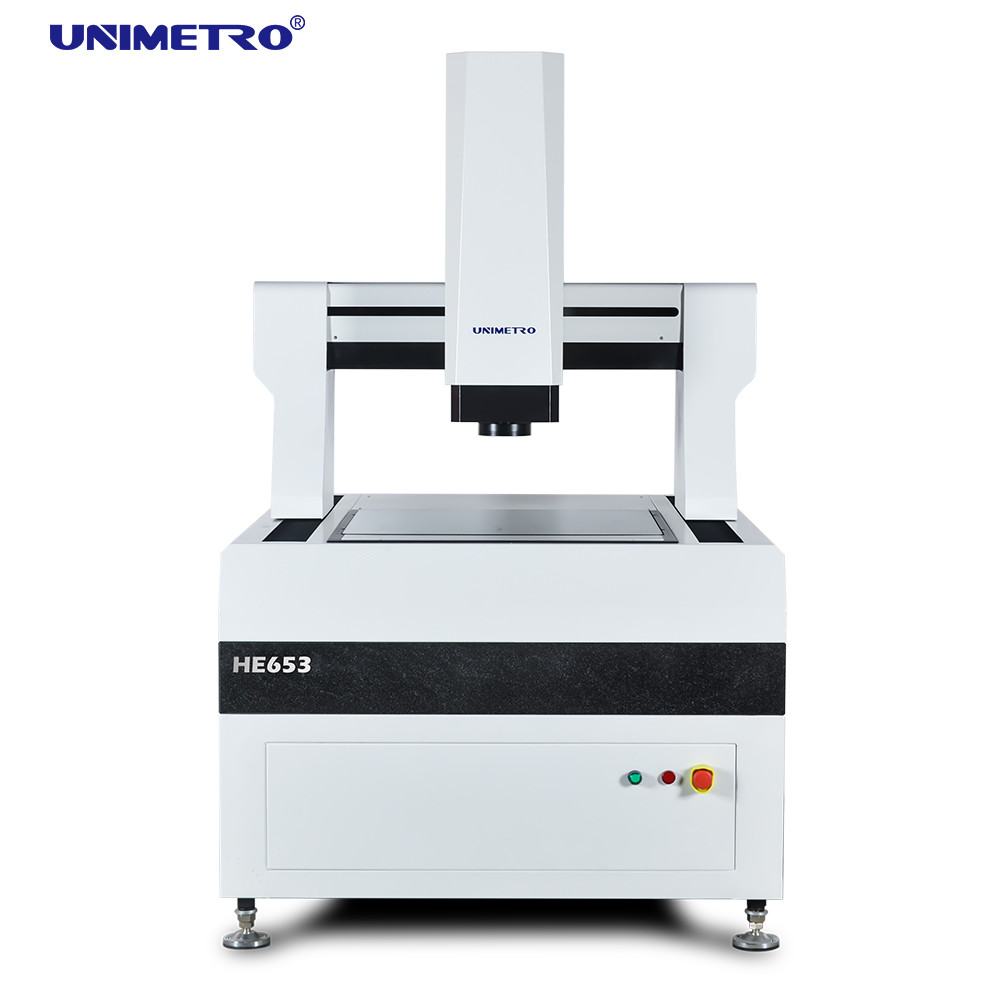

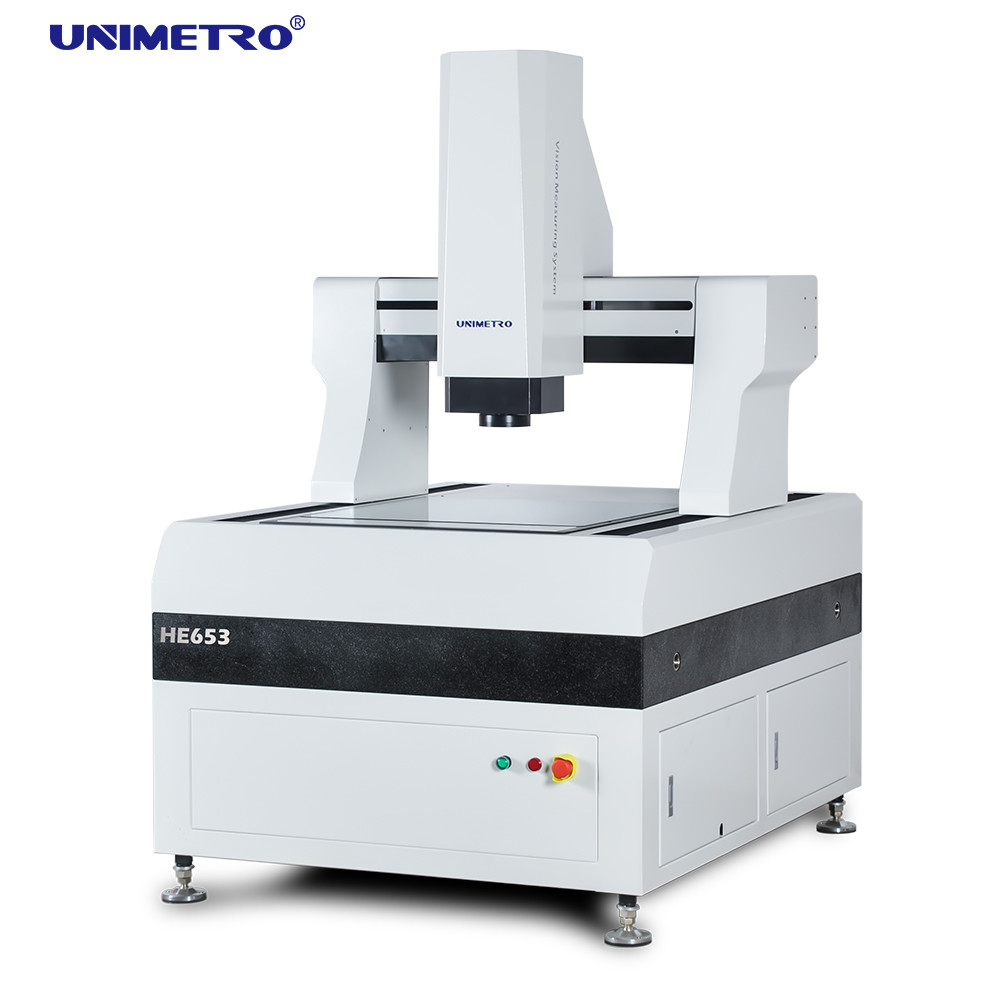

Gantry Type CNC Video Measuring Machine For Large Workpiece Testing


HE series of high-efficiency gantry type automatic vision measurement system is specially designed for high-precision and large-scale measurement. It adopts fully closed mobile bridge structure to keep the measurement work fixed. It combines high-precision and high-efficiency organically to effectively detect the geometric parameters of various products. At present, it is mainly used in PCB circuit board, copper clad laminate, flat glass, liquid crystal module, knife mould, insulating material, precision sheet metal and other.

OEM ODM Gantry Type CNC Video Measuring Machine For Large Workpiece Testing 0





Product Name HE Series Automatic Vision Measuring Machine
Model HE652 HE862 HE1080 HE1210
X/Y-axis Travel 500*600mm 600*800mm 800*1000mm 1000*1200mm
Z- axis Travel 200mm (can be raised according to the requirements of the customer)
Linear Scale Resolution RENISHAW open type Linear Scale Resolution: 0.5um (0.1 for option)
Guidance Mode Precision linear guide, double-track double slider guide
Operation Mode Joystick controller, Mouse operation, automatic detection program
Accuracy ≤2.5+L/200um
Repeatability ±2.5um
Video System CCD 2MP High definition 1/3" Color CCD Camera
Zoom Lens 6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X;
Video Magnification: 26X~172X(24”monitor)
Field of View (mm) Magnification 0.7x 1x 2x 3x 4x 4.5x
1/3" CCD 8.57x6.86x5.14 6.00x4.80x3.60 3.00x2.40x1.80 2.00x1.60x1.20 1.50x1.20x0.90 1.33x1.07x0.80
Illumination System Contour LED parallel contour illumination
Surface 0~255 Stepless adjustable 5-ring 8-division LED surface illumination
Software UNIMETRO 2D/Rationalvue/INSPECT Fully Auto Measuring Software
Load Capacity 25kg
Working Environment Temperature 20℃±2℃, Humidity Range<2℃/hr,
Humidity 30~80%, Vibration<0.002g, <15Hz
Dimension(W*D*H) 1700*1180*1750mm 1700*1280*1750mm 1900*1480*1750mm 2100*1680*1750mm
Net Weight 1500kg 1800kg 2900kg 3200kg



◆ High rigid structure design:

1) The whole closed frame moving bridge structure is adopted, the measuring workpiece is fixed, the bearing capacity is large, and the motion performance is good.
2)  Introduce finite element analysis technology into mechanical design to ensure high rigidity and high precision mechanical structure.
3)  Grade 000 granite base, high strength, corrosion resistance and good stability.
4)  Aluminum oxide surface treatment worktable, fast and flexible action control, durable and beautiful.

◆ High precision configuration:
1) RENISHAW open grating ruler, resolution 0.5um, high precision and good stability.
2) Precision linear guide rail, ball screw of grinder and AC servo motor ensure the stability of positioning accuracy of machine system.
3) 2M pixel high-definition color Giga digital camera meets the requirements of clear observation and stable measurement.
4) 6.5x high-definition optical lens, accurate automatic zoom, fast pixel calibration.
5) Programmable 5-ring 8-zone LED surface light source, transmission parallel LED contour light source system, intelligent 256 level brightness adjustment.
6) Full axis CNC control, AC full closed loop servo motor drive.
Optional multi-sensor for 3D measurement:
HE series large gantry type vision measuring instrument can be equipped with a variety of 3d sensors for comprehensive 2D / 3D composite measurement. It can also be equipped with non-contact sensors such as probe and laser. It also supports RENSHAW full series of probe bracket, so that users can complete the automatic transformation of full-scale measurement on one device, greatly improving productivity.




OEM ODM Gantry Type CNC Video Measuring Machine For Large Workpiece Testing 1

         Showroom                                   Staff photo                             Company Logo


Dongguan UNIMETRO Precision Machinery Co., Ltd is a manufacturer of metrology products with 10 years of experience.  We are specialized in providing professional measuring solutions for end-users.

As our LOGO "UNIMETRO" means universal metrology, UNIMETRO team devoted to bringing our measuring solution cover wide range of industries and the world. Until now, UNIMETRO products have been sold to more than 20 countries and regions, and contribute our service and support to different customers in different industries such as mold, plastic injection, electronics, semiconductor, aviation and automotive. UNIMETRO has the leading advantage of outstanding R&D capability and detailed oriented production process. We have got more than 15 patents for our products and we will always keep the leading position of innovation in the metrology industry. Professional, sincere, responsibility and honest are the key characters of the UNIMETRO people. And we are always expecting long-term cooperation with you! UNIMETRO will always offer our best support and resources to our partners!
