| Place of Origin: | China |
|---|---|
| Brand Name: | UNIMETRO |
| Certification: | CE,ISO |
| Model Number: | AVANT100 |
| Minimum Order Quantity: | 1 |
| Price: | Discussible |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 per month |
| Product Name: | FOV 100mm Image Dimension Measuring Systems | Image Sensor: | 2000W HD Color Digital Camera |
|---|---|---|---|
| Light Receiving Lens: | Single/double Telecentric Lens | Broad Vision: | 130*100mm |
| Repeatability: | +-2(coordinate Table Not Moving) | Display Resolution: | 0.1um |
| Dimension: | 415*240*768mm | Support: | OEM, ODM |
| High Light: | 2000W Image Dimension Measurement System,50KG Image Dimension Measurement System,ODM Image Dimension Measurement System |
||

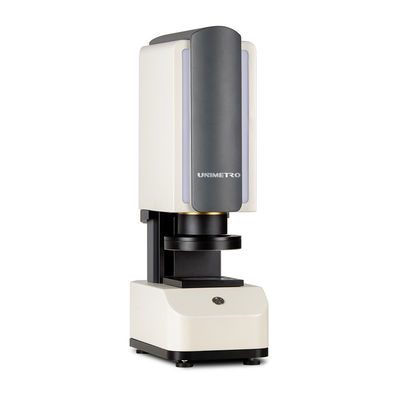

A100 Image Dimension Measurement System is a new image measurement technology of UNIMETRO. It is different from the traditional 2D image measurement instrument in that it no longer needs the grating ruler displacement sensor as the accuracy standard, nor does it need to enlarge the product image through the lens with large focal length to ensure the measurement accuracy.

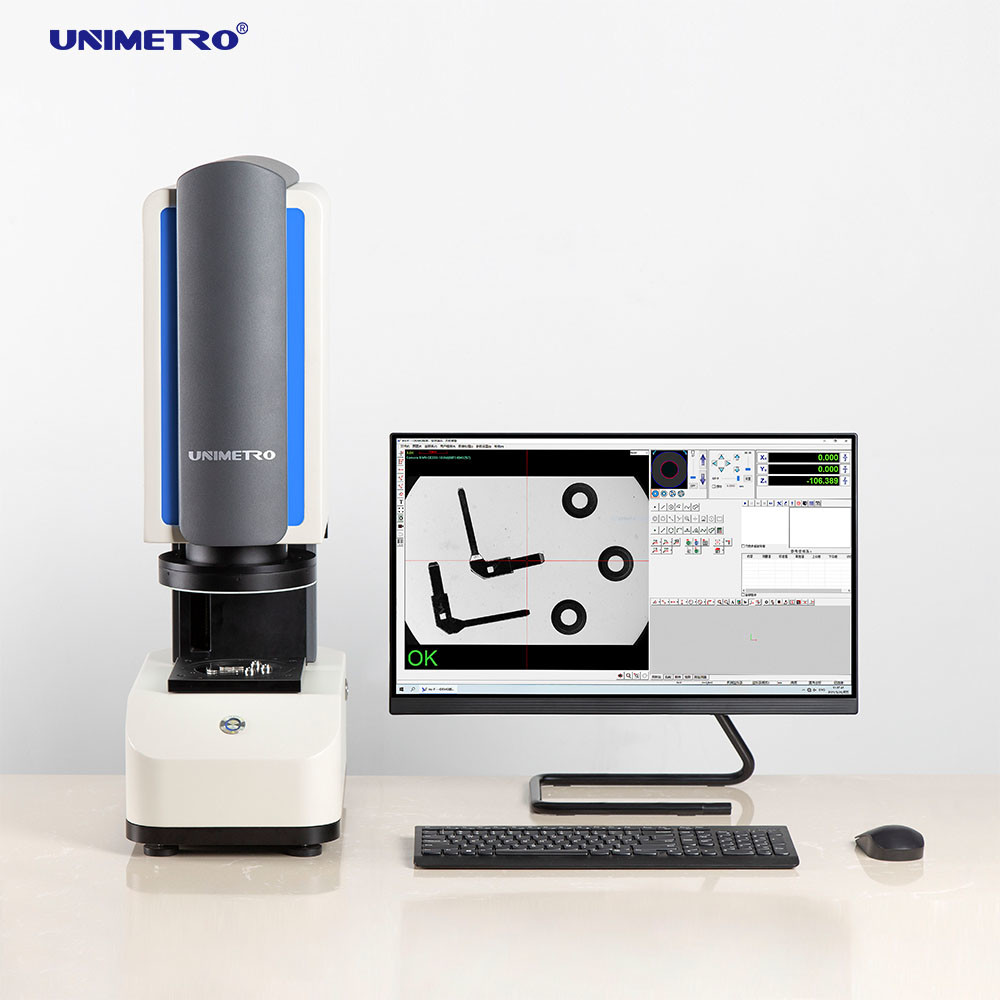

The structure of the fuselage is simple. It does not need the grating ruler of displacement sensor. It only needs the telecentric zoom lens with large viewing angle and large depth of field, high pixel CCD camera and powerful background software.

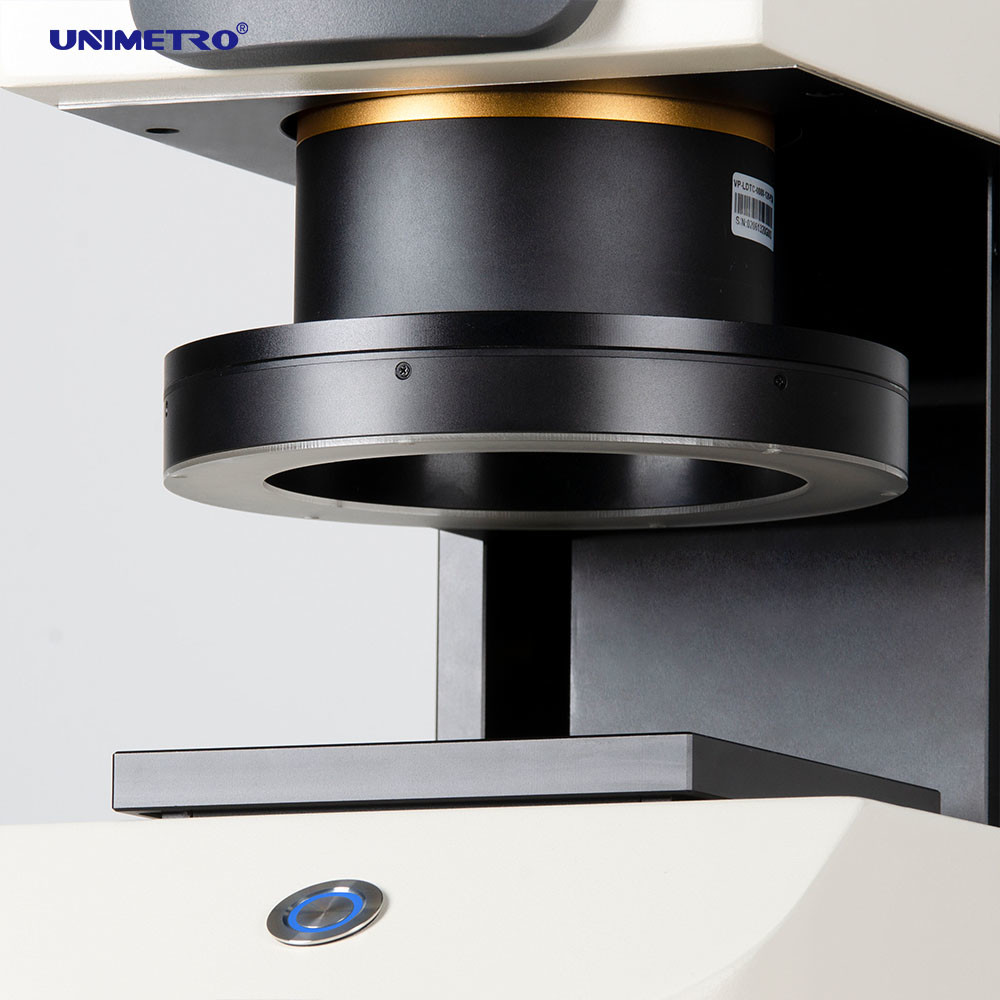

Through the double telecentric optical lens with large viewing angle and large depth of field, using high-speed digital processing function, combined with high-precision image analysis algorithm, it can complete the evaluation of dimensional tolerance at the same time with only one key. It is widely used in machinery, electronics, mold, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, terminals, mobile phones, household appliances, printed circuit boards, medical equipment, watches, knives and other fields.
Parameters
| Model Number |
A100 |
|||||
| Image sensor |
2000W HD color digital camera |
|||||
| External display |
24’ |
|||||
| Light receiving lens |
Single/double telecentric lens |
|||||

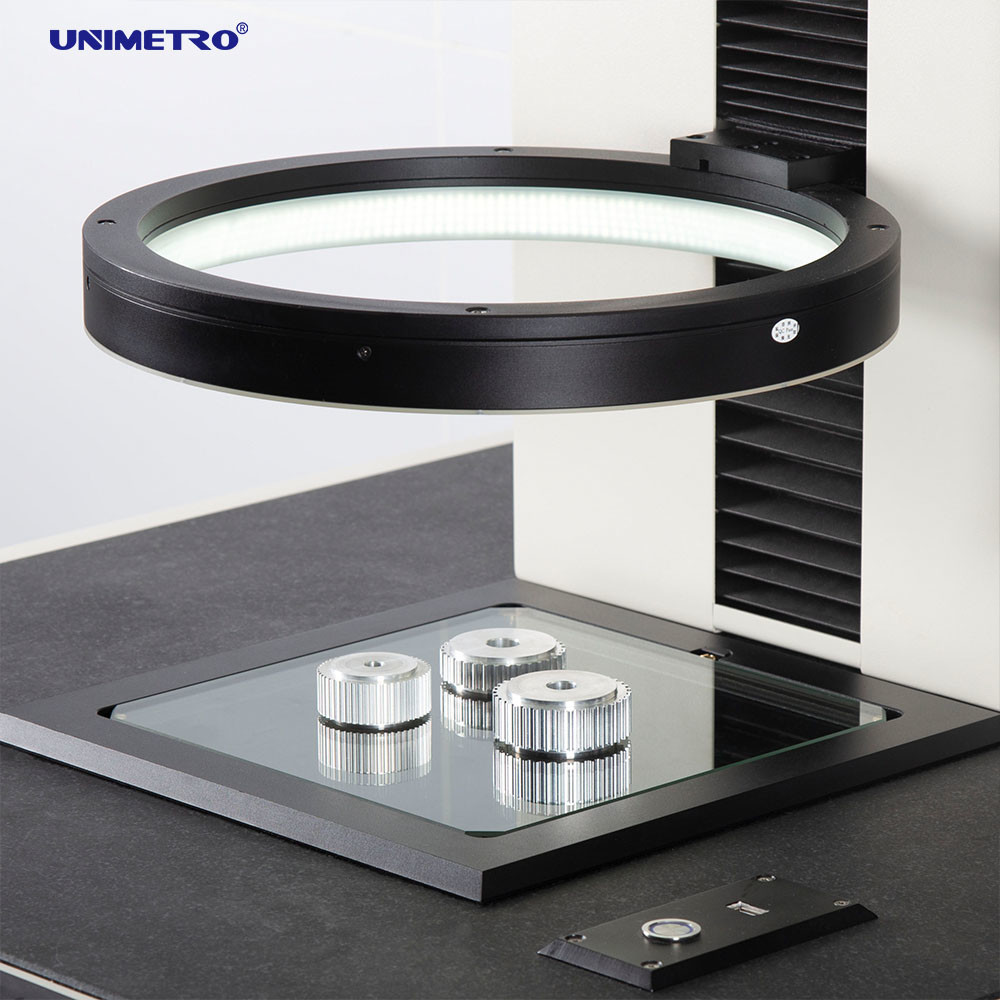

| Illumination |
Drop shot system |
Single zone ring directional lighting (white light) |
||||
| Transmission |
Telecentric transmission illumination (white light) |
|||||
|
Broad Vision(mm) |
83*63mm |
|||||
|
Repeatability |
Broad vision |
±3(Coordinate table not moving) |
||||
|
Measurement Software |
INS/F |
|||||
|
Display resolution |
0.1um |
|||||
|
Z-direction electric coordinate table |
Moving range |
100mm |
||||
|
Dimension |
240*415*770 |
|||||
|
Weight |
50KG |
|||||
|
Power Supply |
110-240VAC,50/60HZ |
|||||
Features
Fast and simple operation process:
|
1.Import template: support DXF format
|
