Fast Reacting Vision Measurement Machine Z Axis Motorized Control

Basic Information
Place of Origin: China
Brand Name: Unimetro
Certification: CE ISO
Model Number: E300
Minimum Order Quantity: 1set
Price: usd5460-usd6300usd/set
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 30 sets per month
Detail Information
Dimension: 600*740*980mm Measuring Range: 300*200*200
Measuring Accuracy: 2.5+L/100 Weight: 190kg
Repeatability: 2.5μm
High Light:

Fast Reacting Vision Measurement Machine


Z Axis Vision Measurement Machine


Vision Measurement Machine Motorized Control

Product Description

High accuracy visual measurement systems led contour light vision measuring machines vmm machine




Product Description

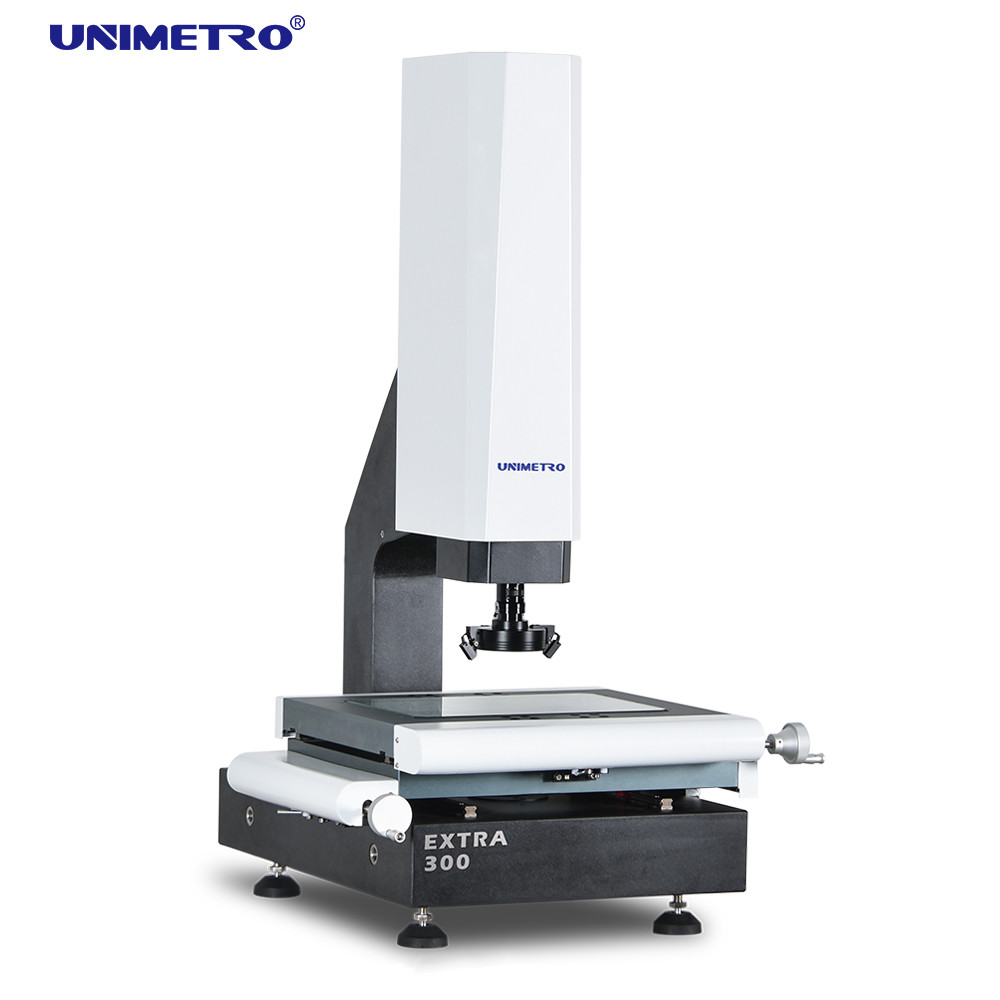

Fast Reacting Vision Measurement Machine Z Axis Motorized Control 0

UOur vision measuring machines has below feature:
► Granite base and column, excellent stability;
► The Z-axis adopts high-precision linear guide and servo motor control system to realize automatic focusing, eliminate the error of artificial focusing, and improve the measurement accuracy and stability;
► Aluminum work stage,make the motion control fast reacting and flexible;
► Programmable 3-ring 4-section LED surface light source, transmission parallel LED contour light source system, and the built-in light adjustment module of the software can freely control the brightness of light in 3 rings and 4 zones.





Hardeare Configuration

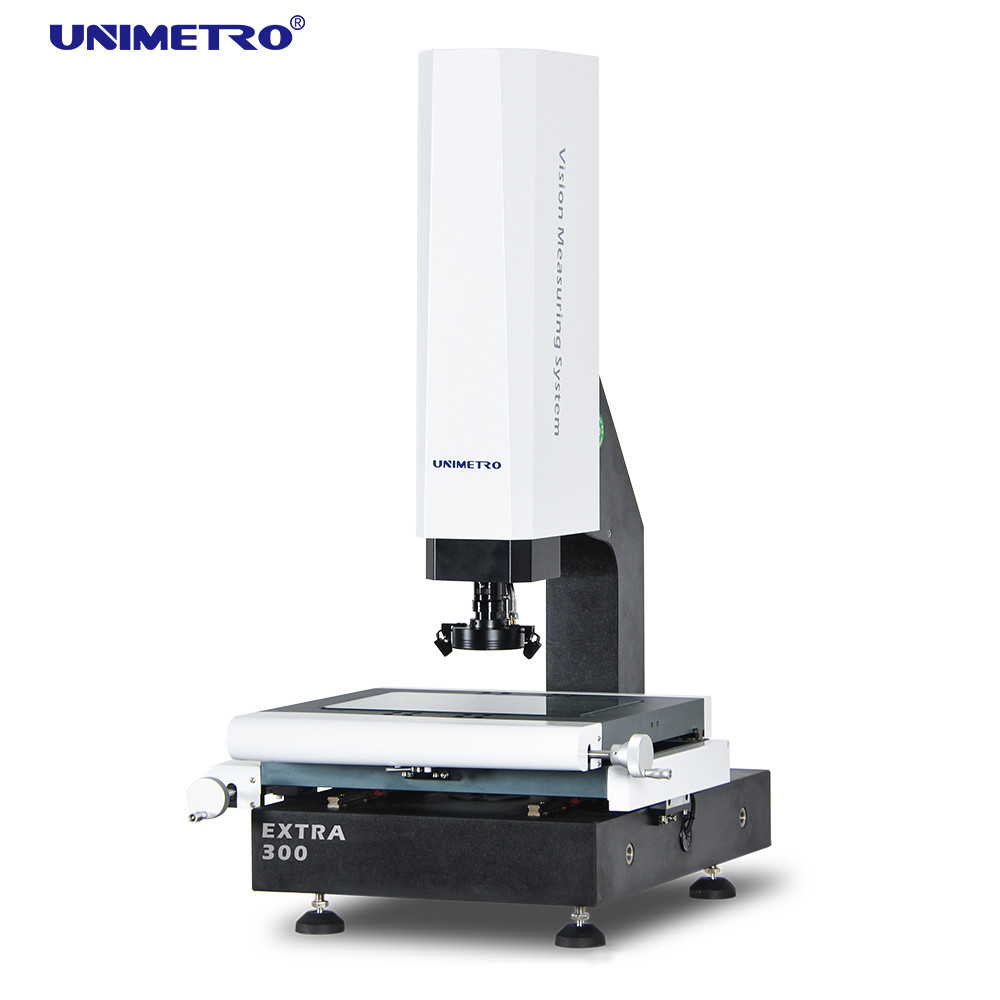

Fast Reacting Vision Measurement Machine Z Axis Motorized Control 1

The configuations of our vision measuring machines are as below:
● 3 axis 0.5um resolution linear scales
● High performance Auto focus function
● Compatible with Renishaw touch probe
● Aluminum work stage and hard anodizing
● 3 rings 8 section LED ring light software control and programmable
● Parallel light path LED contour light software control and programmable
● 1.2M pixel HD digital camera
● Integrated core control box
● Z axis motorized control
● HIWIN linear guide way
● Manual pulse generator for Z axis movement control

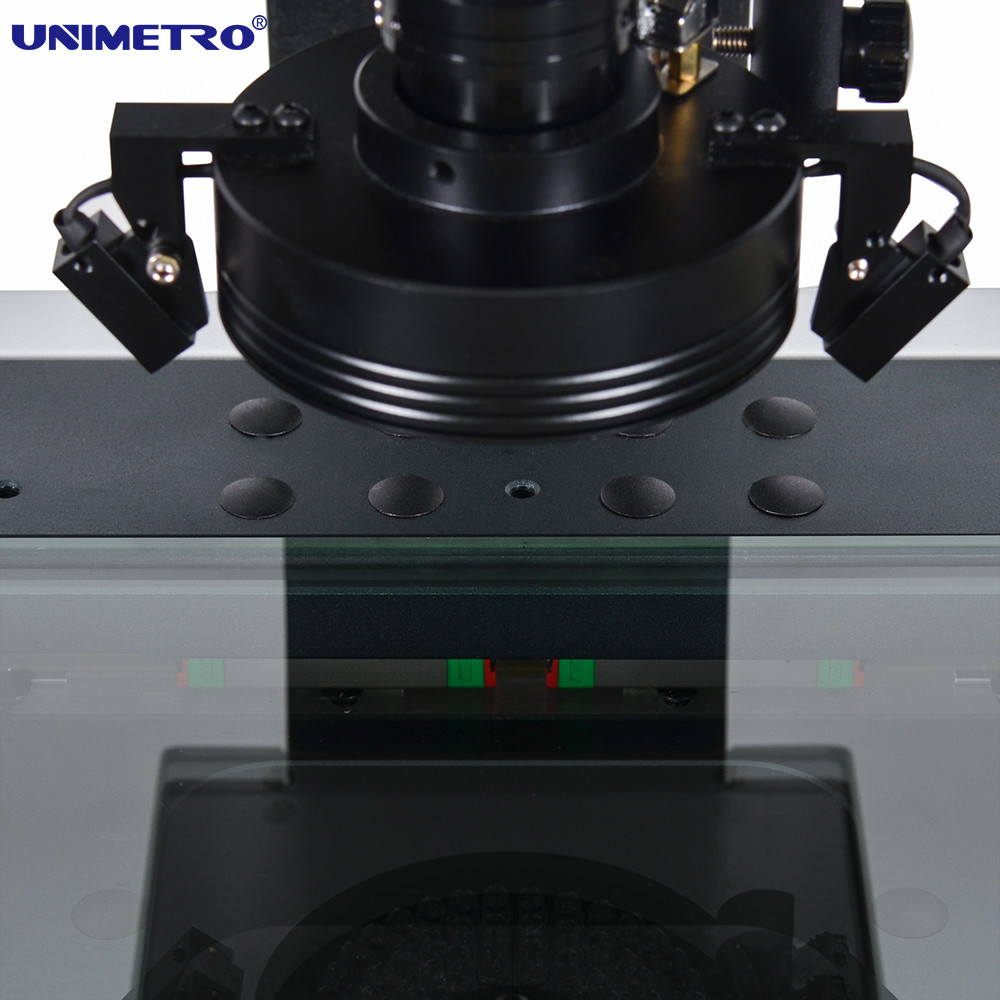

● With Laser indicators for auxiliary positioning and focusing
● 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor



Product Features

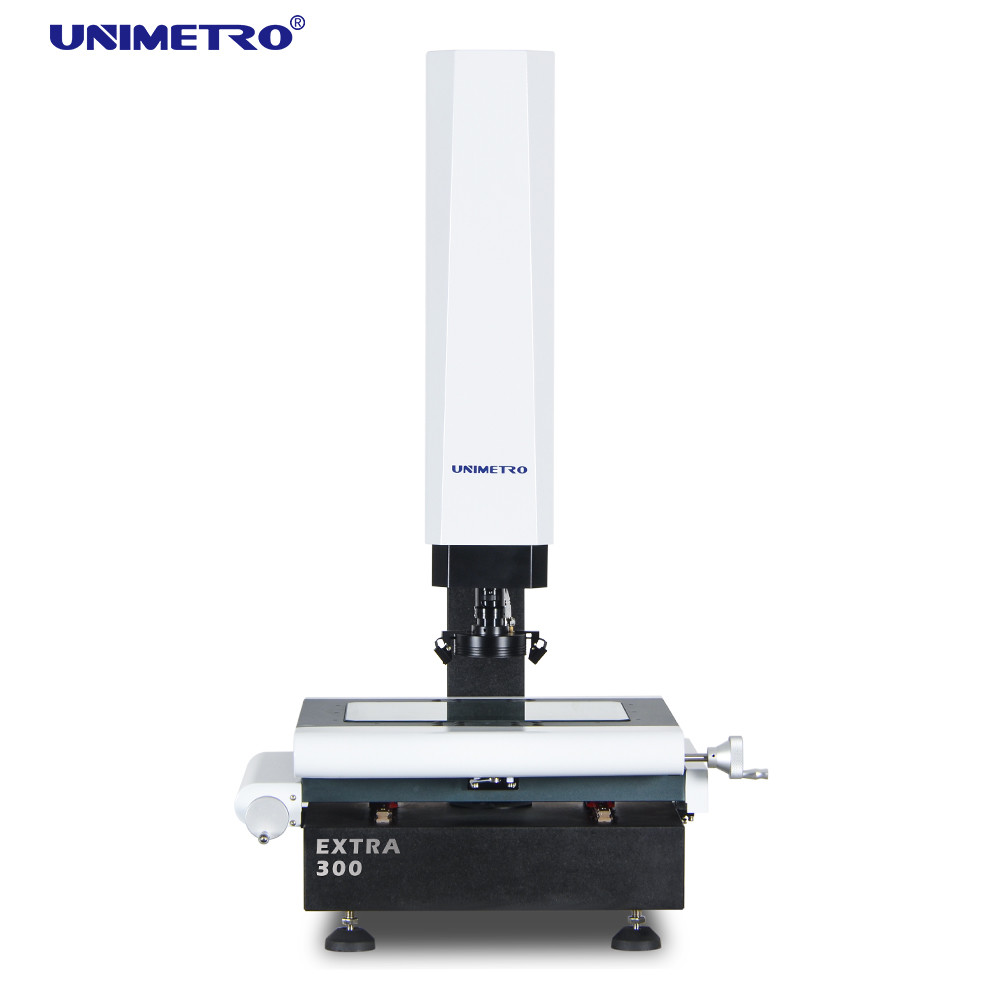

Fast Reacting Vision Measurement Machine Z Axis Motorized Control 2

Our vision measuring machines can add probe to realize 3d function ● Easy calibration
● Multiple angle touching
● Fast coordinates system setting
● Compatible to full line of Renishaw stylis
● CAD module supported(Optional)
● 3D drawing output
● Star probe compatible
● 3D dimension measuring
● Image and touch probe combine measuring
● Probe rack supported(Optional)




Our vision measuring machines' parameter are as below chart shows:
Model EXTRA 200 EXTRA 300 EXTRA 400 EXTRA 500
Dimension(mm)(L*W*H) 500*540*930 600*740*980 700*840*980 800*940*980
Measuring range (mm)(X*Y*Z) 200*100*150 300*200*200 400*300*200 500*400*200
Measuring Accuracy (μm) 2.5+L/100 2.5+L/100 2.5+L/100 3+L/100
Repeatability (μm) 2.5 2.5 2.5 3
Weight (kg) 140kg 190kg 240kg 290kg
Image and Measuring CCD 200mm (can be raised according to the requirements of customers)
Lens Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X
Magnification 18-195X ( For reference only. With different camera and lens the magnification will be different. )
Field of View 8.1~1.3mm
Working distance 108mm
Linear scale resolution 0.5 μm( 0.1μm for option )
Driving system X , Y axis manual conrol , Z axis close-loop CNC control and AUTU FOCUS funtion available
Illumination Programmable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for option



Fast Reacting Vision Measurement Machine Z Axis Motorized Control 3



The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn,
powerful function, allows the users to achieve fast and precise measuring.
The software is offering full English language UI, also allows new language development.

Fast Reacting Vision Measurement Machine Z Axis Motorized Control 4


●Input CAD file and measure
● Easy calibration
● Input CAD file and measure
● Parts array and macro measuring
● Auto focus and height measuring
● Navigating function helps fast locating
● Powerful geometric measuring function
● Multiple data reports and graphical data output function
● Flexible user program
● Creating reference elements
● Powerful edge detecting function
● Supporting multiple external accessories
● Auto calculation of the elements geometrical tolerance
● Measuring complicated production fast and conveniently



Fast Reacting Vision Measurement Machine Z Axis Motorized Control 5
Fast Reacting Vision Measurement Machine Z Axis Motorized Control 6
Dongguan UNIMETRO Precision Machinery Co., Ltd
Dongguan UNIMETRO Precision Machinery Co., Ltd is a professional supplier of metrology products with 9 years experience. We devote ourselves to developing, assembling, and sales of vision measurement machines, tools inspection machines, metrology accessories and special metrology fixtures. Also we are integrating the best metrology resources in the world and have built a mature supply chain for other metrology equipment and products. The UNIMETRO products have been sold to more than 20 countries and regions, and contribute our service and support to different customers in different industries such as mold, plastic injection, electronics, semi conductor, aviation and automotive. UNIMETRO has the leading advantage of outstanding R&D capability and detailed oriented production process. We have got more than 15 patents for our products and we will always keep the leading position of innovation in the metrology industry. Professional, sincere, responsibility, and honest are the key characters of the UNIMETRO people. And we are always expecting long term cooperation with you! UNIMETRO will always offer our best support and resources to our partners!
Fast Reacting Vision Measurement Machine Z Axis Motorized Control 7
