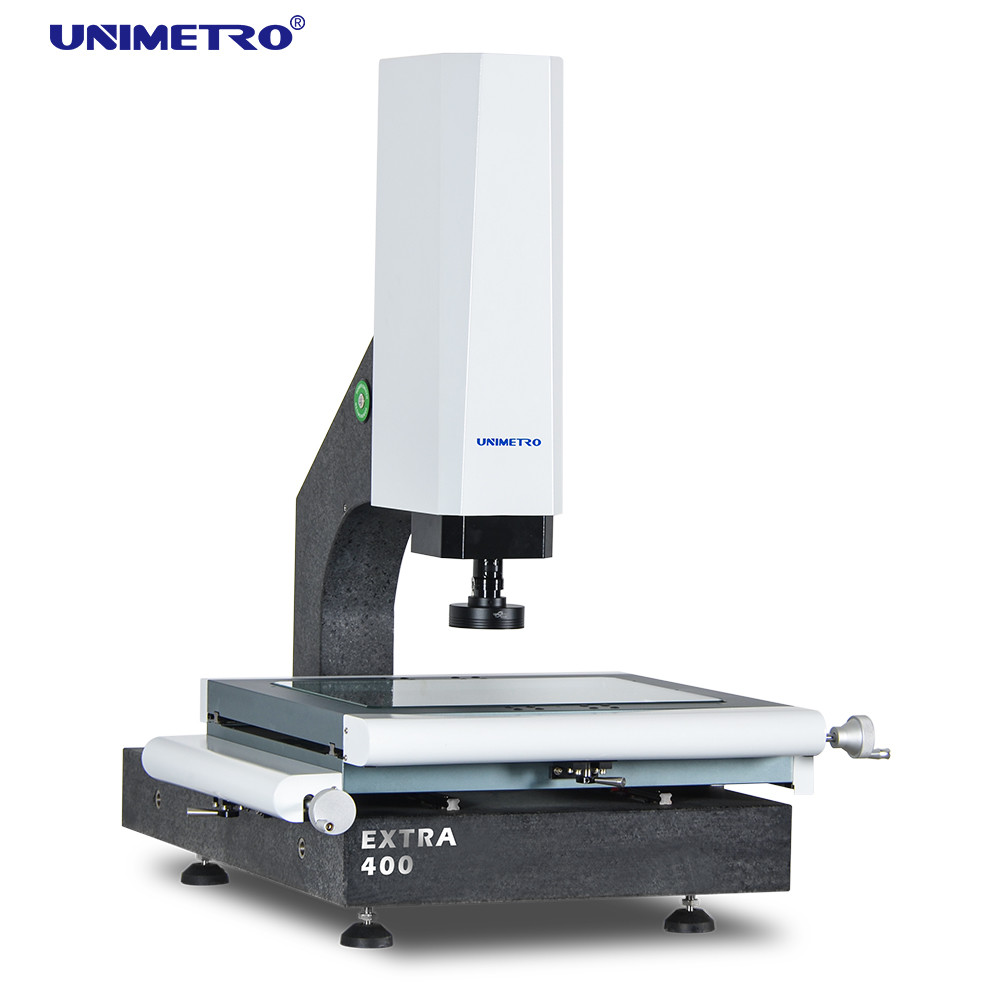

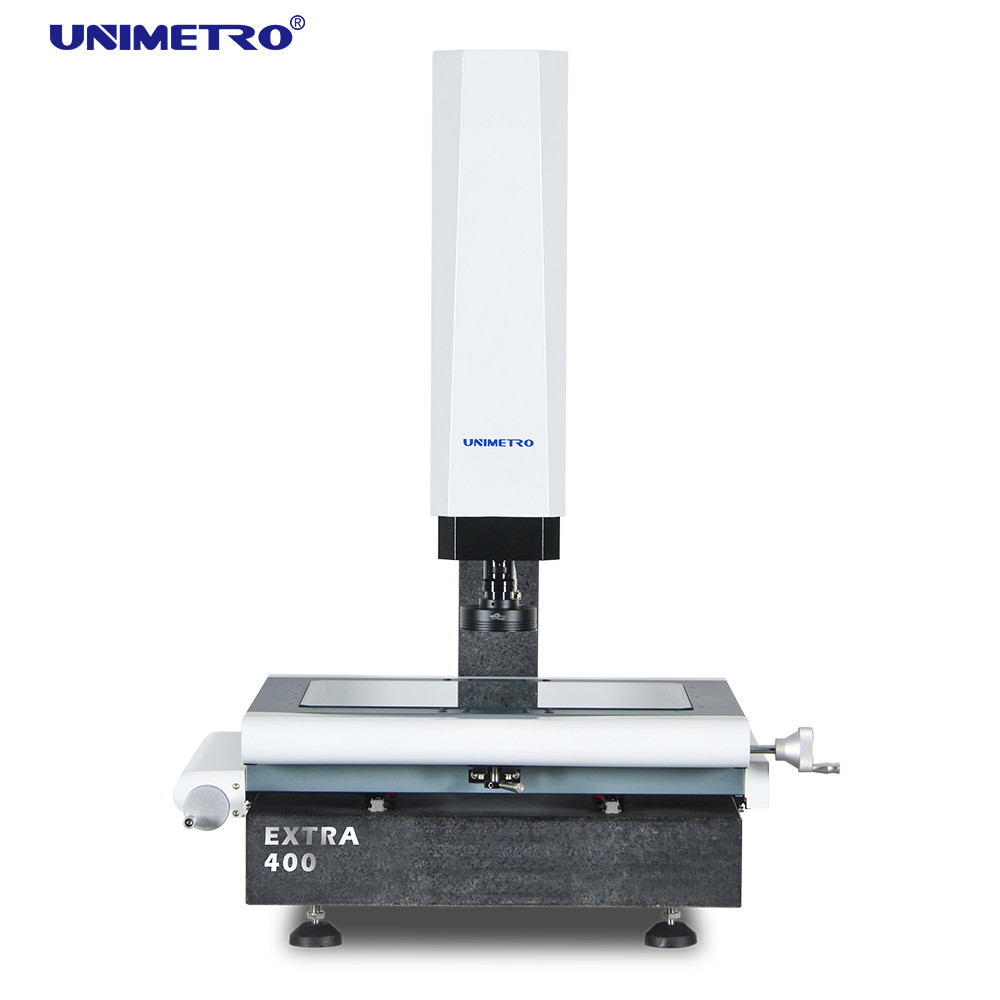

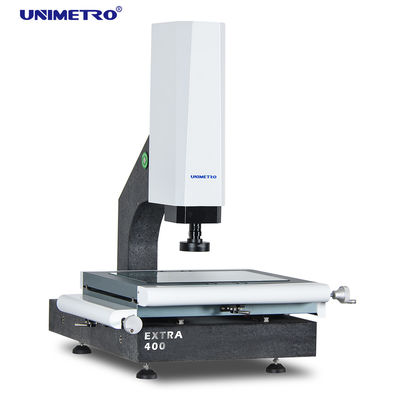

OEM ODM Optical Non Contact Measuring Machine With Auto Focus Function

OEM ODM Optical Non Contact Measuring Machine With Auto Focus Function

OEM ODM Optical Non Contact Measuring Machine With Auto Focus Function
OEM ODM Optical Non Contact Measuring Machine With Auto Focus Function
Product Details:
Place of Origin: Guangdong, China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: EXTRA
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case+ Vacuum package
Delivery Time: 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80sets per month
Contact Now
Detailed Product Description
Model: EXTRA Product Name: Optical Non-contact Measuring Machine With Auto-Focus Function
Repeatability: 2.5um Accuracy: 2.5+L/100um
Linear Scale Resolution: 0.5um Measuring Mode: Semi-auto
Support: OEM,ODM, Customize Application Scenery: Laboratory/Industrial
Warranty: 12 Months
High Light:

ODM Non Contact Measuring Machine


OEM Optical Non Contact Measuring Machine


Non Contact Measuring Machine Auto Focus

Optical Non-contact Measuring Machine with Auto-Focus Function



EXTRA series semi-automatic vision measuring machine provides customers with measurement function and user experience beyond ordinary products. Full range of z-axis servo control, standard configuration of hand pulse generator for fine control and fine-tuning of Z-axis motion,with automatic image focusing function, your measurement efficiency and user experience are greatly improved.


Product Name EXTRA Series Semi-auto Video Measuring System
X/Y/Z-axis Travel 200*100*150mm 300*200*200mm 400*300*200mm 500*400*200mm
Linear Scale Resolution 0.5um (0.1um optional)
Guidance Mode HIWIN linear guide way
Accuracy ≤2.5+L/100um
Repeatability ±2.5um
Video System CCD 1.2MP CCD dIgital Camera
Zoom Lens Manual electronic feedback signal zoom lens 0.7 ~ 4.5X
Field of View (mm) Magnification 0.7x 1x 2x 3x 4x 4.5x
1/3" CCD 8.57x6.86x5.14 6.00x4.80x3.60 3.00x2.40x1.80 2.00x1.60x1.20 1.50x1.20x0.90 1.33x1.07x0.80
Illumination System Contour LED parallel contour illumination
Surface 0~255 Stepless adjustable 5-ring 8-division LED surface illumination
Load Capacity UNIMETRO 2D Fully Auto Measuring Software
Working Environment 25kg
Power Supply Temperature 20℃±2℃, Humidity Range<2℃/hr,
Humidity 30~80%, Vibration<0.002g, <15Hz
Dimension(W*D*H) 550*540*930mm 600*740*980mm 700*840*980mm 995*1420*1780mm
Net Weight 140kg 190kg 240kg 450kg



◆ Quality details control

1. Granite base and column, excellent stability;

2. Aluminum work stage, make the motion control fast reacting and flexible;
3. Work stage with hard oxidation surface processing anti-scratch;
4. Standard with precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system;
5. Integrated control system, embedded with motion control, and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable.
High performance configuration
1. X, Y two-axis manual control to achieve accurate positioning;
2. The Z-axis adopts high-precision linear guide and servo motor control system to realize automatic focusing, eliminate the error of artificial focusing, and improve the measurement accuracy and stability;
3.0.5um high-precision linear ruler and precision worktable ensure that the accuracy of the machine is ≤ 2.5 + L / 100um;
4. High precision toothless polished rod and fast moving locking device are used to ensure the return error of worktable within 2um;
5. Industrial high resolution color CCD ensures clear image quality without distortion and meets the needs of clear observation and accurate measurement;
6. 0.7-4.5x HD zoom manual electronic feedback signal zoom lens, the software canquickly and automatically identify the magnification and carry out the corresponding zoom action, making the measurement steps simpler;
OEM ODM Optical Non Contact Measuring Machine With Auto Focus Function 0
◆ Efficient measurement software
1. EXTRA Series vision measurement machine is campatible with multiple option of powerful measuring software. Which are with diversified measuring function, can measure geometric elements such as points, circles, lines, angles, angles, etc., as well as dimensions such as distance, roundness, straightness, concentricity, etc.
2. Simple and easy to understand operation interface makes measurement more simpleand efficient;
3. CAD file input and comparing, easy output of measuring report, and SPC analyse of the measuring results data
◆ Flexible expansibility
1. Extra series CMM is compatible with Renishaw probe series (optional), and users can easily realize two-dimensional and three-dimensional measurement functions on one machine. The software can calculate the offset between the optical lens and the touch probe to ensure that all measurement results are in one coordinate system.
2. The measurement results can be output to 3D graphics for reverse engineering application.
3. A variety of non-contact sensors and quick fixing system can be selected to meet different measurement requirements of different customers
4. Green contour light can be selected to make it more flexible and powerful for different parts of different materials or shapes, and provide more powerful measurement applications.


OEM ODM Optical Non Contact Measuring Machine With Auto Focus Function 1
         Showroom                                   Staff photo                             Company Logo

UNIMETRO, as our company's LOGO, can be divided into two words: UNIVERSAL and METROLOGY, providing universal measurement solutions for various industries covering the world. UNIMETRO has been practicing this concept. Since its establishment, UNIMETRO products have been sold to more than 20 countries and regions. , And provide services and support for different customers in different industries such as mold, injection molding, electronics, semiconductor, aerospace, and automobile. UNIMETRO has excellent research and development capabilities and a detailed lead in the production process. Our products have obtained more than 15 patents, and we will always maintain the leading position of innovation in the measurement industry.
