2.5D Optical Dimension Measuring Machine Optional Renishaw Probe

Basic Information
Place of Origin: Guangdong, China
Brand Name: UNIMETRO
Certification: ISO, CE
Model Number: ULTRA
Minimum Order Quantity: 1 set
Price: Negociatable
Packaging Details: Wooden case+ Vacuum packing
Delivery Time: 8-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50-60sets per month
Detail Information
Features: High Accuracy, Fast Speed Product Name: 2.5D Optical Dimension Measuring Machine
Model: ULTRA Measuring Mode: 3-axis Automatic
Accuracy: 2.5+L/200 Repeatability: 2.5um
Optional: Camera, Probe, Laser, Etc. Support: OEM, ODM, Customized
High Light:

Optical Dimension Measuring Machine

,

2.5D Dimension Measuring Machine

,

Renishaw Probe Dimension Measuring Machine


Product Description

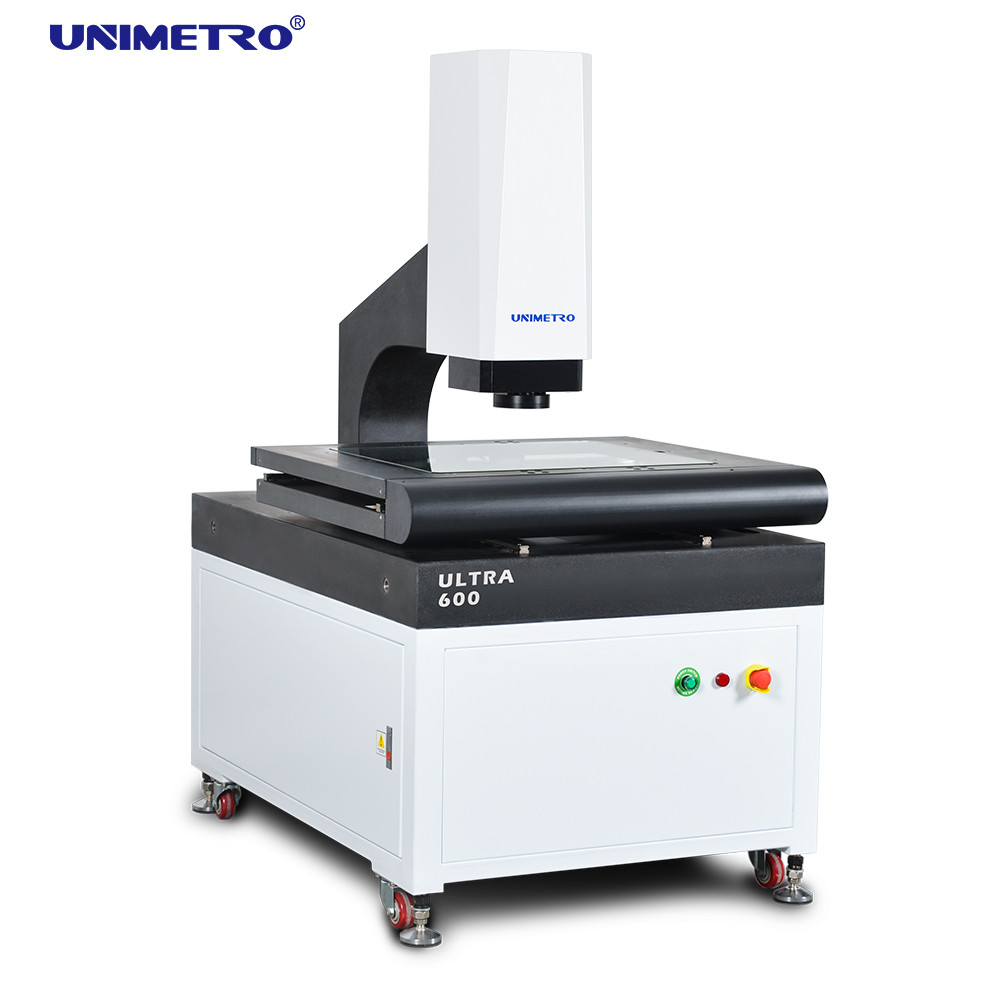

2.5D Optical Dimension Measuring Machine Optional Renishaw Probe

ULTRA Series CNC VMS





Parameters

Model

ULTRA 300

ULTRA 400

ULTRA 500

ULTRA 600

X/Y-axis Travel(mm)

300x200

400x300

500x400

600x500

Z-axis Travel

200mm (can be raised according to the requirements of customers)

X/Y/Z-3 axis Linear Scale

Glass Linear Scale Resolution: 0.1um

Guidance Mode

Precision linear guide,double-track double slider guide.

Operation Mode

Joystick controller, Mouse operation, automatic detection program.

Accuracy

XYZ-axis:≤2.5+L/200um

Repeatability

±2.5um

Video system

CCD

High definition 1/3" Color CCD Camera

Lens

6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X; Video Magnification: 26X~172X(21.5"monitor)

Illumination system

Contour

LED parallel contour illumination

Surface

0~255 Stepless adjustable 5-ring 8-division LED surface illumination

Magnification

0.7X~4.5X

Measuring Software

UNIMETRO 2D Fully Auto Measuring Software

Load Capacity

±2.5um

Working Environment

25Kg

Power Supply

Temperature 20℃±2℃,Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g, <15Hz

Ddimension(W*D*H)(mm)

220V/50Hz/10A

Ddimension(W*D*H)(mm)

1600*780*1700

1750*920*1700

1900x1080x1700

1050*1280*1700

Net Weight(kg)

380

450

600

800




Features


Flexible configuration combination:

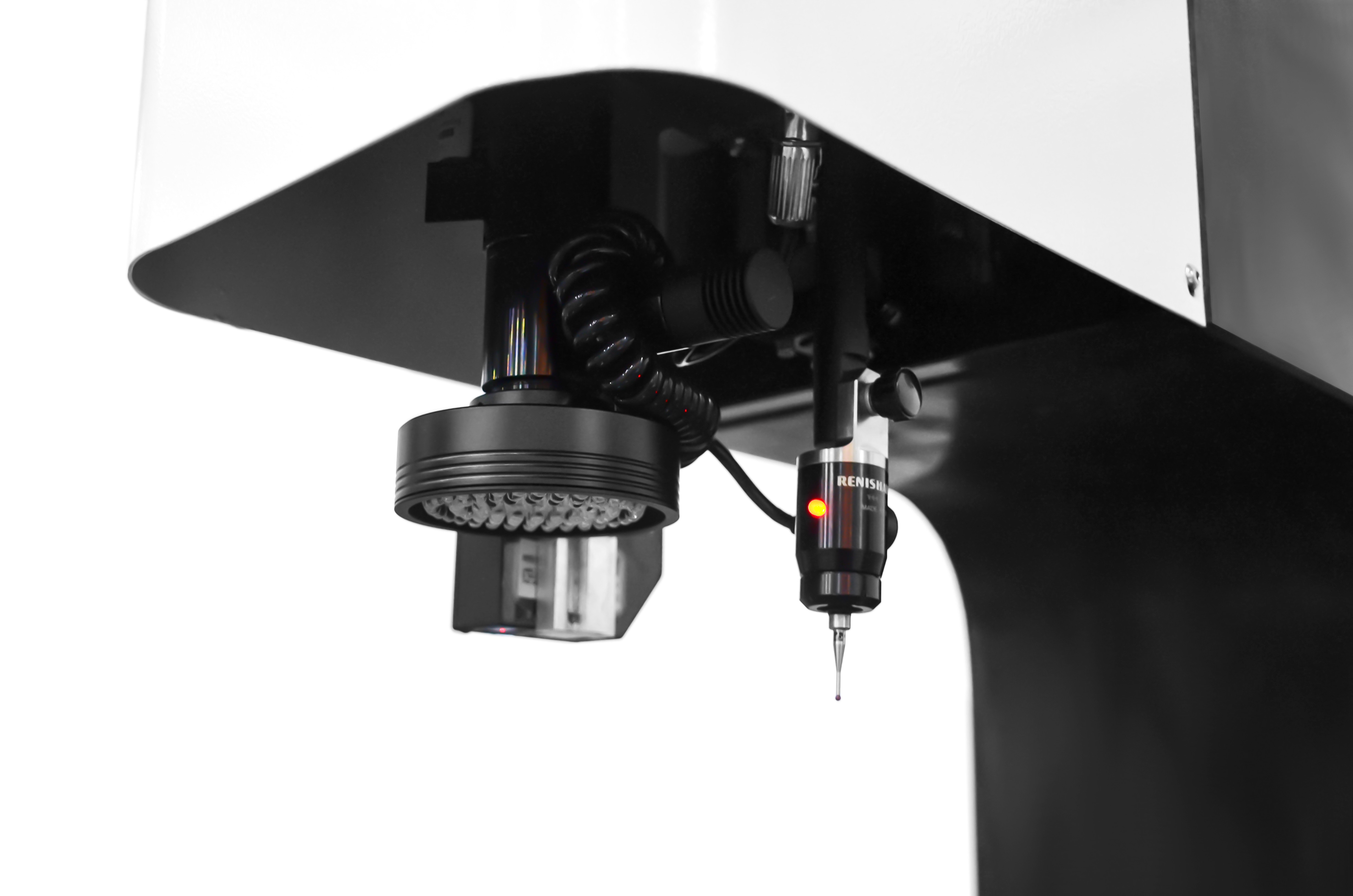

There is a standard configuration that would meet most of needs of end-users, but it is not fixed always. We will change the hardware assembly according to the actual requirement. For example, when you are going to test the simple height of the workpiece, you can just choose to add optional accessories like OMRON laser or Renishaw probe, etc.

Higher accuracy control:
In the dimension metrology field, accuracy is the key point of machine quality. To achieve higher accuracy, UNIMETRO team have totally 6 inspection link, from sampling inspection for all raw materials to 48-hours accuracy testing before shipment.





Efficient measurement software:
1. With the External-Array RationalVue composite measuring software, the ULTRA series is capable to offer powerful 2D/3d composite measuring function;
2. Simple and easy to understand operation interface makes measurement more simple and efficient;
3.Automatic measurement program can be set to complete batch measurement efficiently and quickly.




Saftware





INSPECT 3D VISION MEASURING SOFTWARE

2.5D Optical Dimension Measuring Machine Optional Renishaw Probe 0
◉ Flexible user program

◉ Creating reference elements

◉ Powerful edge detecting function

◉ Supporting multiple external accessories

◉ Auto calculation of the elements geometrical tolerance

◉ Measuring complicated production fast and conveniently



Company Information

Visual Measurement Machine
Visual Measurement Machine
Visual Measurement Machine
Visual Measurement Machine



Our Client&Agent

Visual Measurement Machine
Visual Measurement Machine


FAQ
Visual Measurement Machine  Q1: Are you a factory or trading company ?
Visual Measurement Machine  A1: We are a factory and giving you the quickest reply in 24 hours.
Visual Measurement Machine  Q2: What's your company mainly in?
Visual Measurement Machine  A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Visual Measurement Machine  Q3: How to Choose the Appropriate Specification?
Visual Measurement Machine  A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Visual Measurement Machine  Q4: Do you accept customized service?
Visual Measurement Machine  A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Visual Measurement Machine  Q5: What is your warranty period?
Visual Measurement Machine  A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved  a lot on some breakable parts. You can rest assured of our product quality.
