3D Cnc Vision Measuring System With High Resolution Color Camera

Basic Information
Place of Origin: China
Brand Name: Unimetro
Certification: CE ISO
Model Number: HE652
Minimum Order Quantity: 1set
Price: usd32500-usd37500/set
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 30 sets per month
Detail Information
Dimension: 1700*1180*1750mm Net Weight: 1500kg
X/Y Travel: 500x600 Accuracy: ≤3+L/200um
Repeatability: 3um
High Light:

3D Cnc Vision Measuring System

,

Cnc Vision Measuring System High Resolution

,

Color Camera Cnc Vision Measuring System


Product Description

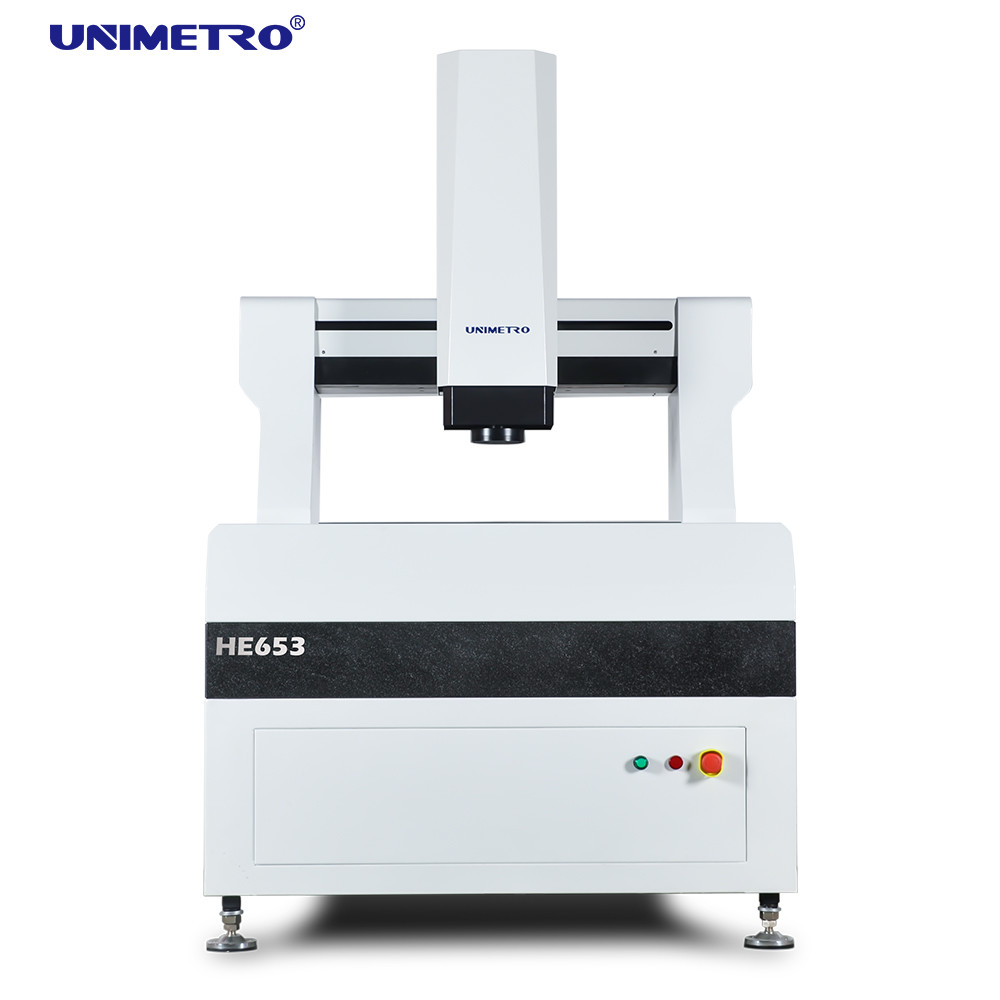

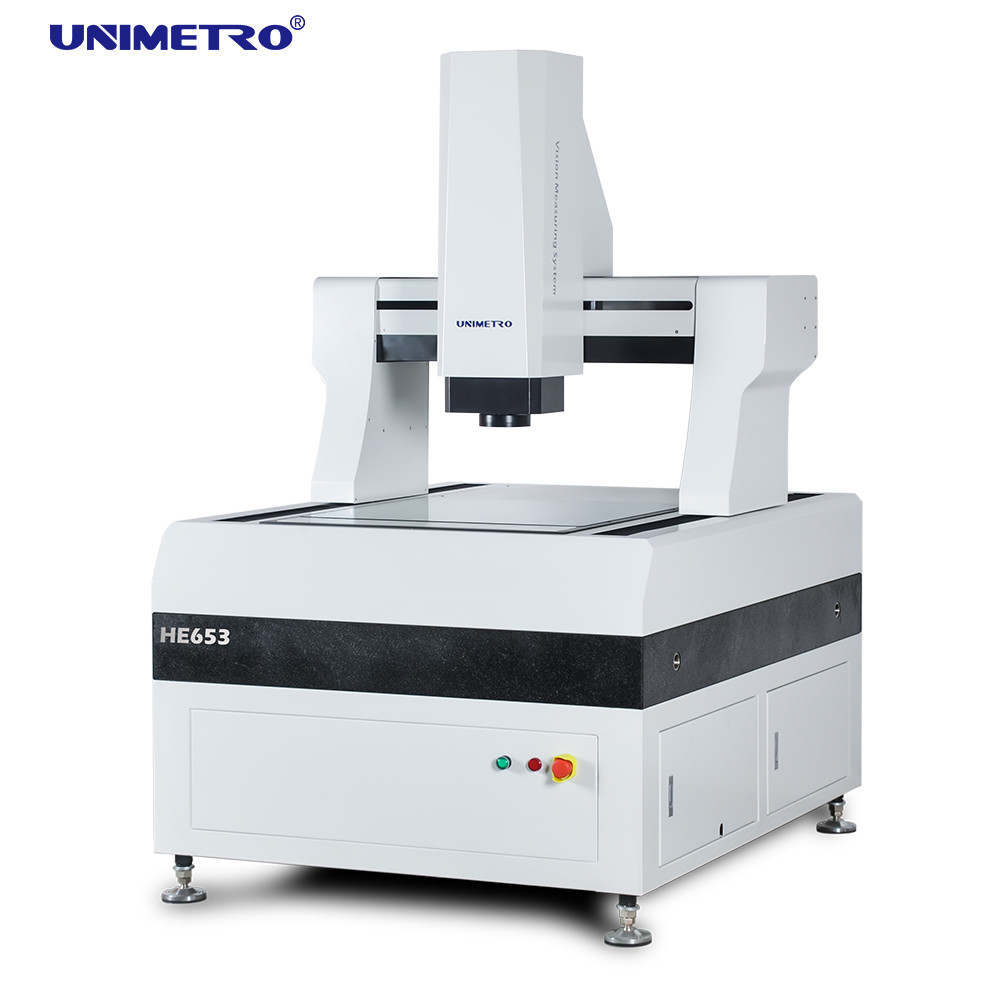

Full automatic vision system for measurement touch probe large vision measuring machine vmm





The HE series high accuracy gantry type Visual Measurement Systems combines high accuracy and high efficiency,offers high speed measuring for the geometric,elements,of different kinds of parts. The HE series is widely used in varies industries and products as PCB, copper clad laminate,pad glass,LCD modules,and insulation materials etc.

Finite elements analysis is introduced in the designing process of the HE series,ensure high rigidity and accurate mechanical structure.The machine base is using closed frame movable bridge type structure,which is simple and offers high loading capability and the best motion performance.





PRODUCT CHARACTERISTCS

Large vision measuring machine features:
>> Movable gantry structure and the workpiece is fixed when measuring;
>> Four axis CNC full-automatic closed-loop control, full-automatic measurement;
>> 000 grade granite base and beam, stable and reliable;
>> Open grating ruler with resolution of 0.1 um, high precision and good stability;
>> Precision linear guide rail, grinding grade ball screw and Panasonic AC servo motor ensure the stability of positioning accuracy of machine motion system;

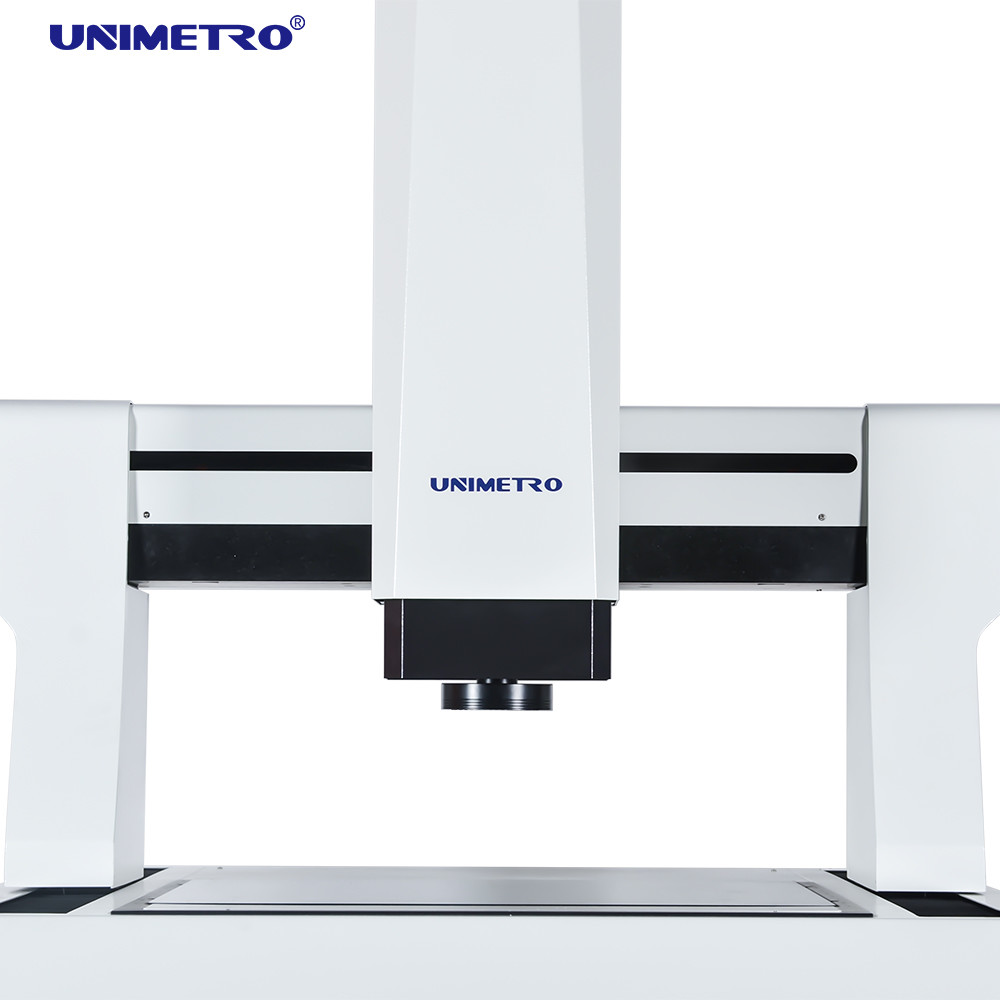

>> High resolution color camera to meet the requirements of clear observation and stable measurement;
>> 6.5x continuous automatic zoom lens, accurate automatic zoom, one pixel correction is enough;
>> The programmable 5-ring 8-zone LED surface light source and transmission parallel LED contour light source system can realize 256 level brightness adjustment intelligently;
>> The imported contact probe is configured to realize 3D measurement;
>> Immeasuring4.2 automatic image measurement software with independent property rights is provided as standard, which is powerful and easy to use;



SOFTWARE FUNCTIONS

Our large vision measuring machine has powerful software to support.

With the External-Array RationalVue composite measuring software,the ULTRA series is capable to offer powerful 2D/3d composite measuring function;

Simple and easy to understand operation interface makes measurement more simple and efficient;

Automatic measurement program can be set to complete batch measurement efficiently and quickly.





PARAMETERS

Our large vision measuring machine details are as below chart shows:





Model HE652 HE862 HE1080 HE1210 HE1512 HE1812
X,Y Travel(mm) 500*600 600*800 800*1000 1000*1200 1200*1500 1200*1800
Z-axis Travel(mm) 200(can be raised according to the requirements of customers)
Load Capacity approx. 35 kg
Dimension (mm) 1700*1180*1750 1700*1280*1750 1900*1480*1750 2100*1680*1750 2500*1880*1750 2700*1880*1750
Weight(kg) 1500 1800 2900 3200 4400 4800
Resolution 0.5μm(0.1μm for option)
Camera 2M HD GIGA digital camera
Zoom Lens professional auto zoom lens Zoom lens magnification: 1~10X
Video Magnification 18~195X
(According to the different models of the selected camera, its magnification will change; the actual magnification is subject to the measured data)
FOV 8.1~1.3mm
(According to the different matching schemes of camera and lens, the field of view will change accordingly, and the actual field of view is subject to the measured data)
Accuracy* ≤ (3+L/200)μm
Illumination Programmable 5-ring 8 sections LED surface illumination
(40 sections ring light,Co-axial light,movable multi color ring light for option)
