Semi Automatic Vision Measurement Machine Vmm 2.5μM Repeatability

Semi Automatic Vision Measurement Machine Vmm 2.5μM Repeatability
Semi Automatic Vision Measurement Machine Vmm 2.5μM Repeatability Semi Automatic Vision Measurement Machine Vmm 2.5μM Repeatability Semi Automatic Vision Measurement Machine Vmm 2.5μM Repeatability Semi Automatic Vision Measurement Machine Vmm 2.5μM Repeatability Semi Automatic Vision Measurement Machine Vmm 2.5μM Repeatability
Basic Information
Place of Origin: China
Brand Name: Unimetro
Certification: CE ISO
Model Number: E300
Minimum Order Quantity: 1set
Price: usd5460-usd6300usd/set
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 30 sets per month
Get Best Price Contact Now
Detail Information
Dimension: 600*740*980mm Measuring Range: 300*200*200
Measuring Accuracy: 2.5+L/100 Weight: 190kg
Repeatability: 2.5μm
High Light:

Semi Automatic Vision Measurement Machine

,

Vision Measurement Machine Vmm

,

Vision Measurement Machine 2.5μM Repeatability

Product Description

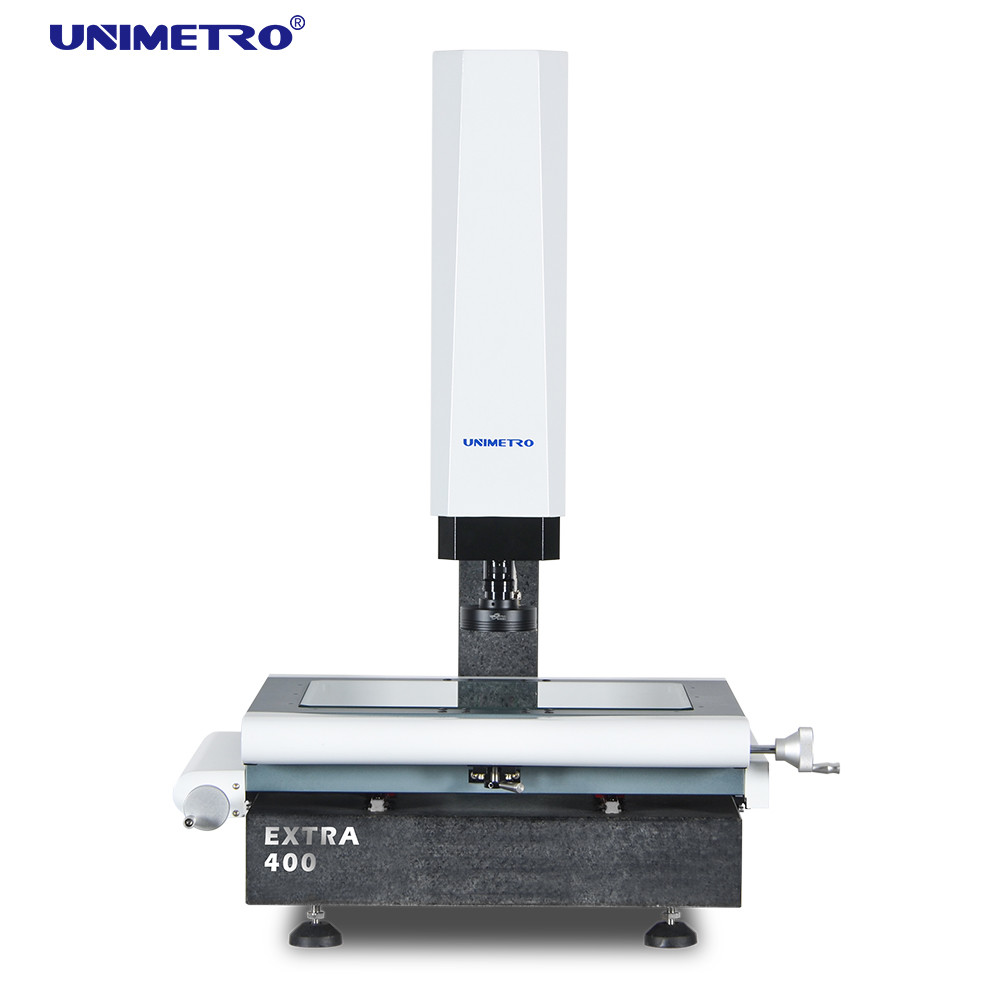

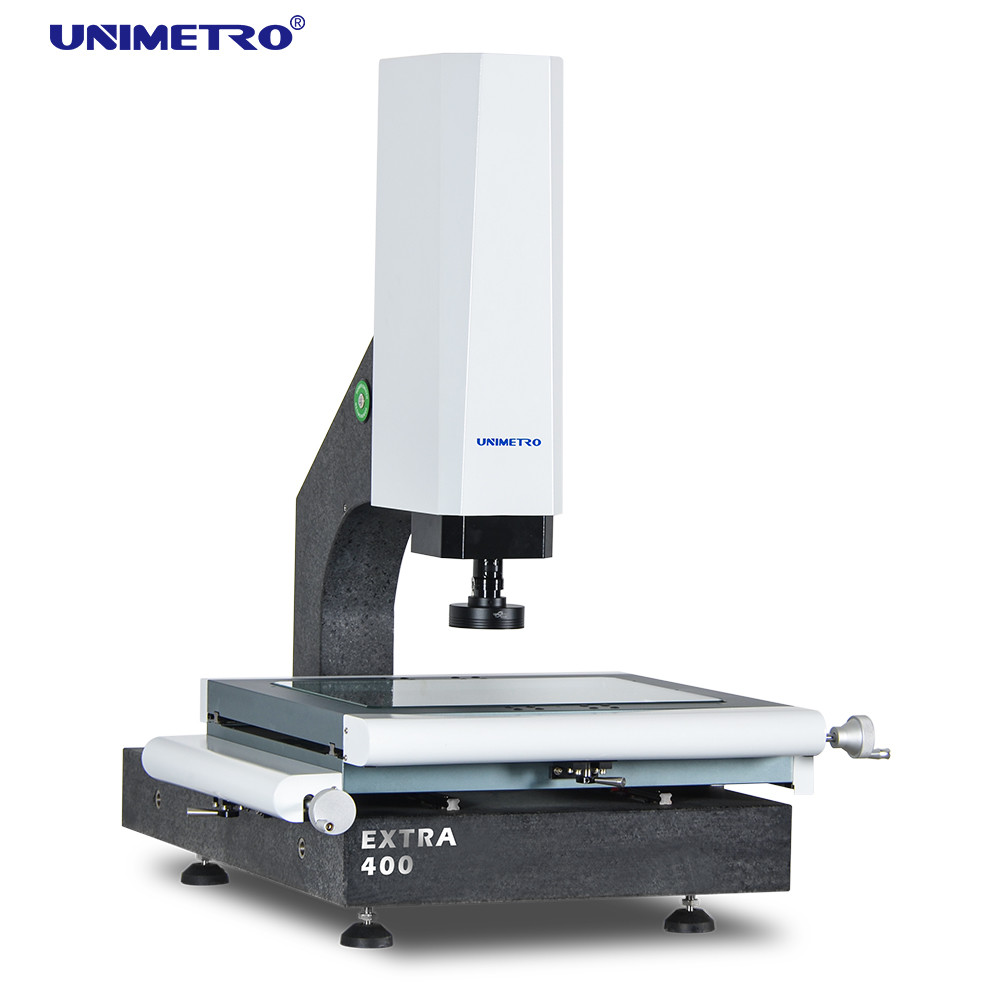

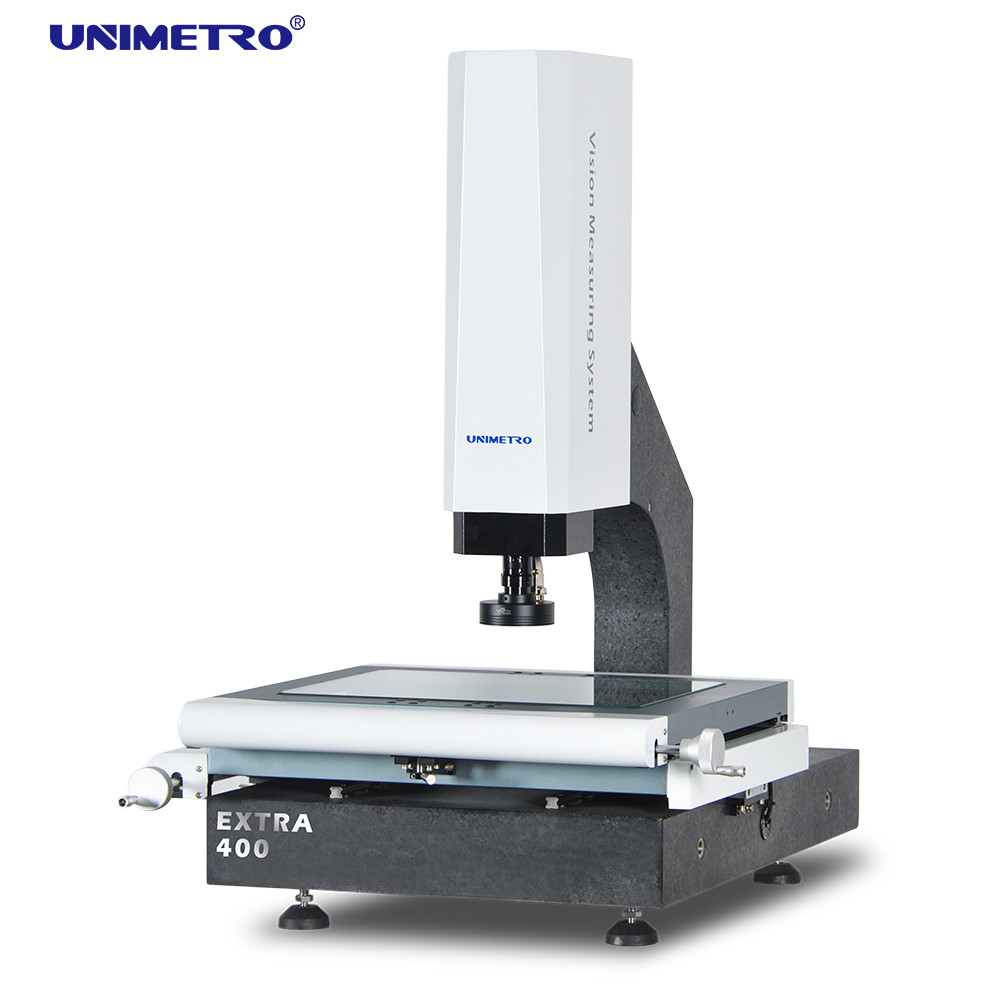

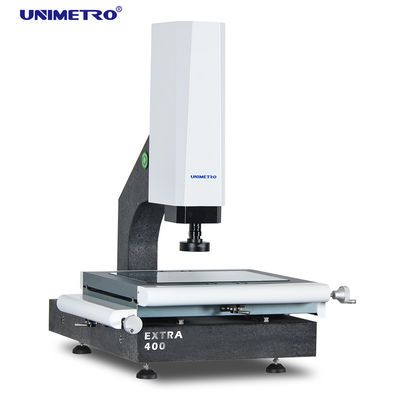

High accuracy touch probe semi-auto vision measurement equipment vmm machine

Our vision measurement machine has below feature:
► Granite base and column, excellent stability;

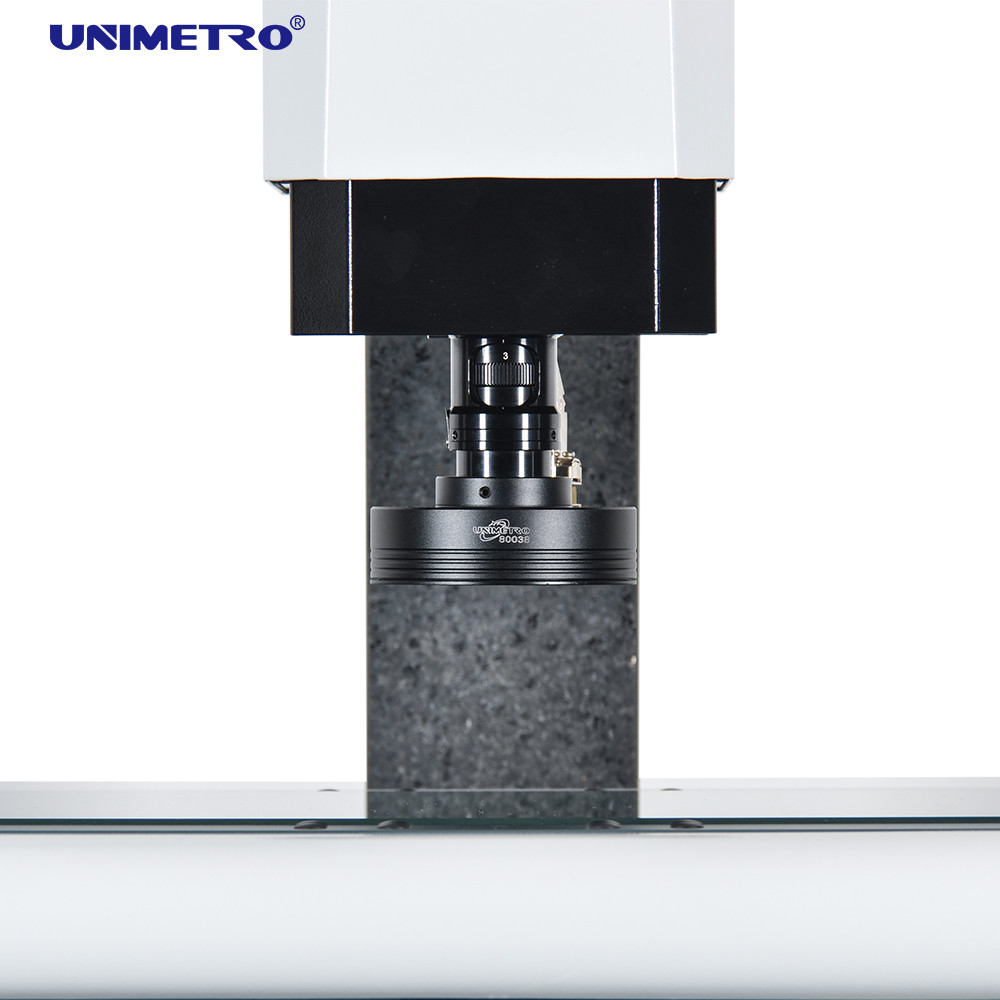

► The Z-axis adopts high-precision linear guide and servo motor control system to realize automatic focusing, eliminate the error of artificial focusing, and improve the measurement accuracy and stability;
► Aluminum work stage,make the motion control fast reacting and flexible;
► Programmable 3-ring 4-section LED surface light source, transmission parallel LED contour light source system, and the built-in light adjustment module of the software can freely control the brightness of light in 3 rings and 4 zones.


Hardeare Configuration

  Semi Automatic Vision Measurement Machine Vmm 2.5μM Repeatability 0
The configuations of our vision measurement equipment are as below:
● 3 axis 0.5um resolution linear scales
● High performance Auto focus function
● Compatible with Renishaw touch probe
● Aluminum work stage and hard anodizing
● 3 rings 8 section LED ring light software control and programmable
● Parallel light path LED contour light software control and programmable
● 1.2M pixel HD digital camera
● Integrated core control box
● Z axis motorized control
● HIWIN linear guide way
● Manual pulse generator for Z axis movement control
● With Laser indicators for auxiliary positioning and focusing
● 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor


Software Features

Semi Automatic Vision Measurement Machine Vmm 2.5μM Repeatability 1
Our vision measuring machines can add probe to realize 3d function
● Easy calibration
● Multiple angle touching
● Fast coordinates system setting
● Compatible to full line of Renishaw stylis
● CAD module supported(Optional)
● 3D drawing output
● Star probe compatible
● 3D dimension measuring
● Image and touch probe combine measuring
● Probe rack supported(Optional)


Parameters

Our vision measuring machines' parameter are as below chart shows:

Model EXTRA 200 EXTRA 300 EXTRA 400 EXTRA 500
Dimension(mm)(L*W*H) 500*540*930 600*740*980 700*840*980 800*940*980
Measuring range (mm)(X*Y*Z) 200*100*150 300*200*200 400*300*200 500*400*200
Measuring Accuracy (μm) 2.5+L/100 2.5+L/100 2.5+L/100 3+L/100
Repeatability (μm) 2.5 2.5 2.5 3
Weight (kg) 140kg 190kg 240kg 290kg
Image and Measuring CCD 200mm (can be raised according to the requirements of customers)
Lens Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X
Magnification 18-195X ( For reference only. With different camera and lens the magnification will be different. )
Field of View 8.1~1.3mm
Working distance 108mm
Linear scale resolution 0.5 μm( 0.1μm for option )
Driving system X , Y axis manual conrol , Z axis close-loop CNC control and AUTU FOCUS funtion available
Illumination Programmable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for option



Software Function

Semi Automatic Vision Measurement Machine Vmm 2.5μM Repeatability 2



INSPECT 3D VISION MEASURING SOFTWARE
● Input CAD file and measure
● Parts array and macro measuring
● Auto focus and height measuring
● Navigating function helps fast locating
● Powerful geometric measuring function
● Multiple data reports and graphical data output function
● Flexible user program
● Creating reference elements
● Powerful edge detecting function
● Supporting multiple external accessories
● Auto calculation of the elements geometrical tolerance
● Measuring complicated production fast and conveniently
