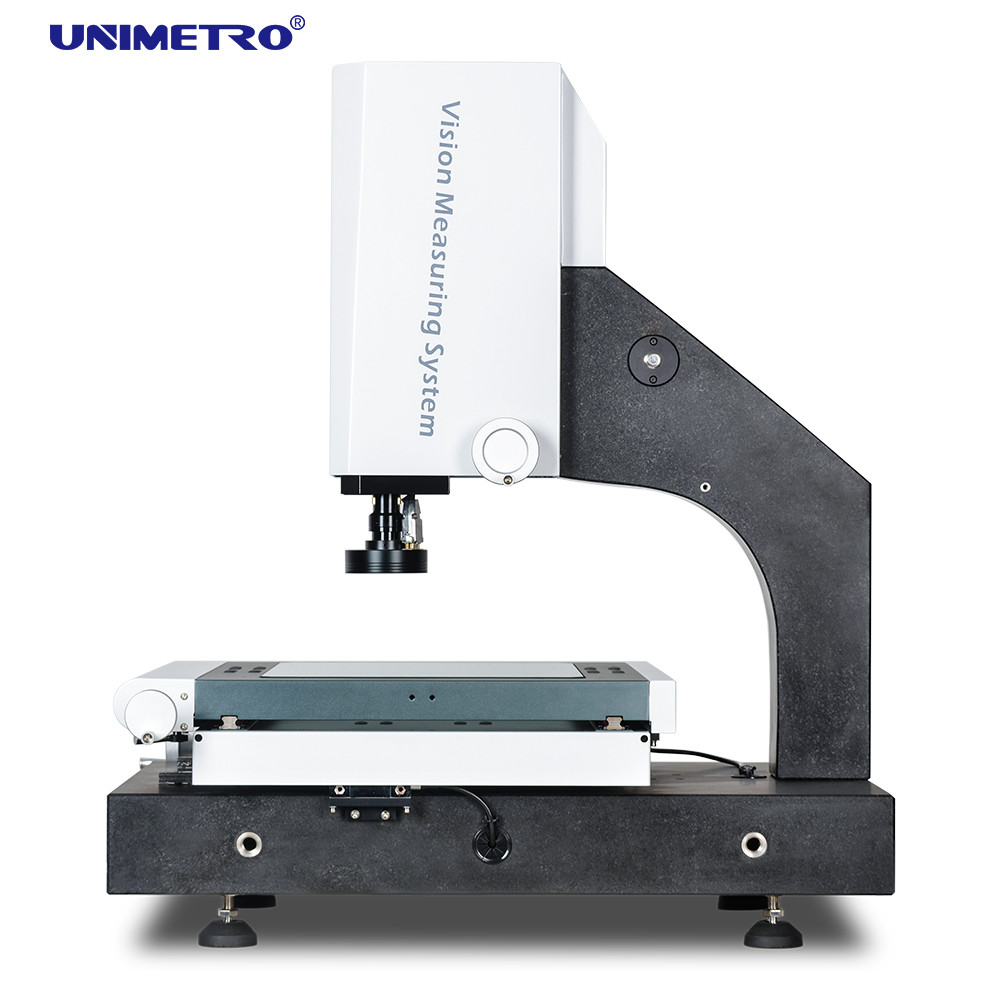

Manual Optical Measurement Devices With Aluminum Work Stage

Basic Information
Place of Origin: China
Brand Name: Unimetro
Certification: CE ISO
Model Number: B300
Minimum Order Quantity: 1set
Price: USD3500-USD5000/set
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 30 sets per month
Detail Information
Dimension: 600*740*980 Measuring Range: 300*200*200
Measuring Accuracy: 2.5+L/100 Linear Scale Resolution: 0.5μ(0.1μ Optional)
Working Distance: 80mm
High Light:

Manual Optical Measurement Devices

,

80mm Optical Measurement Devices


Product Description

Good quality optical measurement equipment manual vision measurement machine vmm machine







manual vision measurement machine can be operated as below video shows



Manual Optical Measurement Devices With Aluminum Work Stage 0





Descrition

Granite base and column, excellent stability;

Aluminum work stage,make the motion control fast reacting and flexible;

Using HIWIN linear guide way and high-precision linear guide rail, with aluminum work stage and hard anodizing surface processing, ensures the high dynamic performance and long life cycle usage of the machine.

Integrated control system,embedded with motion control,and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable.



◉ 3 axis 0.5um resolution linear scales

◉ High performance Auto focus function
◉ Compatible with Renishaw touch probe
◉ Aluminum work stage and hard anodizing
◉ 3 rings 8 section LED ring light software control and programmable
◉ Parallel light path LED contour light software control and programmable

◉ 1.2M pixel HD digital camera

◉ Integrated core control box
◉ Z axis motorized control
◉ HIWIN linear guide way
◉ With Laser indicators for auxiliary positioning and focusing

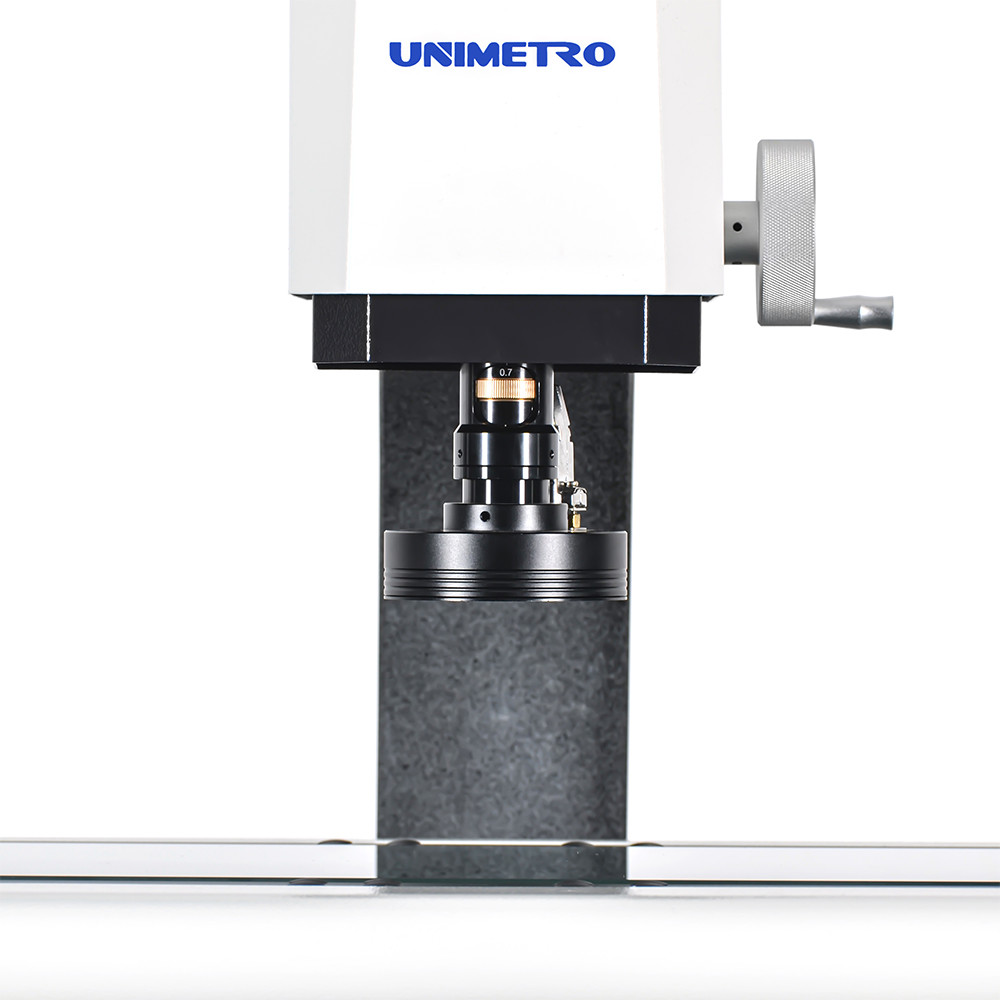

◉ 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor

Manual Optical Measurement Devices With Aluminum Work Stage 1





Probe Features

Our manual vision measurement machine can realize 3D function by adding probe.
◉ Easy calibration

◉ Multiple angle touching

◉ Fast coordinates system setting

◉ Compatible to full line of Renishaw stylis

◉ CAD module supported(Optional)

◉ 3D drawing output
◉ Star probe compatible
◉ 3D dimension measuring
◉ Image and touch probe combine measuring
◉ Probe rack supported(Optional)






Parameters

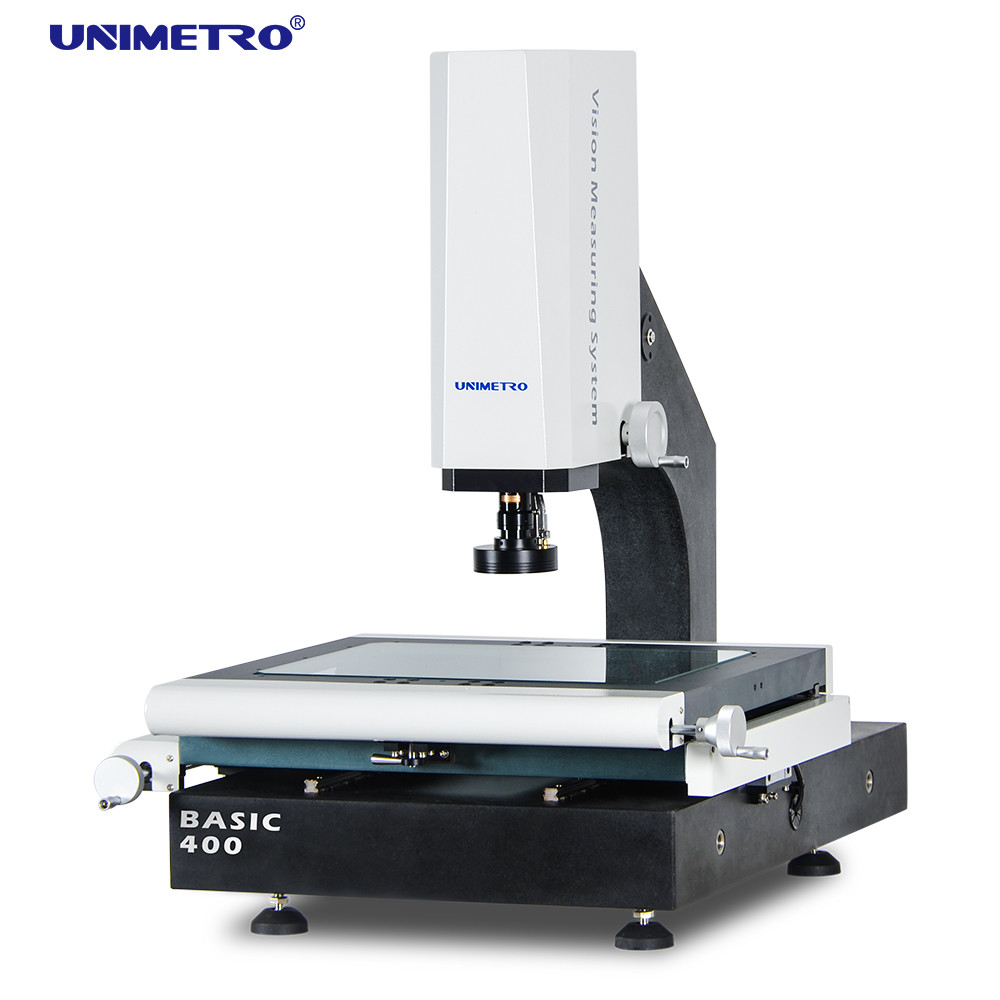

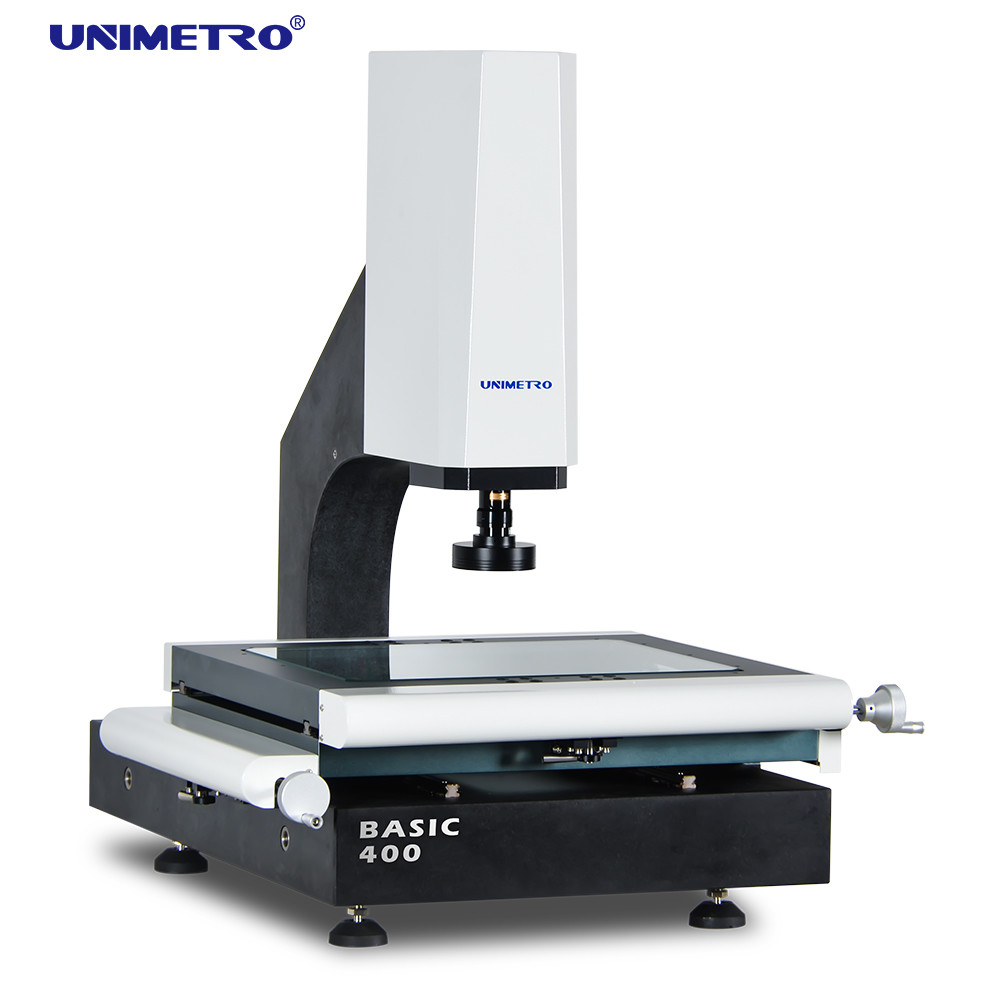

ModelBASIC 200BASIC 300BASIC 400 BASIC 500
Dimension(mm)(L*W*H)550*540*930600*740*980700*840*980800*940*980
Measuring range (mm)(X*Y*Z)200*100*150300*200*200400*300*200500*400*200
Measuring Accuracy (μm)2.5+L/1002.5+L/1002.5+L/1003+L/100
Repeatability (μm)2.5 2.52.53
Weight (kg)140kg 190kg240kg290kg
Image and MeasuringCCD1.2M pixel HD digital camera
Lens0.7-4.5X manual dented zoom lens with maganification signal feedback sensor
Magnification18-195X ( For reference only. With different camera and lens the magnification will be different. )
Field of View8.1~1.3mm
Working distance80mm
Linear scale resolution0.5 μm( 0.1μm for option )
Driving systemX,Y,Z axis manual control
IlluminationProgrammable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for option

L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is related to the surface of the workpiece. **Magnification is approximate value, it is related to the dimension of monitor and resolution.

Field of view(mm) = (diagonal*Horizontal*Vertical)

0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.





Software Function

The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn,
powerful function, allows the users to achieve fast and precise measuring.
The software is offering full English language UI, also allows new language development


Manual Optical Measurement Devices With Aluminum Work Stage 2

◉ Input CAD file and measure

◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function
◉ Flexible user program
◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently
