| Place of Origin: | China |
|---|---|
| Brand Name: | Unimetro |
| Certification: | CE ISO |
| Model Number: | B300 |
| Minimum Order Quantity: | 1set |
| Price: | USD3500-USD5000/set |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
| Dimension: | 600*740*980 | Measuring Range: | 300*200*200 |
|---|---|---|---|
| Measuring Accuracy: | 2.5+L/100 | Linear Scale Resolution: | 0.5μ（0.1μ Optional） |
| Working Distance: | 80mm | ||
| High Light: | 3D Dimension Vision Measurement Machine,1.2M Pixel Camera Vision Measurement Machine,Digital Camera Vision Measurement Machine |
||

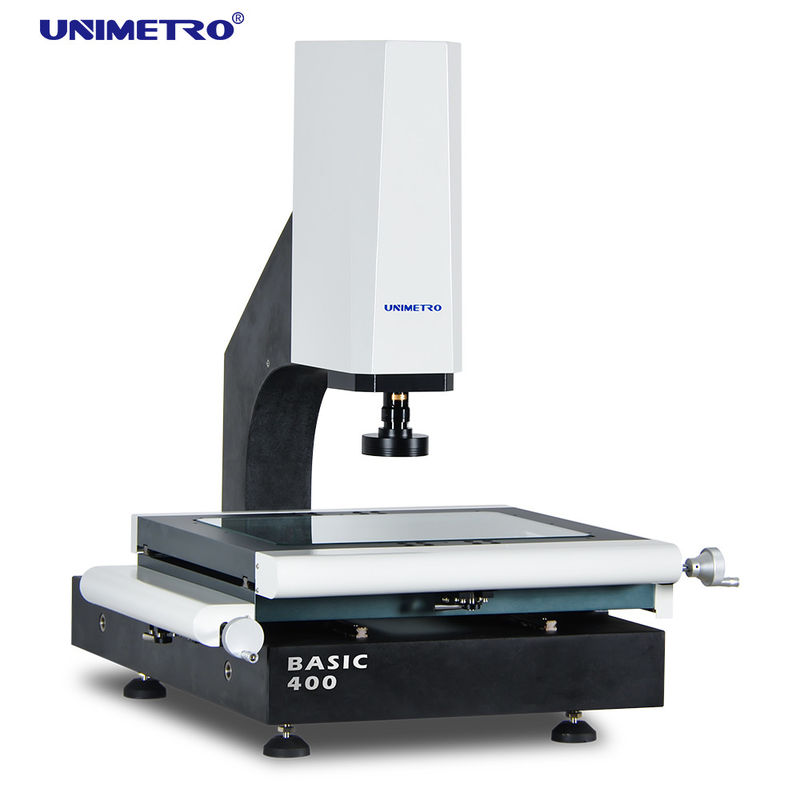

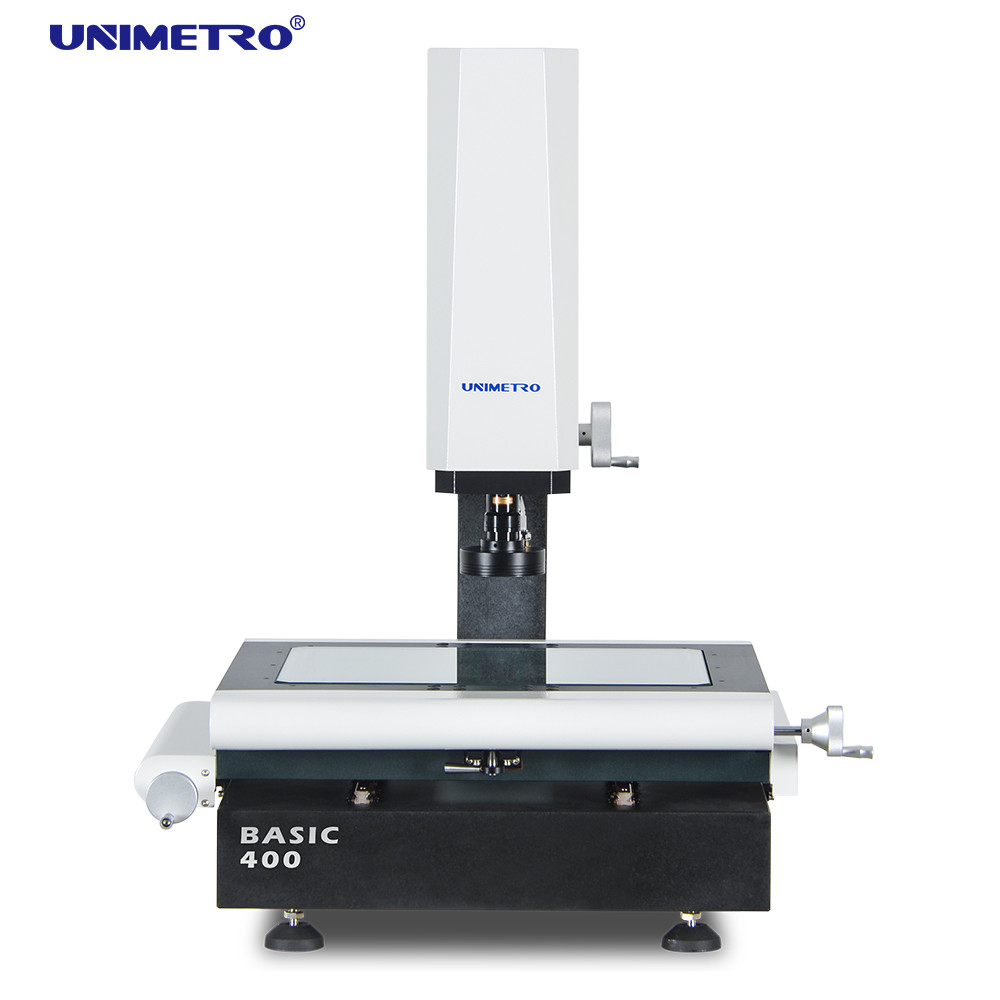

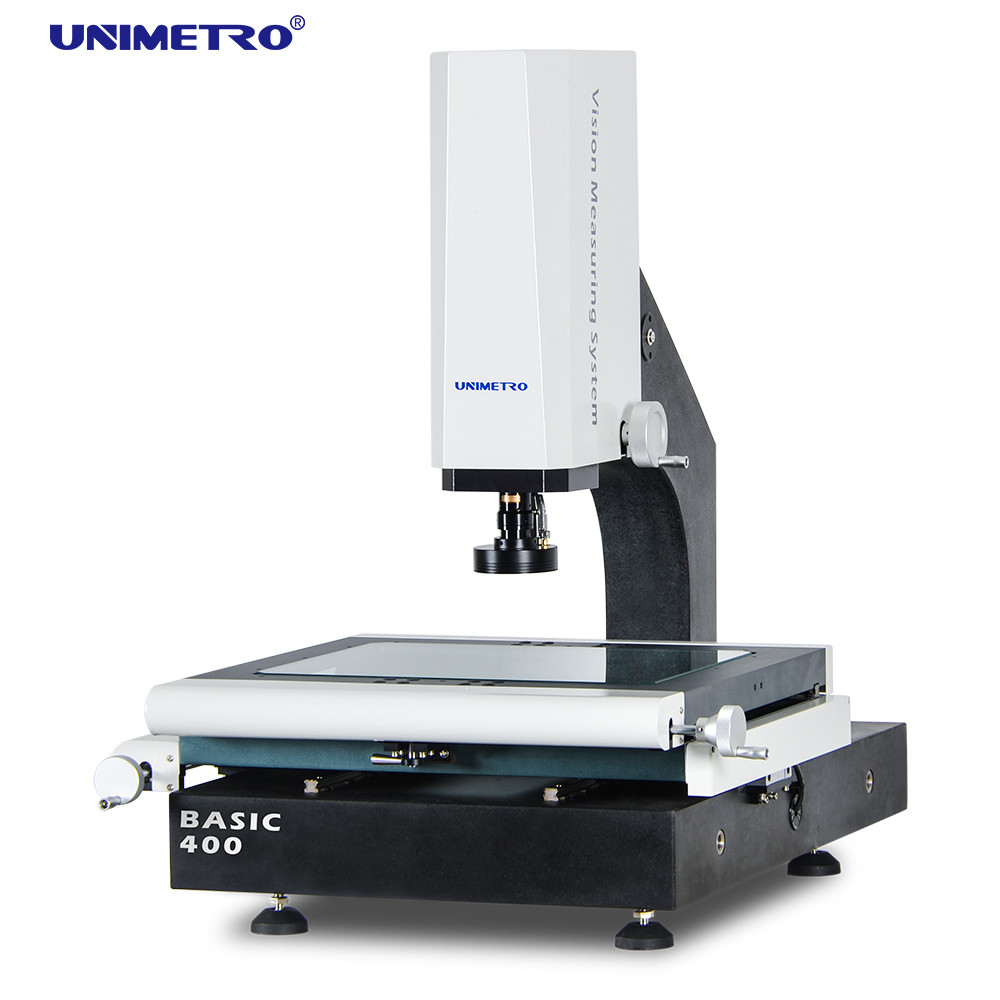

Good quality led contour light manual optical measurement machine vmm machine
Our manual optical measurement machinecan be operated as below video shows:
▶ Granite base and column, excellent stability;
▶ Aluminum work stage,make the motion control fast reacting and flexible;
▶ Using HIWIN linear guide way and high-precision linear guide rail, with aluminum work stage and hard anodizing surface processing, ensures the high dynamic performance and long life cycle usage of the machine.
▶ Integrated control system,embedded with motion control,and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable.
◉ 3 axis 0.5um resolution linear scales
◉ 1.2M pixel HD digital camera
◉ Multiple angle touching
◉ Fast coordinates system setting
◉ Compatible to full line of Renishaw stylis
◉ CAD module supported(Optional)
Details of our manual optical measurement machine are as below chart:
| Basic200 | Basic300 | Basic400 | Basic500 | ||
| Dimension(mm)(LxWxH) | 550*540*930 | 600*740*980 | 700*840*980 | 800*940*980 | |
| Measuring range(mm)(XxYxZ) | 200*100*150 | 300*200*200 | 400*300*200 | 500*400*200 | |
| Measuring Accuracy(μm) | 2.5+L/100 | 3.0+L/100 | |||
| Repeatability(μm) | 2.5 | 3 | |||
| Weight(kg) | 140 | 190 | 240 | 290 | |
| Image and Measuring | Camera | 1.2M pixel HD digital camera | |||

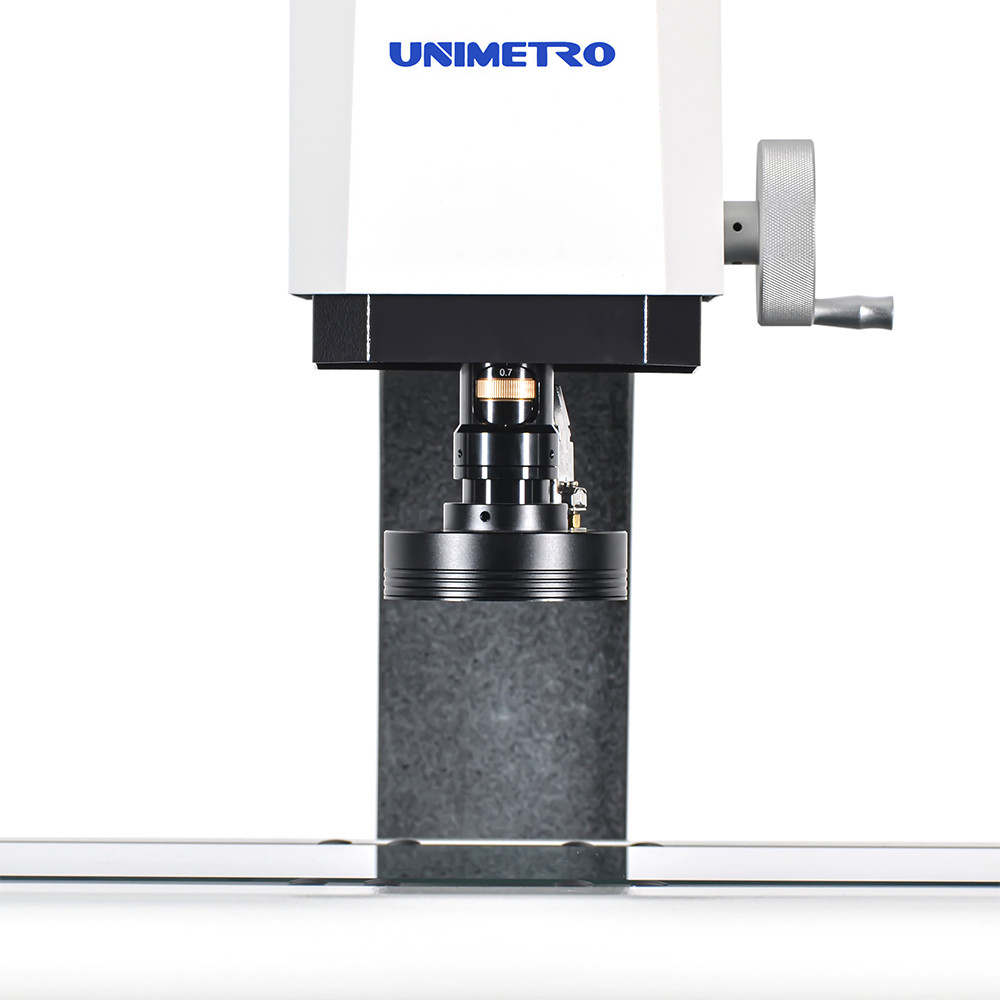

| Lens | 0.7-4.5X manual dented zoom lens with maganification signal feedback sensor | ||||
| Magnification | 18-195X(For reference only.With different camera and lens the magnification will be different.) | ||||
| Field of View | 8.1mm~1.3mm | ||||
| Working distance | 80mm | ||||
| Linear scale resolution | 0.5μm(0.1μm optional) | ||||
| Driving system | X,Y,Z axis manual control | ||||
| Illumination | Programmable 4 sections Led ring surface light,parallel LED contour light 8 sections LED ring light,co-axial light,for option. | ||||
L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is related to the surface of the workpiece. **Magnification is approximate value, it is related to the dimension of monitor and resolution.
Field of view(mm) = (diagonal*Horizontal*Vertical)
0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.
Our manual optical measurement machine use the powerful function software.
INSPECT 3D VISION MEASURING SOFTWARE
◉ Input CAD file and measure
