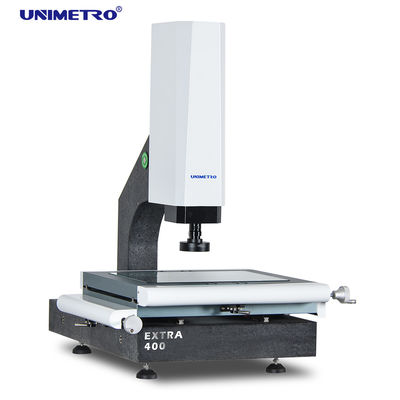

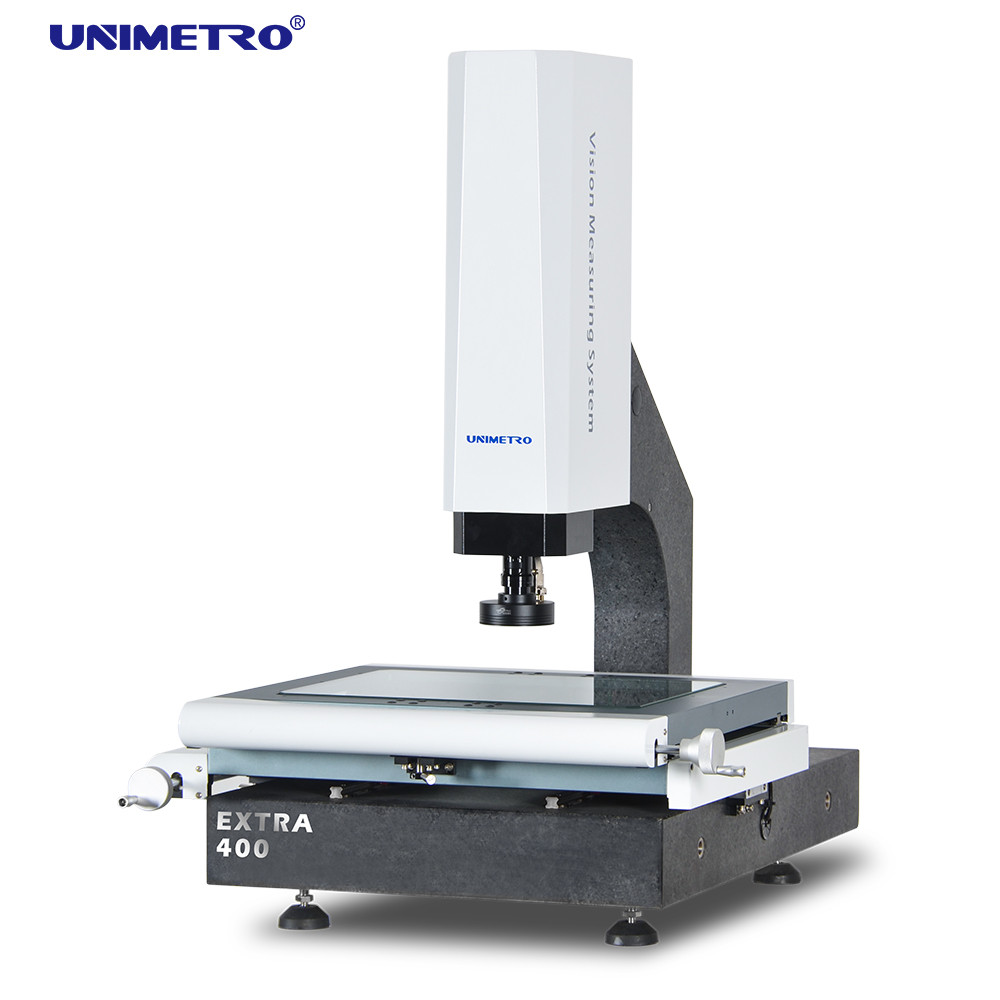

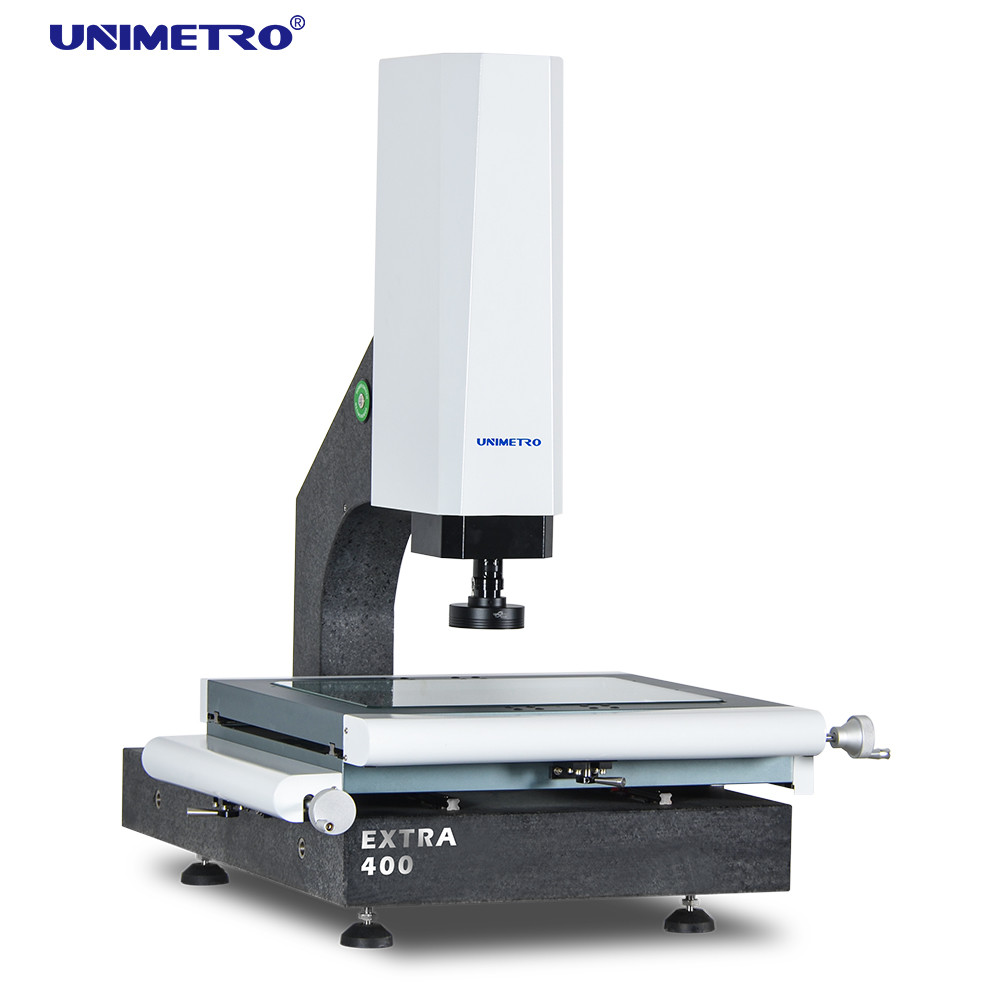

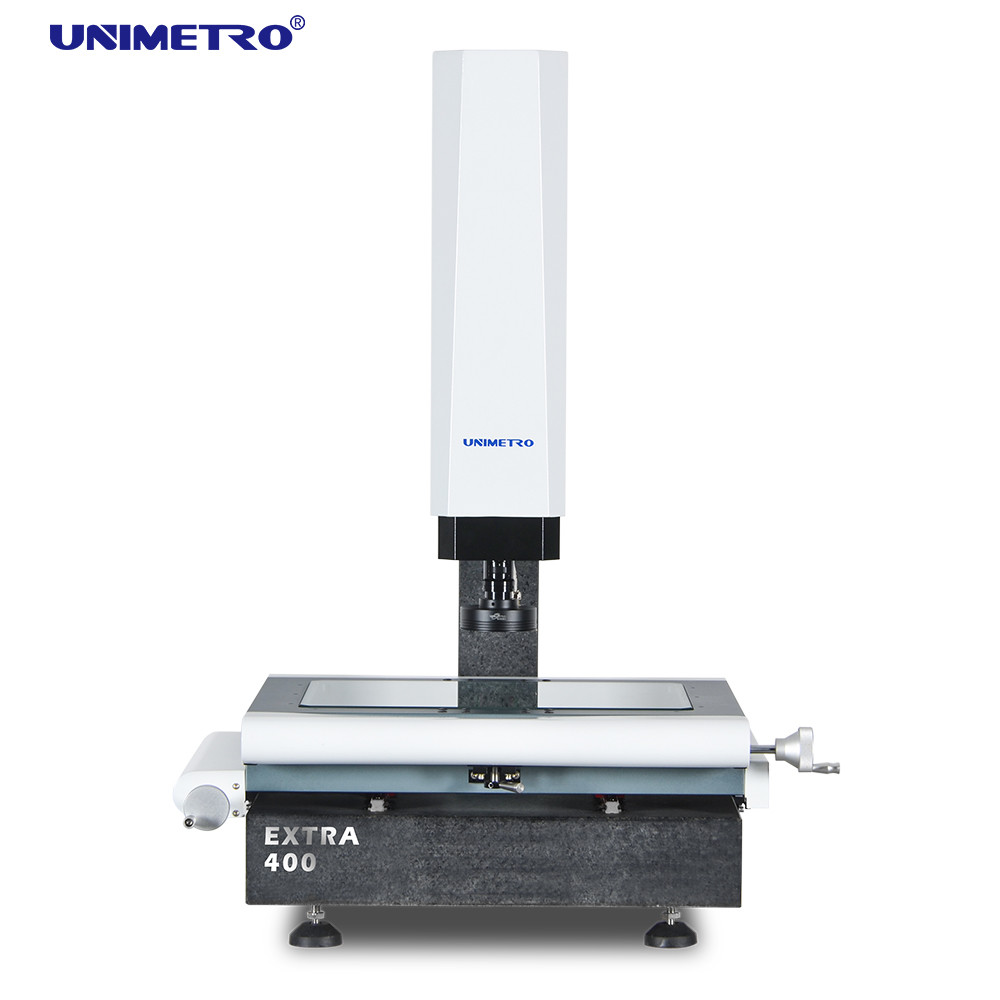

High Accuracy LED Visual Measuring Machine Motion Control Fast Reacting (E300)

Our led visual measuring machine has below feature: ► Granite base and column, excellent stability;
► The Z-axis adopts high-precision linear guide and servo motor control system to realize automatic focusing, eliminate the error of artificial focusing, and improve the measurement accuracy and stability;
► Aluminum work stage,make the motion control fast reacting and flexible;
► Programmable 3-ring 4-section LED surface light source, transmission parallel LED contour light source system, and the built-in light adjustment module of the software can freely control the brightness of light in 3 rings and 4 zones.

The configuations of our led visual measuring machine are as below:

● 3 axis 0.5um resolution linear scales
● High performance Auto focus function
● Compatible with Renishaw touch probe
● Aluminum work stage and hard anodizing
● 3 rings 8 section LED ring light software control and programmable
● Parallel light path LED contour light software control and programmable
● 1.2M pixel HD digital camera
● Integrated core control box
● Z axis motorized control
● HIWIN linear guide way
● Manual pulse generator for Z axis movement control

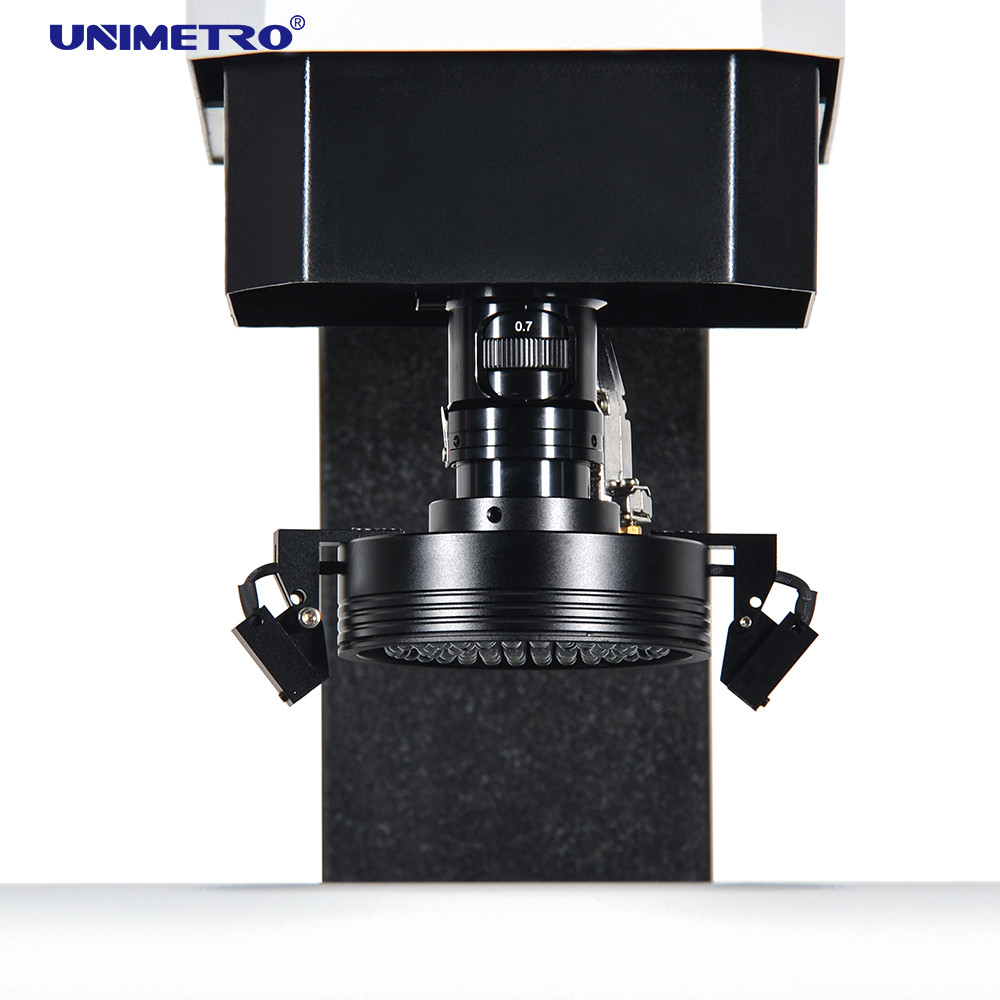

● With Laser indicators for auxiliary positioning and focusing

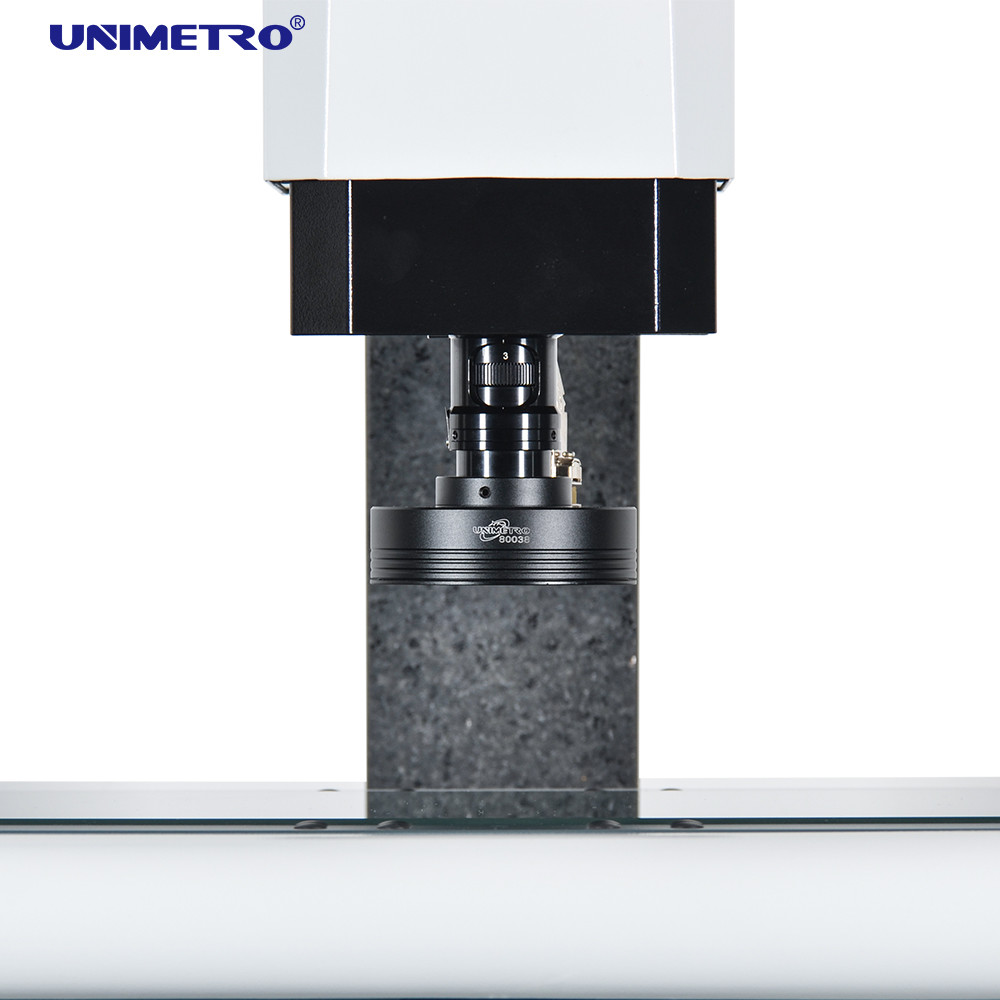

● 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor

Features

●3 axis 0.5um resolution linear scales
● High performance Auto focus function
● Compatible with Renishaw touch probe
● Aluminum work stage and hard anodizing
● 3 rings 8 section LED ring light software control and programmable
● Parallel light path LED contour light software control and programmable
● 1.2M pixel HD digital camera
● Integrated core control box
● Z axis motorized control
● HIWIN linear guide way
● Manual pulse generator for Z axis movement control
● With Laser indicators for auxiliary positioning and focusing
● 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor





Parameters

Our led visual measuring machine 's parameter are as below chart shows:

Model		EXTRA 200	EXTRA 300	EXTRA 400	EXTRA 500
Dimension(mm)(L*W*H)		500*540*930	600*740*980	700*840*980	800*940*980
Measuring range (mm)(X*Y*Z)		200*100*150	300*200*200	400*300*200	500*400*200
Measuring Accuracy (μm)		2.5+L/100	2.5+L/100	2.5+L/100	3+L/100
Repeatability (μm)		2.5	2.5	2.5	3
Weight (kg)		140kg	190kg	240kg	290kg
Image and Measuring	CCD	200mm (can be raised according to the requirements of customers)
	Lens	Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X
	Magnification	18-195X ( For reference only. With different camera and lens the magnification will be different. )
	Field of View	8.1~1.3mm
	Working distance	108mm
Linear scale resolution		0.5 μm( 0.1μm for option )
Driving system		X , Y axis manual conrol , Z axis close-loop CNC control and AUTU FOCUS funtion available
Illumination		Programmable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for option



Software Function

● Input CAD file and measure
● Parts array and macro measuring
● Auto focus and height measuring
● Navigating function helps fast locating
● Powerful geometric measuring function
● Multiple data reports and graphical data output function
● Flexible user program
● Creating reference elements
● Powerful edge detecting function
● Supporting multiple external accessories
● Auto calculation of the elements geometrical tolerance
● Measuring complicated production fast and conveniently
