Product Details:
Place of Origin: Guangdong, China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: ULTRA
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case+ Vacuum package
Delivery Time: 8-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50sets per month
Contact Now
Detailed Product Description
Model: ULTRA Product Name: Automatic Video Measuring Machine
Repeatability: 2.5um Accuracy: 2.5+L/200um
Linear Scale Resolution: 0.1um Measuring Mode: CNC
Support: OEM,ODM, Customize Application Scenery: Industrial/ Laboratory
Package: Wooden Case+ Vacuum Packing Material: Aluminum, 000 Grade Granite, Etc
High Light:

Automated Video Metrology Measuring Instruments


Metrology Measuring Instruments Industrial Inspection


CNC Metrology Measuring Instruments

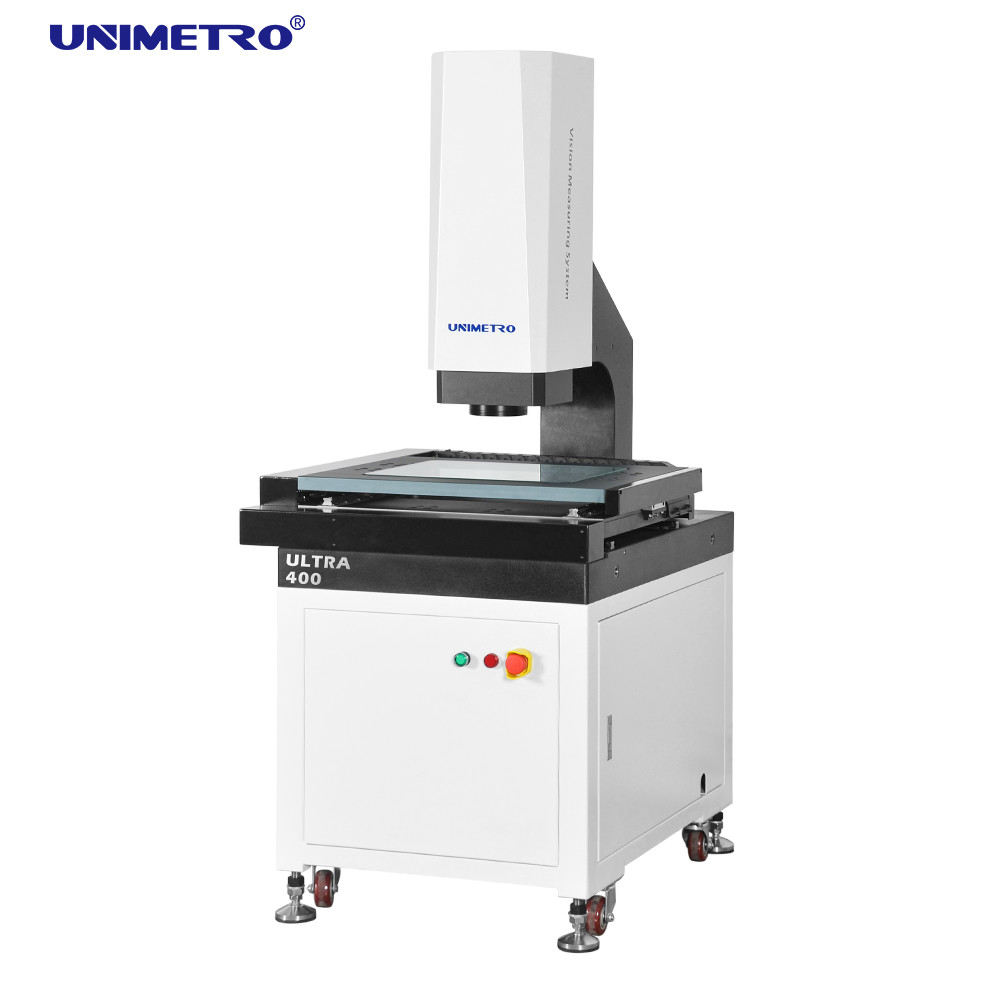

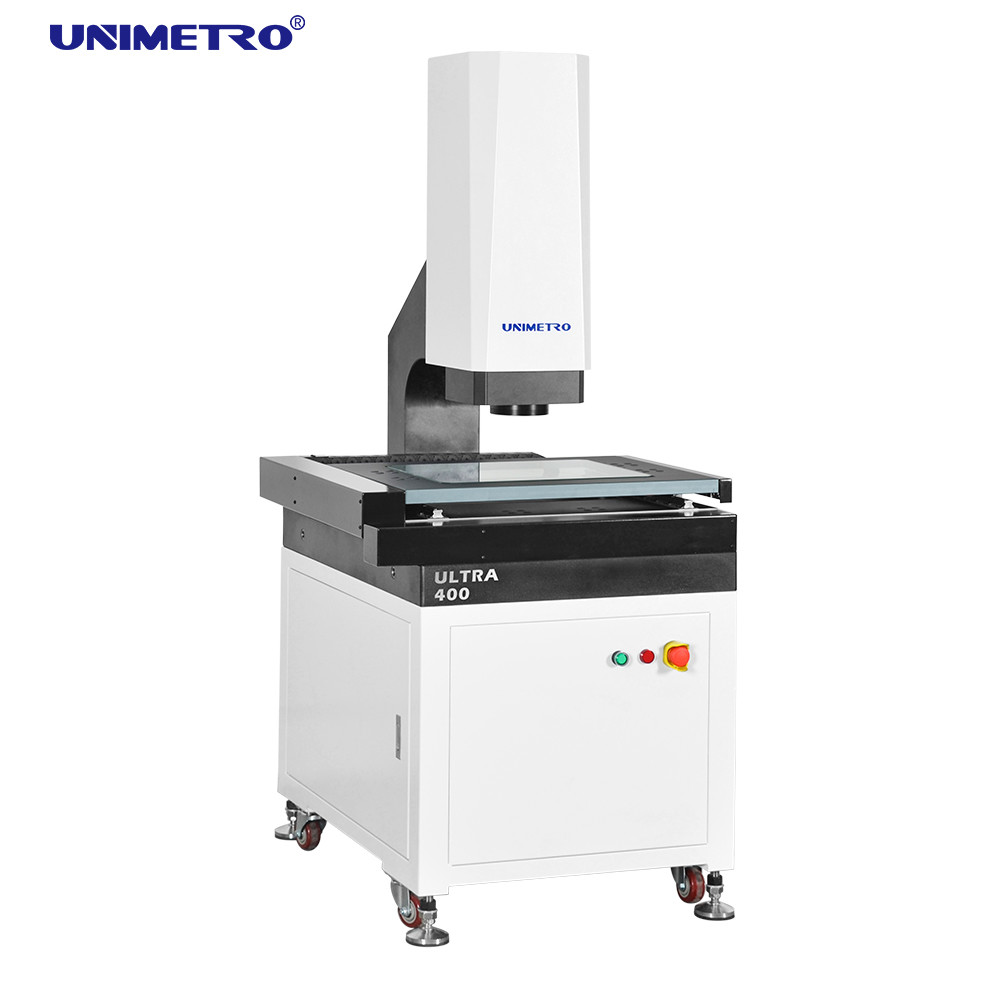

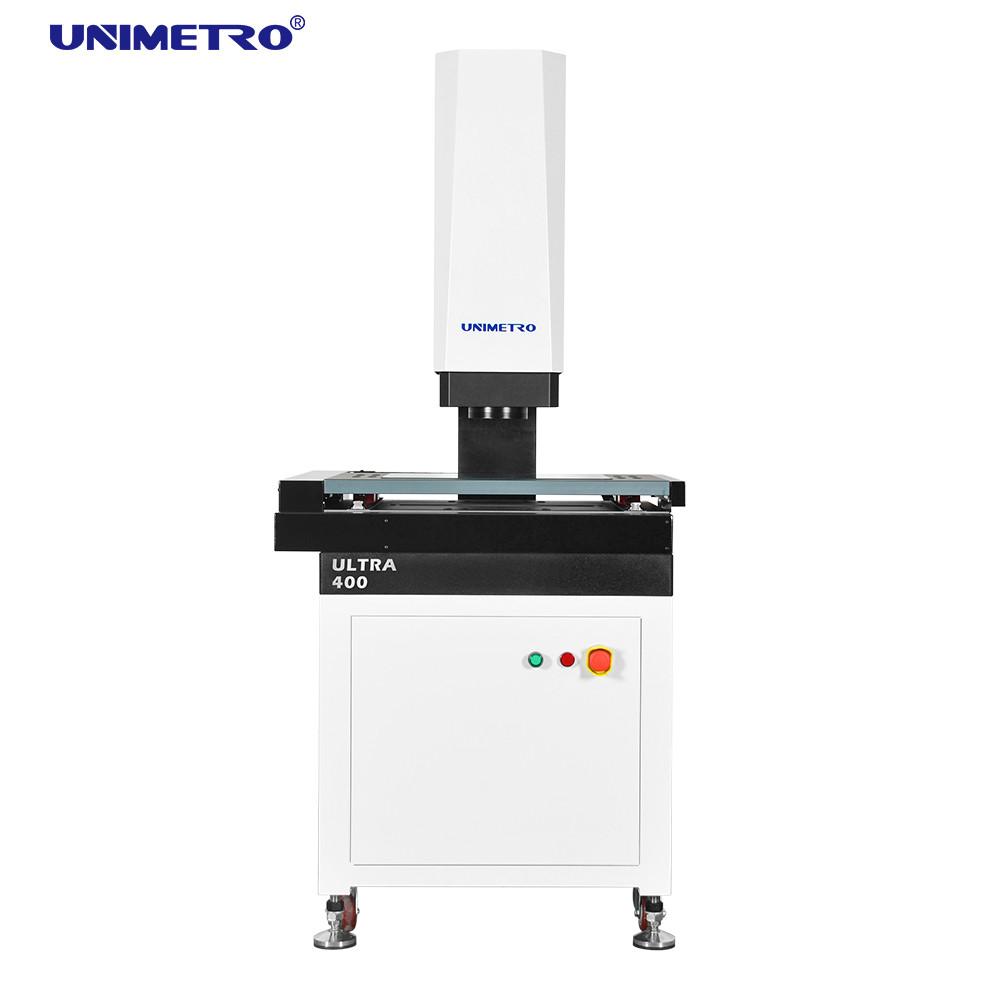

Full-Automated Video Metrology Measuring Instrument For Industrial Inspection



ULTRA series is a cantilever high accuracy fully automatic vision measuring machine developed for GD&T measurement with 3axis automatic motorized control. It equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately.


Automated Video Metrology Measuring Instruments For Industrial Inspection 0




Product Name ULTRA Series Automatic Video Measuring System
X/Y-axis Travel 300*200mm 400*300mm 500*400mm 600*500mm
Z- axis Travel 200mm (can be raised according to the requirements of the customer)
Linear Scale Resolution 0.1um
Guidance Mode Precision linear guide, double-track double slider guide
Operation Mode Joystick controller, Mouse operation, automatic detection program
Accuracy ≤2.5+L/200um
Repeatability ±2.5um
Video System CCD High definition 1/3" Color CCD Camera
Zoom Lens 6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X;
Video Magnification: 26X~172X(21.5”monitor)
Field of View (mm) Magnification 0.7x 1x 2x 3x 4x 4.5x
1/3" CCD 8.57x6.86x5.14 6.00x4.80x3.60 3.00x2.40x1.80 2.00x1.60x1.20 1.50x1.20x0.90 1.33x1.07x0.80
Illumination System Contour LED parallel contour illumination
Surface 0~255 Stepless adjustable 5-ring 8-division LED surface illumination
Load Capacity UNIMETRO 2D Fully Auto Measuring Software
Working Environment 25kg
Power Supply Temperature 20℃±2℃, Humidity Range<2℃/hr,
Humidity 30~80%, Vibration<0.002g, <15Hz
Dimension(W*D*H) 1600*780*1700mm 1750*920*170mm 1900*1080*1700mm 1950*1280*1700mm
Net Weight 380kg 450kg 600kg 800kg



◆ Quality details control

1. Granite base and column, excellent stability;

2. Aluminum work stage, make the motion control fast reacting and flexible;
3. Work stage with hard oxidation surface processing anti-scratch;
4. Standard with precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system;
5. Integrated control system, embedded with motion control, and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable.
◆ High-performance configuration
1. XYZ three-axis CNC automatic control and accurate positioning;
2. 0.1 um high precision glass linear scale to ensure the positioning accuracy and measurement accuracy of the system;
3. GIGA high-resolution color camera to meet the needs of clear observation and accurate measurement;
4. 6.5x high-resolution click zoom lens, accurate doubling and one-time pixel correction only needed;
5.With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatically control the brightness in the 8-division and realize 256 level brightness adjustment intelligently.
◆ Efficient measurement software
1. With the External-Array RationalVue composite measuring software, the ULTRA series is capable to offer powerful 2D/3d composite measuring function;
2. Simple and easy to understand operation interface makes measurement more simple and efficient;
3.Automatic measurement program can be set to complete batch measurement efficiently and quickly.
◆ Flexible expansibility
1.Multi types of non-contact sensors and fast fixturing system are for option, which can satisfy different measuring requirement from different customers
2. Movable color LED ring light is available for the ULTRA series, which makes the series more flexible and powerful to different parts with different kinds of materials or shapes, offers more powerful measuring application.
3.Thanks to the flexible expansibility of ULTRA series, it is compatible with touch probe, non-contact measuring sensors and robot arm, highly increase the measuring efficiency,





UNIMETRO team provides free on-site measurement demonstration.


Automated Video Metrology Measuring Instruments For Industrial Inspection 1

      Plastic Parts                           Tools Parts                                  Gear Parts


Machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision hardware, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, computers (computers), liquid crystal televisions (LCD), printed circuit boards (PCB, PCB), automobiles, medical equipment, clocks, screws, springs, instruments, gears, cams, threads, radius templates, thread templates, wires and cables, tools, bearings, screens, test screens, cement screens, nets Plate (steel mesh, SMT template), etc.




Automated Video Metrology Measuring Instruments For Industrial Inspection 2

         Showroom                                   Staff photo                             Company Logo


Dongguan UNIMETRO Precision Machinery Co., Ltd is a professional supplier of metrology products with 10 years of experience. We have a group of professionals who love the metrology career. With the team's professional technical knowledge and more than 10 years of experience in the visual measurement industry, 3d-cmm detection industry and non-standard online detection field, we provide customers with complete measurement solutions. Unimetro maintains cooperation with Renishaw, external array, IDS, THK, Panasonic, sentech and other measurement technology companies to continuously enrich the product line to provide users with more complete product service solutions to meet the detection requirements in different fields.
