High Precision Optical Measurement Equipment For Plate Glass

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: HE
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wooden Case
Delivery Time: 20~25days
Payment Terms: L/C, T/T
Supply Ability: 10
Detail Information
Product Name: Image Measuring Instrument Dimension: 1900*1480*1750mm
Measuring Range: 800*1000*200mm Measuring Accuracy: 3+L/200um
Repeatability: 3 Linear Scale Resolution: 0.1um
Driving System: CNC Control,close-loop AC Servo Driving System,joystick,mouse Or Keyboard Control Illumination: 5-ring,8-section LED Ring Light
High Light:

1500Kg Optical Measurement Equipment

,

Optical Measurement Equipment For Plate Glass

,

220V Optical Measurement Equipment


Product Description

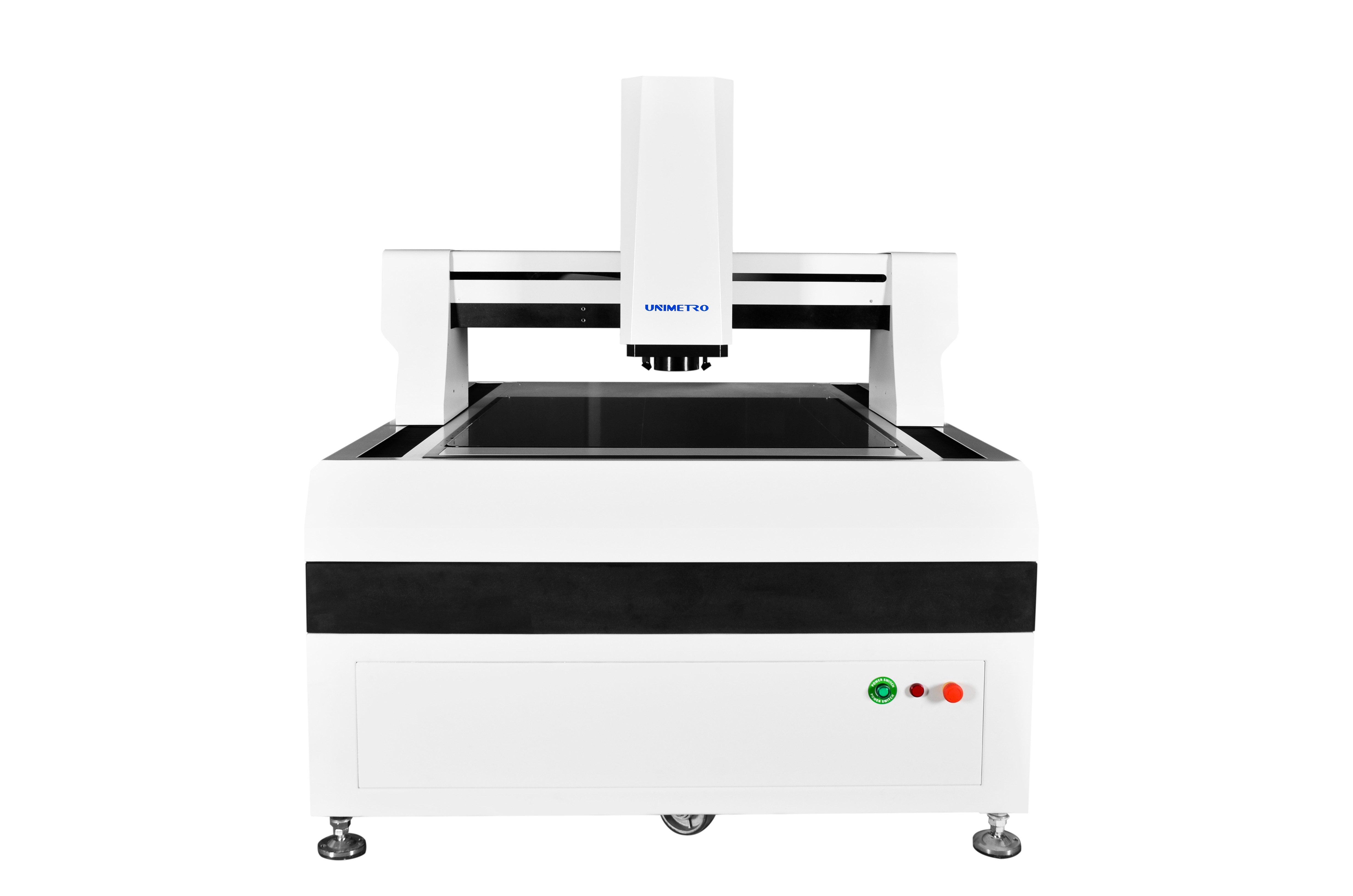

High Precision Optical Measurement Equipment For Plate Glass


Vision measurement machine is an instrument used for accurate physical dimension measuring,accuracy up to micron level,Which is an optical measuring instrument using the camera to capture the image of the work piece, analyse the image pixel and calculate the 2D dimension with the measuring software. It is a popular model fit for most of the accurate 2D dimension measuring application and end users from different industries, as Mold, Electronics, Semi conductor, Plastic Injection, 3C products, Medical care, Aviation...etc.It is an important instrument used in your products quality control process,ensuring your products dimension accuracy, makes your products more competitive.

Optical Measurement Equipment Mechanism Design
>> Adopted whole closed frame moving bridge structure , fixed the measuring workpiece , large bearing capacity , and good performance performance.
>> Introduce finite element analysis technology into mechanical design to ensure high rigidity and high precision mechanical structure.
>> Grade 000 granite marble base, high strength, corrosion resistance and good stability.
>> Aluminum oxide surface treatment worktable --- fast and flexible action control, durable and beautiful.


Optical Measurement Equipment Configuration
>> Open grating ruler, resolution 0.1um, high precision and good stability.
>> Precision linear guide rail, ball screw of grinder and AC servo motor ensure the stability of positioning accuracy of machine system.
>> 2M pixel high-definition color Giga digital camera fits the requirements of clear observation and stable measurement.
>> 6.5X high-definition optical lens, accurate automatic zoom, fast once pixel calibration.
>> Programmable 8 sections LED surface light source with parallel LED contour light source(Green or White).
>> CNC control,close-loop AC Servo driving system,joystick,mouse or keyboard control.


Optical Measurement Equipment Optional Multi-sensor For 3D Measurement
Illumination:4/8/40 sections LED surface ring light; 48 sections 4 colors LED ring light; Movable 4 colors LED ring light
Lens:Manual dented zoom lens; Auto zoom lens,Manual dented zoom lens with co-axial light; Auto zoom lens with co-axial light.
Touch probe:Renishaw MCP kits,Measuring error <=0.75um; Renishaw PH6+TP20,Measuring error<=0.35um.
Laser sensor:KEYENCE non-contact laser sensor; White light measuring sensor.


Optical Measurement Equipment Parameter

Item HE Series Full CNC Optical Measurement Equipment
Model HE 652 HE 862 HE1080 HE1210
X/Y-axis Travel 500*600mm 600*800mm 800*1000mm 1000*1200mm
Z-axis Travel 200mm (can be raised according to the requirements of customers)
X/Y/Z-3 axis Linear Scale RENISHAW open type Linear Scale Resolution: 0.5um (0.1 for option)
Guidance Mode Precision linear guide,Ball screw grinding ,double-track double slider guide.
Operation Mode Joystick controller, Mouse operation, automatic detection program.
Accuracy XYZ-axis:≤2.5+L/200um
Repeatability ±2.5um

Video

System

CCD 2M High definition 1/3" Color CCD Camera (Other pixels are optional)
Lens

6.5X Continuous zoom lens; Optical Magnification: 0.7X-4.5X;

Video Magnification: 26X~172X(21.5”monitor)

Field of

View(mm)

(D*H*V)

Magnification 0.7X 1X 2.0X 3.0X 4X 4.5X
1/3"CCD 8.57x6.86x5.14 6.00x4.80x3.60 3.00x2.40x1.80 2.00x1.60x1.20 1.50x1.20x0.90 1.33x1.07x0.80

Illumination

System

Contour LED parallel contour LED illumination
Surface

Programmable 5-ring 8 sections LED surface illumination

(40 sections ring light,Co-axial light,movable multi color ring light for option)

Measuring Software Inspect 3D Fully Auto Measuring Software
Load Capacity 25Kg
Power Supply 220V/50Hz/10A
Ddimension(W*D*H) 1700*1180*1750mm 1700*1280*1750mm 1900*1480*1750mm 2100*1680*1750mm
Net Weight 1500Kg 1800Kg 2900Kg 3200kg


Company Information


Visual Measurement Machine
Visual Measurement Machine
Visual Measurement Machine
Visual Measurement Machine

Our Client&Agent

Visual Measurement Machine
Visual Measurement Machine
FAQ
Visual Measurement Machine  Q1: Are you a factory or trading company ?
Visual Measurement Machine  A1: We are a factory and giving you the quickest reply in 24 hours.
Visual Measurement Machine  Q2: What's your company mainly in?
Visual Measurement Machine  A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Visual Measurement Machine  Q3: How to Choose the Appropriate Specification?
Visual Measurement Machine  A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Visual Measurement Machine  Q4: Do you accept customized service?
Visual Measurement Machine  A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Visual Measurement Machine  Q5: What is your warranty period?
Visual Measurement Machine  A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved  a lot on some breakable parts. You can rest assured of our product quality.
