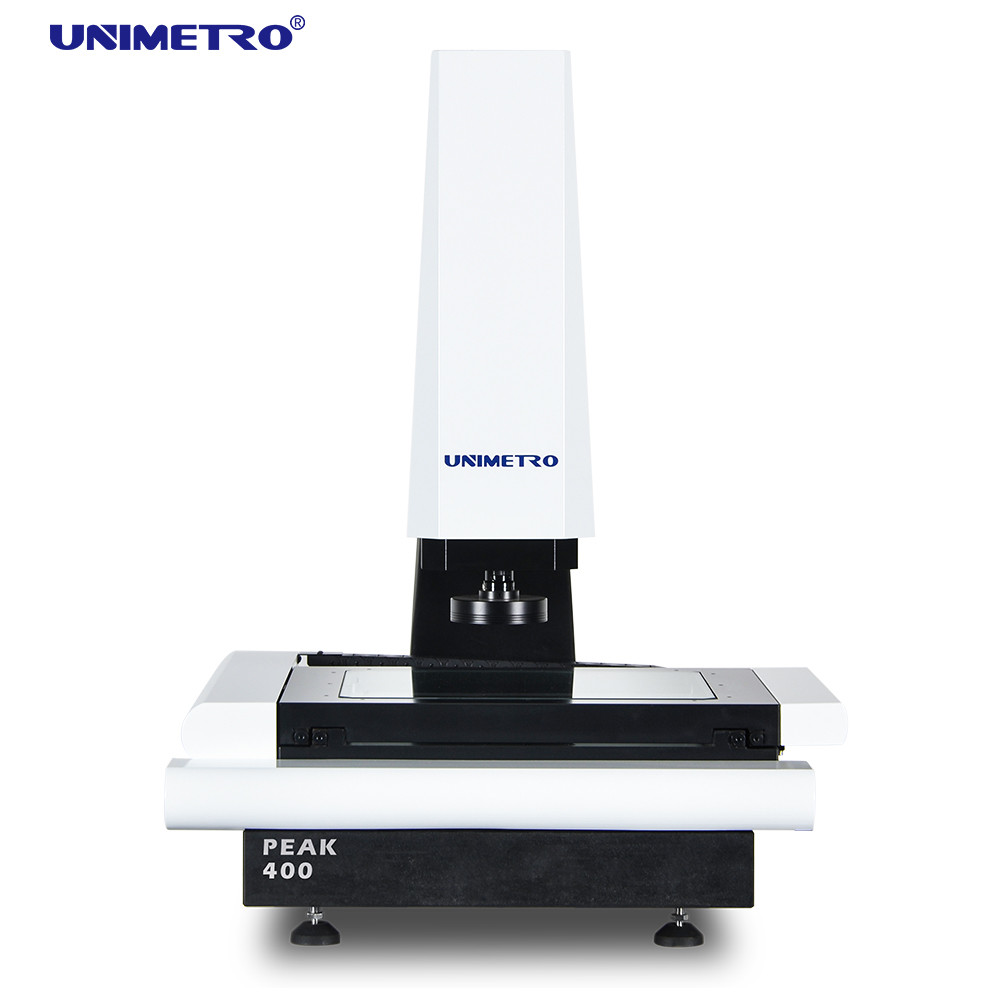

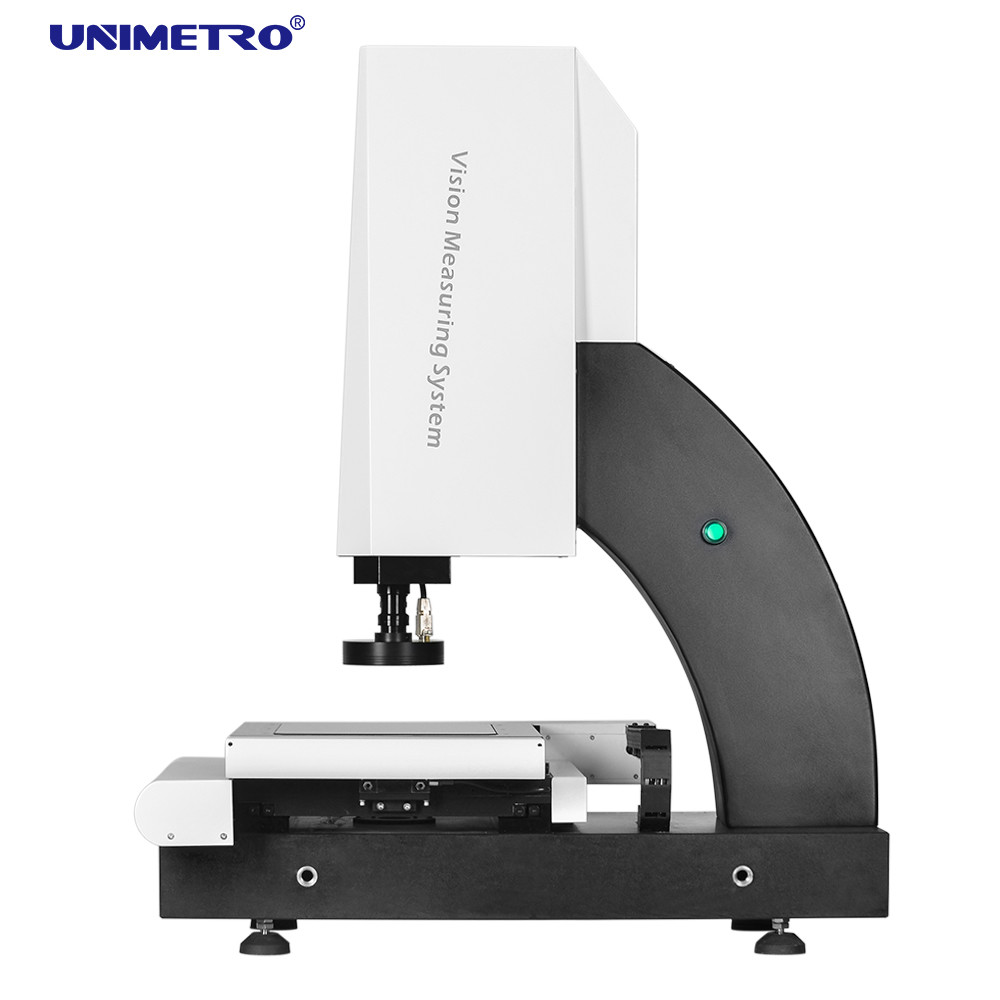

Full Auto Visual Measurement Machine For Quality Control

Product Details:

Place of Origin:	China
Brand Name:	UNIMETRO
Certification:	CE ISO
Model Number:	PEAK

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Wooden case
Delivery Time:	10~20days
Payment Terms:	L/C, T/T
Supply Ability:	30 per month

Contact Now

Detailed Product Description

High Light:

Visual Measurement Machine

Full Auto Visual Measurement Machine

Visual Measurement Machine For Quality Control

CNC Visual Measurement Machine For Angle Measurement With Lower Price

Visual Measurement Machine is an instrument used for accurate physical dimension measuring, accuracy up to micron level. Visual Measurement Machine an optical measuring instrument using the camera to capture the image of the work piece, analyse the image pixel and calculate the 2D dimension with the measuring software.

CNC Visual Measurement Machine is a powerful dimension measuring device designed for mass production quality control process. It is configured with powerful software which makes the measuring process programmable, users can achieve big quantity products measuring by full automatic process. PEAK series is an economical model of full automatic CNC vision developped by UNIMETRO.

The simple and integrated design allow us to build the machine with lower cost, in the mean time keep the high measuring accuracy and best performance. Users are able to enjoy the advantage of high efficiency and labor cost saving from a full CNC Vision measuring machine with very low price.

Visual Measurement Machine Hardware Configuration

◉ 3 axis 0.5um resolution linear scales
◉ High performance Auto focus function
◉ Aluminum work stage and hard anodizing

◉ Compatible with Renishaw touch probe(optional)

◉ 3 rings 8 section LED ring light software control and programmable

◉ Parallel light path LED contour light software control and programmable

◉ Confocal Fiber Displacement Sensor(optional)

◉ HIWIN linear guide way

◉ Z axis motorized control

◉ Integrated core control box

◉ Industrial grade CCD camera

◉ Manual pulsegenerator for Z axis movement control

◉ With Laser indicators for auxiliary positioning and focusing (optional)

◉ 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor

Visual Measurement Machine Application
1) The PEAK series VMM is compatible with full line of Omron fiber measuring sensors, which offers; More possibility of precise measurement requirement.

2) Stable measurements of inclined or curved surfaces
3) Stable measurements of different materials types
4) Stable measurements of smooth or coarse surfaces

5) PEAK series VMM is compatible with Renishaw touch probe as optional configuration. Users can easily achieve 2D and 3D measuring function in one machine.
6) The software can calculate the offset between the optical lens and touch probe, makes sure that all measuring results are within one coordinates system. The measuring results can be out put as 3D drawing for reverse engineering.

Visual Measurement Machine Software Functions

The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn, powerful function, allows the users to achieve fast and precise measuring.

The software is offering full English language UI, also allows new language development.

◉ Input CAD file and measure

◉ Parts array and macro measuring

◉ Auto focus and height measuring

◉ Navigating function helps fast locating

◉ Powerful geometric measuring function

◉ Multiple data reports and graphical data output function

◉ Flexible user program

◉ Creating reference elements

◉ Powerful edge detecting function

◉ Supporting multiple external accessories

◉ Auto calculation of the elements geometrical tolerance

◉ Measuring complicated production fast and conveniently

Visual Measurement Machine Parameter

	PEAK300	PEAK400
Dimension(mm)(LWH)	8506501060	10008001080
Measuring Range(mm)(XYZ)	300200200	400300200
Accuracy(um)	3+L/200	3+L/200
Repeatability(um)	3	3
Weight(kg)	120	150
Camera	Industrial grade analog CCD camera and SV2000E video card
Lens	Manual dented zoom lens 0.7-4.5X / 0.7-4.5X manual zoom lens with signal feedback (Optional) / Auto zoom lens (Optional)
Magnification	18-188X (Different combination of camera and lens leads to different magnification range
FOV	8.1-1.3mm (Different combination of camera and lens leads to different FOV range)
Working Distance	108mm
Linear scales resolution	0.0005mm
Illumination	Programmable 3 rings, 8 sections surface ring light, programmable parallel contour light
