CE Granite Base Full Manual Image Measuring Machine 190kg

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: BASIC
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wooden case
Delivery Time: 5~15days
Payment Terms: L/C, T/T
Supply Ability: 40
Detail Information
Product Name: Image Measuring Machine Dimension: 600*740*980mm
Measuring Range: 300*200*200mm Linear Scale Resolution: 0.5um(0.1um For Option)
Measuring Accuracy: 2.5+L/100um Repeatability: 2.5um
Weight: 190kg Material: Granite Base
High Light:

Image Measuring Machine 190kg

,

Granite Base Image Measuring Machine

,

CE Image Measuring Machine


Product Description

Full Manual Image Measuring Machine With Granite Base



Describtion


◉ BASIC Series image measuring machine is designed and developed by UNIMETRO, which is a popular model fit for most of the accurate 2D dimension measuring application and end users from different industries, as Mold, Electronics, Semi conductor, Plastic Injection, 3C products, Medical care, Aviation...etc.It is an important instrument used in your products quality control process,ensuring your products dimension accuracy, makes your products more competitive.
◉ BASIC series VMM is the most common model for most of the factories manufacturing accurate parts. It is fit for small quantity samples measuring application. 3 axis manual control, with user friendly software, allows the operator to manage using the machine in very short time.

◉ Using high accuracy and stability granite as machine base and column,with 3-axis 0.0005mm high-resolution linear sensor
----Ensure each machine’s high performance and accuracy.
◉ Using HIWIN linear guide way and high-precision linear guide rail, with aluminum work stage and hard anodizing surface processing.
---- Ensures the high dynamic performance and long life cycle usage of the machine.
◉ Using an integrated core control box which is developed by UNIMETRO, for linear scales, light control, and touch probe signal transfering.
---- Ensure easy wiring and maintainence. Highly increase the stability of the machine.
◉ Programmable contour LED light with parallel light path, avoids the deformation of the image.
---- Ensures the measuringaccuracy.
◉ With 8 section software control LED ring light, offer multiple illuminating angle and brightness.
---- Fit for parts withdifferent shape and materials.
◉ The lighting parameters can be record in the part measuring program, users do not need to adjust during the measuring process.
----Friendly and convenintly use.

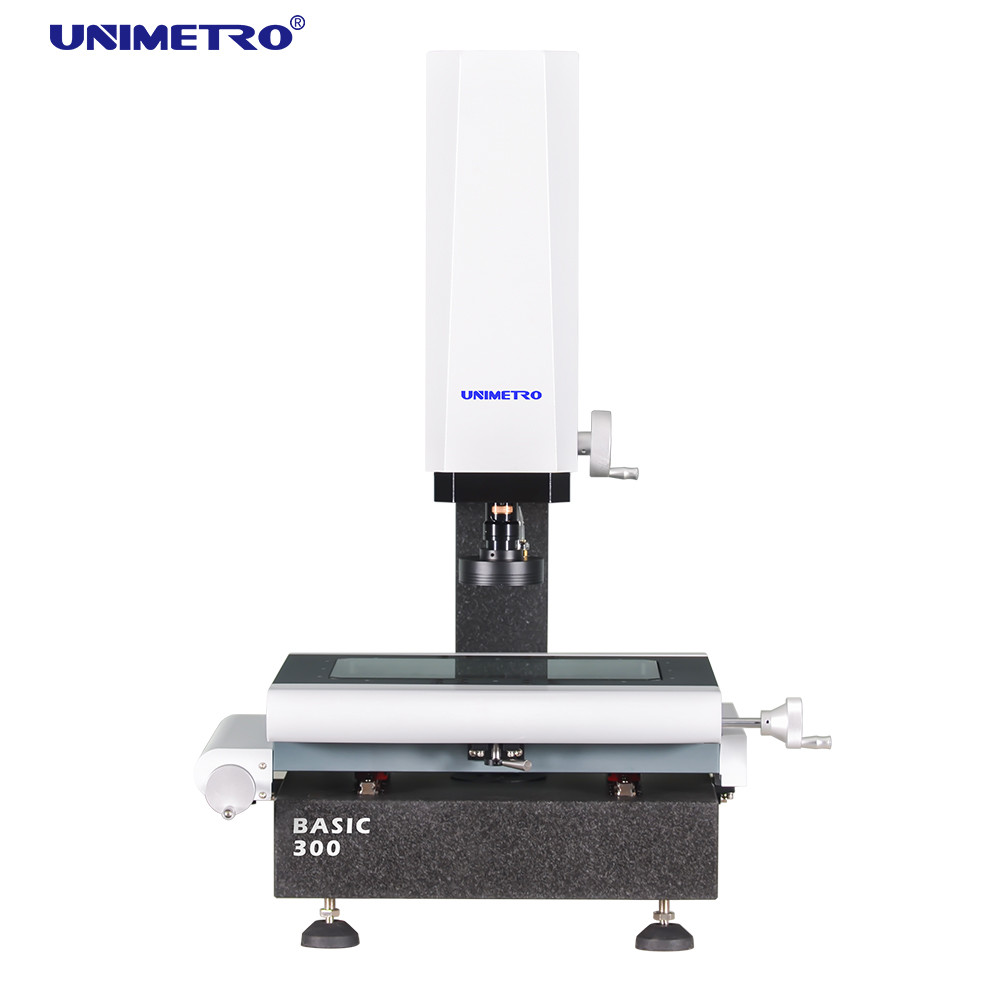

CE Granite Base Full Manual Image Measuring Machine 190kg 0




Hardware Configuration


◆ HIWIN linear guide way
◆ Aluminum work stage and hard anodizing
◆ Integrated core control box
◆ 3 axis 0.5um resolution linear scales
◆ Multi function LED parallel light group
◆ Industrial grade high resolution CCD camera
◆ 0.7-4.5X manual dented zoom lens with high repeatability
◆ Supporting multiple external accessories

CE Granite Base Full Manual Image Measuring Machine 190kg 1



Parameters

Model BASIC 200 BASIC 300 BASIC 400 BASIC 500
Dimension(mm)(L*W*H) 550*540*930 600*740*980 700*840*980 800*940*980
Measuring range (mm)(X*Y*Z) 200*100*150 300*200*200 400*300*200 500*400*200
Measuring Accuracy (μm) 2.5+L/100 2.5+L/100 2.5+L/100 3+L/100
Repeatability (μm) 2.5 2.5 2.5 3
Weight (kg) 140kg 190kg 240kg 290kg
Image and Measuring CCD 1.2M pixel HD digital camera
Lens 0.7-4.5X manual dented zoom lens with maganification signal feedback sensor
Magnification 18-195X ( For reference only. With different camera and lens the magnification will be different. )
Field of View 8.1~1.3mm
Working distance 80mm
Linear scale resolution 0.5 μm( 0.1μm for option )
Driving system X,Y,Z axis manual control
Illumination Programmable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for option



Software Overview

The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn, powerful function, allows the users to achieve
fast and precise measuring. The software is offering full English language UI, also allows new language development.


◉ Input CAD file and measure

◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function


◉ Flexible user program

◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently


CE Granite Base Full Manual Image Measuring Machine 190kg 2





Company Information


Visual Measurement Machine
Visual Measurement Machine
Visual Measurement Machine
Visual Measurement Machine

Our Client&Agent

Visual Measurement Machine
Visual Measurement Machine
