6061 Aluminum Grade for Vision Measuring Machine Inspection Applications

FlexFix fixtures series are engineered for precision measurement applications across various industries including electronics, aerospace, automotive, plastics, and medical care. Compatible with all sizes and models of CMM and VMM systems, these fixtures deliver flexible, repeatable, and standardized measuring processes.

Vision measurement machines handle diverse components with varying shapes, materials, and geometries, often lacking effective reference planes for proper staging. Custom fixtures for each component prove inefficient and costly. Our FlexFix series VMM fixtures kit and base plates provide time-saving, cost-effective solutions for fast, reliable fixturing during VMM measurement processes, enhancing throughput, reproducibility, and accuracy with quick, repeatable set-ups.

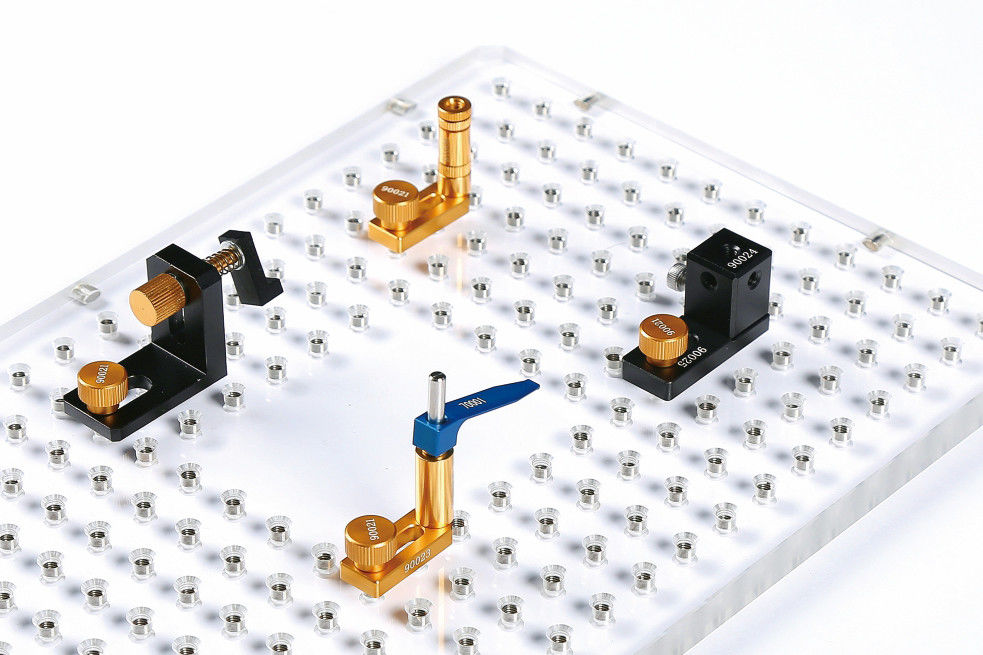

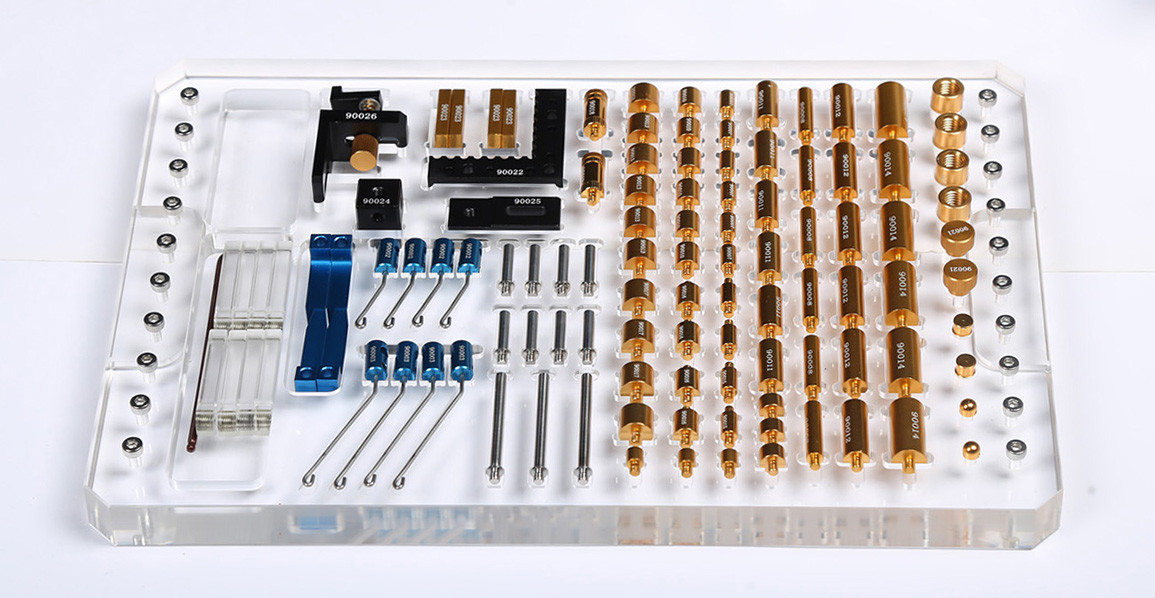

The FlexFix series VMM fixtures are designed as comprehensive component kits. Based on extensive experience with VMM user applications and analysis of diverse part types, our kit includes supporting, pressing, and holding components that enable easy fixturing management without special tools. Users can quickly find optimal fixturing solutions regardless of component shapes or materials.

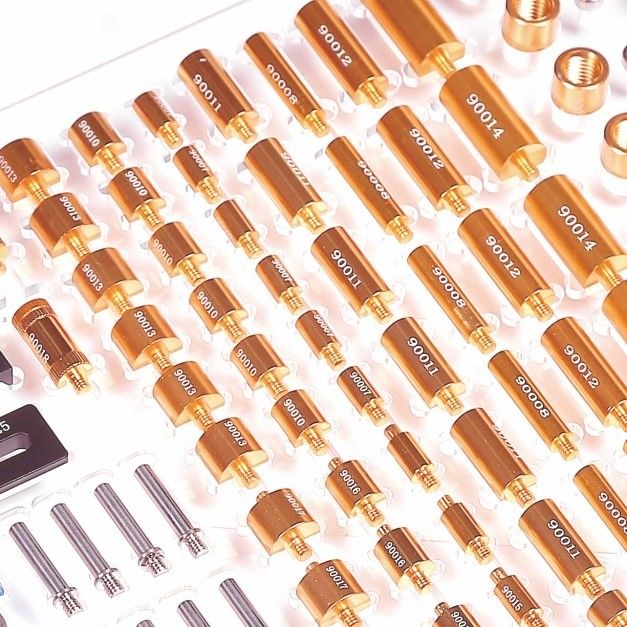

All components undergo precision manufacturing processes with anodized coating for durability. Each part features laser marking coding, ensuring repeatable component combinations for subsequent inspections. This eliminates variations between different parts or operators, significantly improving measuring accuracy and repeatability.

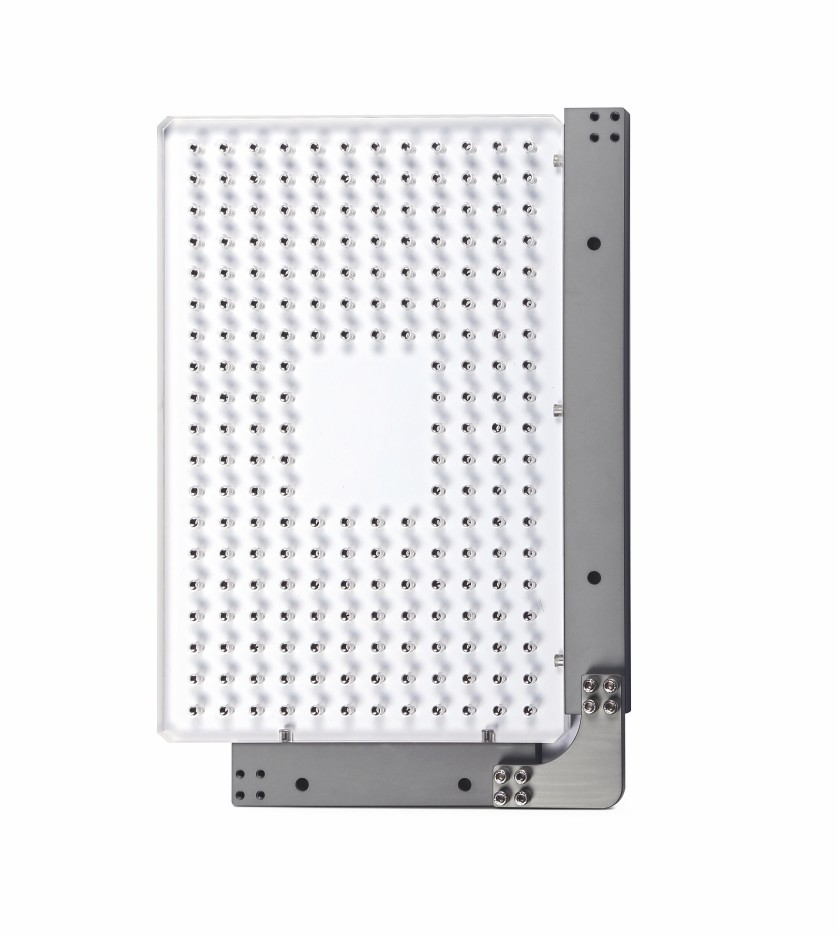

For contour measuring applications common in VMM processes, we've developed base plates using high-transmittance, high-flatness acrylic material. This ensures straight light paths from contour lights, maintaining the machine's original measuring accuracy. Metal M4 screw threads mounted within the base plate provide firm component fixation and extended plate lifecycle. The included L-type magnetic fast mounting corner enables simple placement and measurement, significantly increasing measuring efficiency.
