Name: Tool Holder & Flexible Fixture Matching CMM Machine for Precision Measurement
Brand: Unimetro Precision Machinery Co., Ltd
SKU: Flexfix
Price: 20,500.00 USD
Availability: InStock

Detail Information

Features:	Flexible, Original	Product Name:	CMM Fixture Kits
Material:	Aluminum	Accessories:	108pcs Component
Application:	CMM Machine	Service:	OEM, ODM
Highlight:	Aluminum CMM Fixtures Kits , CMM Fixtures Kits 108pcs , Coordinate Measurement CMM Fixtures Kits

Product Description

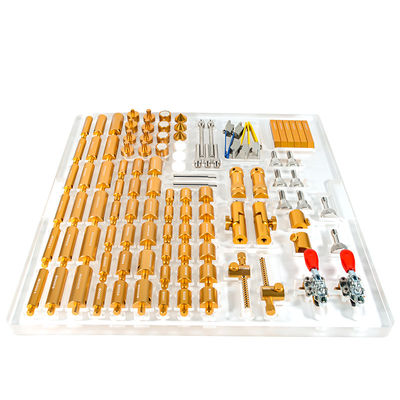

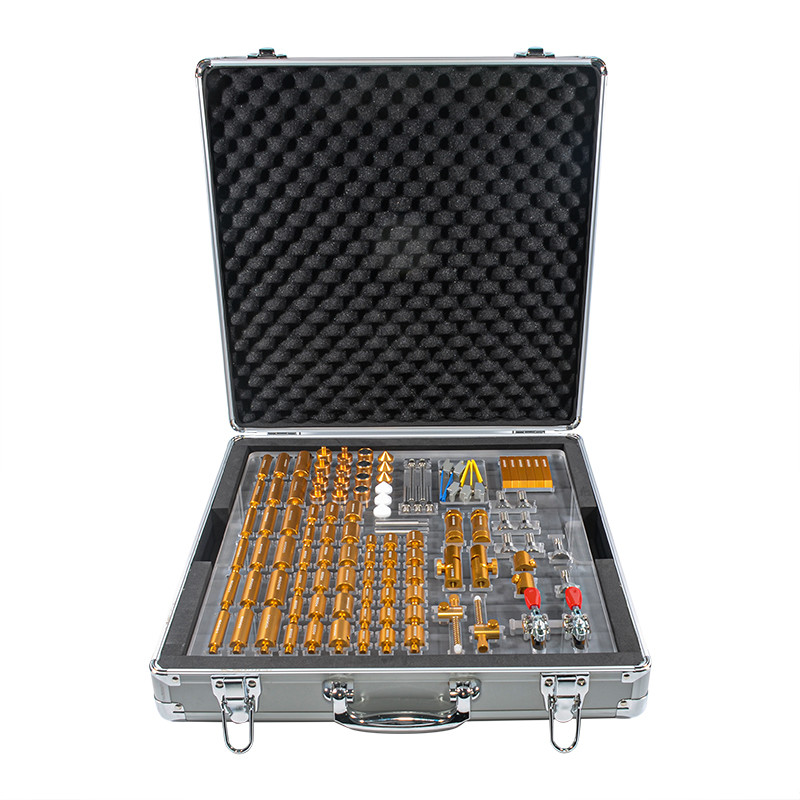

Aluminum CMM Fixture Kits 108pcs for Coordinate Measuring Machine

Overview

The Flexfix series fixturing components are engineered to securely hold components with minimal necessary force and without special tools. These versatile components include supports, clamps, and presses designed to prevent damage or distortion to measured parts.

The intelligent design enables users to create various fixturing combinations for different part types while ensuring clear probe paths for 3D measuring applications.

Kit Components & Specifications

Product Name	Mark	Quantity
12*50mm standoff	80001	6
12*30mm standoff	80002	6
16*50mm standoff	80003	6
16*30mm standoff	80004	6
20*50mm standoff	80005	6
20*30mm standoff	80006	6
12*20mm standoff	80007	6
16*20mm standoff	80008	6
20*20mm standoff	80009	6
Pusher damp	800010	2
Screw pusher damp	800011	2
Adjustable pivot joint	800012	2
Adjustable jack stand	800013	2
Magnet	800014	4
Pin Standoff	800015	2
Adaptor	800016	6
Baseboard screw	800017	2
V post	800018	2
Screws	800019	2
Adjustable slide	800020	8
Tension clamp	800021	4
Hold down clamp	800022	2
Short tension damp support	800023	2
Long tension clamp support	800024	2
Cone	800025	3
Nylon cone	800026	3
Screwdriver	800027	1

CMM Base Plates

400*300mm, MS Threaded holes
400*400mm, MS Threaded holes
500*500mm, MS Threaded holes
600*600mm, MS Threaded holes
Other customized sizes available

Multiple base plate sizes accommodate various CMM dimensions and component fixturing requirements. Our manufacturing process includes CNC machining, precision grinding, anodized coating, and laser marking to ensure high accuracy, flatness, and reliability.

Custom sizes and thread hole patterns are available to meet specific application needs.

Manufacturing Excellence

Global Partnerships

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory and provide responses within 24 hours.

Q2: What does your company primarily manufacture?

A2: We specialize in vision measuring machines, coordinate measuring machines, and CMM/VMM fixtures.

Q3: How to choose the appropriate specification?

A3: Our professional team will recommend suitable specifications based on your product variety and measurement requirements.

Q4: Do you accept customized services?

A4: Yes, we provide both standard machines and customized solutions tailored to customer needs.

Q5: What is your warranty period?

A5: Our products come with a 1-year warranty. We have enhanced durability in breakable components to ensure reliable product quality.
