Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V

Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V

    • Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V
    • Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V
    • Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V
    • Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V
    • Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V
  • Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V

    Product Details:

    Place of Origin: China
    Brand Name: UNIMETRO
    Certification: CE
    Model Number: Cruiser

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Wood case
    Delivery Time: 45 work days
    Payment Terms: T/T
    Supply Ability: 5 per month
    Contact Now
    Detailed Product Description
    MPEE (um) S: From 3.5+3L/1000 MPEP (um) S: From 3.8
    Max Loading: 3000kg Power Voltage: 220V
    MPEE (um) P: From 2.5+3L/1000 MPEP (um) P: From 2.5



    Bridge Type 3D Coordinate Measuring Machine Large Travel



    Automobile Application





    Product Description



    Introduction

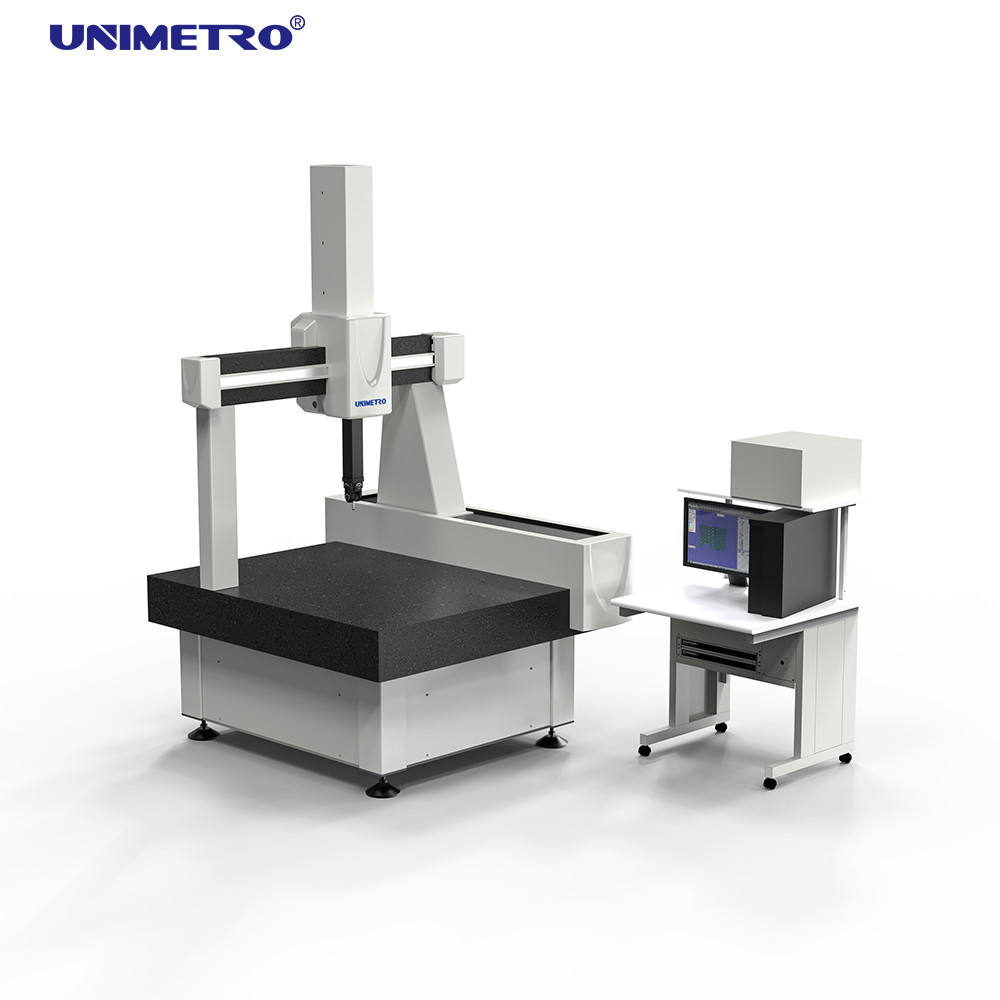

    Cruiser series 3D coordinate measuring machine is a high performance automatic CMM with large travel. Thanks to the advanced design, finite element analysis, dynamic features and mechanics analysis, error detecting and compensation, the Cruiser series is with outstanding rigidity and stability.



    Cruiser series 3D coordinate measuring machine is fit for large parts accurate measuring, users can achieve the application as parts measuring, contour measuring, reverse engineering, quality control etc.



    Cruiser series 3D coordinate measuring machine use high accuracy L type standing structure, ensures the stability, smooth driving, and large measuring space, also offers fast measuring speed, minimizing the angle swinging and vertical offset during the running process, achieve high measuring accuracy.



    The main guide way of the Cruiser 3D coordinate measuring machine use the groove section design, the air bearings are layout as closed static pressure guide way, improve the rigidity of the air film, and the accuracy of the Y direction air floating guide way.



    Cruiser series 3D coordinate measuring machine use granite as the 3 axis guide way and the columns, ensures high thermal stability, high rigidity and long life cycle.



    The cruiser series is compatible with Renishaw all series of the trigger and contacting scanning probe, also with the LS series laser scanning probe, high accuracy laser point scanning probe, to achieve the complicated curve high speed scanning. (Reserve engineering)





    Probe Application



    Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V    Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V













    Parameters



    Axis Measuring Accuracy Dimension Work space Weight Max Loading
    ISO10360-2:2001 / GB / T16857.2-2006
    X Y Z S P Lx Ly Lz Wx Wy Wz
    mm mm mm MPEE (um) MPEP (um) MPEE (um) MPEP (um) mm mm mm mm mm mm kg kg
    1500 1500 1000 3.5+3L/1000 3.8 2.5+3L/1000 2.5 2700 3300 3700 1700 1700 1200 8100 3000
    1500 2000 1000 3.5+3L/1000 3.8 2.5+3L/1000 2.5 2700 3800 3700 1700 2200 1200 9300 3000
    1500 2500 1000 3.5+3L/1000 3.8 2.5+3L/1000 2.5 2700 4300 3700 1700 2700 1200 10500 3000
    1500 3000 1000 3.5+3L/1000 3.8 2.5+3L/1000 2.5 2700 4800 3700 1700 3200 1200 11400 3000
    1500 3500 1000 3.5+3L/1000 3.8 2.5+3L/1000 2.5 2700 5300 3700 1700 3700 1200 12000 3000
    1500 XX 1000 From 3.5+3L/1000 From 3.8 From 2.5+3L/1000 2.5 2700 XX 3700 1700 XX 1200 XX XX
    1500 2000 1200 4.0+4L/1000 4.5 2.9+3L/1000 3 2700 3800 4100 1700 2200 1400 9800 3000
    1500 2500 1200 4.0+4L/1000 4.5 2.9+3L/1000 3 2700 4300 4100 1700 2700 1400 10900 3000
    1500 3000 1200 4.0+4L/1000 4.8 2.9+3L/1000 3 2700 4800 4100 1700 3200 1400 11500 3000
    1500 3500 1200 4.0+4L/1000 4.8 2.9+3L/1000 3 2700 5300 4100 1700 3700 1400 12100 3000
    1500 XX 1200 From 4.0+4L/1000 From 4.5 From 2.9+3L/1000 3 2700 XX 4100 1700 XX 1400 XX XX
    1500 2000 1500 4.5+4L/1000 5 3.8+3L/1000 3.5 2700 3800 4650 1700 2200 1700 10000 3000
    1500 2500 1500 4.5+4L/1000 5 3.8+3L/1000 3.5 2700 4300 4650 1700 2700 1700 11300 3000
    1500 3000 1500 4.5+4L/1000 5 3.8+3L/1000 3.5 2700 4800 4650 1700 3200 1700 12200 3000
    1500 3500 1500 4.5+4L/1000 5 3.8+3L/1000 3.5 2700 5300 4650 1700 3700 1700 14000 3000
    1500 XX 1500 From 4.5+4L/1000 From 5.0 From 3.8+3L/1000 From 3.5 2700 XX 4650 1700 XX 1700 XX XX
    1600 3000 1500 4.8+5L/1000 5 4.5+3L/1000 4.5 2800 4800 4650 1800 3200 1700 13200 3000
    1600 3500 1500 4.8+5L/1000 5 4.5+3L/1000 4.5 2800 5300 4650 1800 3700 1700 15000 3000
    1600 XX 1500 From 4.8+5L/1000 From 5.0 From 4.5+3L/1000 From 4.5 2800 XX 4650 1800 XX 1700 XX XX













    Working condition&Dimension



        ★ Power Voltage: 220V                             Air Pressure:0.7-1.0Mpa



        ★ Filter Accuracy: 0.3um                         Air Supply: 0.12-0.45m³/min



        ★ Temperature Range: 18-22°C            Hourly Temperature Cycle: 1°C/h



        ★ Thermal Gradient: 1°C/m                    Relative Humidity: 55%-65%





                                                                         Dimension



    Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V













    Application



    Large molding, checking fixtures, automobile, aviation etc.



    Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V  Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V



    Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V   Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V



    Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V











    About us



    Our customers



    The Cruiser series coordinates measuring machine has been sold to many famous companies in world wide, the application in varies business proved the quality and performance of the series.



    Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V



    UNIMETRO helps you to build your own business!


    UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.



    Bridge Type 3D Coordinate Measuring Machine for Large Travel Automobile 220V



    Our service

    UNIMETRO is devoting to offer the best metrology products and solution,also offer the best after sales service.Free on-line support, free software upgrade and fast reaction of after salesservice ensure the satisfaction of our customers and dealers.



    Global market

    Dealers or distributors all over the world are welcome and we will offer fullsupport in commercial and technical phase.UNIMETRO is always providing products with the best price performance ratio and the best service.



    OEM and special measuring solution

    UNIMETRO is available for OEM service for our distributors.

    Thanks to the professional technical team of UNIMETRO, we are also capable for varies kinds of special measuring solution or devices development, please consult to our engineer if you have such kind of requirement.
