LED Vision / Visual Measuring Machine 5 Rings 8 Blocks 40 Section Ring Surface Light

LED Vision / Visual Measuring Machine 5 Rings 8 Blocks 40 Section Ring Surface Light

  • LED Vision / Visual Measuring Machine 5 Rings 8 Blocks 40 Section Ring Surface Light
LED Vision / Visual Measuring Machine 5 Rings 8 Blocks 40 Section Ring Surface Light
Product Details:
Place of Origin: China
Brand Name: UWC
Model Number: UWC6045
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 50 per month
Contact Now
Detailed Product Description
LED Rings: 5 LED Blocks: 8
Focusing Distance: 40mm-150mm Power Supply: 12VDC+0.2V @1.5A
API Function: Available
High Light:

vision measuring machine

,

vision measurement system

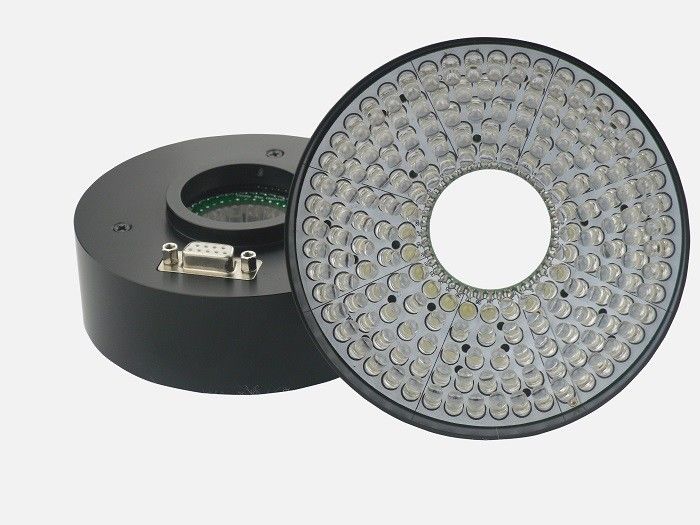

LED Vision Measuring Machine 5 Rings 8 Blocks 40 Section Ring Surface Light



Features



UWC6045 is a 5 rings 8 blocks 40 sections programmable light source, which is one of the typical products of the UWC illumination series. It is widely used in the measuring business.





1. The UWC6045 is a professional illumination solution for vision measurement machine and vision inspection devices, the LED plate and controlling board are integration. Unique and stable structure ensure the accuracy of every LED light axis.



2. RS232 communication interface, the cable can be up to 20M. Thanks to the advanced design and anti-noise communication protocol, the UWC6045 series is suitable for large, medium and small size stage without losing signal.



3. API function interface is offered, easy programming.



4. Up to 5 rings 8 block 40 direction angle illuminating, ensure precise illuminating to the appointing area.



5. Through different angle of illuminating, emphasizing the contrast of the appointing measuring area, and reducing the noise of the stray light. Offers high contrast images, ensures the efficient and reliability of the software edge detecting and repeatability of measuring.



6. Emphasize the chamfer or corners with high contrast, perfect illumination solution for measuring the irregular shape or image.



7. Advanced constant current driving technology instead of adjusting voltage driving mode, much extending the life cycle of the LEDs.



8. One terminal constant current control output for the contour light, directly driving a LED less than 3W power or LED group to gain contour measuring. High power LED group or halogen brightness control is able to use the UWC6004 high power illuminating controller.



9. Co-axial light constant current control output, directly driving the co-axial light, with the co-axial lens gaining vertical illumination to measure plane and deep hole.



10. Wide range of brightness adjusting, offers the most suitable illumination in different magnification.



11. Stable brightness, non flashing, stable grey level value of the image edge, ensures the edge detecting accuracy.



12. Offering 40mm-150mm focusing distance illuminating angle, it is a illumination solution for lens with multiple focusing distance.



13. High quality LED, every LED is selected by a sorting machine, high color temperature, no color difference, spectrum analysis result is similar to the sun light, with long life cycle and low attenuation. All the brightness parameters can be saved in the measuring part program, users can use the program to measure directly without adjusting the illumination.



14. Power supply: 12VDC+0.2V @1.5A, please use the industrial grade high quality stable voltage power supply, to ensure the product stability and life cycle.
