Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: AVANT
Minimum Order Quantity: 1 set
Price: Discussible
Packaging Details: Wooden Case
Delivery Time: 15 work days
Payment Terms: T/T, D/A, D/P, T/T
Supply Ability: 100 per month
Detail Information
Product Name: One Button Video Measuring Machine Image Sensor: 2000W HD Color Digital Camera
Light Receiving Lens: Single/double Telecentric Lens Broad Vision: 130*100mm
Repeatability: +-2(coordinate Table Not Moving) Display Resolution: 0.1um
Z-direction Electric Coordinate Table: 100mm Dimension: 415*240*768mm
Highlight:

vision measuring machine

,

vision measurement system


Product Description

Fast measuring one button video measuring machine for lab

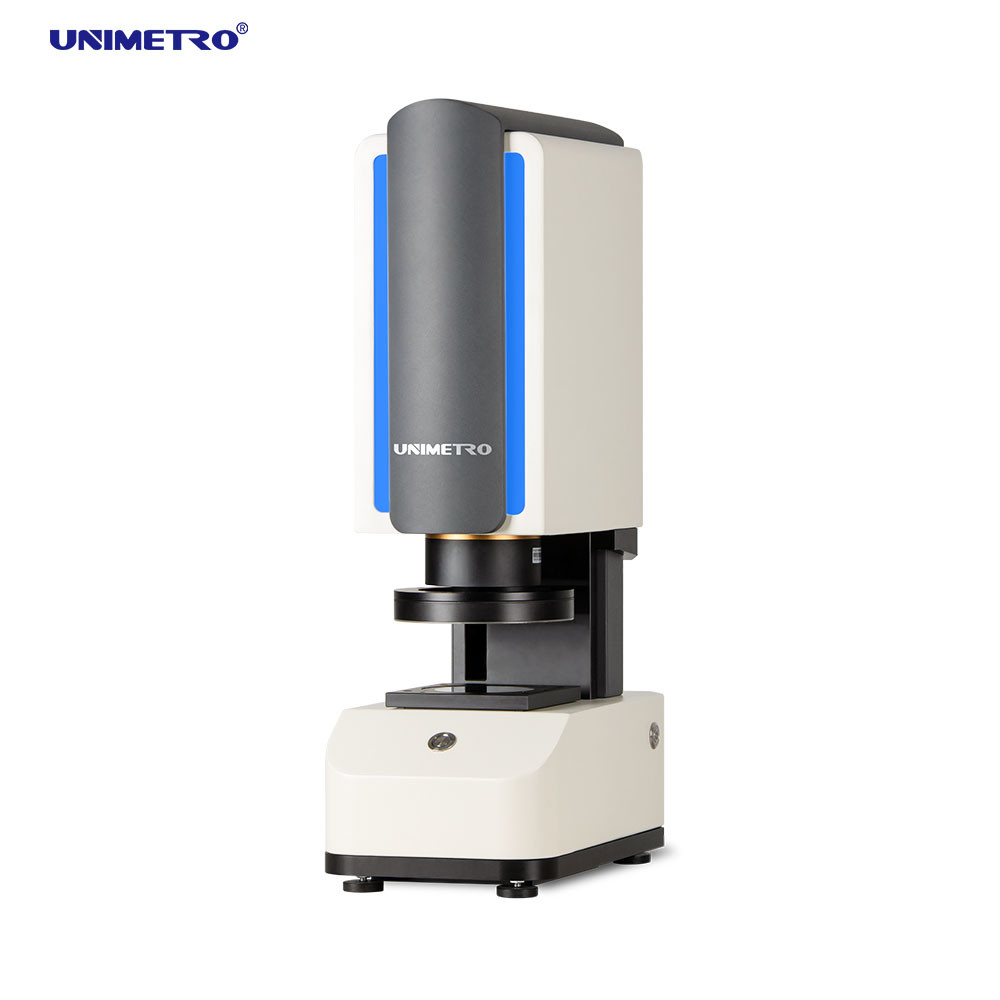

A100 Image Dimension Measurement System is a new image measurement technology of UNIMETRO. It is different from the traditional 2D image measurement instrument in that it no longer needs the grating ruler displacement sensor as the accuracy standard, nor does it need to enlarge the product image through the lens with large focal length to ensure the measurement accuracy.

The structure of the fuselage is simple. It does not need the grating ruler of displacement sensor. It only needs the telecentric zoom lens with large viewing angle and large depth of field, high pixel CCD camera and powerful background software.

Through the double telecentric optical lens with large viewing angle and large depth of field, using high-speed digital processing function, combined with high-precision image analysis algorithm, it can complete the evaluation of dimensional tolerance at the same time with only one key. It is widely used in machinery, electronics, mold, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, terminals, mobile phones, household appliances, printed circuit boards, medical equipment, watches, knives and other fields.





Features



Traditional size measuring instruments, such as projector, tool microscope, image measuring instrument, contour measuring instrument, vernier caliper, etc., may face the problems of high operation difficulty, complex focusing process, time consuming of moving coordinate table, human error, long batch measurement time, and complicated data statistics management.



Fast and efficient:

1. Products can be placed on the workbench at will, without additional fixture to fix and position.

2. Rapid measurement, up to 512 parts can be measured at the same time.

3. Make batch measurement more efficient, and batch measurement can be carried out quickly and accurately in CNC mode.



Accurate and consistent:

1. With one click, anyone can easily obtain accurate and consistent measurement results.

2. Software auto focus, no deviation caused by focus adjustment.

3. Automatic identification of the measurement position, each time can obtain a unified and stable measurement results.



Easy and simple:

1. Anyone can get started quickly, saving the time of manual training and improving work efficiency.

2. Simple operation interface, the operator can quickly find the corresponding function and measure.

3. Virtual lines and virtual points can be created to meet more measurement requirements.



Fast and simple operation process:

Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 0



Parameters



Model

A100

Image sensor

2000W HD color digital camera

External display

24’

Light receiving lens

Single/double telecentric lens

Illumination

Drop shot system

Single zone ring directional lighting (white light)

Transmission

Telecentric transmission illumination (white light)

Broad Vision(mm)

130*100mm

Repeatability

Broad vision

±3(Coordinate table not moving)

Measurement Software

INS/F

Display resolution

0.1um

Z-direction electric coordinate table

Moving range

100mm

Dimension

240*415*770

Weight

50KG

Power Supply

110-240VAC,50/60HZ





Company Information


Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 1
Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 2
Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 3
Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 4

Our Client&Agent

Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 5
Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 6
FAQ
Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 7  Q1: Are you a factory or trading company ?
Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 8  A1: We are a factory and giving you the quickest reply in 24 hours.
Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 7  Q2: What's your company mainly in?
Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 8  A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 7  Q3: How to Choose the Appropriate Specification?
Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 8  A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 7  Q4: Do you accept customized service?
Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 8  A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 7  Q5: What is your warranty period?
Upgrade your measurement capabilities with A100 Image Dimension Measurement System from UNIMETRO 8  A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved  a lot on some breakable parts. You can rest assured of our product quality.
