Thin Optical Linear Scale Optimized Size , Slim Smart Machine Digital Readout Scale

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE
Model Number: ULS-T
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 200 per month
Detail Information
Signal: TTL, 422 Slider Bearings: NSK
Optoelectronic Shifting Value: More Than 60% Plug: 9 Pin, 7 Pin
Application: Milling, Lathe, EDMs, Wire Cut Etc
High Light:

linear digital scale

,

linear glass scale


Product Description



Thin Optical Linear Scale Optimized Size For Slim Smart Machine Design





Introduction



For more optimized machine design, UNIMETRO offers a special type of thin scales ULS-T, which is with only half dimension of the normal scales. The advanced design ensures the ULS-T series with the same mechanical features as the normal ones.





Features



The slide carrier of the ULS-T series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.

The glass grating slideways are lapped, and NSK bearings are used to achieve smooth and accurate movement and long working life.

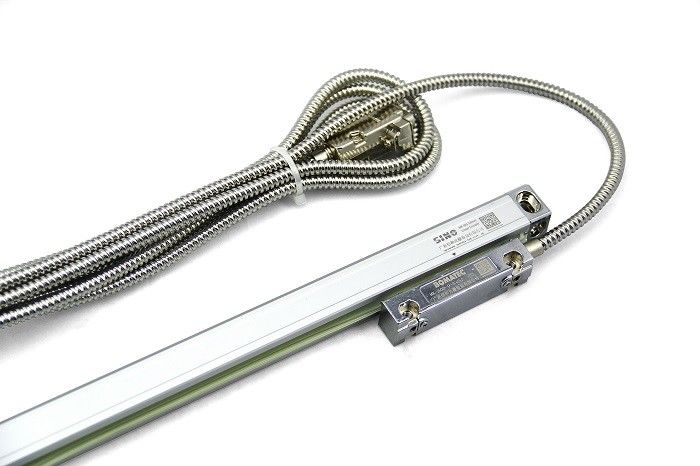

Thin Optical Linear Scale Optimized Size , Slim Smart Machine Digital Readout Scale 0



The plastics seals of ULS-T series scales use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.



All glass grating transducers are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.



The industrial standard TTL, RS-422-A and RS-485(optional, available upon request) digital signal output are available for user's choice.



User can choose the most suitable signal interface according to their cost, power consideration & EMI requirements. Standard 9 pin DSUB9 and 7 pin DIN7 connectors are available for user's choice.

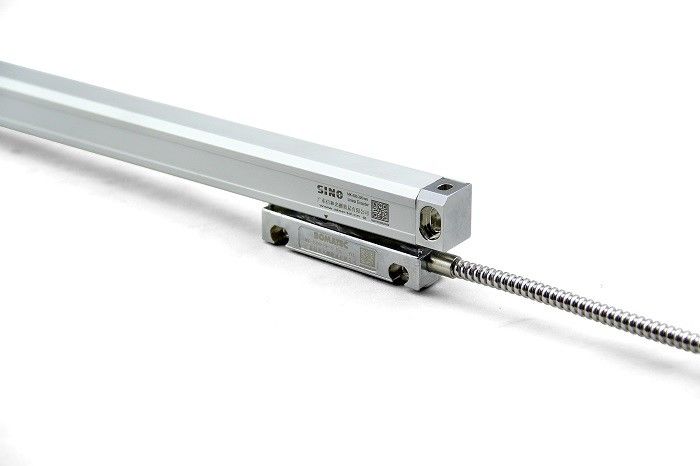

Thin Optical Linear Scale Optimized Size , Slim Smart Machine Digital Readout Scale 1



Thin Optical Linear Scale Optimized Size , Slim Smart Machine Digital Readout Scale 2



Thin Optical Linear Scale Optimized Size , Slim Smart Machine Digital Readout Scale 3
