CE Certificate Digital Readout Display 2 Axis Dro For Lathe / Milling Machine

Basic Information
Place of Origin: China
Brand Name: UNIMETRO, GDXH, BOMATEC
Certification: CE
Model Number: XH-2
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 100 per month
Detail Information
Axis: 2 Axis Application: Milling, Lathe, EDM, Wire Cut, Grinding
Connector: 6PIN, 7PIN, 9PIN Compensation Function: Included
Arc Function: Included
High Light:

dro readout systems

,

digital readout dro


Product Description

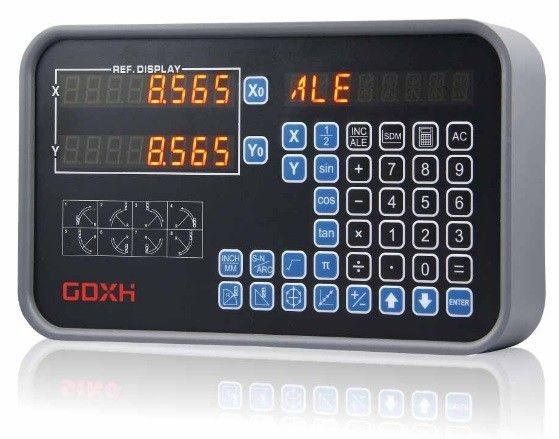

2 Axis Digital Readout Systems Full Function Anti - Noise CE Certificate





Features



The XH-2 series 2 axis digital readout systems is the latest full function readout cabinet series. The principle design philosophy of XH-2 series series is to provide the highest noise immunity readout cabinet in the market.



The XH-2 series 2 axis digital readout systems provide right to the points application specific functions for various types of general and special machines to achieve the highest possible machining accuracy and efficiency. It is the best DRO system for the milling, lathe, grinding machine, wire cut etc.



CE Certificate Digital Readout Display 2 Axis Dro For Lathe / Milling Machine 0



Safety and anti-noise capability



The unique design of the XH-2 series offers outstanding safety performance, which is passed the CE testing, also excellent anti-noise capability, ensures stable operation even in bad environment.



CE Certificate Digital Readout Display 2 Axis Dro For Lathe / Milling Machine 1



Also the XH-2 series is with the best water proof performance, avoiding any influence fro the cutting oil or liquid.



Non-linear compensation



In the application where very high accuracy is essential, such as grinding machine, boring machine, measuring instrument and etc. It is very costly and also very difficult to built the machine body to achieve the required micron grade accuracy.


XH-2 series offer a cost effective way to improve the display accuracy by non-linear error compensation. The non-linear error compensation function of XH-2 series is very similar to the non-linear error compensation that commonly used in CNC machine controller.



CE Certificate Digital Readout Display 2 Axis Dro For Lathe / Milling Machine 2



Application



CE Certificate Digital Readout Display 2 Axis Dro For Lathe / Milling Machine 3

XH-2 used on milling machine





CE Certificate Digital Readout Display 2 Axis Dro For Lathe / Milling Machine 4

Grinding machine application
