Optical Single Lens Industrial Microscope DIC Differential Interference Contrast

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Model Number: UMDIC-100
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 8 work days
Payment Terms: T/T
Supply Ability: 10 per month
Detail Information
Objective: Flat Field Stress Free Objectives Work Stage Size: 180mm*145mm
Specimen Height: 130mm DIC Generator: Insert Type, Switchable, The Direction Can Be Adjusted 360 Degrees
DIC Detector: Insert Type, Switchable, The Direction Of The DIC Module Is Set, No Need For Adjusting CCD Adapter: 1X Standard Type C
High Light:

optical metallurgical microscope

,

metallurgical optical microscope


Product Description



Single Lens Industrial Microscopes DIC Differential Interference Contrast



Features



The UMDIC-100 series defferential interference contrast microscope is using infinity optical system, multiple objectives with long work distance color difference free and stress free for option such as 5X, 10X and 20X magnification. Matching different DIC device for different magnification observing.



The illumination is using high brightness and long life cycle LEDs, smart structure and safe operation. Specially fit for detecting on the production line.



Single eyepiece observing is using flat field eyepiece with large field, inclined 30 degrees, synchronous output with the camera. It is using reliable mounting design, which is compatible with CCD or camera with different magnification.

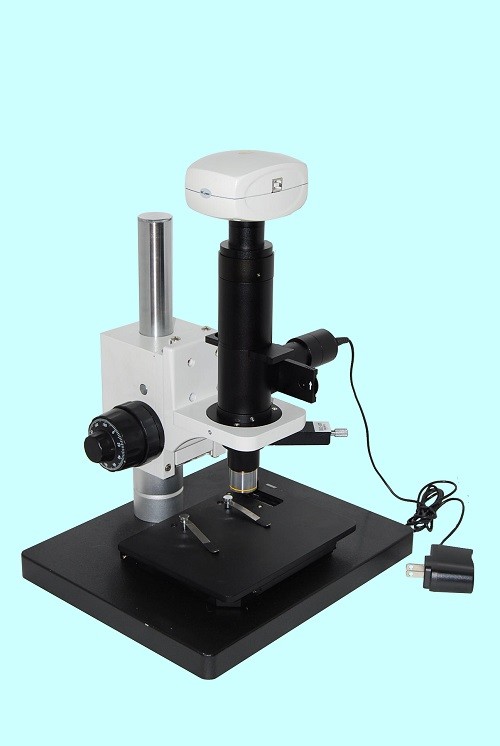

Optical Single Lens Industrial Microscope DIC Differential Interference Contrast 0



Working principle

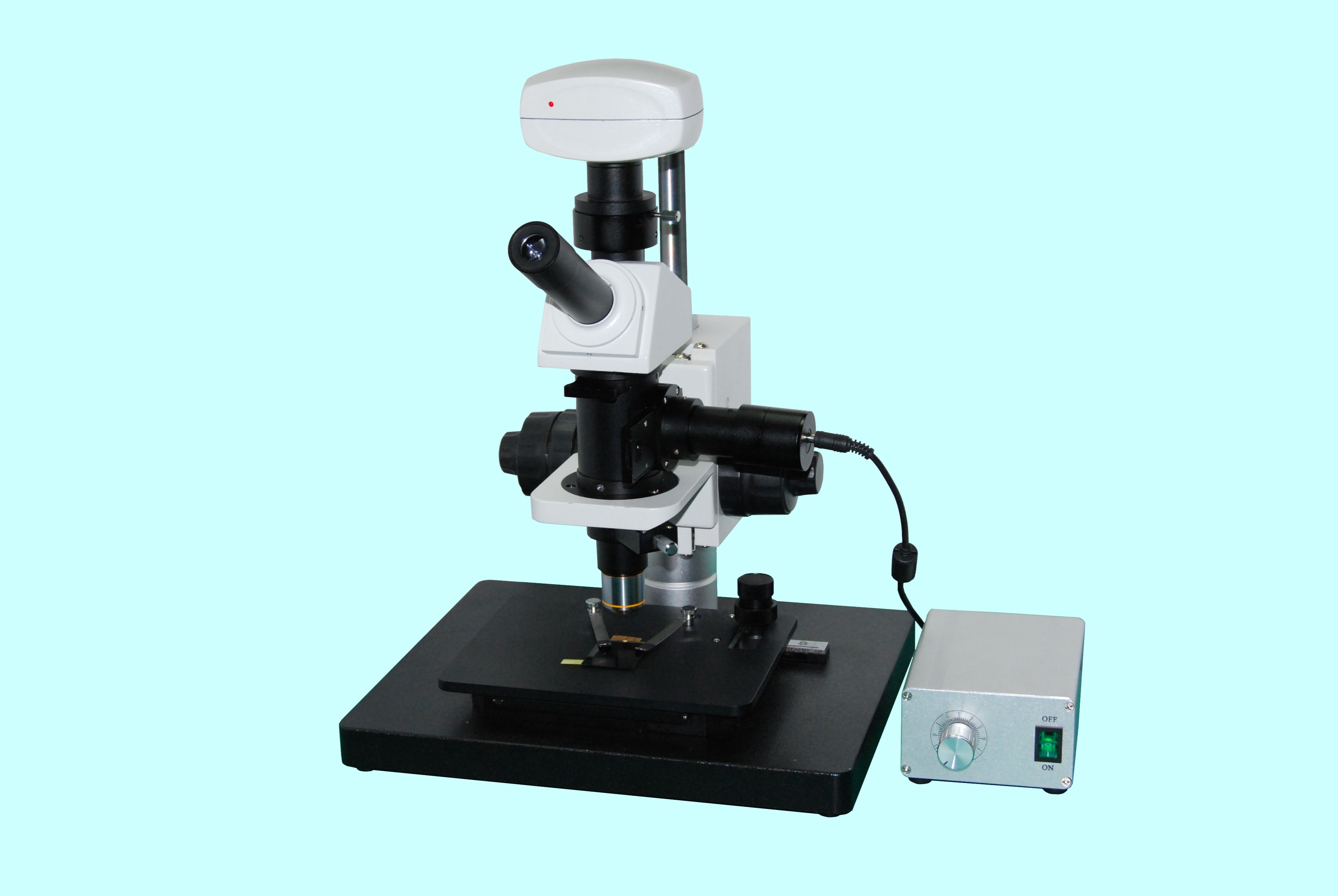

Optical Single Lens Industrial Microscope DIC Differential Interference Contrast 1



Double layers stage



Base dimension: 300mm*250mm

Stage size: 180mm*145mm

Moving range: 35mm*30mm

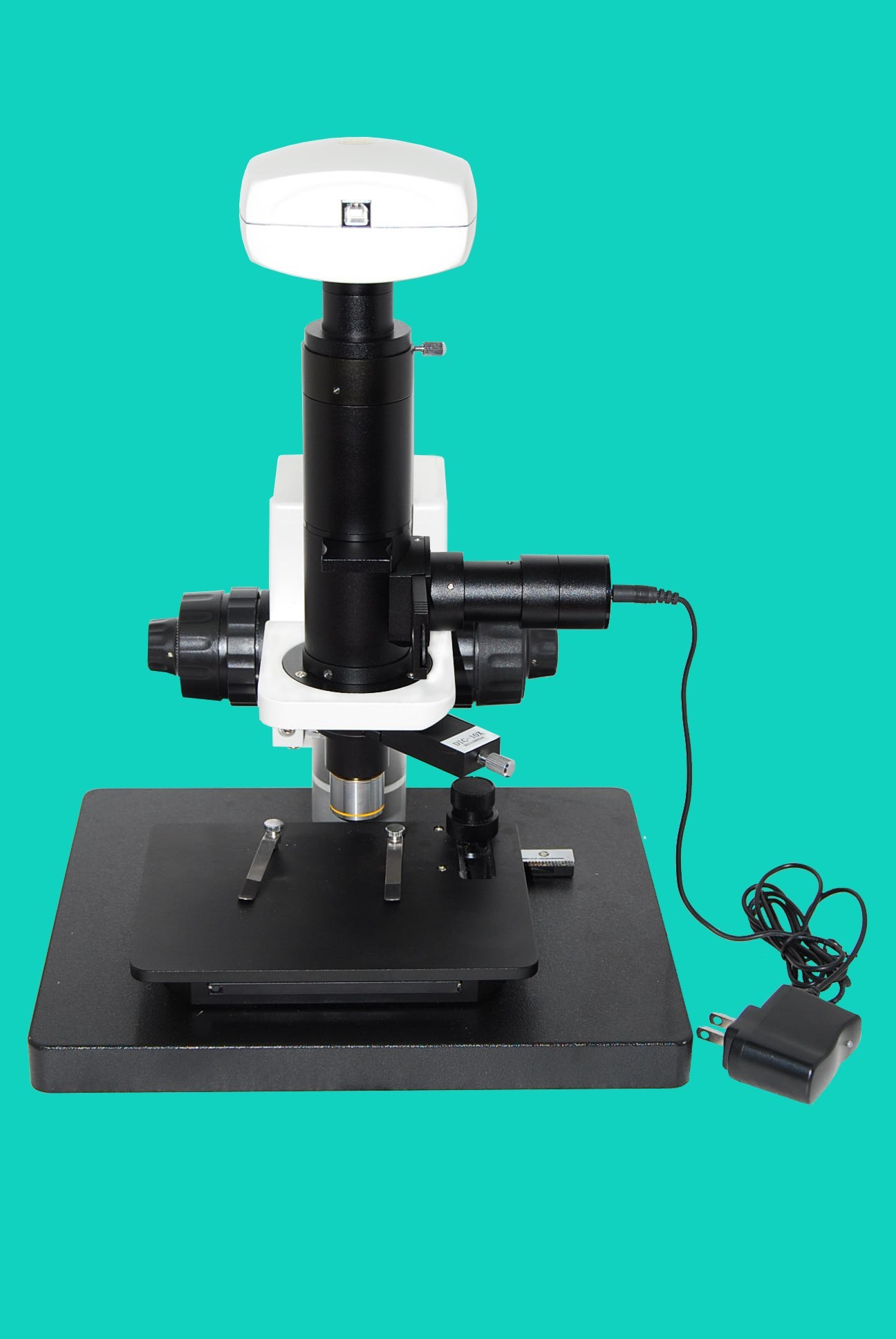

Optical Single Lens Industrial Microscope DIC Differential Interference Contrast 2



Illumination



Using high brightness white LED co-axial illumination, external power adapter with wide voltage range, output voltage: 85V - 265V 50/60Hz AC. Rotatable 360 degrees polarization generator included.



Optical Single Lens Industrial Microscope DIC Differential Interference Contrast 3



Photography



0.5X, 1X standard C type adapter, 2X digital camera for option, customized camera adapter based on customers’ requirement.

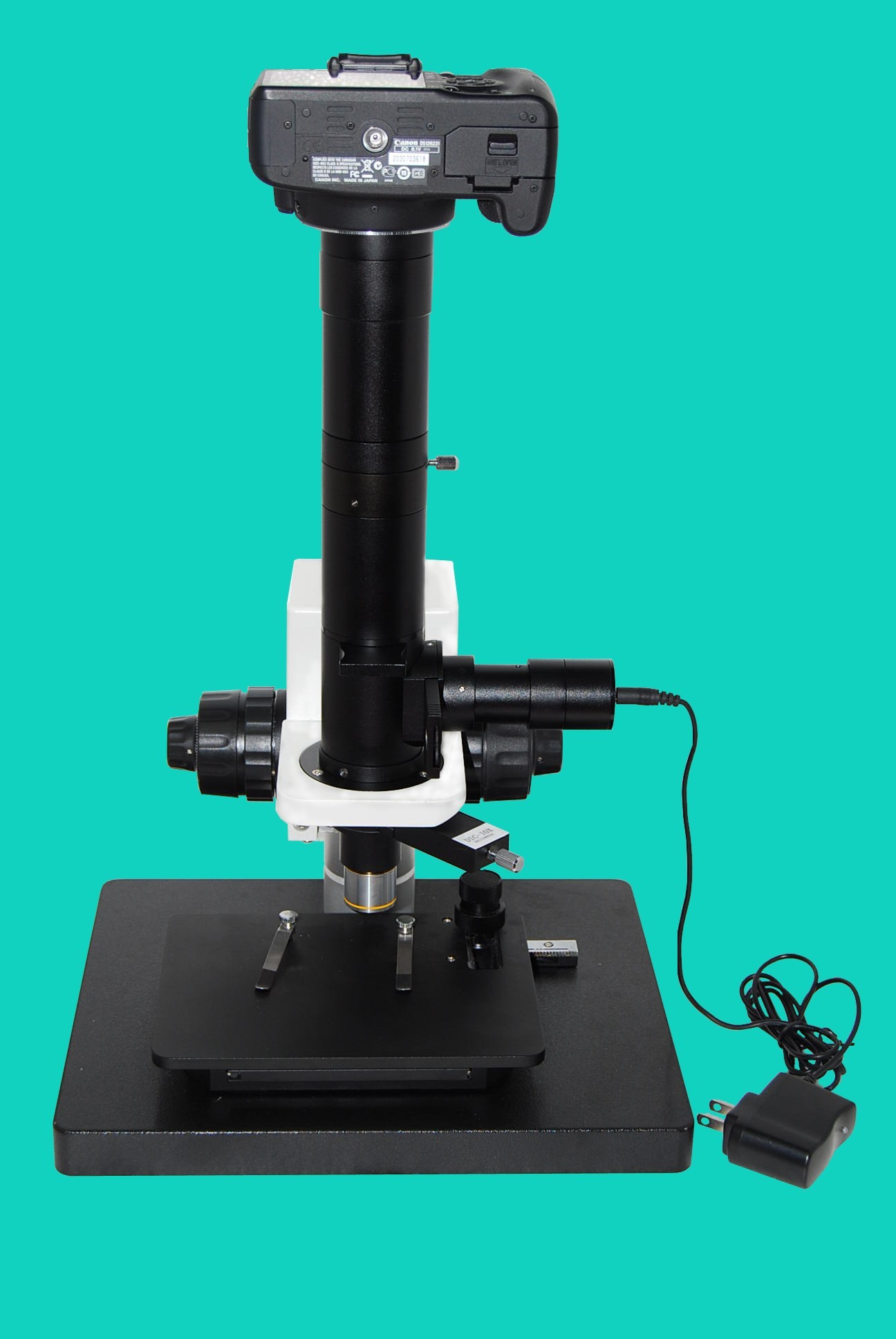

Optical Single Lens Industrial Microscope DIC Differential Interference Contrast 4



DIC observing



The interference height is calibrated between the DIC module and the compatible objective, no other adjusting should be required, convenient for the users. The interference color change can be adjusted by the accurate ball screw rotating.



Optical Single Lens Industrial Microscope DIC Differential Interference Contrast 5



Specification



Objective Flat field stress free objectives.
PL 10X/0.25 Work distance 20.2 mm
Focus system Coaxial rough/fine adjusting focus system, rough focus knob tension adjustable, minimum division of fine focusing: 2μm
Work stage

Double layer work stage

Mechanical stage overall size 180mm*145mm

Moving range Transersal 35mm Longitudinal 30mm maximum heght of the specimen up to 130mm

DIC observing module 5X, 10X compatible, interference color adjustable, no need for vertical height adjusting.
DIC generator Insert type, switchable, the direction can be adjusted 360 degrees.
DIC detector Insert type, switchable, the direction of the DIC module is set, no need for adjusting.
Light source Using high brightness LEDs, with wide voltage range power adapter, output voltage 85V - 265V 50/60Hz AC.
CCD adapter 1X standard type C



Optional Accessories



Objective Flat field stress free objectives.
PL 5X/0.10 Work distance 18.2 mm 2260205
PL 20X/0.40 Work distance 8.0mm 2260120
CCD adapter 0.5X 810004
2X digital camera adapter 840005
Camera DV-2 With USB output (1.3M,2.0M,3.0M,5.0M,9.0M pixel) /



Dimension Drawing
