APO Attached Industrial Lens / TV Lens Tube Low Deformation 0.25 X - 2 X

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Model Number: UNILAX / UNILTV
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 50 per month
Detail Information
Compatible Model: 6.5X 12X Zooming Lens Magnification: 0.25X - 2X
High Light:

Telecentric Zoom Lens

,

machine vision Lens


Product Description

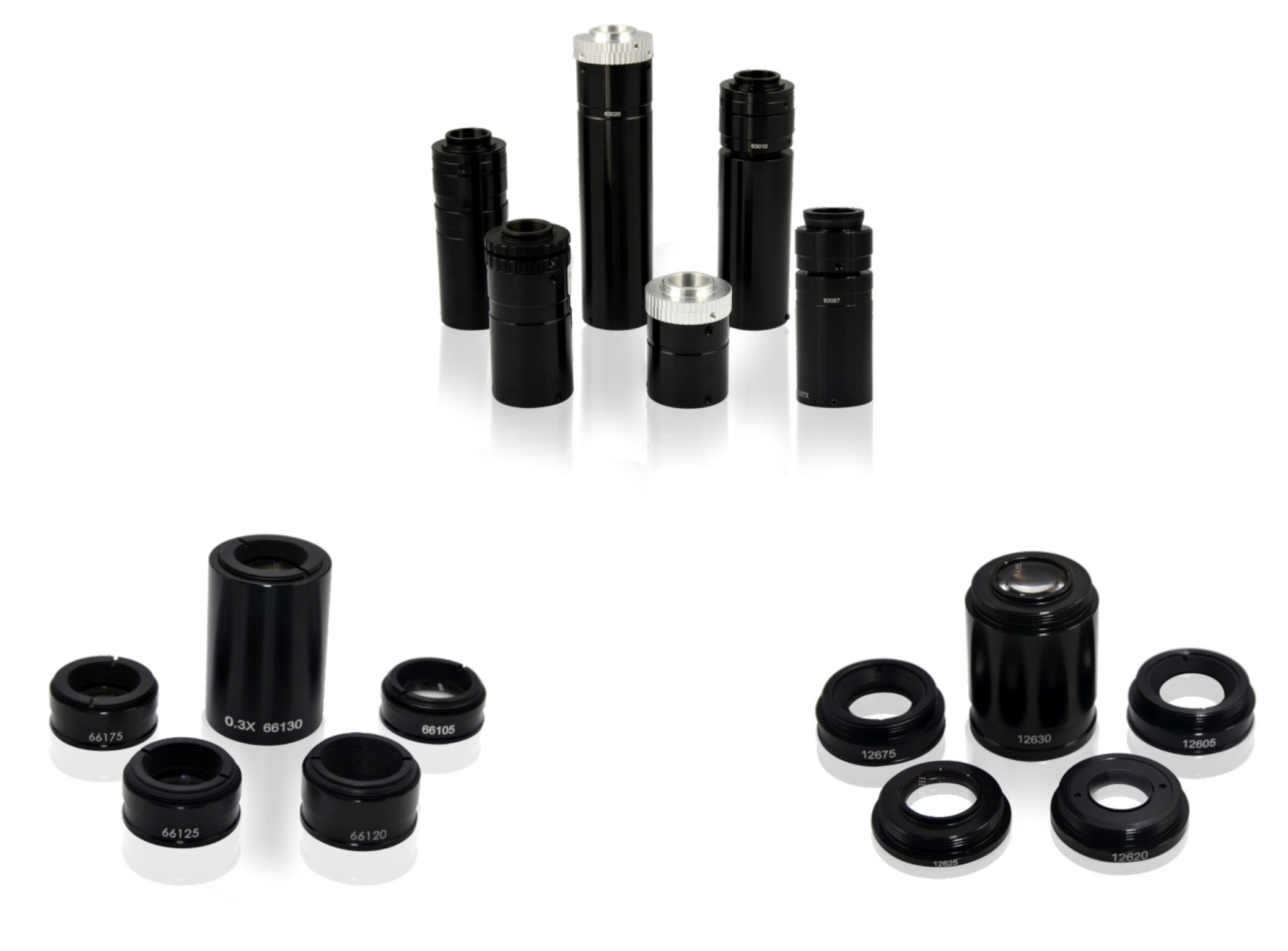

APO Attached Industrial Lens TV Lens Tube Low Deformation 0.25 X To 2 X





Model Magnification Numberic hole diameter Woork distance(mm) Focus distance Depth of field(um) Resolution(um) View field
Lens(Diameter. WF10/24) Camera 1/2" CCD
66202 2X 0.055 34.6 100 91 5 12 2.4*3.2
66205 5X 0.14 45 40 14 2 4.8 0.96*1.28
66210 10X 0.28 34 20 3.5 1 2.4 0.48*0.64
66220 20X 0.29 30.8 10 3.5 1 1.2 0.24*0.32
66250 50X 0.42 20.5 4 1.6 0.7 0.48 0.1*013





APO Attached Industrial Lens / TV Lens Tube Low Deformation 0.25 X - 2 X 0



6.5X attached lens
Model Magnification
66125 0.25X
66130 0.3X
66105 0.5X
66175 0.75X
66115 1.5X
66120 2X





APO Attached Industrial Lens / TV Lens Tube Low Deformation 0.25 X - 2 X 1





12.5X attached lens
Model Magnification
12625 0.25X
12630 0.3X
12605 0.5X
12675 0.75X
12615 1.5X
12620 2.0X





APO Attached Industrial Lens / TV Lens Tube Low Deformation 0.25 X - 2 X 2





TV lens tube
Model Magnification
63005 0.5X
63067 0.67X
63010 1.0X
63020 2.0X
62101 1.0X mini
62020 2.0X mini
