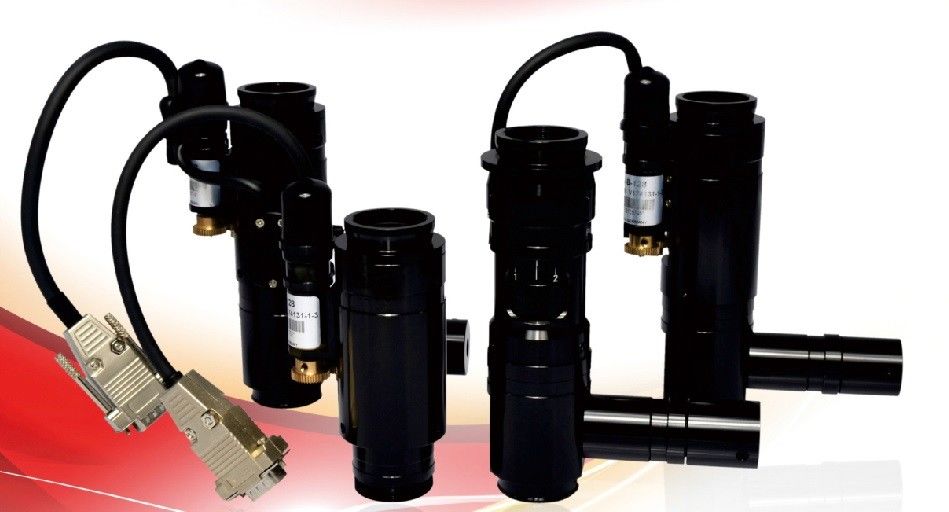

C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Model Number: UNIZOOM125
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 50 per month
Detail Information
Adapter: C Type Max Compatible Sensor: 2/3"
Working Distance: 84+-2mm Optical Magnification: 0.58-7.5X
High Light:

Telecentric Zoom Lens

,

machine vision Lens


Product Description



Zooming Industrial Lens 12.5X Wide Magnification Range Automation Medical



Continuous Zooming Lens series 12.5X





Parameters

Item

12.5X zooming lens series

Optical Magnification

0.58-7.5X

Working distance

84+-2mm

Optical Magnification

0.58X

6X

1X

1.5X

2X

2.5X

3X

3.5X

4X

4.5X

5X

5.5X

6X

6.5X

7X

7.5X

Depth of field (mm)

2.75

2.67

0.95

0.43

0.27

0.2

0.15

0.12

0.1

0.81

0.73

0.66

0.61

0.56

0.52

0.05

N.A.

0.025

0.025

0.043

0.063

0.074

0.082

0.09

0.1

0.11

0.11

0.07

0.07

0.11

0.11

0.11

0.11

F.No.

12.5

12.5

11.85

11.95

13.65

15.3

16.5

18.4

19.9

20.4

22.45

22.7

26.8

29.4

31.7

33.9

Resolution(um)

13

13

7.8

5.3

4.53

4.09

3.73

3.46

3.36

3.05

3.05

3.05

3.05

3.05

3.05

3.05

TV deformation

0.050%

0.050%

0.002%

0.010%

0.020%

0.003%

0.020%

0.020%

0.018%

0.020%

0.010%

0.010%

0.001%

0.010%

0.005%

0.005%

Vision area (mm)

Diag-onal

18.97

18.33

11

7.33

5.5

4.4

3.67

3.14

2.75

2.44

2.2

2

1.83

1.69

1.57

1.47

Hori-zon

15.17

14.67

8.8

5.87

4.4

3.52

2.93

2.51

2.2

1.96

1.76

1.6

1.47

1.35

1.26

1.17

Verti-cal

11.38

11

6.6

4.4

3.3

2.64

2.2

1.89

1.65

1.47

1.32

1.2

1.1

1.02

0.94

0.88

Max compatible sensor

2/3"

Adapter

C type





Supporting lens tube



C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range 0



Supporting Manual zoom lens



C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range 1

C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range 2



Supporting Motorized zoom lens



C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range 3

Differential interference components



C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range 4



Auxiliary lens



C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range 5



Other lens



C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range 6



Illumination



C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range 7  C Type Industrial Optical Telecentric Zoom Lens 12.5X Wide Magnification Range 8
