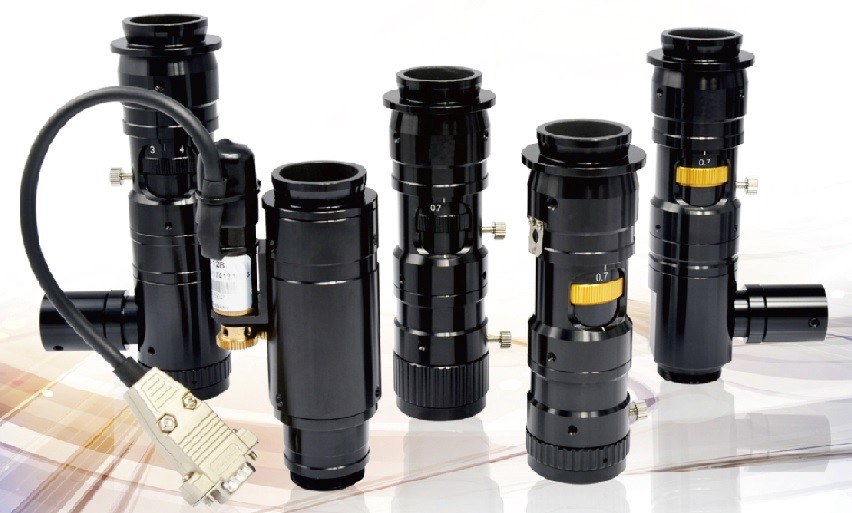

6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Model Number: UNIZOOM65
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 50 per month
Detail Information
Optical Magnification: 0.7X-4.5X Working Distance: 90+-2mm
Max Compatible Sensor: 2/3" Adapter: Type C
High Light:

optical zoom lens

,

machine vision Lens


Product Description



6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine







Description



Continuous Zooming Lens series 6.5X



● Combination of high resolution and general high magnification.

● General continuous zooming lens, widely used in different industries application. And it is the most flexible and high performance lens for vision measurement machines.

● Co-axial Motorized lens application on the CNC vision measurement machine



                                      6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine 0











Parameters

Item

6.5X continuous zooming lens series

Optical Magnification

0.7X-4.5X

Working distance

90+-2mm

Optical Magnification

0.7X

1.0X

1.5X

2.0X

2.5X

3.0X

3.5X

4.0X

4.5X

Depth of field (mm)

1.9

0.952

0.44

0.29

0.23

0.16

0.13

0.12

0.1

N.A.

0.03

0.042

0.06

0.07

0.07

0.085

0.085

0.085

0.085

F.No.

11.6

12.1

12.5

14.2

17.8

17.6

20.5

23.5

26.5

Resolution (um)

11.18

7.99

5.59

4.79

4.79

3.95

3.95

3.95

3.95

TV deformation

0.019%

0.035%

0.002%

0.003%

0.004%

0.001%

0.001%

0.002%

0.002%

Vision area (mm)Diagonal*Horizontal*Vertical

2/3"

15.71*12.57 *9.43

11*8.8 *6.6

7.33*5.87 *4.4

5.5*4.4 *3.3

4.4*3.52 *2.64

3.67*2.93 *2.2

3.14*2.51 *1.89

2.75*2.2 *1.65

2.44*1.96 *1.47

1/2"

11.443*9.14 *6.86

8*6.4 *4.8

5.33*4.27 *3.2

4*3.2 *2.4

3.2*2.56 *1.92

2.67*2.13 *1.6

2.29*1.83 *1.37

2*1.6 *1.2

1.78*1.42 *1.07

1/3"

8.57*6.86 *5.14

6*4.8 *3.6

4*3.2 *2.4

3*2.4 *1.8

2.4*1.92 *1.44

2*1.6 *1.2

1.71*1.37 *1.03

1.5*1.2 *0.9

1.33*1.07 *0.80

Max compatible sensor

2/3"

Adapter

Type C









Components



Supporting lens tube



6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine 1







Supporting Manual zoom lens



6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine 2



6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine 3







Supporting Motorized zoom lens



6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine 4







Differential interference components



6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine 5









Auxiliary lens





6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine 6







Other lens



6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine 7  6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine 8



Illumination



 6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine 9  6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine 10
