Differentiating Interferometer Industrial APO Lens / Video Microscope Module

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Model Number: UNILDIC, 66202, 66205, 66210, 66220, 66250
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 20 per month
Detail Information
Lens Compatible: APO Line Lighting: Included
Max.sensor Size: 2/3" Magnification: 1
High Light:

optical zoom lens

,

machine vision Lens


Product Description

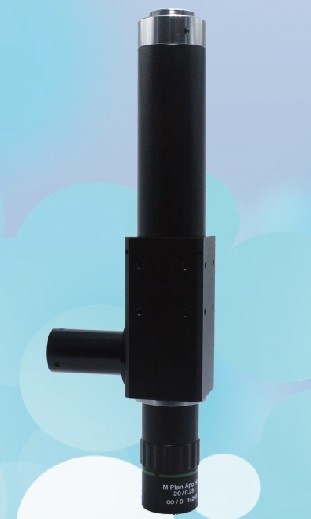

Differentiating Interferometer Industrial Lens And Video Microscope Module

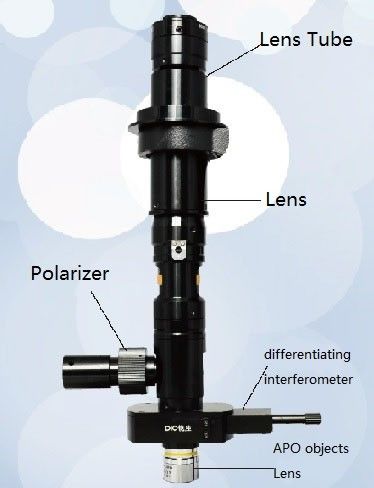

Differentiating interferometer module



Differentiating interferometer:



Through the differentiating interferometer users will see 3D image similar to the cameo, much easier to find the part which required observing.



Differentiating Interferometer Industrial APO Lens / Video Microscope Module 0

       Without DIC module                     With DIC module





Function



1. Compatible with the lens with APO adapter.

2. Line lighting interface included, offering the best contrast ratio.

3. Supporting max sensor size is 2/3”,type C connecting.

4. Magnification is 1.



Model

Magnification

Working distance

Field of Depth

Resolution

Field of view

1/3"

1/2"

2/3"

66202

2X

34.6mm

90.91mm

6.10mm

2.00*2.67

2.67*3.56

3.67*4.89

66205

5X

45.0mm

14.29mm

2.40mm

0.80*1.07

1.07*1.42

1.47*1.96

66210

10X

34.0mm

3.57mm

1.20mm

0.40*0.53

0.53*0.71

0.73*0.98

66220

20X

30.8mm

1.72mm

1.16mm

0.20*0.27

0.27*0.36

0.37*0.49

66250

50X

20.5mm

0.48mm

0.80mm

0.08*0.11

0.11*0.14

0.15*0.20
