Precise Optical 5 X 6 X 10 X One Inch C Mount Zoom Lens Industrial With Wide Angle

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Model Number: TVM0220-01, TVM0212-01, TVM0315-01
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 50 per month
Detail Information
Working Distance(mm): 86+-2mm Max Sensor Dimension: 1"
Connector: C Type Working Temperature: '-10 Degree To +50 Degree
Highlight:

Telecentric Zoom Lens

,

optical zoom lens


Product Description

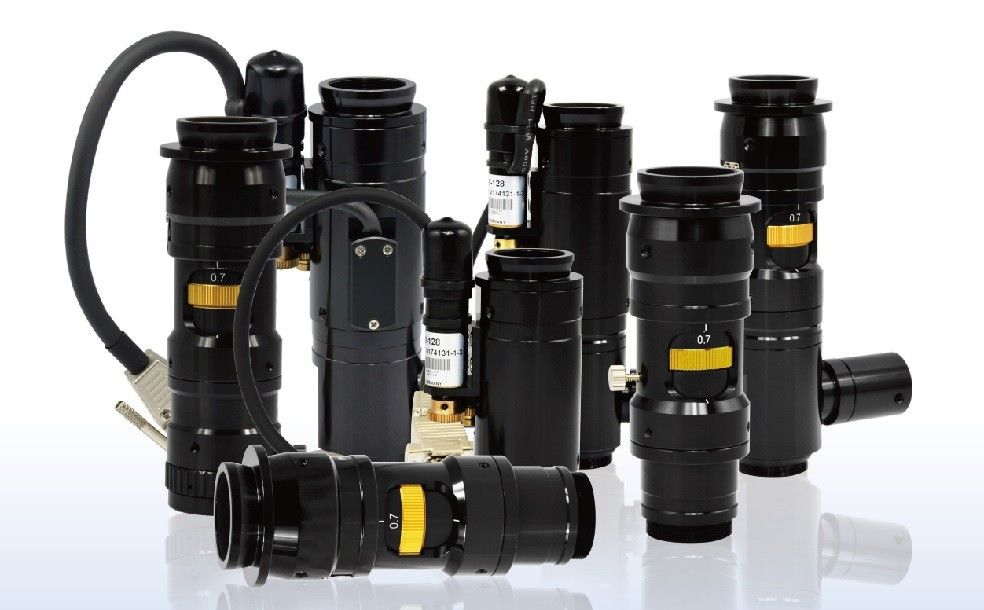

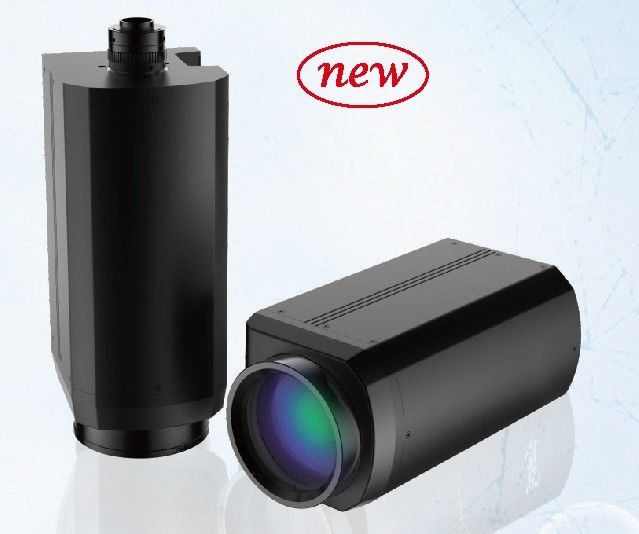

Continuous Zooming Industrial Lens 5 X 6 X 10 X One Inch C type Adapter



Continuous zoom lens series



Precise optical design, high resolution, low deformation, outstanding optical performance.



Extra long working distance, large observing area.



Multiple plating technology, reduce the noise light and shadow, offering high quality image.



The mechanical parts is processed by anodic oxidation, smart and reliable design.



Full production line, 6.5X, 8.0X, 12.5X zooming for option, manual continuous zooming, dented zooming, motorized zooming, magnification feedback.



Co-axial lighting, manual fine adjusting (3mm, 12mm), motorized fine adjusting (3mm, 12mm) for option.

Widely used in varies of areas such as industrial detecting, automation, communication, machine vision, semiconductor, biology and medical, scientific research etc.



Zoom telecentric lens



TVM0220-01

TVM0315-01



Features



With object telecentric design, to avoid the measuring error within the field of depth range. During the zooming process the conjugate distance is fixed, and the working distance will not change during the zooming process.



High zooming ratio, 5X, 6X, 10X for option.



Continuous zooming available, users can select the best magnification between the max and min, to achieve the best field of measuring.



Parameters

<

Model

TVM0220-01

Magnification

0.21X

0.4X

0.6X

0.8X

1.0X

1.2X

1.4X

1.6X

1.8X

2.0X

Field size(mm)

1/3"

22.7x17.0

12.0x9.0

8.0x6.0

6.0x4.5

4.8x3.6

4.0x3.0

3.4x2.6

3.0x2.3

2.7x2.0

2.4x1.8

1/2"

30.3x22.7

17.9x13.4.

11.9x8.9

8.9x6.7 7

1x5.4

6.0x4.5

5.1x3.8

4.5x3.4

4.0x3.0

3.6x2.7

1/1.18"

33.8x25.4

16.0x12.0

10.7x8.0

8.0x6.0

6.4x4.8

5.3x4.0

4.6x3.4

4.0x3.0

3.6x2.7

3.3x2.4

2/3"

41.7x31.3

22.0x16.5

14.7x11.0

11.0x8.3

8.8x6.6

7.3x5.5

6.3x4.7

5.5x4.1

4.9x3.7

4.5x3.4

1"

60.6x45.5

32.0x24.0

21.3x16.0

16.0x12.0

12.8x9.6

10.7x8.0

9.1x6.9

8.0x6.0

7.1x5.3

6.5x4.9

Resolution(um)

26.91

12.89

8.86

6.25

5.21

4.85

4.64

4.53

4.41

4.3

F.NO.

7.81

7.35

7.64

8.35

9.34

10.42

11.33

12.23

13.06

13.69

TV deformation

-0.04%

0.07%

0.05%

0.02%

0.00%

-0.01%

-0.03%

-0.03%

-0.04%

-0.05%

Object telecentricity (degree)

0.02

0.01

0.01

0.02

0.12

0.23

0.31

0.36

0.41

0.44

Depth of field

6.99

1.84

0.85

0.52

0.37

0.29

0.23

0.19

0.16

0.14

N.A.

0.014

0.27

0.039

0.048

0.054

0.058

0.062

0.065

0.069

0.072

Working distance(mm)

86+-2mm

Max compatible sensor

1"

Connector

Type C

Illumination

-

Working temperature

-10 degree to +50 degree

Parameters

Model

TVM0315-01

Magnification

0.3X

0.5X

0.8X

1.0X

1.3X

1.5X

Field size(mm)

1/3"

16.0x12.0

9.6x7.2

6.0x4.5

4.8x3.6

3.7x2.8

3.2x2.4

1/2"

21.4x16.0

12.8x9.6

8.0x6.0

6.4x4.8

4.9x3.7

4.3x3.2

1/1.18"

23.9x17.9

14.3x10.7

8.9x6.7

7.1x5.4

5.5x4.1

4.8x3.6

2/3"

29.4x22.0

17.6x13.2

11.0x8.3

8.8x6.6

6.8x5.1

5.9x4.4

1"

42.7x32.1

25.6x19.2

16.0x12.0

12.8x9.6

9.8x7.4

8.5x6.4

Resolution(um)

18.35 10.64 6.25 5.21 4.63 4.57

10.64

6.25

5.21

4.63

4.57

F.NO.

7.71

7.4

8.35

9.34

10.86

11.83

TV deformation

0.05%

0.06%

0.02%

0.00%

-0.02%

-0.03%

Object telecentricity (degree)

0.02

0.01

0.02

0.12

0.27

0.34

Depth of field

3.34

1.18

0.52

0.37

0.26

0.21

N.A.

0.019

0.034

0.048

0.054

0.06

0.064

Working distance(mm)

86+-2mm

Max compatible sensor

1"

Connector

Type C

Illumination

-

Working temperature

-10 degree to +50 degree
