Product Name:	HD Measurement Camera Tool Inspect Microscope With Rotary Table	Camera:	5M Piexl Double HD Camera
Lens:	Manul Zoom Lens 0.7~4.5X	Working Table:	Rotary Table With Cutting Tool Fixture
Light Sourse:	Halogen Lamp Or Single Section Light
Highlight:	inverted metallurgical microscope , optical metallurgical microscope

Product Description

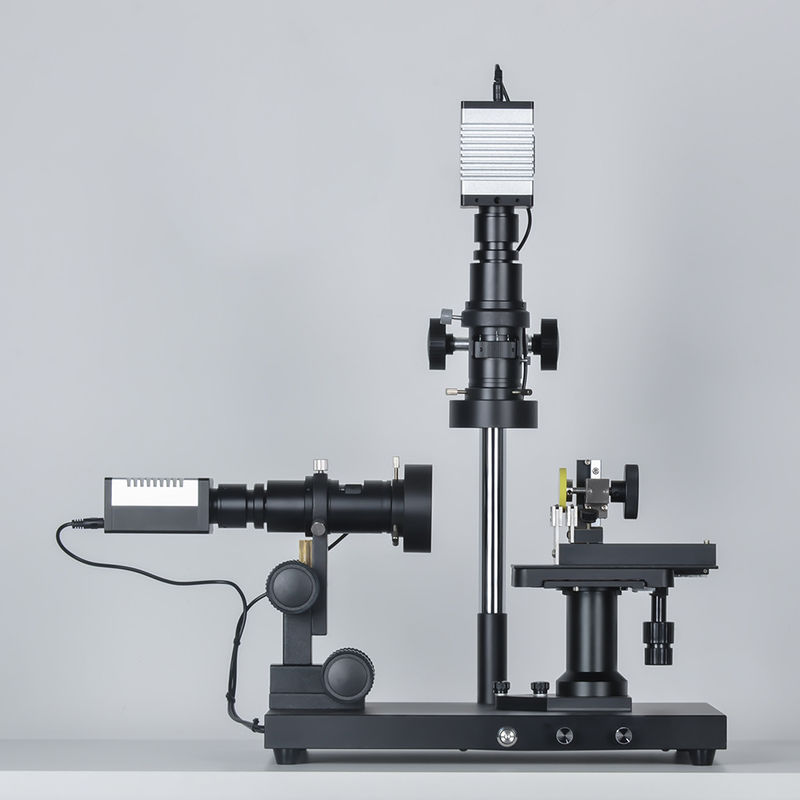

HD Measurement Camera Tool for Microscope Inspection with Rotary Stage

Precision Tool Inspection and Measurement System

Microscope Purpose

Defect inspection and dimensional measurement of PCD tools, single crystal tools, tungsten steel tools, white steel tools, drill bits, and related products
Simultaneous observation of tool defects and size comparison through vertical and horizontal bidirectional lenses
Online measurement of cutting edge angle, width, arc, length, and width during mass production
Clear visualization of surface finish and edge defects
Tool contour dimension comparison through graph comparison functionality

Product Features

Dual-screen observation design for simultaneous side edge and end edge viewing
Special tool rotating fixture accommodates various tool diameters
Integrated structural design with 12V power supply
Advanced camera with template editing, DXF import, file management, and data export
Sony high-sensitivity chip with low noise sensor and automatic edge finding
USB storage support and external mouse compatibility
Multiple visual field configurations for different tool sizes
Mobile station with multi-directional focusing capabilities

Technical Specifications

Parameter	MT 1000MT	MT 1000
CCD	2M HD HDMI CCD, 1/2" Color chip	-
Objective Lens	0.5x continuous zoom HD lens (0.7-4.5X)	1X continuous zoom HD lens (0.7-4.5x)
FOV	2-14.5MM	1.5-10MM
Magnification	6-60X	12-120X
Working Distance	90MM
Focusing System	Manual rotation vertical/horizontal adjustment
Focusing Stroke	50mm
Movement Platform	Manual rotation angle adjustment
Clamping Diameter	2-20MM
Dimming Mode	Manual
Light Source	Customized LED
CAD Import	Supported
Pattern Matching	Supported
Monitor	22 inch displays
Mouse	USB Optical Mouse (2 pieces)
Fixed Base	Aluminum, 400mm×300mm×15mm
Input Voltage	12V
