HD Measurement Camera Tool Inspect Microscope with Rotary Table

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Model Number: XJL-302/302BD
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 10 per month
Detail Information
Product Name: HD Measurement Camera Tool Inspect Microscope With Rotary Table Camera: 5M Piexl Double HD Camera
Lens: Manul Zoom Lens 0.7~4.5X Working Table: Rotary Table With Cutting Tool Fixture
Light Sourse: Halogen Lamp Or Single Section Light
High Light:

inverted metallurgical microscope

,

optical metallurgical microscope


Product Description

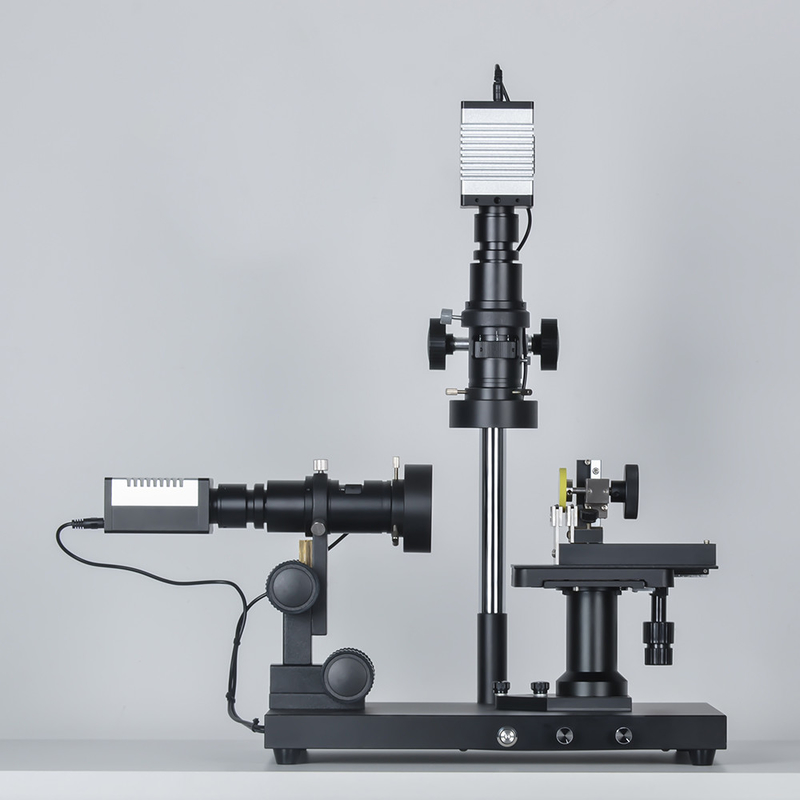

HD Measurement Camera Tool Inspect Microscope with Rotary Table





Microscope Purpose

1, Mainly used for: appearance defect inspection and dimension measurement of PCD tools, single crystal tools, tungsten steel tools, white steel tools, drill bits and other products;
2, Through the vertical and horizontal two-way lens, the simultaneous observation of tool defects and size comparison detection are realized; It is suitable for on-line measurement of cutting edge angle, width, arc, length and width in the process of mass production of cutting tools; It can clearly see the surface finish and edge defects of the tool; The tool contour dimension can be compared and measured through the graph comparison function.





Product features

1. The new design of double screen observation, while observing the side edge and end edge of the tool, improves the detection efficiency and saves labor;
2. Special tool rotating fixture to meet different types of tool diameters;
3. Integrated structural design, 12V power supply, neat and clear lines, and can be used when powered on;

4. Camera: user defined template editing, DXF import template, file management, measurement data export and other functions, with intelligent, fast and powerful operation; Sony high sensitivity chip and low noise sensor are adopted, with strong performance and smooth preview; Built in automatic edge finding function to improve the measurement effect;
5. Support USB flash disk storage function, external mouse;

6. There are visual collocations with different visual fields to choose from, which can meet the detection of tools of different sizes.
7. The mobile station can focus up and down, front and back, left and right, which is convenient to use.



HD Measurement Camera Tool Inspect Microscope with Rotary Table 0



Parameter

Model

MT 1000MT

MT 1000

CCD

2M HD HDMI CCD,1/2Color chip;

Objective lens

0.5x continuous zoom HD lens with zoom ratio of 0.7-4.5X

1X continuous zoom HD lens with zoom ratio of 0.7-4.5x

FOV

2-14.5MM

1.5-10MM

Magnification

6-60X

12-120X

Working distance

90MM

Focusing system

Hand rotation vertical up and down adjustment, horizontal up and down adjustment, left and right adjustment.

Focusing stroke

50mm

Movement platform

The hand rotation type can adjust the rotation angle, which is suitable for batch positioning observation

Clamping diameter

2-20(MM)

Dimming mode

manual

Light sourse

Customized LED

CAD import

Support

Pattern matching

Support

Monitor

22 inch displays; Up and down or left and right display (selection)

Mouse

USB Optical Mouse 2pc

Fixed base

Aluminum,400mm*300mm*15mm

Input voltage

12V





Company Information

Visual Measurement Machine
Visual Measurement Machine
Visual Measurement Machine
Visual Measurement Machine

Our Client&Agent

Visual Measurement Machine
Visual Measurement Machine
FAQ
Visual Measurement Machine  Q1: Are you a factory or trading company ?
Visual Measurement Machine  A1: We are a factory and giving you the quickest reply in 24 hours.
Visual Measurement Machine  Q2: What's your company mainly in?
Visual Measurement Machine  A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Visual Measurement Machine  Q3: How to Choose the Appropriate Specification?
Visual Measurement Machine  A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Visual Measurement Machine  Q4: Do you accept customized service?
Visual Measurement Machine  A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Visual Measurement Machine  Q5: What is your warranty period?
Visual Measurement Machine  A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved  a lot on some breakable parts. You can rest assured of our product quality.
