Detail Information

Eyepiece:	Wide Field WF10X(Φ18mm)	Eyepieces Tube:	Trinocular, Inclination Of 30˚ And Integrated Analyzer
Objective:	20X, 50X, 60X, 100X, Dry For Option	Epi- Illumination System:	6V 20W, Halogen Lamp, Adjustable Brightness
Transmitted-illumination System:	Abbe Condenser NA.1.25 Rack & Pinion Adjustable
Highlight:	inverted metallurgical microscope , metallurgical optical microscope

Product Description

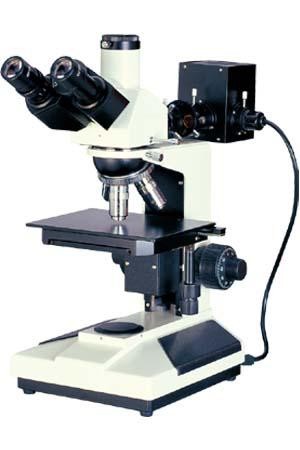

High-Performance Upright Metallographic Microscope with Multiple Illumination Modes

Product Overview

The U2003/2020/2030 series upright metallurgical microscope is designed for observing surfaces of opaque or transparent objects. Equipped with excellent long working distance plan achromatic objectives and wide field eyepieces, this instrument delivers superior optical performance for research applications in metallography, mineralogy, precision engineering, and electronics.

Key Features

Excellent long working distance plan achromatic objectives
Wide field eyepieces for enhanced viewing area
Multiple illumination modes available for flexible operation
Superior optical performance for precise observation
Versatile applications across various research fields

Technical Specifications

Component	Specification
Eyepiece	Wide field WF10X (field number: Φ18mm)
Objective	PL L5X/0.12 (WD: 18.3mm) \| PL L10X/0.25 (WD: 8.8mm) \| PL L40X/0.60(spring) (WD: 3.7mm) \| PL L60X/0.75(spring) (WD: 1.34mm)
Eyepieces Tube	Trinocular, 30˚ inclination with integrated analyzer
Epi-illumination System	6V 20W halogen lamp with adjustable brightness, integrated field, aperture diaphragm and filter switching device, puller type polarizer
L2003/2030 Filters	Equipped with Y, B, G filters and ground glass
L2020 Filters	Equipped with Y, B, G, R filters
Transmitted-illumination System	Outside field, aperture diaphragm, 6V 20W halogen lamp with adjustable brightness, Abbe condenser NA 1.25 with rack & pinion adjustment
L2030 Transmitted Filters	Equipped with B filter and ground glass
L2020 Transmitted Filters	Equipped with B, G filters and ground glass
Focus System	Coaxial coarse/fine focus system with tension adjustment and limit stopper, minimum division: 2μm
Nosepiece	Quintuple backward ball bearing inner locating
Stage (L2003/2030)	Double layer mechanical stage, moving range: 75mm×50mm, overall size: 185mm×140mm
Stage (L2020)	Double layer mechanical stage, moving range: 75mm×50mm, overall size: 160mm×140mm

Optional Accessories

Accessory Type	Options
Eyepiece	10X(Φ18mm) Dividing eyepiece(Φ18mm)
Objective	20X, 50X, 60X, 100X (Dry)
CCD Adapter	0.4X, 0.5X, 1X, 0.5X (With dividing)
Digital Camera Adapter	CANON(EF), NIKON(F)

Company Information

Our Clients & Agents

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory and provide responses within 24 hours.

Q2: What does your company mainly produce?

A2: We specialize in Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related equipment.

Q3: How to Choose the Appropriate Specification?

A3: Our professional team will advise you on suitable specifications based on your product variety and measurement requirements.

Q4: Do you accept customized service?

A4: Yes, we provide both standard machines and customized solutions tailored to specific customer needs.

Q5: What is your warranty period?

A5: Our products come with a 1-year warranty. We have enhanced durability on breakable components to ensure product reliability.

Note: The transmitted and reflected illumination system of the L2020 model are controlled independently.

Tag:

Place of Origin:	China
Brand Name:	UNIMETRO
Certification:	CE
Model Number:	U2003 / U2020 / U2030

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Wood case
Delivery Time:	14 work days
Payment Terms:	T/T
Supply Ability:	100 per month
