UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine

Basic Information

Place of Origin:	Guangdong, China
Brand Name:	UNIMETRO
Model Number:	Ranger 600

Minimum Order Quantity:	1
Price:	$15,600-22,000

Get Best Price Contact Now

Detail Information

X Axis Travel:	80mm	Y Axis Travel:	60mm
Z Axis Range:	60mm	Max Tool Diameter:	50mm
Max Tool Length:	300mm	Working Distance:	90mm
Lens Type:	0.7-4.5X Dented Zoom Lens	Camera Resolution:	2M Pixel HD Camera/5M Pixel HD Camera (Optional)
Linear Scale Resolution:	0.0001mm	Magnification Range:	12.6X~79.2X/25.2X~158.4X (Optional)
Field Of View:	2720mm~4.33.3mm/13.510mm~2.31.6mm (Optional)	Measuring Accuracy:	X~Y,(2.5+L/100)µm, L Is The Measured Length
PC System:	ALL-IN-ONE PC System, Windows 10 OS, 24" LCD Monitor	Illumination Type:	8 Sections LED Ring Light, Contour Light, Flexible Auxiliary Light
Input Format:	DXF Files	Output Format:	EXCEL, DXF
Highlight:	Windows 10 OS Tool Inspection System , 24 LCD Monitor Vision Measurement Machine , Linear Scale Resolution 0.0001mm VMM Machine

Product Description

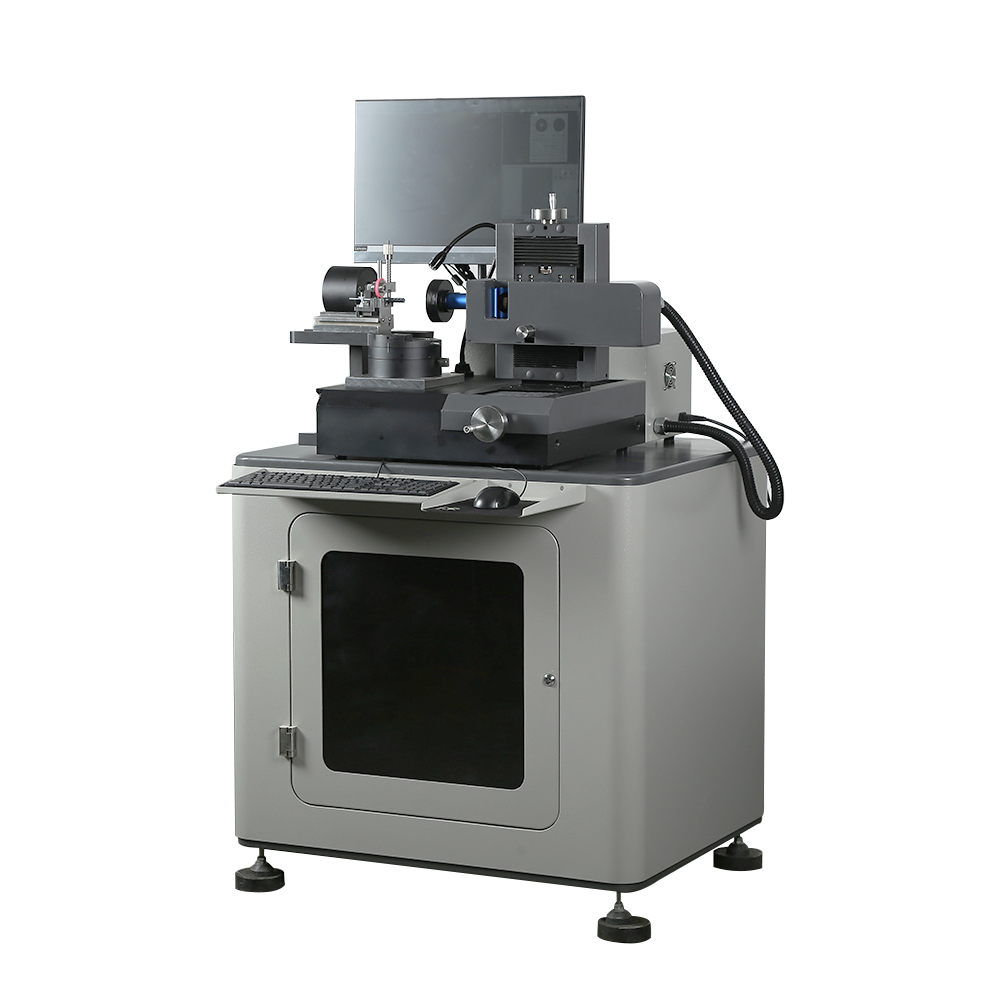

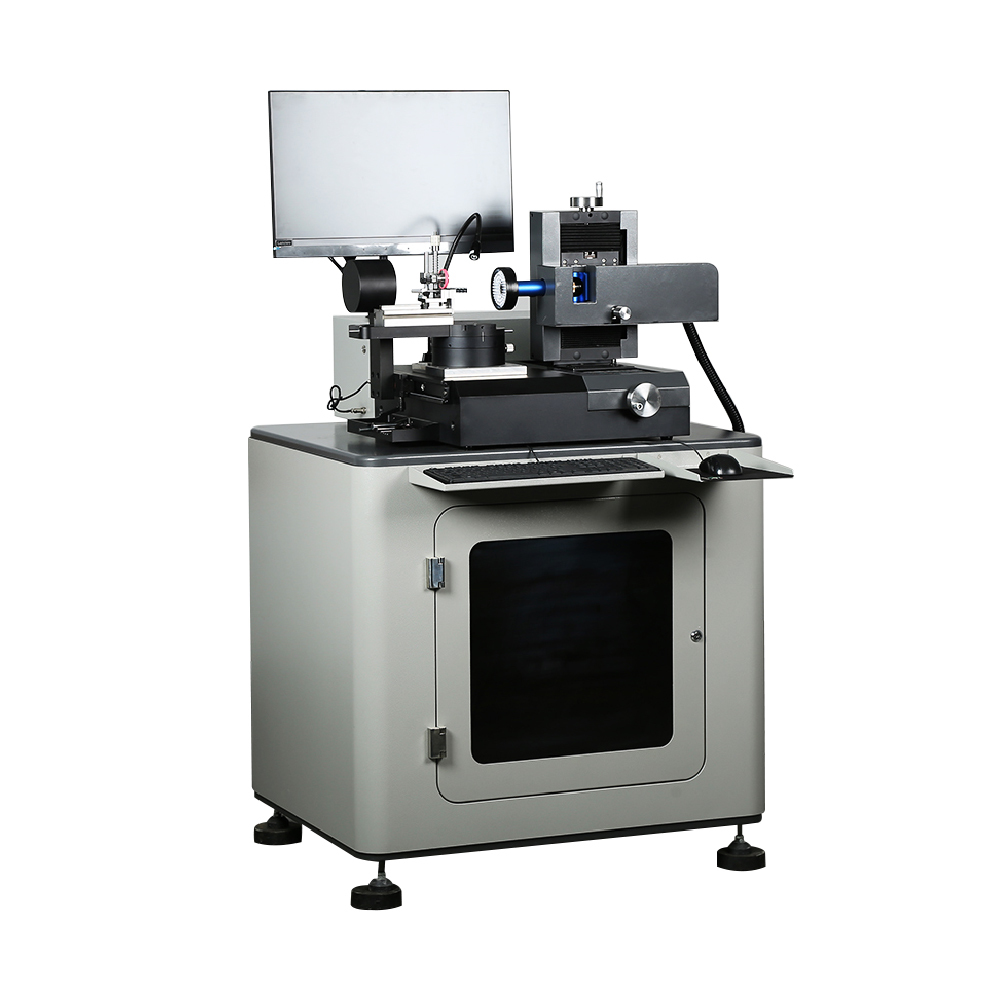

UNIMETRO RANGER600 Tool Inspection System

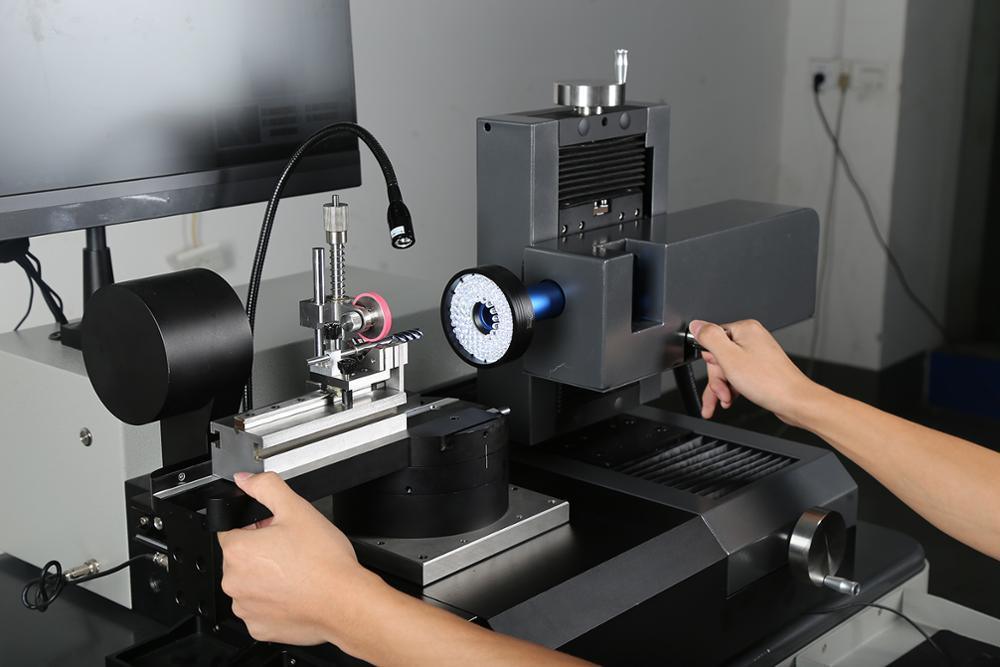

The universal measuring machine for drills, milling cutters and countersinks with flexible illuminating system. Compact design and great stability make it suitable for metrology rooms, receiving inspection, or direct production use.

Key Features

SMARTOOL universal measuring software for all metal cutting tools
PUT-MEASURE-ANALYSE measuring process
Compact and stable design for versatile placement
Complete control of special tool geometries

Technical Specifications

X axis travel	80mm
Y axis Travel	60mm
Z axis measuring range	60mm
Max tool Diameter	50mm
Max tool length	300mm
Working distance	90mm
Lens	0.7-4.5X dented zoom lens
Camera	2M pixel HD camera/5M pixel HD camera (Optional)
Linear scale resolution	0.0001mm
Magnification	12.6X~79.2X/25.2X~158.4X (Optional)
Measuring accuracy	X~Y,(2.5+L/100)µm, L is the measured length
PC	ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor

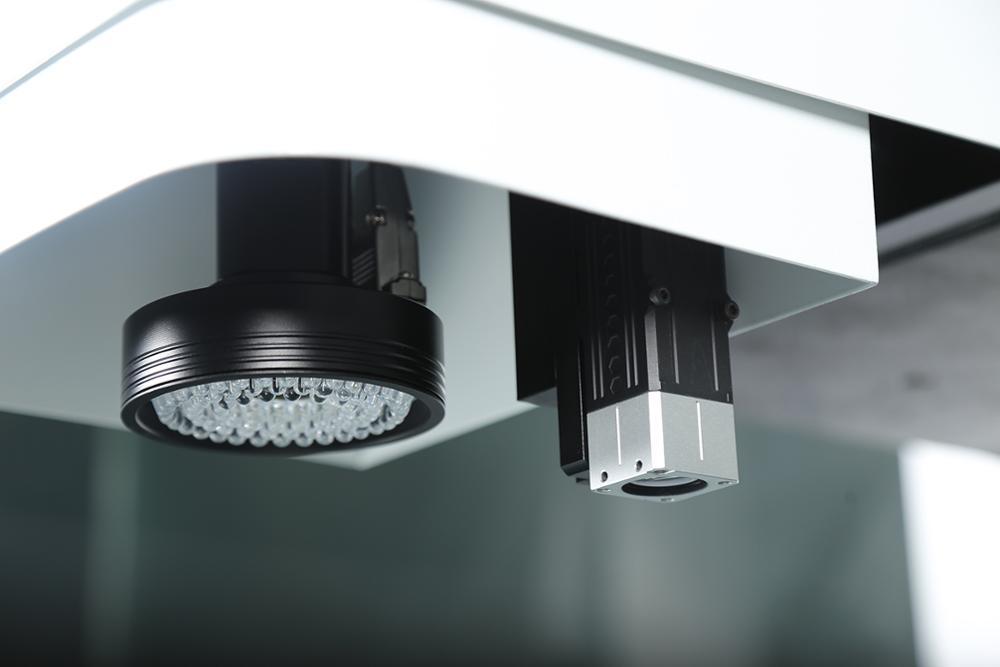

Illumination	8 sections LED ring light, contour light and flexible auxiliary light

Advanced Design Features

Ergonomic design and solid construction
HD image capturing with optional microscope magnification

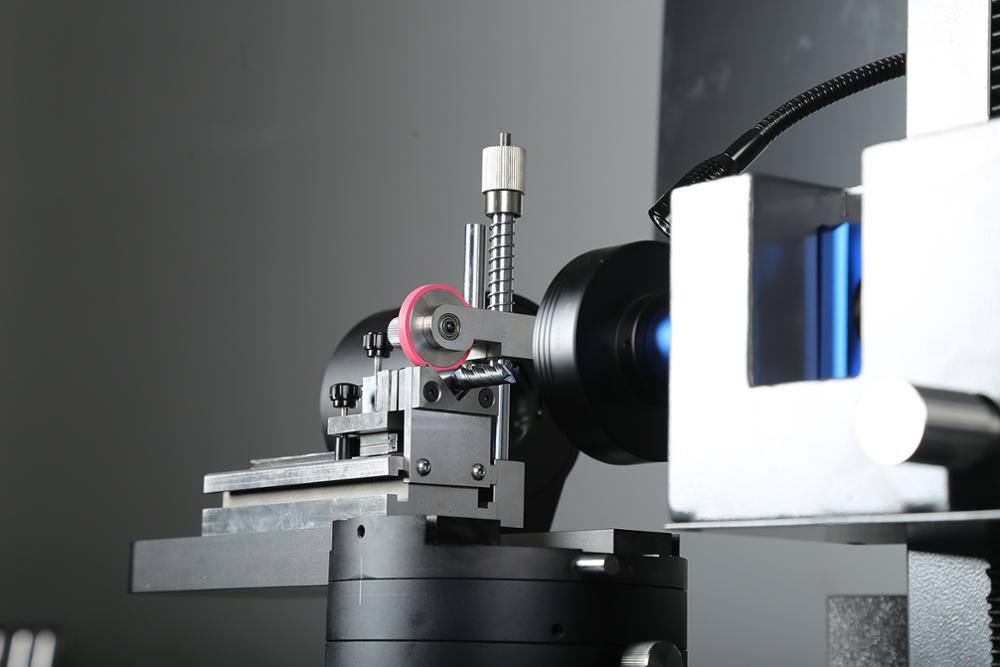

Stable V block for tool holding and alignment
Mechanical fixed measuring angles (0° and 90°)
High accuracy embedded encoder in rotary table
Programmable LED lighting system
SMARTOOL measuring software with automatic edge detection
Fast output to EXCEL or CAD files

Multiple Angle Measurement Capabilities

The rotary table offers mechanical fixed angles at 0° and 90° positions. The embedded encoder provides precise angle location for measurements including:

SMARTOOL Measuring Software

Developed based on high accuracy optical and digital measuring technology, offering numerous measuring and evaluation algorithms specifically for grinding business tools.

Software Features

Graphical operation interface with high resolution display
Dynamic real-time edge detection curve view
Fast angle measuring with reticle
CAD comparison function for tool geometry evaluation

Measurement Capabilities

About UNIMETRO

Professional manufacturer of metrology equipment with over 10 years experience, offering high performance products with reasonable pricing and comprehensive support.

Our Service

24/7 online support via multiple channels
Fast delivery from spot stock
1 year warranty with free software upgrades
Technical training for engineers
Custom testing solutions
On-site installation and instruction
