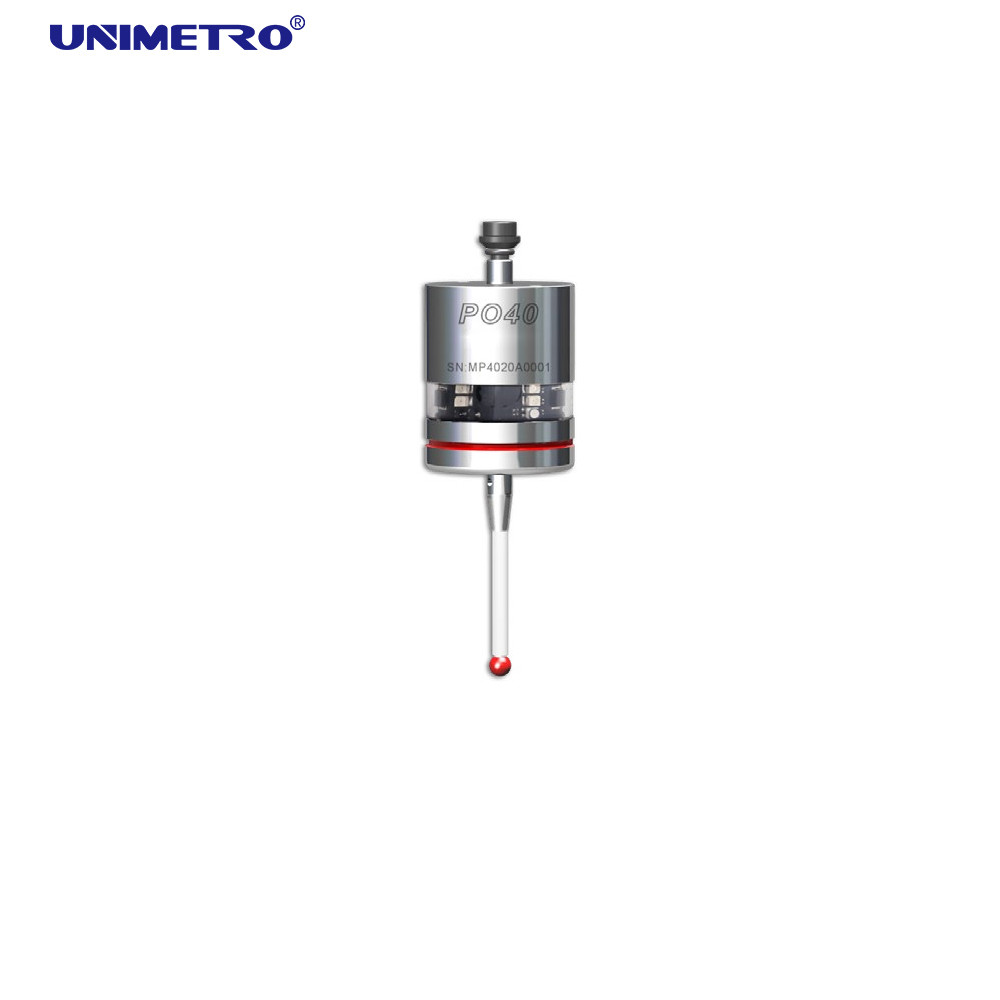

Machine Tool Probe / CNC Maching Machine Tool Probe

Basic Information
Place of Origin: CHINA
Brand Name: UNIMETRO/CHOTEST
Certification: CE
Model Number: PO
Minimum Order Quantity: 1SET
Price: Discussible
Packaging Details: Paper box
Payment Terms: T/T
Supply Ability: 100 SET month
Detail Information
Size(Probe): φ40 Mm* L50mm Transmission Type: 360° IR
Transmission Distance: 5m Rotational Speed: Max 1000rev/min
Triggering Direction: ±X/±Y/-Z Repeatability Of One-way Triggering 2δ(*1): 1μm
Max Overrun: XY:12.5mm+Z:6mm

Product Description

Description

Machine tool probe PO series applies 3-point trigger design which is the most stable structure. There is a trigger unit inside the probe. When the stylus is moved radially or axially by external force, the trigger unit is triggered. Then the circuit inside of probe sends a triggering signal to the receiver, and the receiver transmits it to the machine tool, consequently the present coordinates of each axis of the machine tool are recorded automatically. Finally measurement results are calculated according to the coordinate records of related points.

Functions

Before CNC processing, automatically find the coordinate system and datum point of the workpiece.
In CNC processing, automatically measure the key sizes and related coordinates to determine whether compensation is required or not.
After CNC processing, automatically measure the sizes, shapes, and positions to qualify finished product.

Features

High repeatability: One-way repeatability∠1μm
Long standby time: As long as 6 months
Omnidirectional energy-absorbing design: 360° omnidirectional energy-absorbing design, which help to cushion the spindle in impact when an operating accident occurs
Waterproof design: IP67 for probe and receiver
Intelligent LED indicators: Show current working status of the probe

Parameters

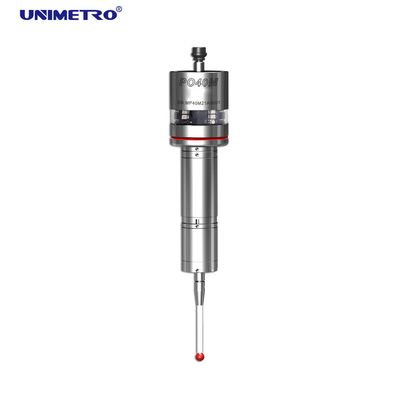

Model No. PO40 PO60 PO40L
Size(Probe) φ40 mm* L50mm φ40 mm* L50mm φ40 mm* L50mm
Weight(Probe Without Holder) 260 g 880 g 280g
Transmission Type 360° IR 360° IR 360° IR
Transmission Distance 5m 6m 5m
Starting Mode Code M Code M, Revolve Code M
Rotational Speed Max 1000rev/min Max 1000rev/min Max 1000rev/min
Triggering Direction ±X/±Y/﹢Z ±X/±Y/﹢Z ±X/±Y/﹢Z
Repeatability of
One-way triggering 2δ*1
1um 2um 1um
Max overrun*2 XY:12.5mm +Z:6mm XY:12.5mm +Z:6mm XY:12.5mm +Z:6mm
XY Trigger Force*3 0.5 N~0.9N 0.5 N~3.5N Adjustable 0.3N~1.6N Adjustable
Z Trigger Force 5.8N 3.5N~14N Adjustable 4N~10N Adjustable

Applications

Coordinate setting: set datum point of workpiece, correct coordinate system of workpiece.
Align workpiece: Inspect whether the workpiece is placed accurately, and whether the workpiece is deformed by force of clamping fixture.
Dimension measurement: stage height, length, diameter
Position measurement: holes distance, perpendicularity, angle, etc.
Curved-surface measurement: blade shape, mold surface, complex shape
After-processing inspection: Find the over-tolerance, correct tool compensation
Check whether the workpiece is placed
