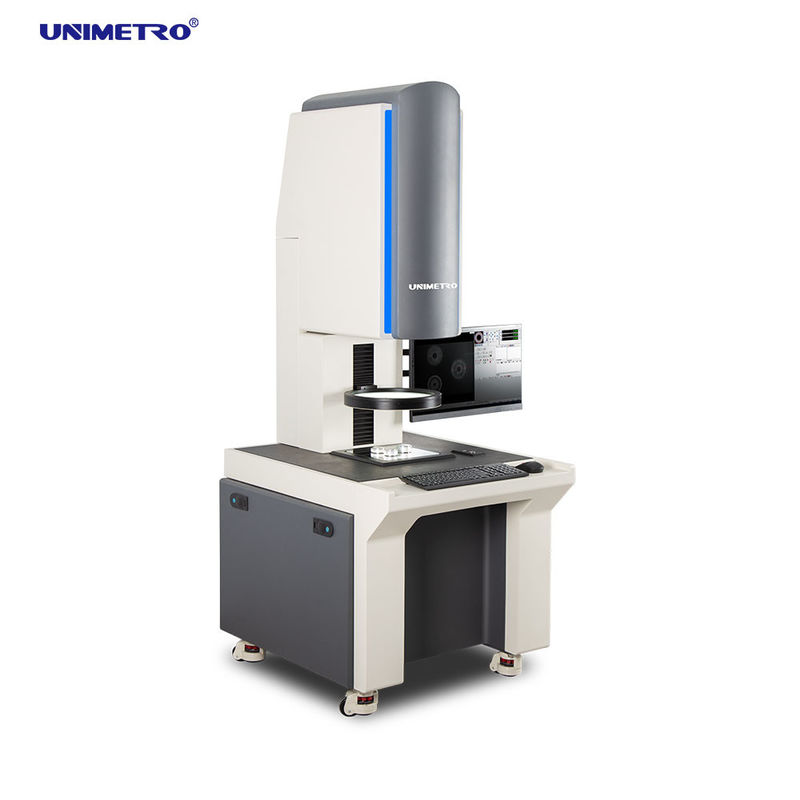

Name: AVANT 190 pro Image Dimension Measurement System for Large Size and Large FOV Vision Measurement with One Touch Measuring
Brand: Unimetro Precision Machinery Co., Ltd
SKU: AVANT 190
Price: 20,500.00 USD
Availability: InStock

Detail Information

Produce Name:	Large Size Large FOV Vision Measurement Machine	Camera:	20MP HD Color Digital Camera
Zoom Lens:	Single Telecentric Lens	FOV:	190*130mm
Repeatability:	3um	Accuracy:	3um
Resolution:	0.1um	Dimension:	8129642076mm
Highlight:	HD Image Dimension Measurement System , Image Dimension Measurement System Large , 20MP Image Dimension Measurement System

Product Description

Large Size Large FOV Vision Measurement Machine One Touch Measuring

Describing

AVANT 190 pro Large Size Large FOV Vision Measurement Machine is a new type of image measurement technology

from UNIMETRO. It is different from the traditional 2D vision measurement machine, it no longer needs a linear

scale displacement sensor as a precision standard, and it does not need to enlarge the product image through a

large focal length lens to ensure measurement accuracy.

AVANT 190 pro image dimension measurement instrument has a simple body structure and does not require

a displacement sensor scale. It only needs a telecentric zoom lens with a large viewing angle and a large depth of

field, a high-pixel CCD camera, and a powerful background software.

Features

◆ Solving the problems of traditional measuring machine:

Traditional size measuring instruments such as projectors, tool microscopes, vision measuring instruments, profile measuring instruments, vernier calipers, etc., may face high operational difficulty, complex focusing process, time-consuming moving coordinate table, human error, long batch measurement time, and data. Complicated

statistical management and other issues.

◆ Outstanding features

Fast & efficient:

-The product can be placed arbitrarily without additional fixtures to fix and position.

- Fast measurement, up to 512 locations can be measured at the same time.

-To make batch measurement more efficient, batch measurement can be carried out quickly and accurately inCNC mode.

◆ Accurate & consistent:

-With just one button, anyone can easily obtain accurate and consistent measurement results.

-Software auto focus, no deviation caused by focus adjustment.

-Automatically identify the measurement location, obtain uniform and stable measurement results.

◆ Easy to operate:

-Anyone can get started quickly, saving manual training time and improving work efficiency

-Simple operation interface, the operator can quickly find the corresponding function and measure it.

-Virtual lines and virtual points can be created to meet more measurement requirements.

Parameters

Product Name		Large FOV One-Button Precise Video Measuring Machine
Model		AVANT190
Image sensor		20MP HD color digital camera
External display		24'
Light receiving lens		Single/double telecentric lens
Illumination	Drop shot system	Single zone ring directional lighting (white light)
	Transmission	Parallel transmission illumination (white light)
Broad Vision(mm)		195*130mm
Repeatability	Broad vision	±3(Coordinate table not moving)
Measurement Software		INS/F
Display resolution	0.1um
Z-direction electric coordinate table	Moving range	100mm
Dimension	8129641076mm
Weight	530KG
Power Supply	110-240VAC,50/60HZ

Company Information

Our Client&Agent

FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory and giving you the quickest reply in 24 hours.
Q2: What's your company mainly in?
A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q3: How to Choose the Appropriate Specification?
A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Q4: Do you accept customized service?
A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
