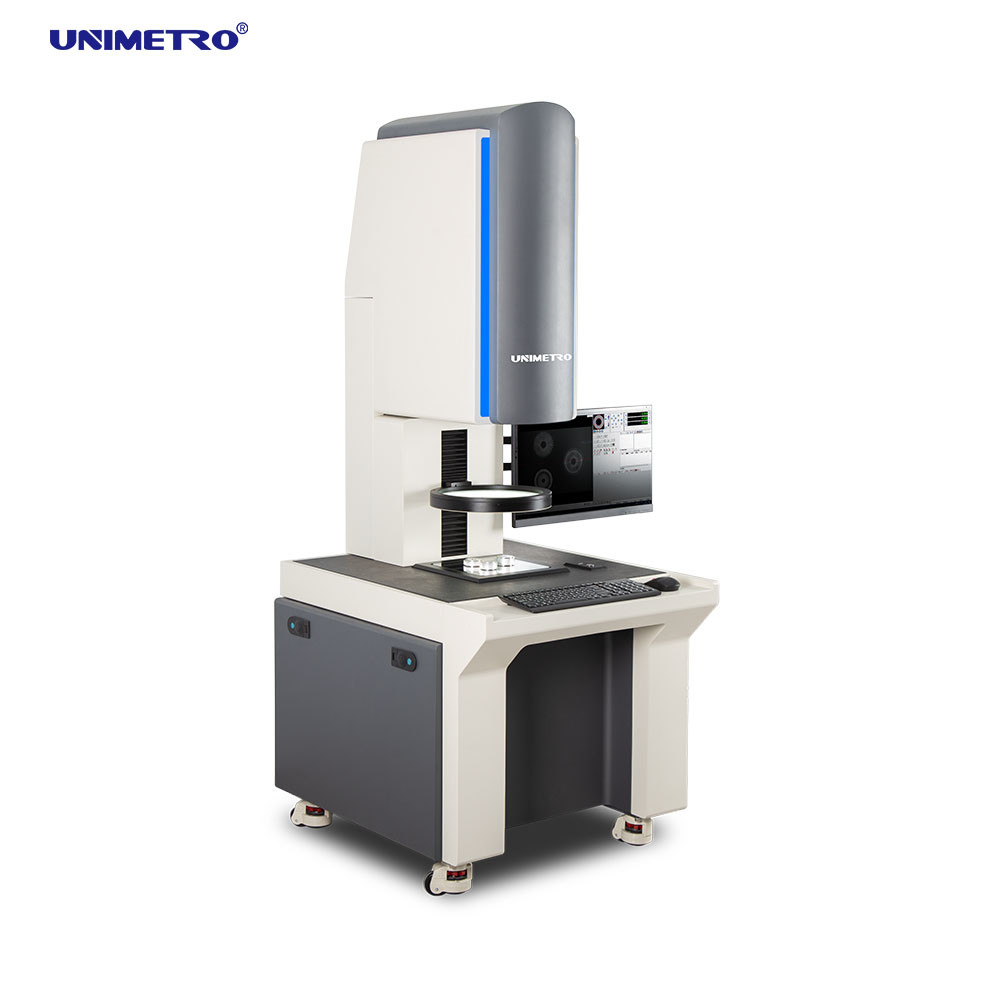

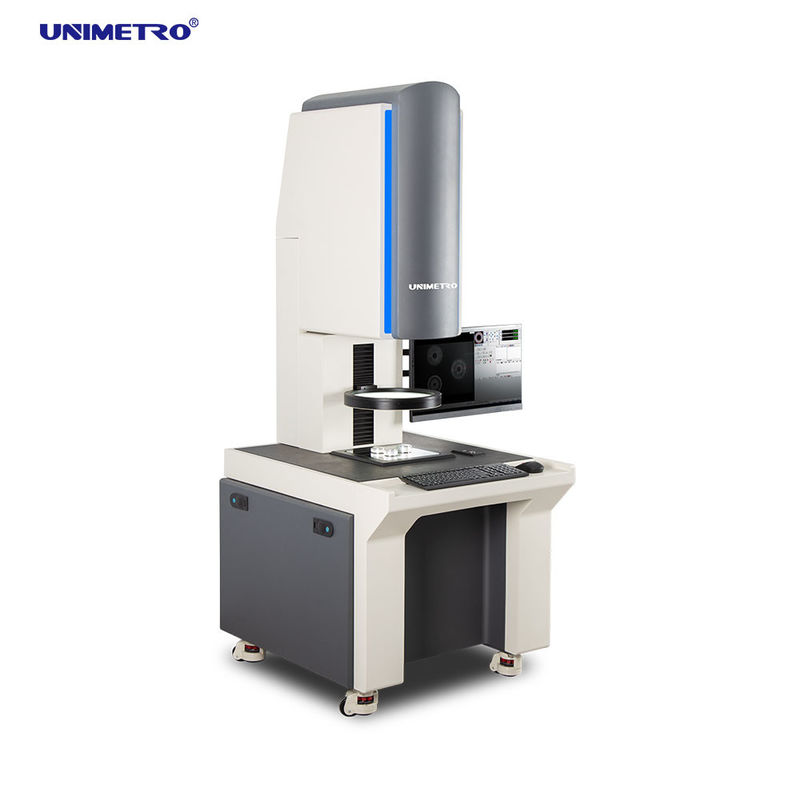

Large FOV Image Dimension Measurement System 0.1um Display Resolution

Basic Information
Place of Origin: Guangdong, China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: AVANT190
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case+ Vacuum package
Delivery Time: 10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80sets per month
Detail Information
Model: AVANT 190 Product Name: Integrated Image Dimension Measuring System With Big Measuring FOV
Dimension: 812*964*2076mm Repeatability: ±3(Coordinate Table Not Moving)
Display Resolution: 0.1um Warranty: 12 Months
Weight: 530KG Broad Vision: 195*130mm
High Light:

Large FOV Image Dimension Measurement System


0.1um Image Dimension Measurement System


530KG Image Dimension Measurement System

Product Description

Large FOV One-Button Precise Video Measuring Machine

A190 Image Dimension Measurement System is a new image measurement technology of UNIMETRO. It is different from the traditional 2D image measurement instrument in that it no longer needs the grating ruler displacement sensor as the accuracy standard, nor does it need to enlarge the product image through the lens with large focal length to ensure the measurement accuracy.The structure of the fuselage is simple. It does not need the grating ruler of displacement sensor. It only needs the telecentric zoom lens with large viewing angle and large depth of field, high pixel CCD camera and powerful background software.

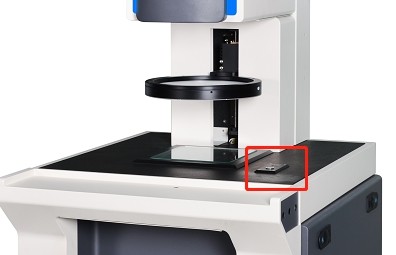

Large FOV Image Dimension Measurement System 0.1um Display Resolution 0




Product Name  Large FOV One-Button Precise Video   Measuring Machine
Model  AVANT190
Image sensor  20MP HD color digital camera
External display  24'
Light receiving lens  Single/double telecentric lens
Illumination Drop shot system  Single zone ring directional lighting (white light
Transmission   Parallel transmission illumination (white light)
Broad Vision(mm)   195*130mm
Repeatability Broad vision   ±3(Coordinate table not moving)
Measurement Software   INS/F
Display resolution   0.1um
Z-direction electric coordinate table Moving range  100mm
Dimension   812*946*2076
Weight   530KG
Power Supply   100-240VAC,50/60HZ




Large FOV Image Dimension Measurement System 0.1um Display Resolution 1



Fast & efficient:
 The product can be placed arbitrarily without additional fixtures to fix and position.
 Fast measurement, up to 512 locations can be measured at the same time.
 To make batch measurement more efficient, batch measurement can be carried out quickly and accurately in CNC mode.

Accurate & consistent:
 With just one button, anyone can easily obtain accurate and consistent measurement results.
 Software auto focus, no deviation caused by focus adjustment.
 Automatically identify the measurement location, obtain uniform and stable measurement results.

Easy to operate:
 Anyone can get started quickly, saving manual training time and improving work efficiency.
 Simple operation interface, the operator can quickly find the corresponding function and measure it.
 Virtual lines and virtual points can be created to meet more measurement requirements.





Plastic parts
Electronic parts
Gear parts
Rubber parts
Metal parts
Stamping molds
Phone parts
Large FOV Image Dimension Measurement System 0.1um Display Resolution 2




Dongguan UNIMETRO Precision Machinery Co., Ltd is a manufacturer of metrology products with 10 years of experience. We are specialized in providing professional measuring solutions for end-users.

Unimetro metrology not only has core products such as image measuring instrument, coordinate measuring instrument and contour projector, but also has core components of optical metrology, such as CMM controller, lens, camera system, grating ruler, CMM and CMM fixture, light source system, etc.


Our customers are widely distributed in hardware, mold, circuit board, electronic components, plastic/rubber products, stamping parts, clocks and watches, connectors, automobile testing tools, automobile manufacturing, touch screen testing and other fields, bottle blank testing and other industries. In quality assurance, product design, process control, and other important links have become a reliable partner of many well-known enterprises.
