Compact Design Image Dimension Measurement Machine With Large FOV

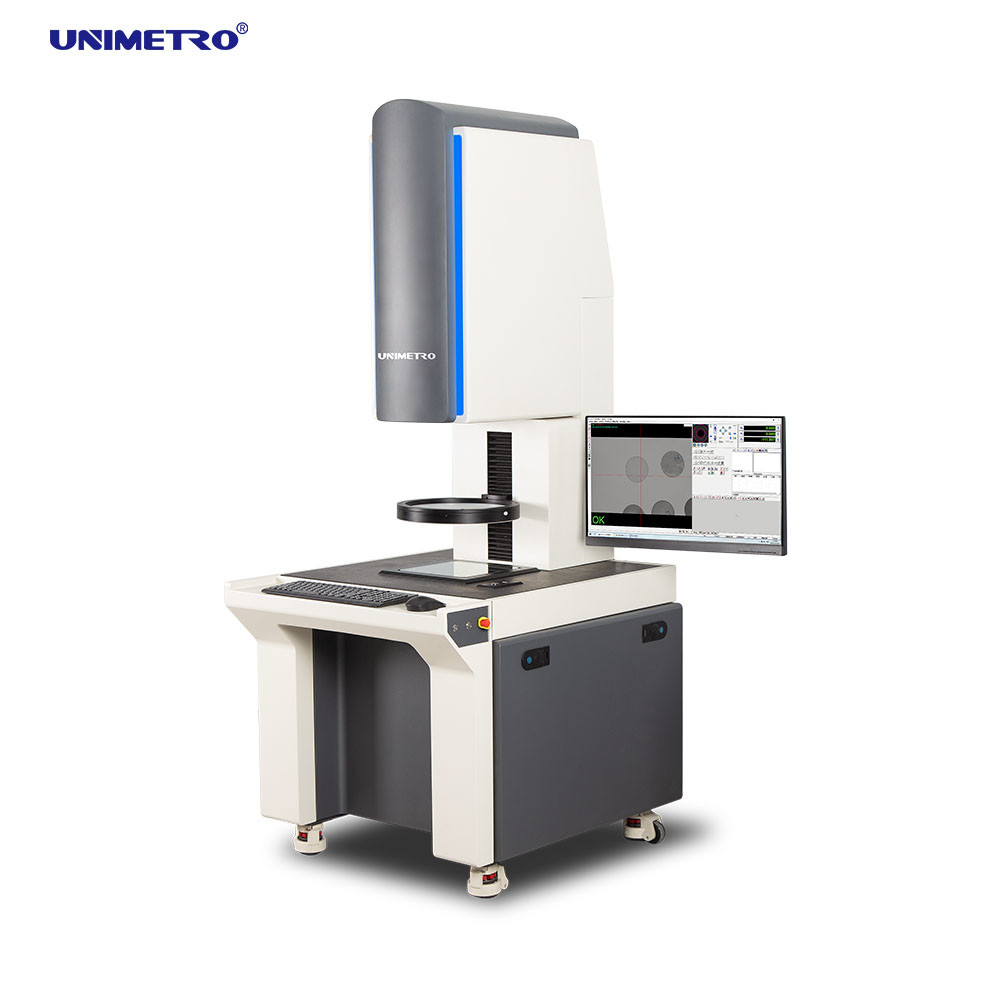

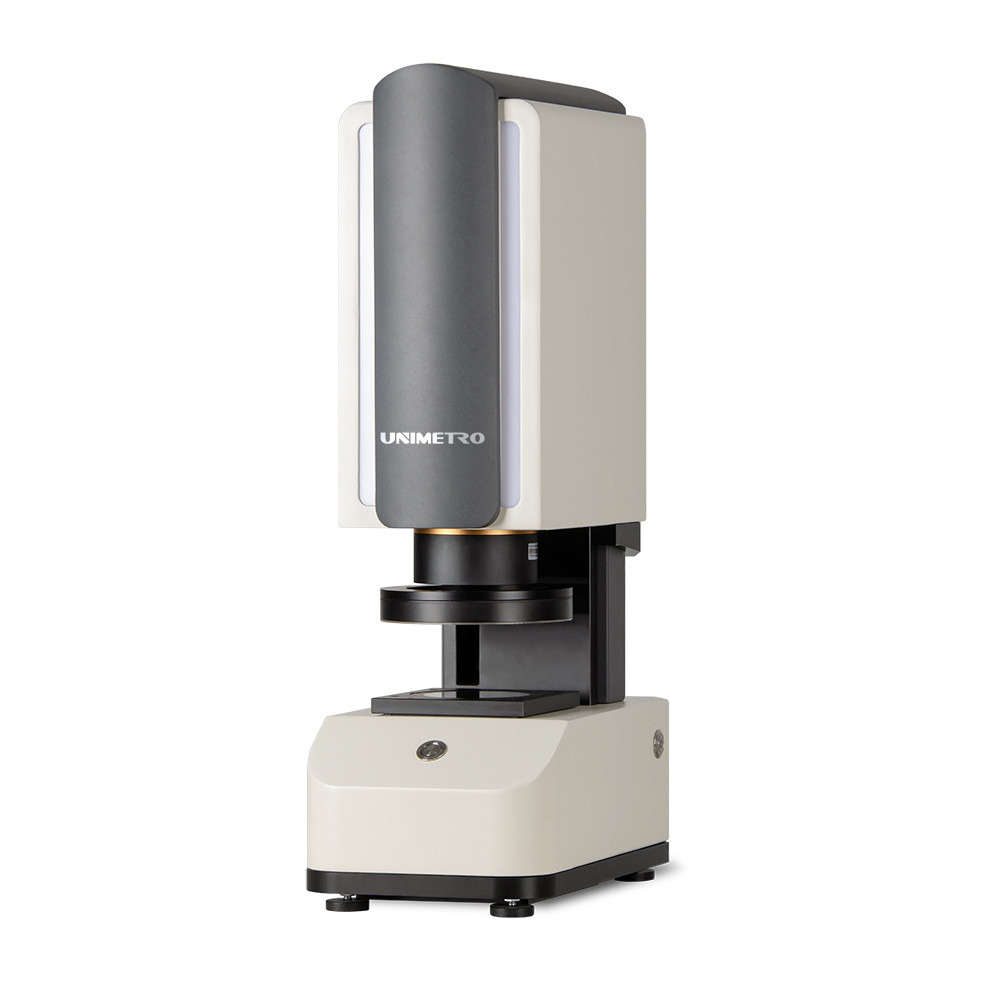

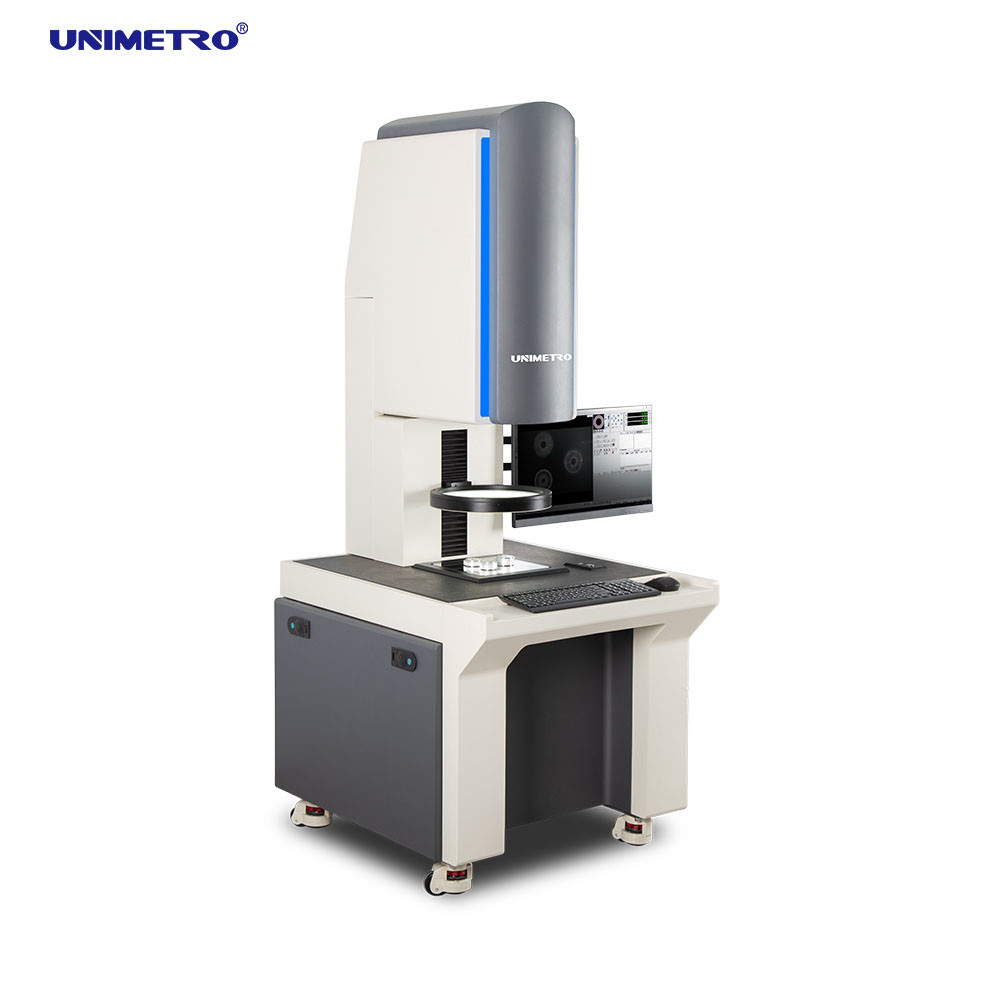

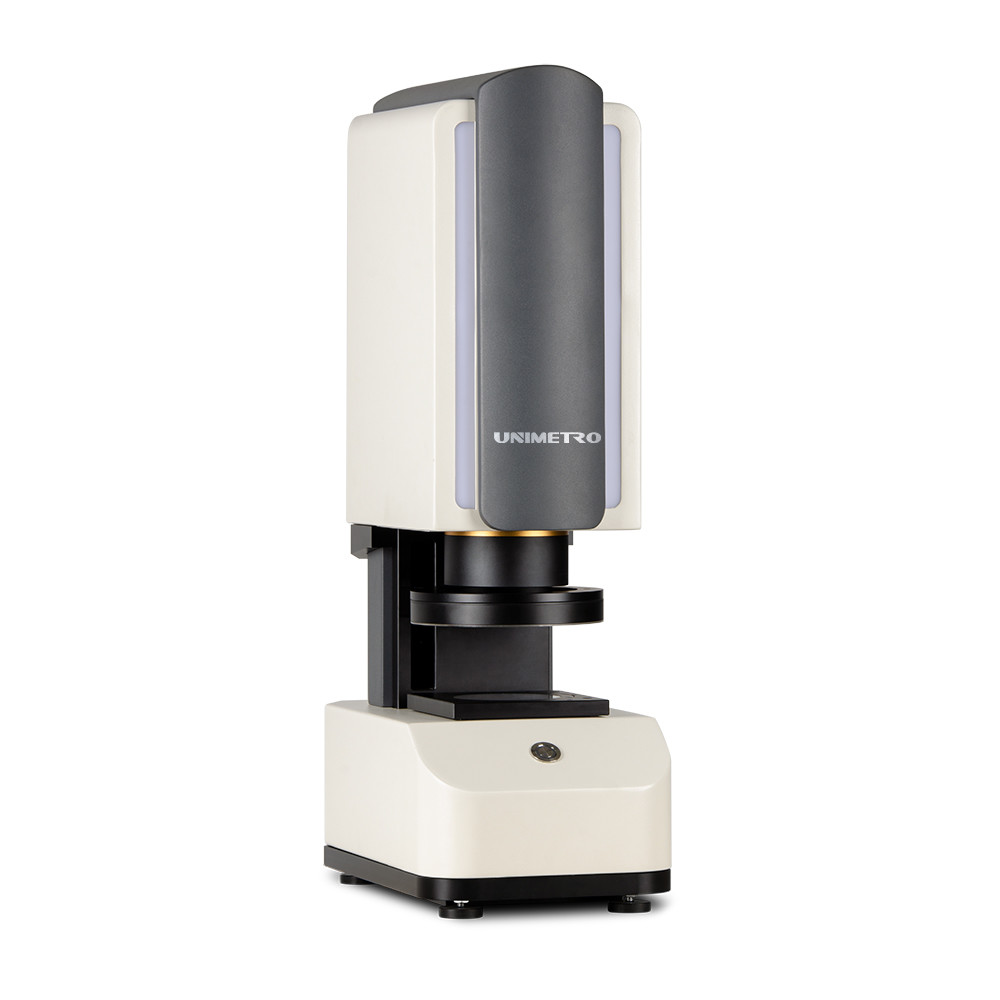

A100 Image Dimension Measurement System is a new image measurement technology of UNIMETRO. It is different from the traditional 2D image measurement instrument in that it no longer needs the grating ruler displacement sensor as the accuracy standard, nor does it need to enlarge the product image through the lens with large focal length to ensure the measurement accuracy.
The structure of the fuselage is simple. It does not need the grating ruler of displacement sensor. It only needs the telecentric zoom lens with large viewing angle and large depth of field, high pixel CCD camera and powerful background software.

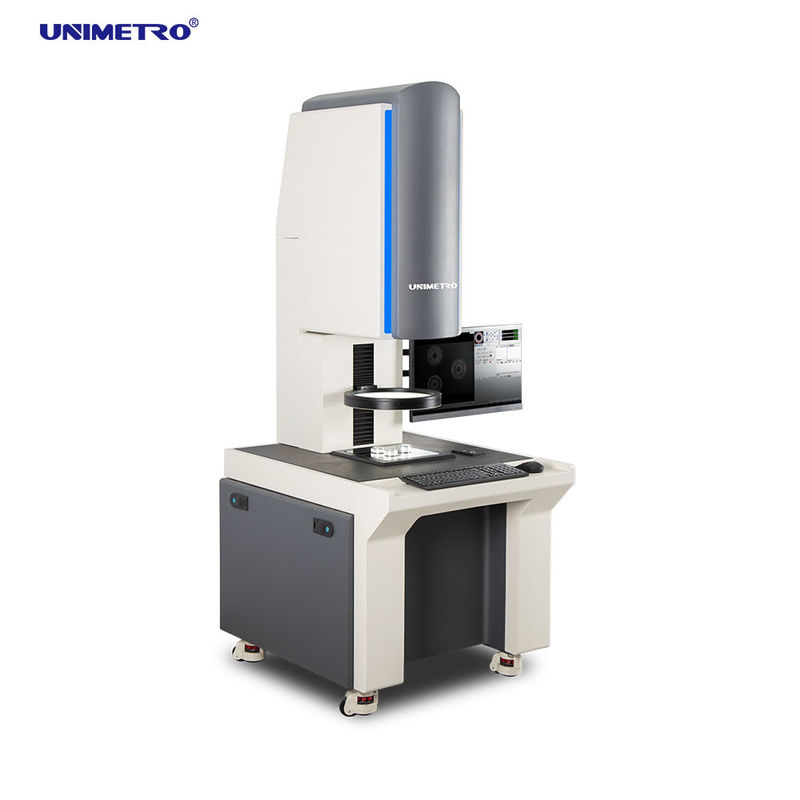

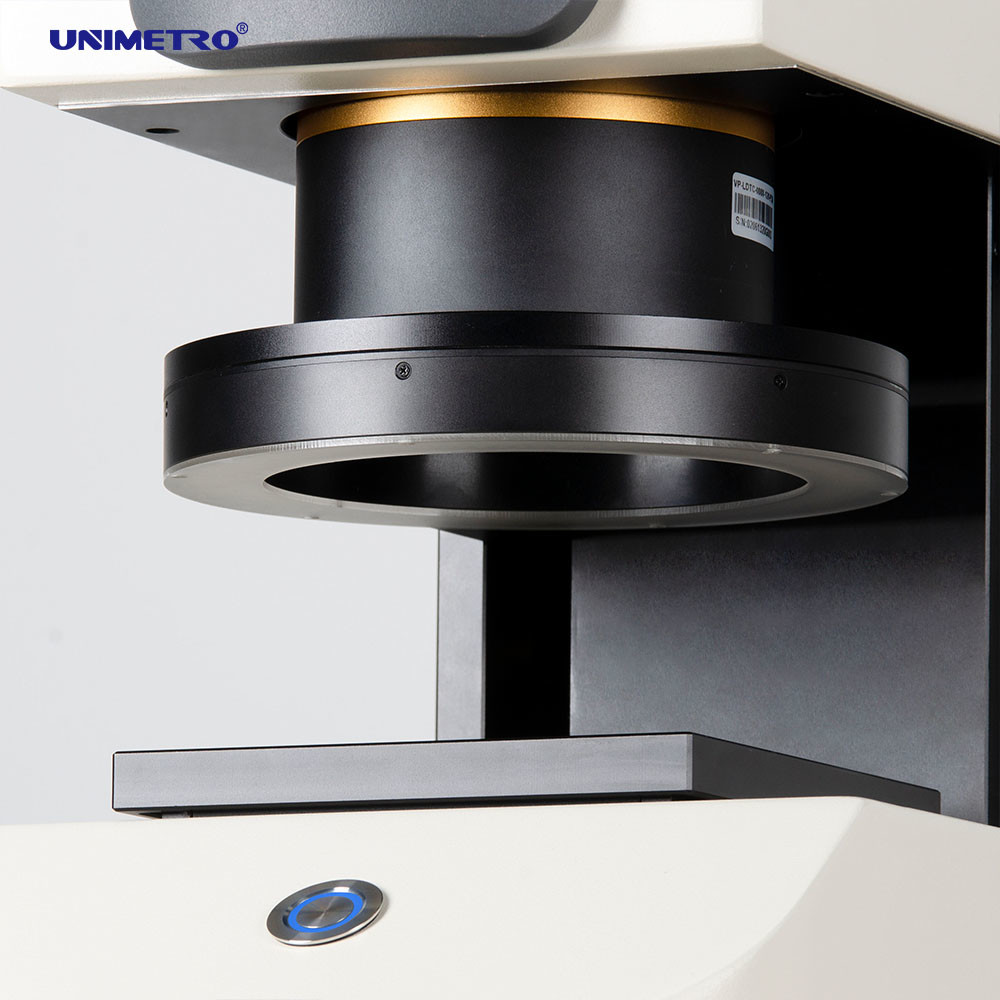

Through the double telecentric optical lens with large viewing angle and large depth of field, using high-speed digital processing function, combined with high-precision image analysis algorithm, it can complete the evaluation of dimensional tolerance at the same time with only one key. It is widely used in machinery, electronics, mold, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, terminals, mobile phones, household appliances, printed circuit boards, medical equipment, watches, knives and other fields.
Characteristics
Fast and efficient:
1. Products can be placed on the workbench at will, without additional fixture to fix and position.
2. Rapid measurement, up to 512 parts can be measured at the same time.
3. Make batch measurement more efficient, and batch measurement can be carried out quickly and accurately in CNC mode.
Accurate and consistent:
1. With one click, anyone can easily obtain accurate and consistent measurement results.
2. Software autofocus, no deviation caused by focus adjustment.
3. Automatic identification of the measurement position, each time can obtain unified and stable measurement results.
Easy and simple:
1. Anyone can get started quickly, saving the time of manual training and improving work efficiency.
2. Simple operation interface, the operator can quickly find the corresponding function and measure.
3. Virtual lines and virtual points can be created to meet more measurement requirements.
Parameters
| Product Name |
One-Key Video Measuring Instrument VMS
|
| Model |
AVANT100
|
| Image sensor |
20MP HD color digital camera
|
| External display |
24'
|
| Light receiving lens |
Single/double telecentric lens
|
| Illumination |
Drop shot system
|
Single zone ring directional lighting (white light
|
| Transmission |
Telecentric transmission illumination (white light)
|
|
Broad Vision(mm)
|
83*63mm
|
|
Repeatability
|
Broad vision
|
±3(Coordinate table not moving)
|
|
Measurement Software
|
INS/F
|
|
Display resolution
|
0.1um
|
|
Z-direction electric coordinate table
|
Moving range
|
100mm
|
|
Dimension
|
240*415*770
|
|
Weight
|
50KG
|
|
Power Supply
|
110-240VAC,50/60HZ
|
