Upgrade Your Measurement Process with One-Key Video Measuring Instrument VMS for Image Dimension Measurement

Basic Information

Place of Origin:	Guangdong, China
Brand Name:	UNIMETRO
Certification:	CE,ISO
Model Number:	AVANT100

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case+ Vacuum package
Delivery Time:	10 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	80 sets per month

Get Best Price Contact Now

Detail Information

Model:	AVANT 100	Product Name:	Fast Inspection One-Key Video Measuring Instrument VMS
Dimension:	240415770mm	Repeatability:	±3（Coordinate Table Not Moving）
Display Resolution:	0.1um	Warranty:	12 Months
Weight:	50KG	Broad Vision:	83*63mm
Highlight:	50KG Video Measuring System , Video Measuring System VMS , Video Measuring System 60HZ

Product Description

Fast Inspection One-Key Video Measuring Instrument VMS

Describing

A100 Image Dimension Measurement System is a new image measurement technology of UNIMETRO. It is different from the traditional 2D image measurement instrument in that it no longer needs the grating ruler displacement sensor as the accuracy standard, nor does it need to enlarge the product image through the lens with large focal length to ensure the measurement accuracy.The structure of the fuselage is simple. It does not need the grating ruler of displacement sensor. It only needs the telecentric zoom lens with large viewing angle and large depth of field, high pixel CCD camera and powerful background software.

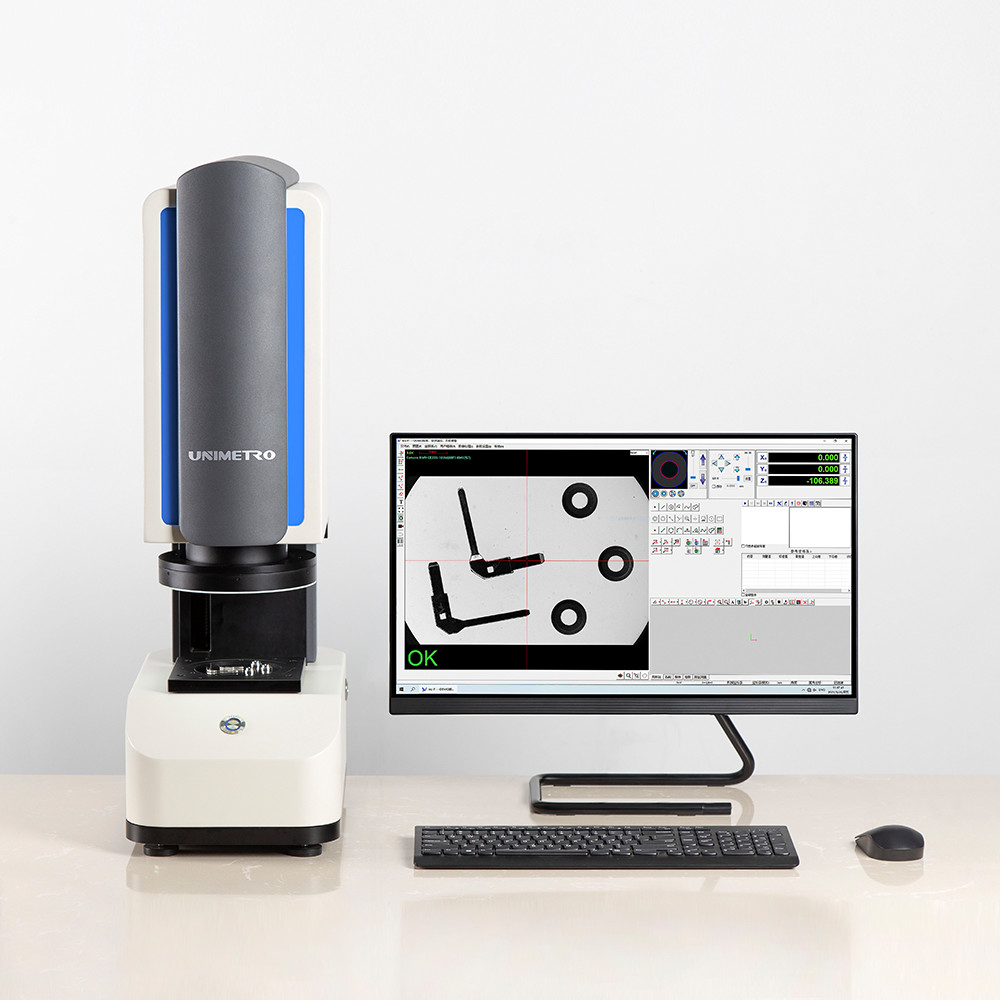

Upgrade Your Measurement Process with One-Key Video Measuring Instrument VMS for Image Dimension Measurement 0

Parameters

Product Name		One-Key Video Measuring Instrument VMS
Model		AVANT100
Image sensor		20MP HD color digital camera
External display		24'
Light receiving lens		Single/double telecentric lens
Illumination	Drop shot system	Single zone ring directional lighting (white light
	Transmission	Telecentric transmission illumination (white light)
Broad Vision(mm)		83*63mm
Repeatability	Broad vision	±3(Coordinate table not moving)
Measurement Software		INS/F
Display resolution	0.1um
Z-direction electric coordinate table	Moving range	100mm
Dimension	240415770
Weight	50KG
Power Supply	110-240VAC,50/60HZ

Features

◆ Solve the problem of traditional measuring instruments

◆ Fast and efficient

◆ Accurate and consistent

◆ Easy and simple, Fast and simple operation process

Application

Plastic parts

Electronic parts

Gear parts

Rubber parts

Metal parts

Bearing

Stamping molds

Phone parts

etc.

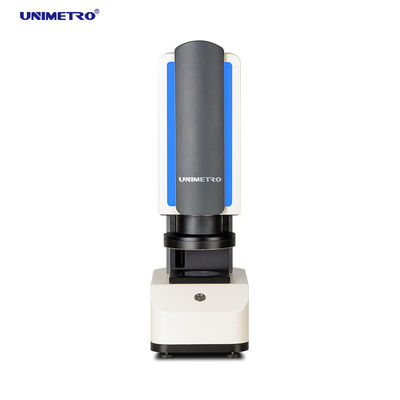

Upgrade Your Measurement Process with One-Key Video Measuring Instrument VMS for Image Dimension Measurement 1

Company Information

Our Client&Agent

FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory and giving you the quickest reply in 24 hours.
Q2: What's your company mainly in?
A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q3: How to Choose the Appropriate Specification?
A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Q4: Do you accept customized service?
A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
