Detail Information

Product Name:	Digital Microscope	Lens Magnification:	0.7、1.0、1.5、2.0.、3.0、4.0、4.5X
Bracket Lifting Range:	40mm	Base Size:	380*260mm
Column Height:	300mm	Camera Shutter Speed:	1/50s(1/60s)～1/10000s
OSD:	Full Digital UI Design / Mouse Operation	Output Mode:	HDMI
Highlight:	Auto Focus Digital Measuring Microscope , HDMI Digital Measuring Microscope , 500W Pixel Camera Digital Measuring Microscope

Product Description

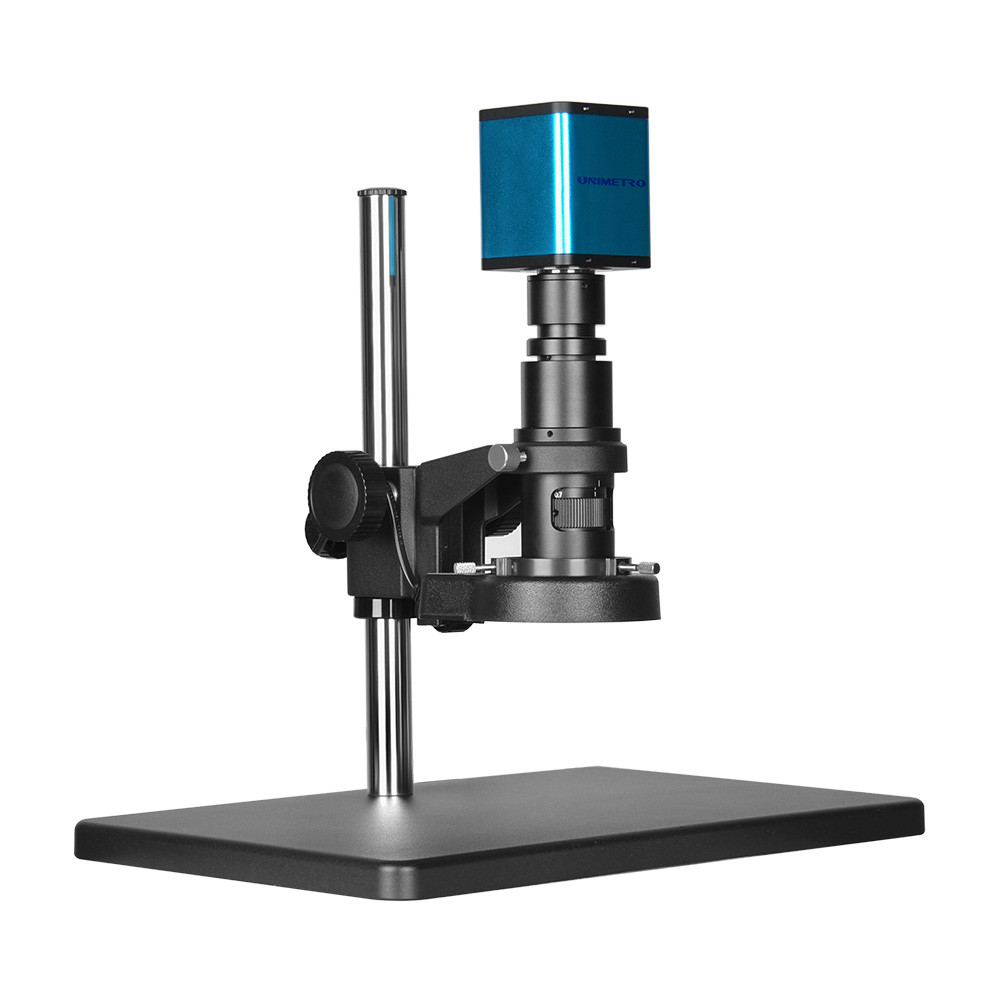

Auto-Focus Measuring Digital Microscope With 500W Pixel Camera

Key Functions

Capture photos, record videos, compare images, display images, measure crosshairs, mark, save and export data without computer
Measure points, lines, circles, arcs and related parameters including spacing, angle, and radian
Automatic edge finding, local amplification, exposure, color and other auxiliary adjustment tools

Digital Microscope HD Optical Imaging

Multifunctional Industrial Camera

HD HDMI output
USB mouse/USB disk compatibility
Photo capture and video recording capabilities

High Definition Optical Physical System

Multi-coating objective lens with DH coated objective lens, copper tube, and no-glare perfect design for detailed imaging. Multi-layer precision process manufacturing ensures clear images.

External Adjustable LED Light Source

Soft light with low heat emission, long lifespan, adjustable light source with no flicker to protect operator eyes.

Technical Specifications

Parameter	Specifications
Lens Magnification	0.7, 1.0, 1.5, 2.0, 3.0, 4.0, 4.5X
Working Distance	80mm
Bracket Lifting Range	40mm
Base Size	380×260mm
Column Height	300mm
Camera Lens Interface	C type
Shutter Speed	1/50s(1/60s)～1/10000s
Effective Pixel	500W pixel
OSD	Full digital UI design / mouse operation
Output Mode	HDMI
Image Sensor	CMOS color / black and white
Storage Mode	U disk storage / photo taking / video recording / measurement
Color	Color / black and white
Frame Rate	1080P@60fps/1080P@50fps
Target Size	1/2.8″
Crosshairs	4 movable lines in horizontal and vertical directions respectively
Measurement Function	Distance measurement of point, line, rectangle, circle, arc, polygon, circle, ruler distance, point to line, line to line, angle automatic edge searching
Total Magnification	About 30-200 times adjustable (with 21 inch monitor)
Field	2.5mm-22mm

Application - PCB Inspection

Company Information

Our Clients & Agents

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory and provide responses within 24 hours.

Q2: What does your company primarily manufacture?

A2: We specialize in Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related equipment.

Q3: How to choose the appropriate specification?

A3: Our professional team will recommend suitable measuring instruments based on your product variety and measurement requirements.

Q4: Do you accept customized service?

A4: Yes, we provide both standard machines and customized solutions tailored to customer needs.

Q5: What is your warranty period?

A5: Our products come with a 1-year warranty. We have enhanced durability on breakable parts to ensure product quality and reliability.
