Detail Information

Product Name:	Video Microscope	Lens Magnification:	0.7、1.0、1.5、2.0.、3.0、4.0、4.5X
Lens Working Distance:	80mm	CCD Lens Interface:	C Type
CCD Effective Pixel:	500W Pixel	Image Sensor:	CMOS Color / Black And White
Color:	Color / Black And White	Field:	2.5mm-22mm
Highlight:	Integrated Body Digital Video Microscope , 500W pixel Digital Video Microscope , ISO Digital Video Microscope

Product Description

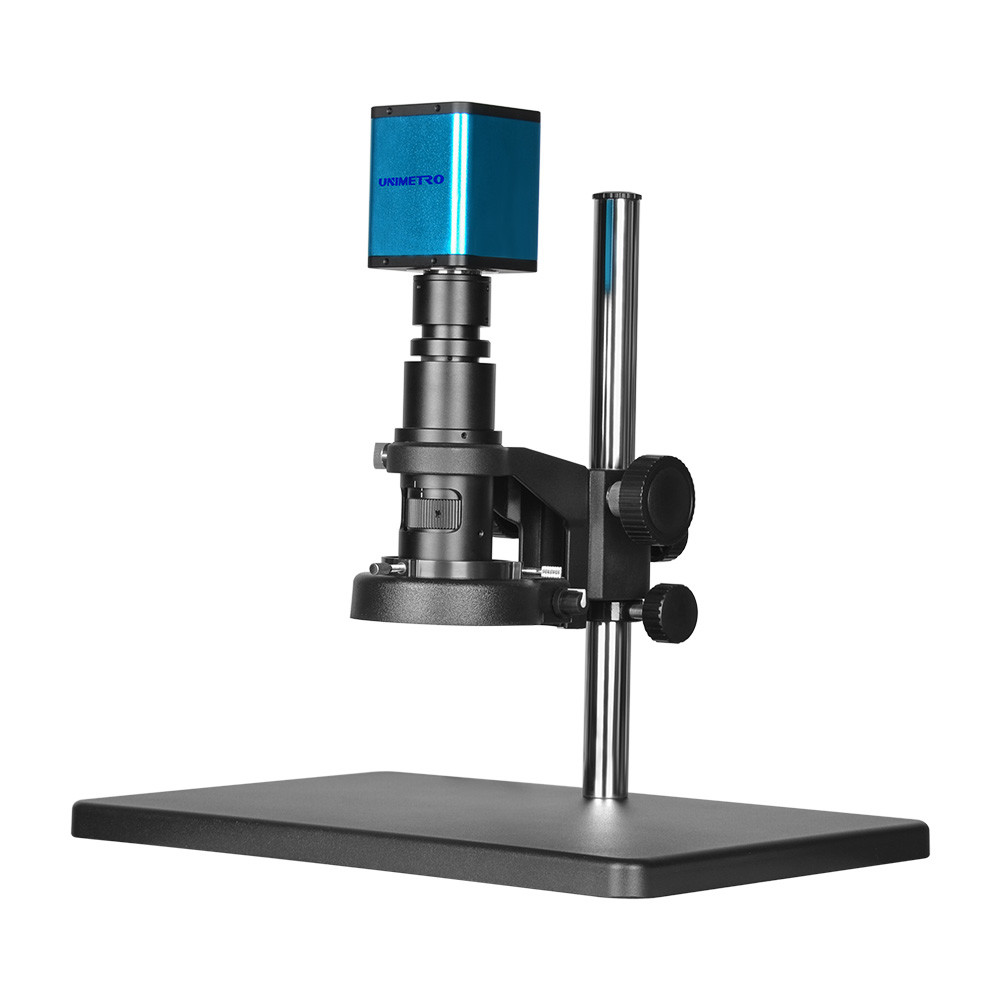

Digital Video Microscope with Integrated Body and Measurement Capability

High Quality Auto Focus Video Microscope With Measurement Function

Video microscopes, also known as digital microscopes, enable sample observation from new angles directly on displays without eyepieces. They capture and save high-quality full-color still images and dynamic HD video footage.

UNIMETRO video microscopes feature an integrated body design with a fully independent optical system. Key capabilities include light source switching, continuous zoom, automatic focusing, and precision measurement functions.

Practical Measurement Functions

Built-in image measurement software for photography, video recording, image comparison, and data export without computer connection
Comprehensive measurement capabilities for points, lines, circles, arcs and related parameters including spacing, angles, and radians
Advanced tools including automatic edge detection, local magnification, exposure adjustment, and color correction

Video Microscope Key Characteristics

Built-in HDMI high-definition output interface with external USB storage for images and videos
USB connectivity for mouse operation convenience
Wide applications in industrial testing, medical observation, teaching, scientific research, and automation systems
Clear imaging with strong three-dimensional perception, long working distance, and wide field of vision
Dedicated lighting options including LED adjustable ring light and fluorescent ring light sources
Direct CCD to HDMI display connection eliminates need for external computer host, saving space

Technical Specifications

Parameter	Specifications
Lens Magnification	0.7, 1.0, 1.5, 2.0, 3.0, 4.0, 4.5X
Working Distance	80mm
Bracket Lifting Range	40mm
Base Size	380×260mm
Column Height	300mm
Camera Lens Interface	C type
Shutter Speed	1/50s(1/60s)～1/10000s
Effective Pixel	500W pixel
OSD Operation	Full digital UI design / mouse operation
Output Mode	HDMI
Image Sensor	CMOS color / black and white
Storage Mode	U disk storage / photo taking / video recording / measurement
Frame Rate	1080P@60fps/1080P@50fps
Target Size	1/2.8〞
Crosshairs	4 movable lines in horizontal and vertical directions
Measurement Functions	Distance measurement of points, lines, rectangles, circles, arcs, polygons; point to line, line to line, angle measurement; automatic edge detection
Total Magnification	Approximately 30-200 times adjustable (with 21 inch monitor)
Field of View	2.5mm-22mm

Video Microscope Application - PCB Inspection

Company Information

Our Clients & Agents

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory and provide responses within 24 hours.

Q2: What does your company mainly produce?

A2: We specialize in Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related precision measurement equipment.

Q3: How to Choose the Appropriate Specification?

A3: Our professional team will recommend suitable specifications based on your product variety and measurement requirements.

Q4: Do you accept customized service?

A4: Yes, we provide both standard machines and custom solutions tailored to specific customer needs.

Q5: What is your warranty period?

A5: Our products come with a 1-year warranty. We have enhanced durability on breakable components to ensure product quality and reliability.
