Optimized Cmm Fixturing System Roundness Measuring Fixture Automatic Rotating Control

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Model Number: UTE-2
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 50 per month
Detail Information
Material: Aluminum Rotating Control: Automatic
Motor: DC Motor RPM: 10 - 20 Rpm For Option
Speed Adjusting: Available V Type Support Material: Ceramic
High Light:

cmm fixture components

,

cmm holding fixtures


Product Description



Optimized CMM Fixture Kits Tool Measuring Fixture Roundness Measuring



Introduction

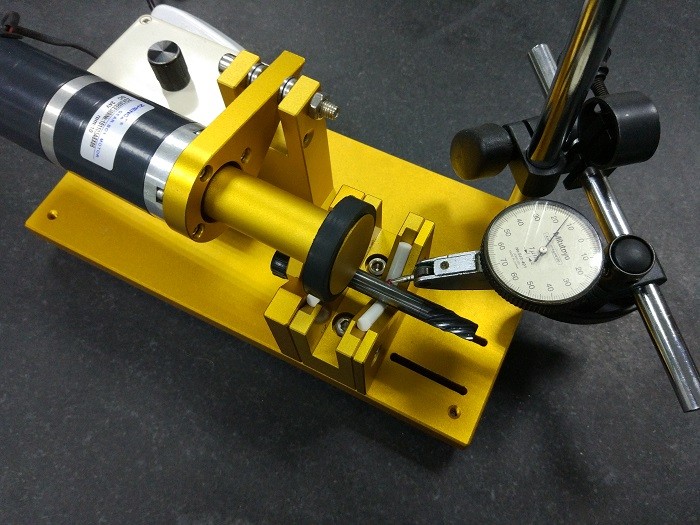

The UTE-2 series tool measurement fixture is with stable aluminum base and DC motor driving, offers stable movement of the tools during measuring process. The speed of the DC motor is adjustable, compatible with different tools with different diameter and ensures much more accurate measuring result.



Optimized Cmm Fixturing System Roundness Measuring Fixture Automatic Rotating Control 0

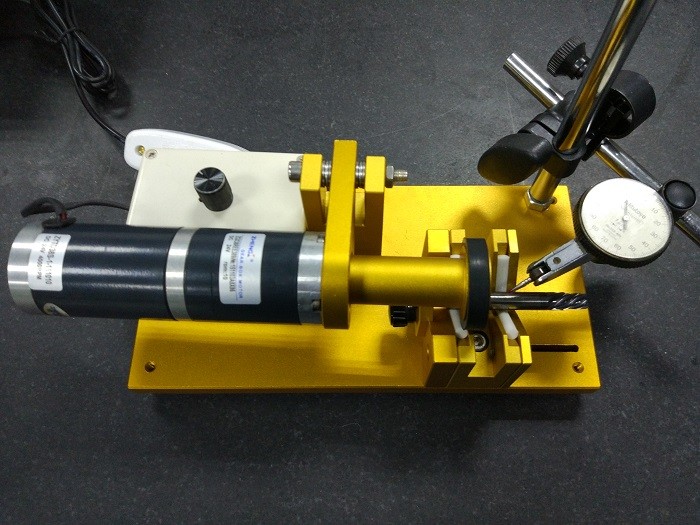

High performance DC motor RPM adjustable RPM



Optimized Cmm Fixturing System Roundness Measuring Fixture Automatic Rotating Control 1

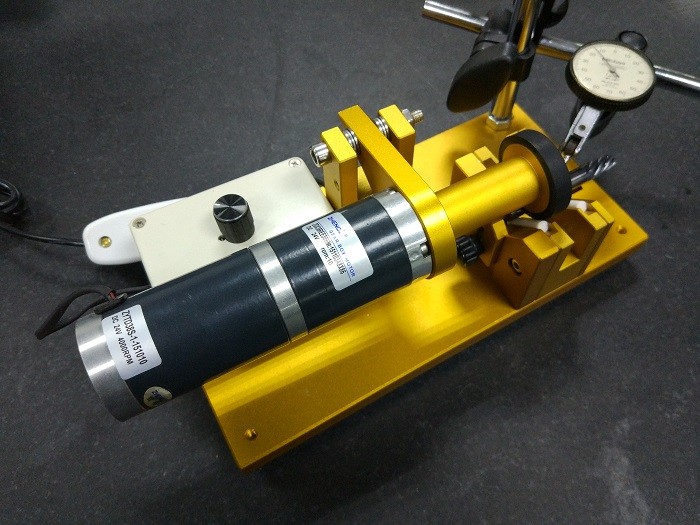

Ceramic V type support



Optimized Cmm Fixturing System Roundness Measuring Fixture Automatic Rotating Control 2



With standard M8 fixing hole for the dial gauge, compatible with most of the dial gauge models



Optimized Cmm Fixturing System Roundness Measuring Fixture Automatic Rotating Control 3



With the end supporter, to fit different tools of 6, 8, 10, 12mm, up to 25 mm.



Optimized Cmm Fixturing System Roundness Measuring Fixture Automatic Rotating Control 4



Using high performance bearing, ensures the stable movement of the tool during measuring.



Optimized Cmm Fixturing System Roundness Measuring Fixture Automatic Rotating Control 5
